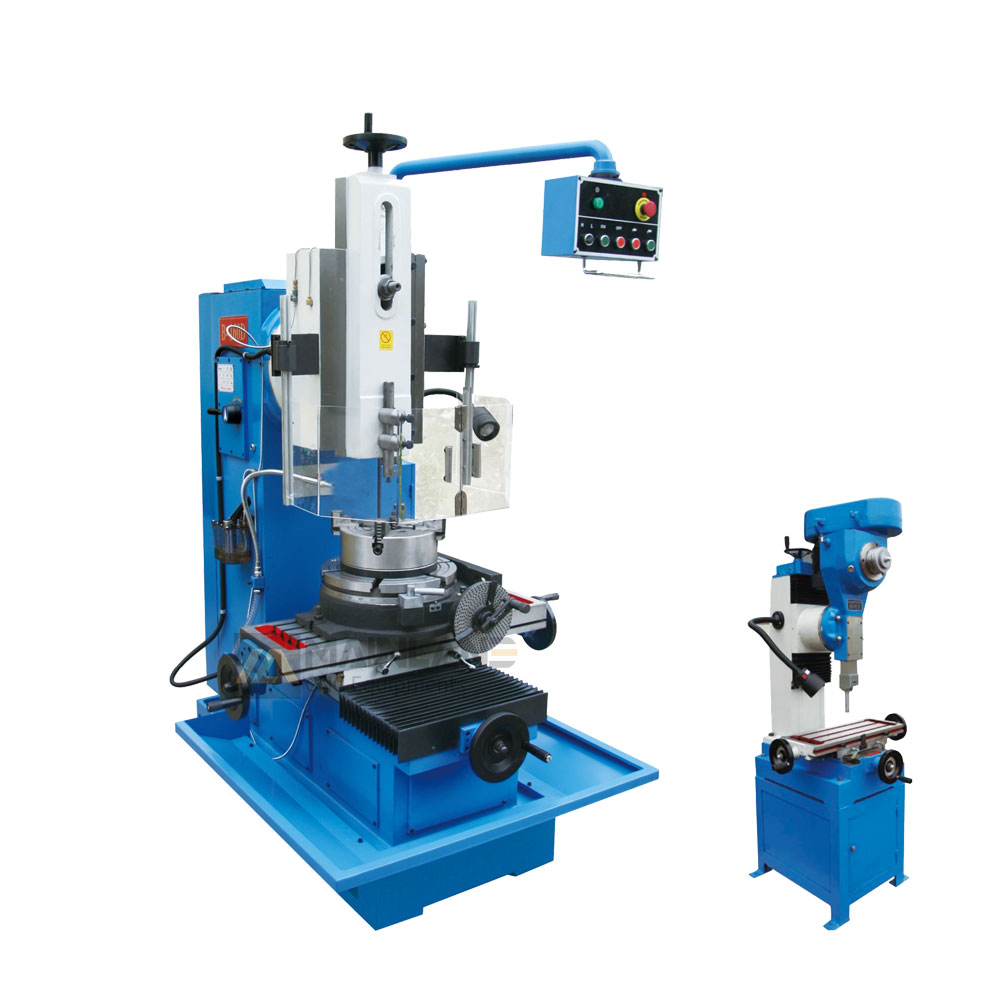

Metal Planer B5016 Vertical Grooving Machine

Click here to contact

Product details

Dimensions (LWH):	130012001800	Video external inspection:	if
place of origin; place of origin:	Shandong China	Applicable industries:	Manufacturing Plants, Mechanical Repair Shops, Energy & Mining
port:	Qingdao, Shanghai	After-sales service provided:	Online support, video technical support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services
Local service location:	Vietnam, Uzbekistan	Voltage:	customer request
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Mechanical test report:	if
weight:	1000	Core Components Warranty:	1.5 years
brand:	mainland	Showroom location:	Vietnam, Malaysia
Main selling point:	easy to operate	Warranty:	1 year
Power (kW):	1.5	Supply capacity:	100 sets per month
Marketing Type:	normal product	product name:	Vertical slotting machine
Health status:	new	Function:	keyway slotted
color:	Client Appointments	Certification:	ISO CE
Core components:	gearbox, gear	Packaging Preview:
Packaging Details:	Plywood case	payment terms:	T/T, Western Union

Specification	unit	B5016C
Maximum slot length	mm	160
strokes per minute		23,32,44,48,67,92
Plunger swing angle	Spend	±45°
Table diameter	mm	350mm(14)
Plunger vertical adjustment	mm	160
The distance between the tool holder surface and the front end of the column	mm	485
The distance between the work surface and the lower end of the slide rail	mm	320
Maximum lateral travel of the table	mm	360
Maximum cross angle of worktable	mm	320
Maximum turning angle of the worktable	Spend	360
Shank size (WXH)	mm	25*40
maximum cutting force	n	4500
Maximum table carrying capacity	KGS	300
The width of the T-slot at the center of the table	mm	14
Main drive motor power	kilowatt	15/0.85
Main drive motor speed	number of revolutions	700/1410
Net weight (approx.)	KGS	1000
Dimensions (LxWxH)	mm	1270x1100x1700
