elbow cold pushing mandrel forming machine
-
Supplier: Wenzhou Okcan Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Grace Wang -
Price: $7000.00 /set -
Min. Order: 1 set
| Automation: | Automatic; | pipe wall thickness grade: | thick-wall chemical industry; |
| max forming specification: | 530mm; | Material / Metal Processed: | Stainless Steel; |
| electric system: | PLC touch panel; | Optional Accessory: | return protection switch; |
| mold mateial: | 50#steel and 55# steel,42CrMo; | Machine Type: | Pipe End Forming Machine; |
| Port: | Ningbo or Shanghai; | forming speed: | depend on the elbow size; |
| Model Number: | YW; | Packaging Detail: | Standard export packing,woodbox loaded,airframe coverd with one layer transparent plastic film.; |
| Extra Services: | End Forming; | Brand Name: | okcan; |
| hydraulic system: | cartridge valve; | Payment Terms: | T/T,Western Union,MoneyGram; |
| Supply Ability: | 20 Set/Sets per Month; | Certification: | ce; |
| machine structure: | four column type and frame type; | forming temperature: | cold forming; |
| Delivery Detail: | 40-50days; | Raw Material: | PIPE; |
| Condition: | New; | Place of Origin: | Zhejiang China; |
| Power: | Hydraulic; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| warranty: | two years; |

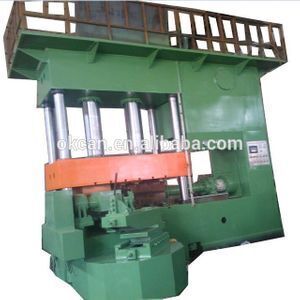

The series of elbow mandrel forming machine
is mainly used for carbon steel, stainless steel 1D, 1.5D elbow cold push molding, push mode has the steel ball and core rod pushing in two ways. Core rod forming push system equipped with a semi-automatic mechanical demolding device.
The host comprises a body(frame),die-closing cylinder ,side pushing cylinder, demolding device. A control mechanism is composed of power station,limiting device ,pipeline and electrical control box, operation box.
The forming principle:pipe blank ,in the tunnel cavity by external locking,is pushed by hydraulic top rod from the guide section into forming cavity equiped inner core bending. then demold by demolding device.the whole process is control by PLC.
Standard export packing,woodbox loaded,airframe coverd with one layer transparent plastic film.
Pressure of main cylinder:160T | Pressure of side cylinder:100T |
daylight:800mm | tablesize:700mm×650mm |
Motor power:11KW | Forming ability:≤φ114×6 |
Pressure of main cylinder:500T | Pressure of side cylinder:300T |
daylight:1400mm | Table size:1600mm×1000mm |
Motor power:30KW | Forming ability:≤φ273×10 |
Pressure of main cylinder :1200T | Pressure of side cylinder :600T |
daylight :2400mm | Table size :3000mm×2000mm |
Motor powe:74KW | Forming ability :≤φ530×12 |
we can offer FOB ,C&F,CIF terms of quotation. our quality guarantee period for 2 years for free and offer life-span cost repairment .
our factory is located in Pingyang ,Wenzhou City.established in 2000 ,and upgraded to limited company in 2013. we have powerful research and development ability and a group of skilled workers.so , we have many series of hydraulic press machine :elbow cold forming machine ,tee cold forming machine ,door skin embossing press ,four column universal press machine , metal sheet deep drawing machine ,frame type press machine ,smc hot press machine ,hot forging machine ,hot extrusion machine ,paperboard deep embossing machine ,eva luggage machine,melamine machine and so on.
-
