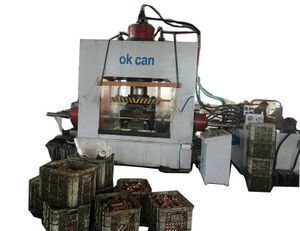

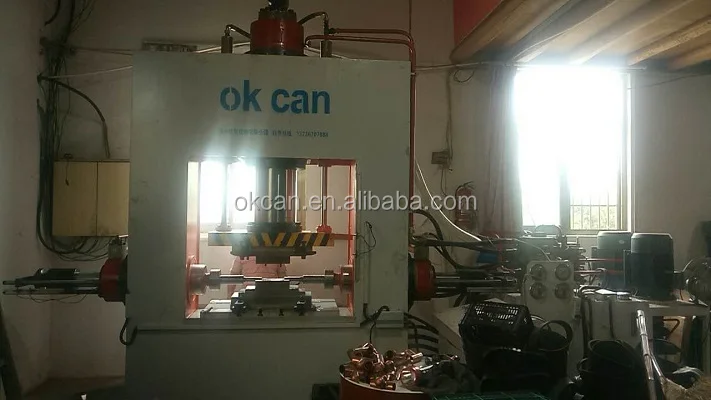

copper tee making machine
-
Supplier: Wenzhou Okcan Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms Grace Wang -
Price: $20000.00 /set -
Min. Order: 1 set
| Place of Origin: | Zhejiang China (Mainland); | Automation: | Automatic; |
| Supply Ability: | 30 Set/Sets per Month; | hydraulic system: | cartridge valve; |
| Raw Material: | PIPE; | Port: | Ningbo; |
| After-sales Service Provided: | Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Extra Services: | Machining; |
| Warranty: | 1 Year; | Brand Name: | okcan; |
| machine structure: | frame type and four column type; | forming temperature: | cold forming (water pressure ); |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Certification: | ce; |
| mold mateial: | 45#steel; | Material / Metal Processed: | Brass / Copper; |
| Power: | Hydraulic; | Packaging Detail: | Standard export packing,woodbox loaded,airframe coverd with one layer transparent plastic film.; |
| minimum forming specification: | 7.8mm; | Optional Accessory: | return protection switch; |
| Machine Type: | Pipe End Forming Machine; | electric system: | PLC touch panel; |
| max forming specification: | 168mm; | suitable material: | copper ,stainless steel ,carbon steel,aluminum; |
| Condition: | New; |

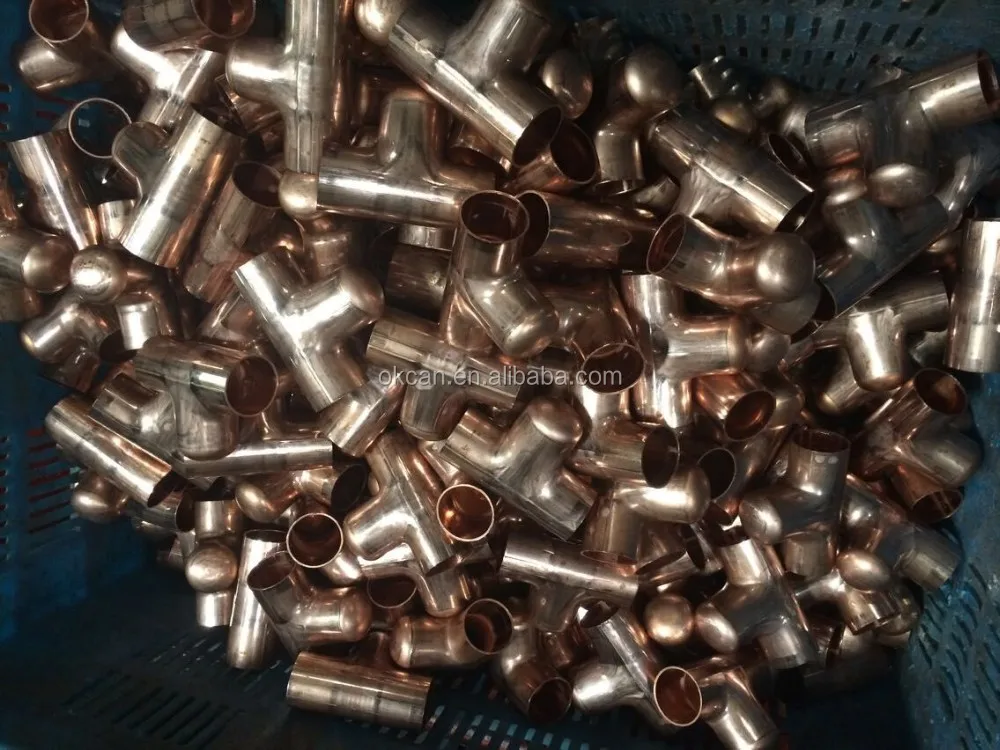

The machine extrusion medium is with water,instead of traditional lead extruding,no environmental pollution.Reasonable mechanical structure, strong rigidity,master cylinder clamping force is big,more fitting extrusion can effectively guarantee the stability of the pipe forming.The use of advanced internal high pressure forming technology,through industrial programmable controller for the pressure in the process of extrusion and speed for dynamic control,in order to realize the optimization of extrusion forming,ensure the shape stability of the product. Can be out of shape Y and T.
Machine modle | YCT-120 | YCT-160 | YCT-250 | YCT-350 |
Clamping force of master cylinder (KN) | 1200 | 1600 | 2500 | 3500 |
Extrusion force(KN) | 400 | 500 | 800 | 1500 |
Max Hydraulic pressure | 20Mpa | 20Mpa | 20Mpa | 20Mpa |
Max water pressure | 150Mpa | 150Mpa | 150Mpa | 150Mpa |
Processing range (mm) | ? 18 | ? 28 | ? 70.5 | ? 110 |
Working efficiency | 10-15 seconds/cycle | 10-15 seconds/cycle | 10-18 seconds/cycle | 10-20 seconds/cycle |
Machine weight |
|
|
|
|
we can offer FOB ,C&F,CIF terms of quotation. our quality guarantee period for one year for free and offer life-span cost repairment .
our factory is located in Pingyang ,Wenzhou City.established in 2000 ,and upgraded to limited company in 2013. we have powerful research and development ability and a group of skilled workers.so , we have many series of hydraulic press machine :smc /bmc composite plastic manhole cover machine ,copper pipefitting production line,hot die forging hydraulic machine,stainless steel and carbon steel pipefitting production line ,steel door skin embossing press ,metal sheet deep drawing machine ,smc hot press machine ,abs/pc and eva luggage production line , eva and metal eyeglasses case case production line,etc
