China Hydraulic Tube Bender/Square & Round Steel Pipe Bending Machine HHW-G76

Product details
Certification:ce;After-sales Service Provided:No overseas service provided;
Raw Material:PIPE;Supply Ability:1000 Set/Sets per Month;
Port:Shanghai/Ningbo;Packaging Detail:plywood case;
Motor:1500w;capacity:16-76mm;
Model Number:HHW-G76;Machine Type:Pipe and Tube Bending Machine;
Year:2003;Delivery Detail:30~40 days after order confimation;
Condition:Used;Place of Origin:Zhejiang China;
Power:Manual;pipe wall thickness:0.5-2mm;
color:yellow;Product name:pipe Bender;
Brand Name:Hongli;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,T/T;
Automation:Manual;Material / Metal Processed:Stainless Steel;
Product Description

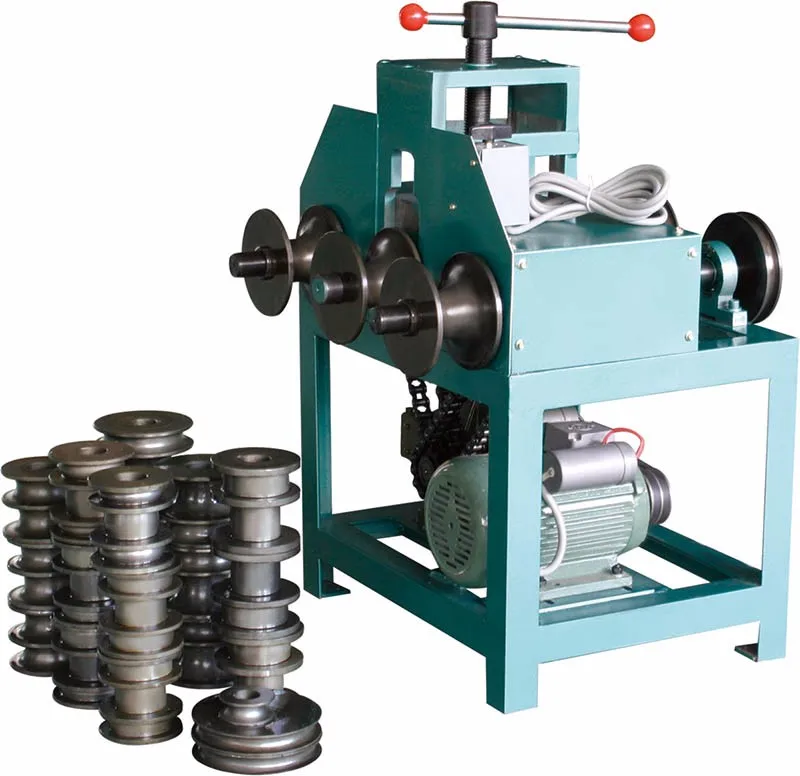

Hydraulic Tube Bender/Square Steel Pipe Bending Machine HHW-G76


HS code for Pipe Benfer: 8462299000


Pipe bender Description:
1. Bend large diameter into full circle or arc easily .
These two model are very suitable for steel pipe of greenhouse bending.
It can bend SS thick pipe ,thick square pipe and soft steel pipe .
Adjust shafts by hand for two main shafts and one driven shaft .


2. If you want to bend pipes into a circular or arc shape ,the diameter of the circle or
arc should be more than twenty times of the pipe diameter .
We can supply bending dies in other specifications according to your requirements.

3. Dies are cast with special steel ,very long usage life.
We will put machine and dies into one plywood case .
Square dies and round dies are available.


Specifications
Model:
HHW-G76
Pipe wall thickness
0.5-2 mm
Standard square dies:
16,19,22,25,32,38,40,50 mm
Standard round dies:
16,19,22,25,32,38,51,63,76 mm
Motor:
1500 W
RPM
1400 rpm

Accessories :

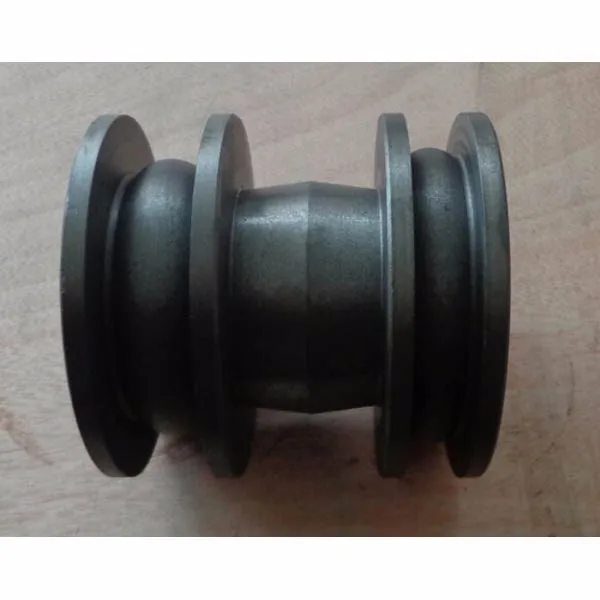

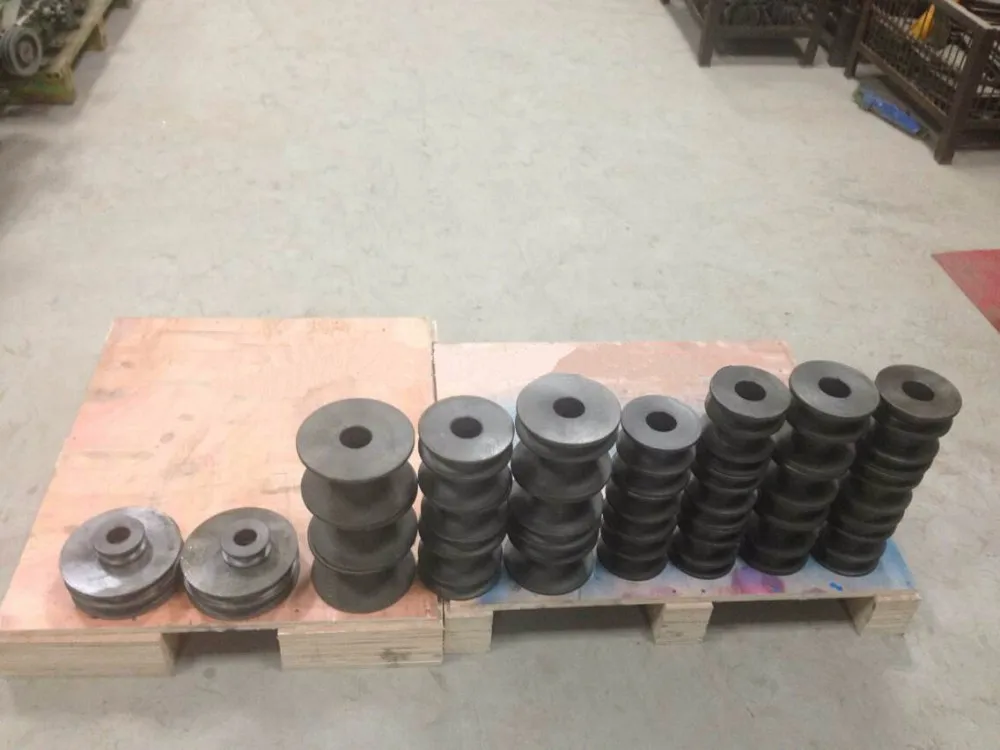

More images of Pipe Bending Dies:

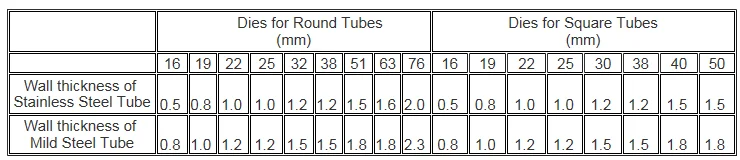

Model
Dies for round tubes (mm)
Dies for square tubes(mm)




HHW-G76
16
30&50(2-IN-1)
19
16&25&40(3-IN-1)
22&63(2-IN-1)
19&22&&38(3-IN-1)
25&51(2-IN-1)

32&38(2-IN-1)

76

Ordering information
Catalog No.
Model No.
Description
G.W.(kg)
2551010
HHW-G76
Pipe bender complete set with all dies, 220 V-50 Hz
250
2551011
HHW-G76
Pipe bender complete set with all dies,240V-50HZ
250
2551012
HHW-G76
Pipe bender complete set with all dies, 380V-50HZ
250
Packing & Delivery
Model no.
G.W.(kg)
Dimension
Packing way
HHW-G76
250
73*63*103 cm

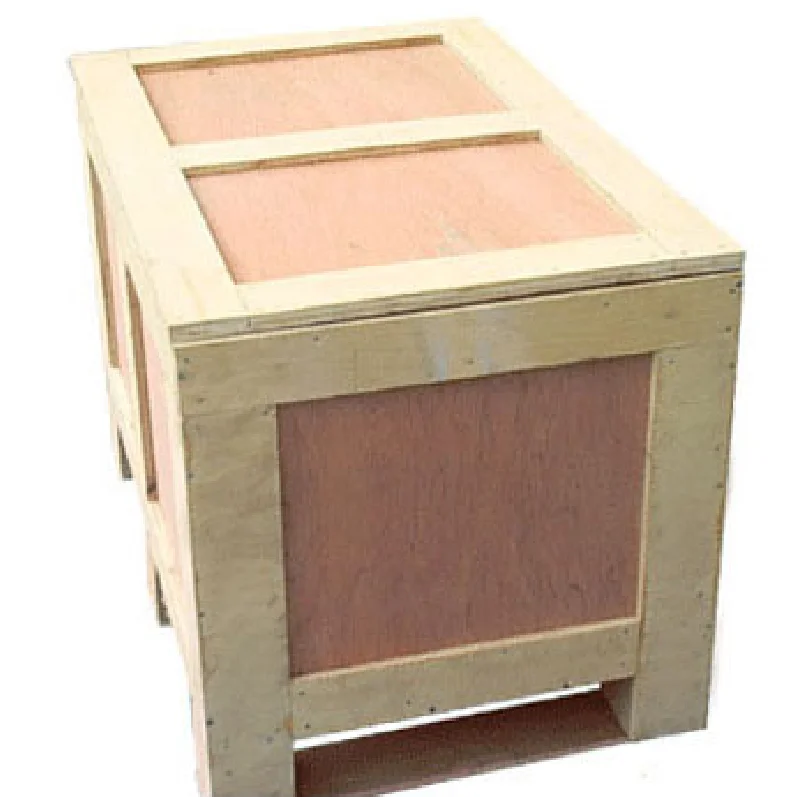

Plywood case
Work shop

Pls contact me without hesitate:

Tel: 0086-571-86260006

Web: http://pipetool.com.cn/

WhatsApp: 0086-13429170236

Wechat (As left image) : amy0236

Skype:sweet-amy0236

QQ: 2756813146

Our Company

Hangzhou Hongli Pipe Machinery Co., Ltd. is a subsidiary company of Hangzhou Hongli Group, specializing in designing and manufacturing pipe tools.
Hangzhou Hongli Group has two companies, Hangzhou Hongli Pipe Machinery Co., Ltd. and Hangzhou Huaxing Machinery Co., Ltd., covering a production area of 25,000 square meters with more than 250 staff members including 15 engineers.

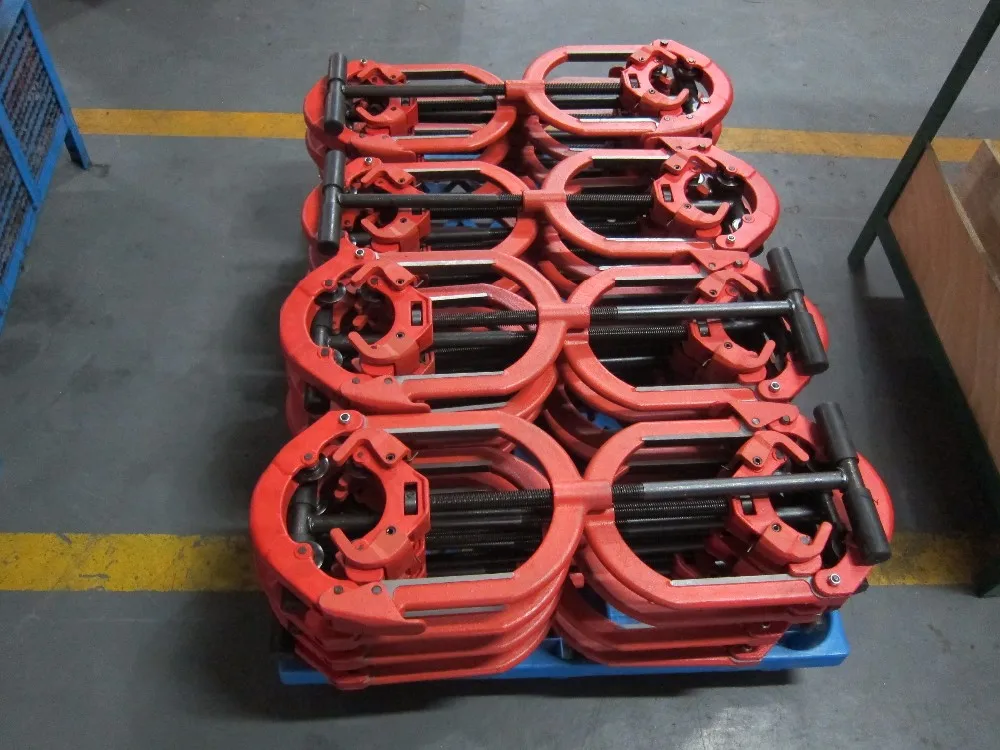

Our company was established in 1986. After years of hard work, our company has been one of the leading manufacturers of pipe tools in China. Our main products include threading machines, core drills, roll groovers, pipe cutters, pipe benders, drain cleaning machines, pressure testing pumps and hole cutting tools. More than 40,000 sets of threaders are available.
Our company keeps developing new products and improving production technology to ensure quality products. The control of quality is the first mission for our company to ensure the best products and service.
In the spirit of "good service for clients", we source power tools, hand tools, and automotive tools from partner factories in China.
We hope to cooperate with all of our old and new clients.
