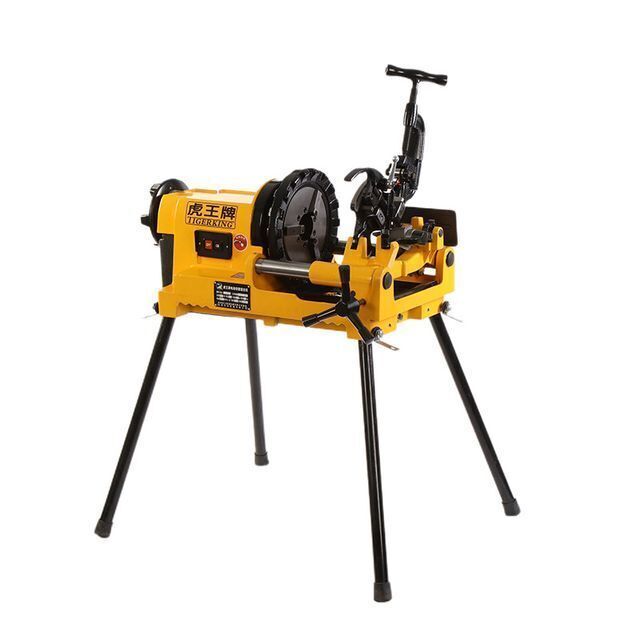

Hongli High High Speed Powerful Drive SQ50E Electric Pipe Threading Machine For Pipe Threading 1/2" To 2"

Click here to contact
Product details
Customized support:OEM,ODM,OBM;Categories:Threading Machines for 2" Pipes;
Weight:75KGS;Certification:CE,ETL;
Warranty:1 years;Rated Voltage:110/220V;
Packaging Detail:Plywood case;Package:Plywood Case;
No-Load Speed:38RPM;Screw Threads:NPT/BSPT;
Frequency:50HZ / 60HZ;Dimensions:80*56*47CM;
Power Source:Electric;dies:universal;
Place of Origin:Zhejiang China;Payment Terms:L/C,Western Union,T/T,MoneyGram;
Port:Shanghai/Ningbo;color:yellow&Grey;
Model Number:SQ50E Threading machine;Supply Ability:1000 Set/Sets per Month;
Capacity:1/2"-2" pipe, 15mm-50mm;Grade:Industrial;
Brand Name:Hongli Pipe Threading Machine;Package Preview:;
Rated Input Power:1500W;Applicable Pipe Thread:1/2"-2"BSPT/NPT;
Product name:Pipe threading machine;warranty:1 Year;
Product Description

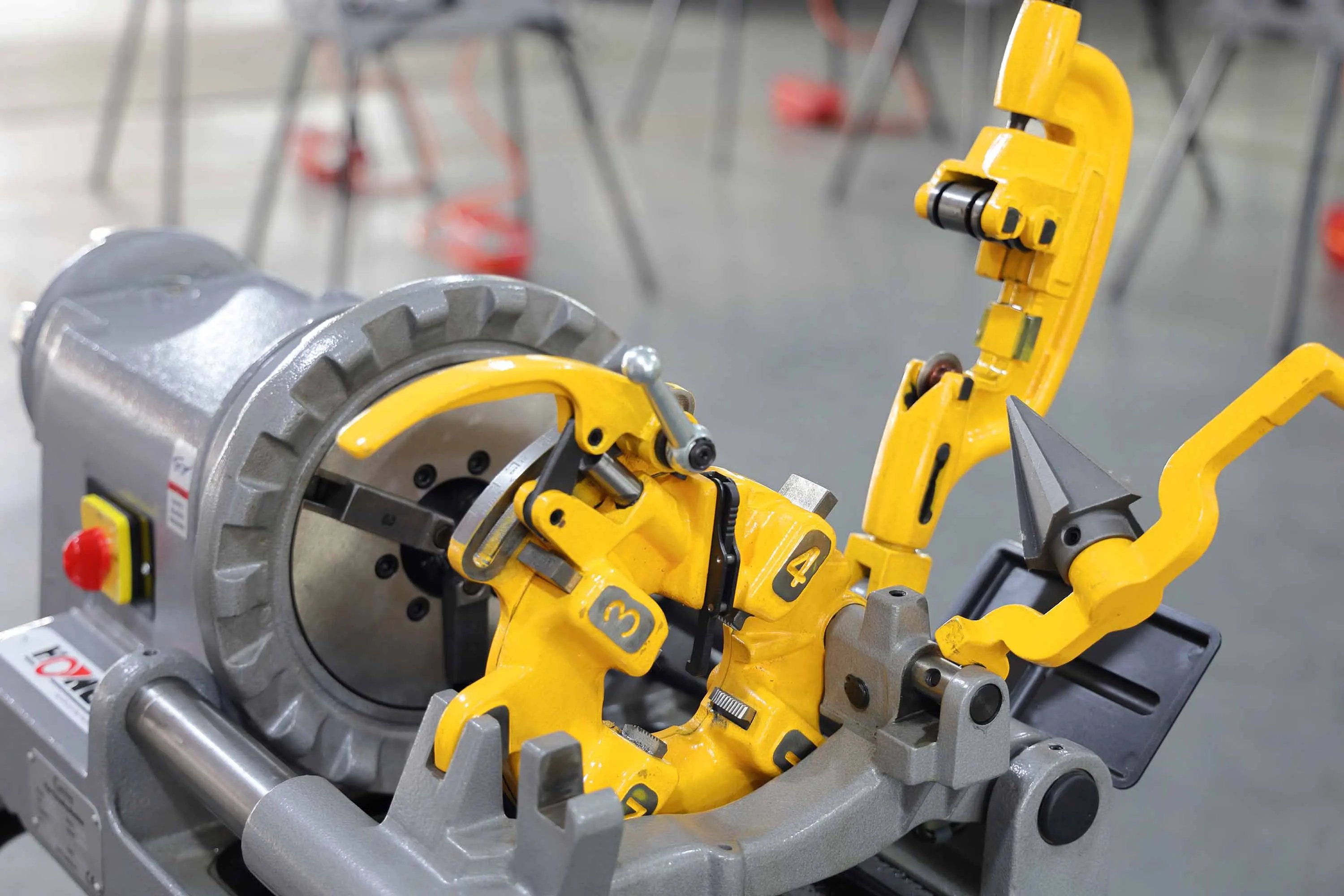

Hongli High Level Pipe Threading Machine ½”-2” (SQ50E)


Model SQ50E Electric Pipe Threading Machine For BSPT or NPT Threader interchangeable with RIDGID 300 Compact Pipe threading machine

Application：
* threads a wide range of pipe： Black Pipe, Cast Iron Pipe, Galvanized Pipe, Steel Pipe, Stainless Steel Pipe
Feature：

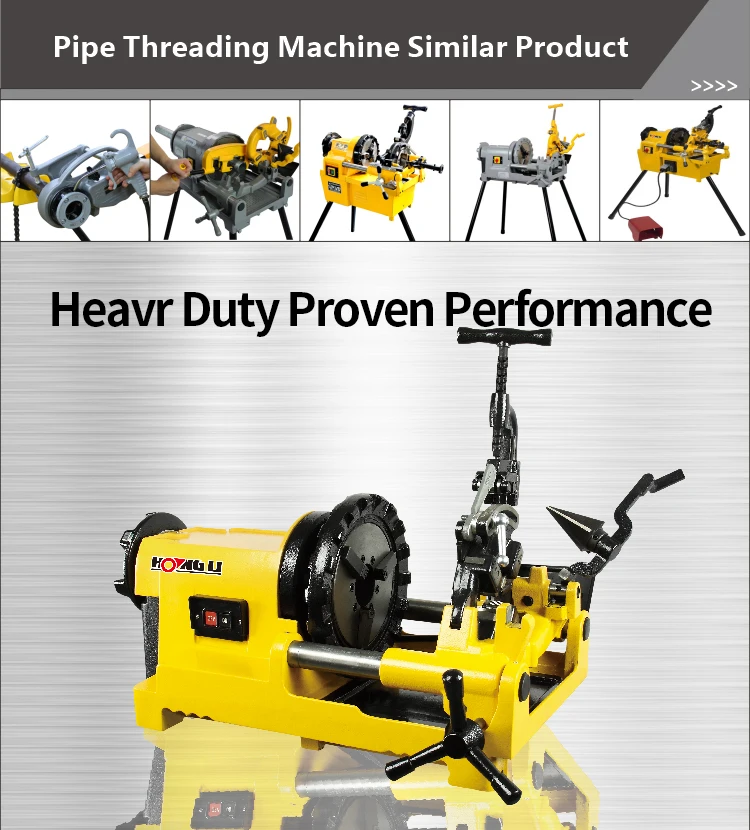

* Heavy-duty proven performance.
* Threads ¼”-2” pipe at 38RPM

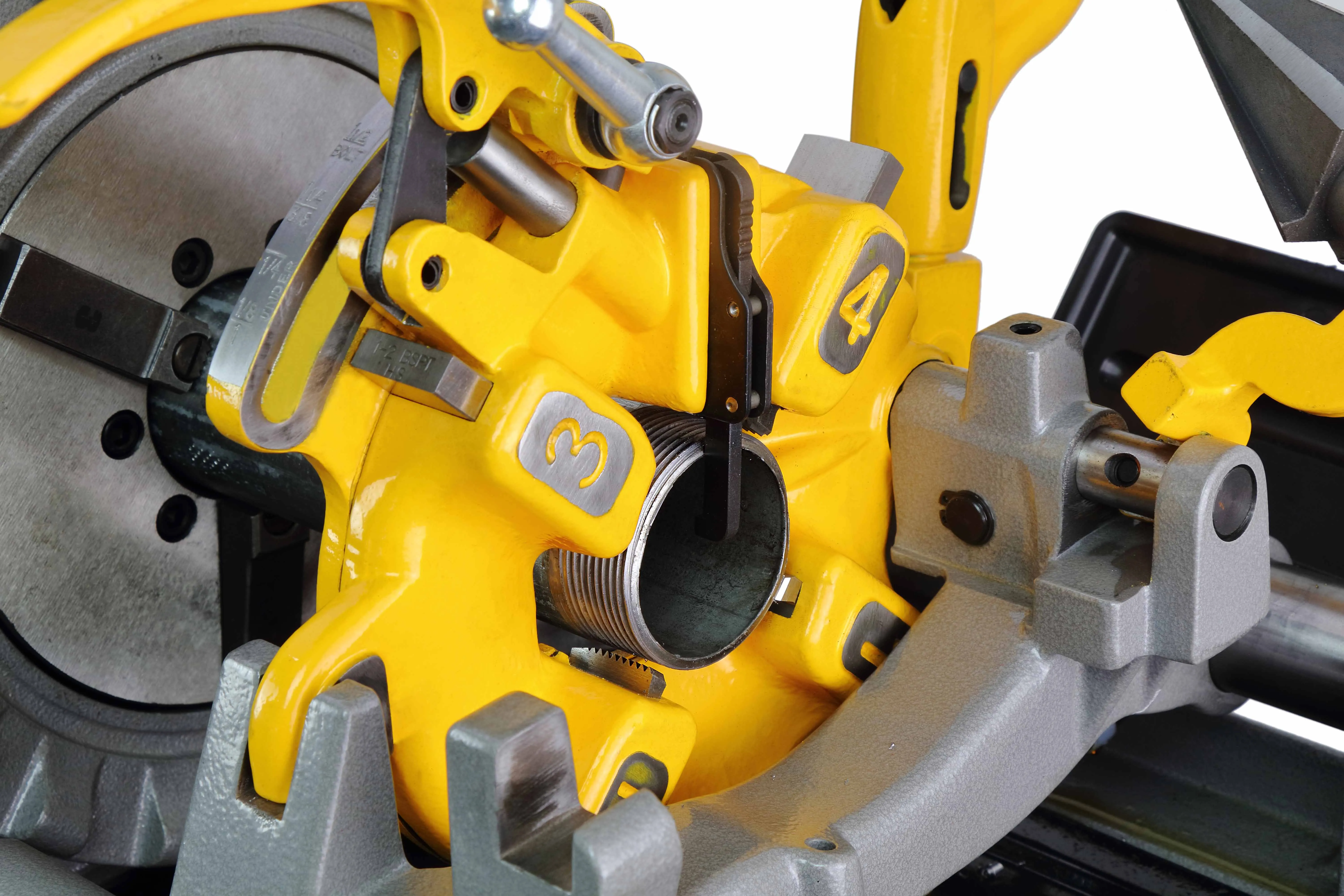

* Standard with one pc 1/2“-2” Self Opening Die Head fits RIDGID ® 815A Die Head
* Standard with one set 1/2"-3/4", HSS dies fits RIDGID ® Dies.
* Standard with one set 1"-2", HSS dies fits RIDGID ® Dies.
* HSS dies Rockwell Hardness (HRC) 58-62
* Each Parts on this machine are work with the RIDGID ® Model 300 Compact
* Pump: Self-priming adjustable flow, gerotor pump.

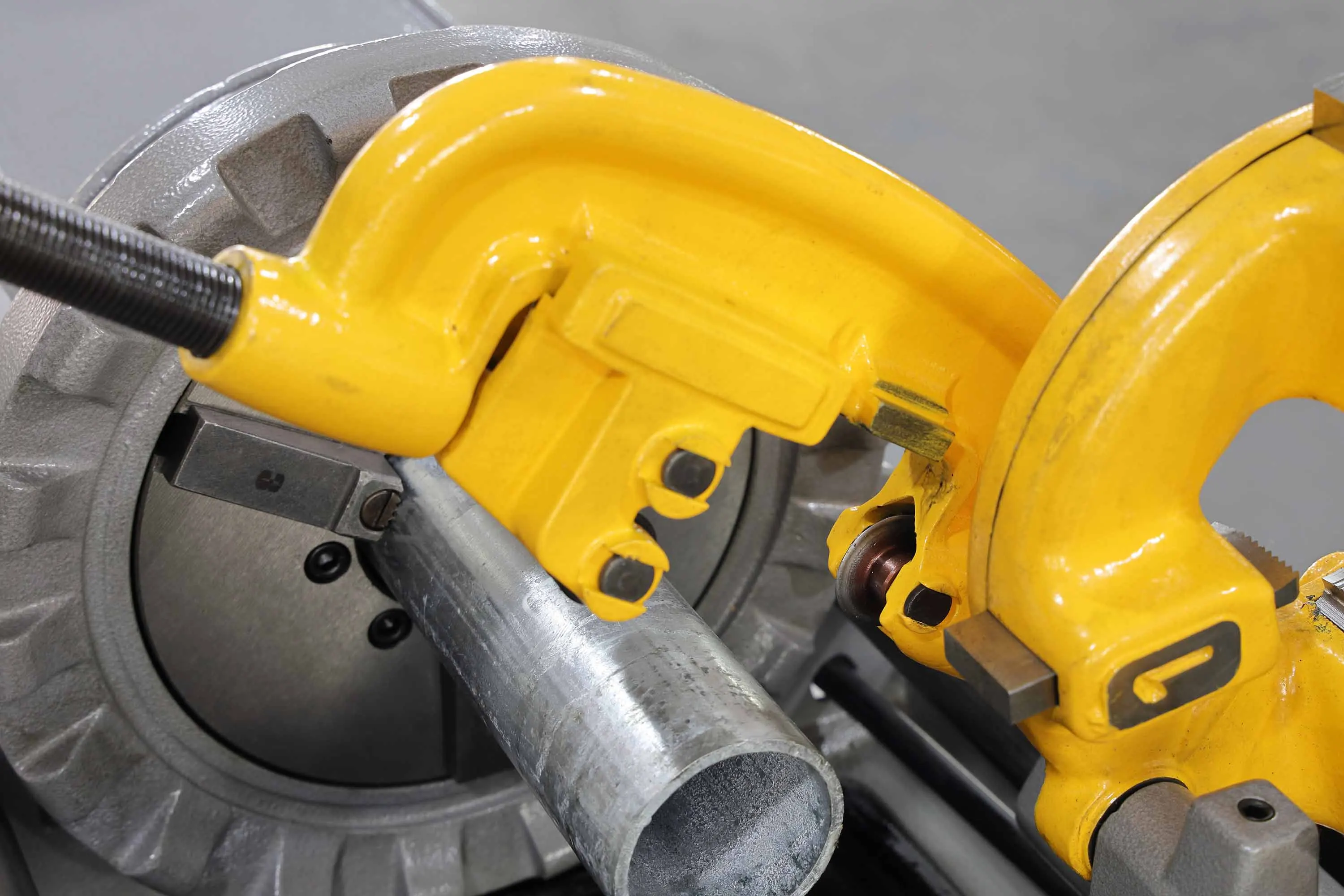

* Cutter Assembly work with RIDGID ® 360 Cutter
* Front Chuck: Hammer type with replaceable rocker action jaw inserts.
* Precision thread cutting for NPT/BSPT/Metric/BSPP/NPSM
* 651 Pneumatic Folding Wheel Stand with 2 wheels (optional), 10 inch steel wheels with Solid Rubber Tires is more durable
* Approved by CE standards.
* 1 Year Warranty

HS Code of SQ50E Electric Pipe Threading Machine: 8459700000

Detailed Images
Technical Specifications
Capacity：
½”-2” (15mm-50mm) pipe
Motor：
1500W Universal,reversible, 50/60Hz, single phase.
Cutter Capacity:
1/8”-2”(6mm-50mm) pipe
Spindle Speed：
38 RPM

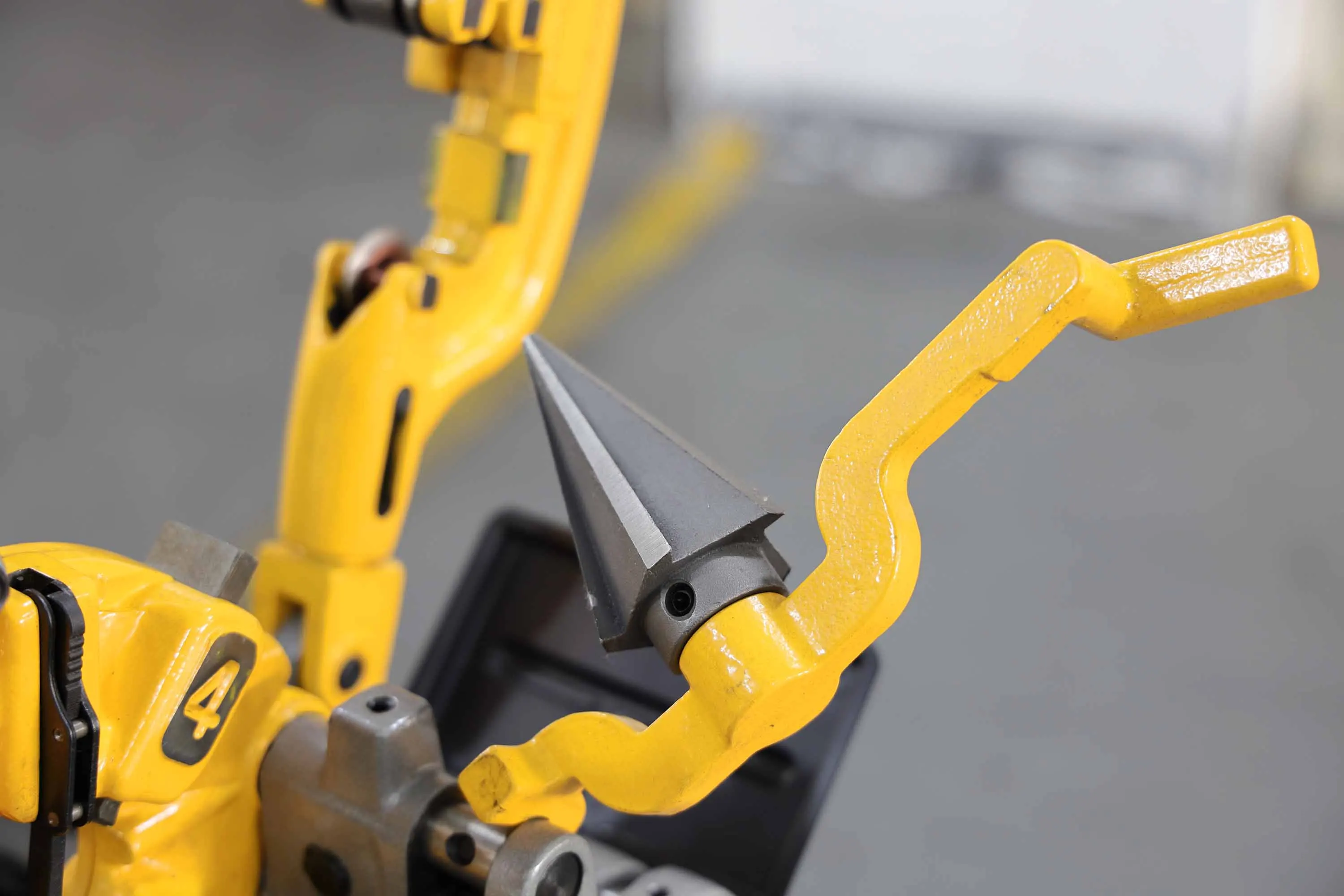

Reamer Capacity:
1/8”-2” (6mm-50mm) pipe
Positive-locking, 5-flute cone, right-hand

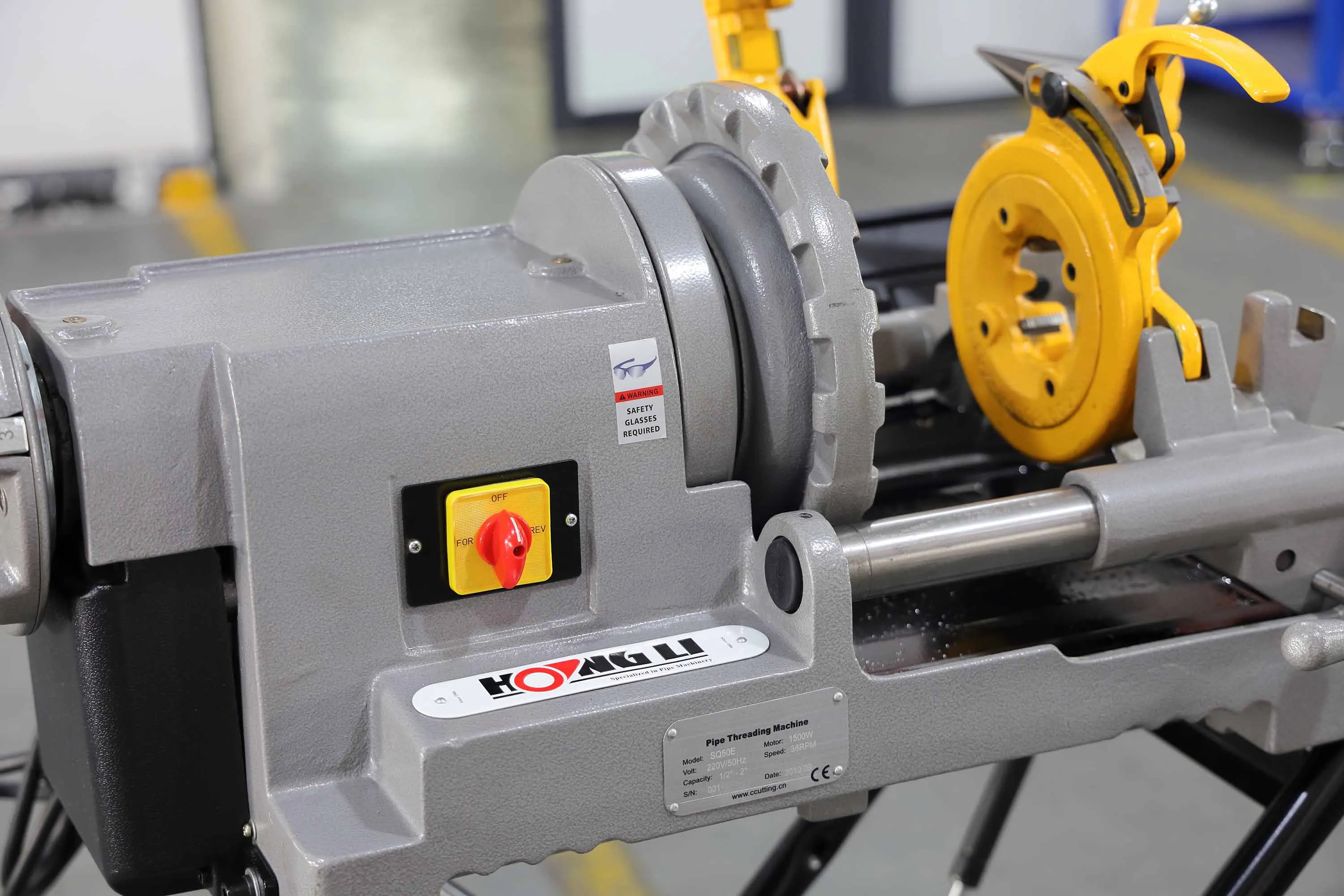

Switch：
Heavy duty FOR/OFF/REV switch ,integral Foot Pedal is optional.
Screw Threads：
NPT / BPST
/Metric/BSPP/NPSM
Front Chuck：
Hammer type with replaceable rocker action jaw inserts.

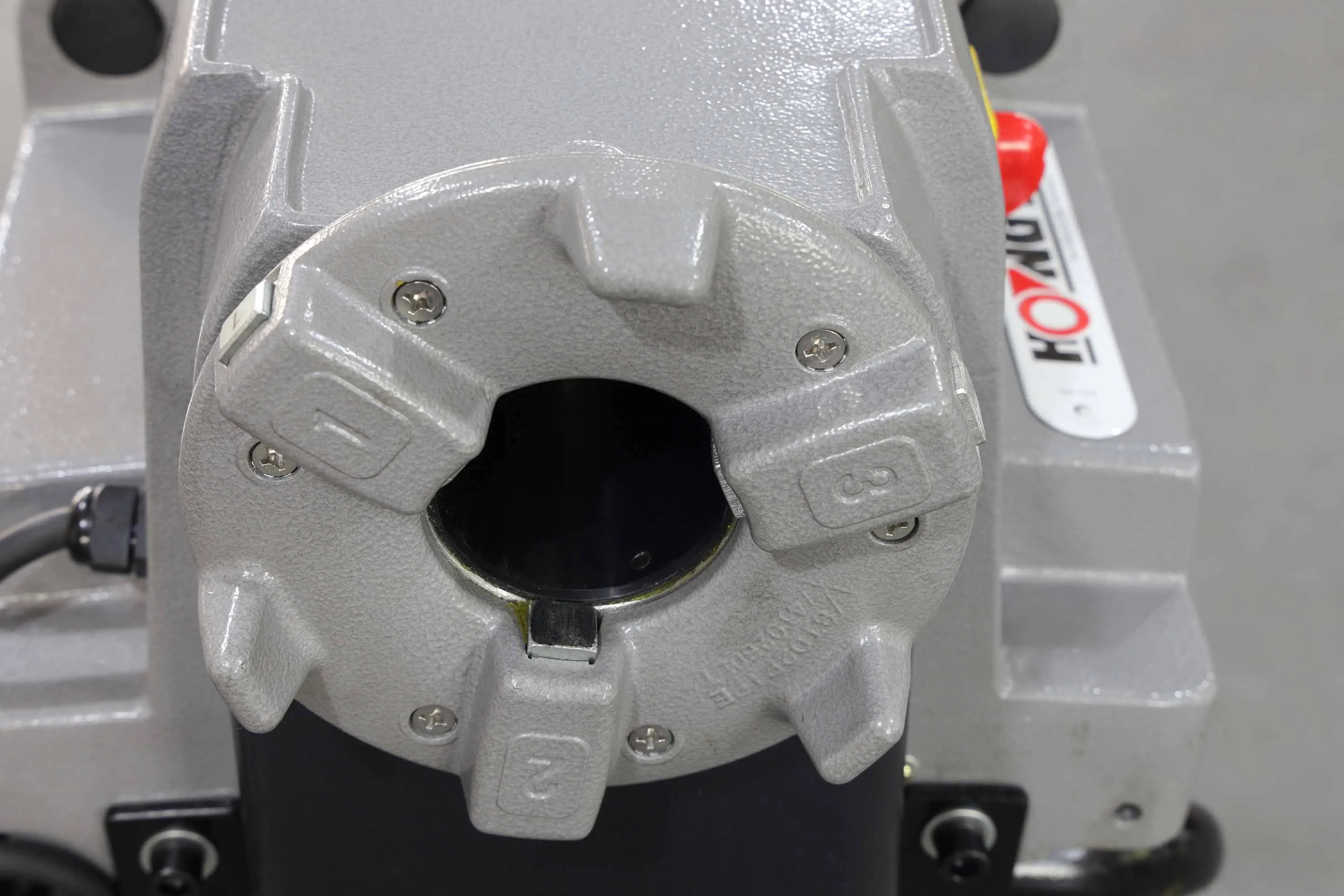

Rear Centering Device:
Cam action
Oiling System:
Self-Contained Oil System with adjustable flow control

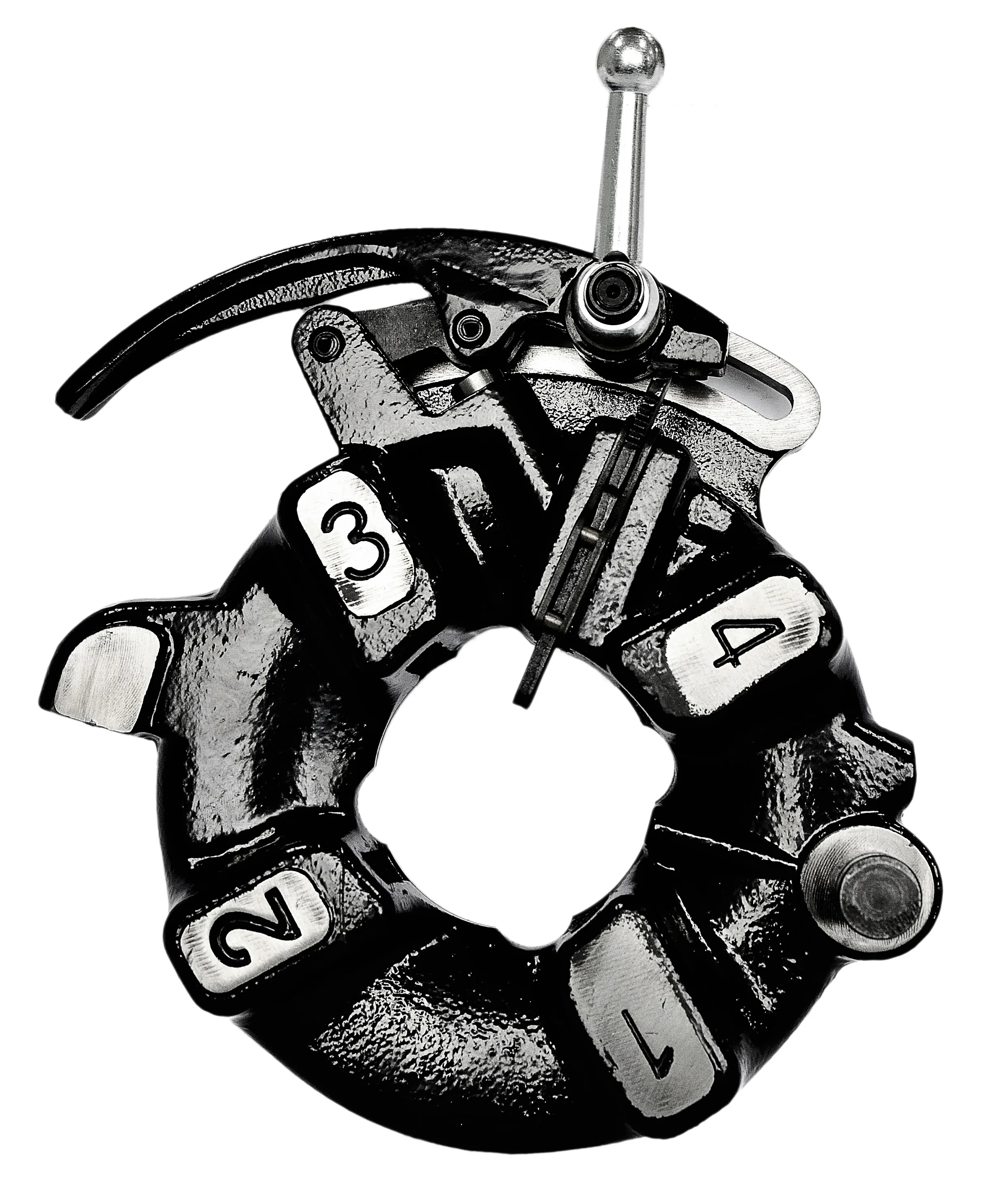

Die head (Standard) is interchangeable with RIDGID ®815A Die head

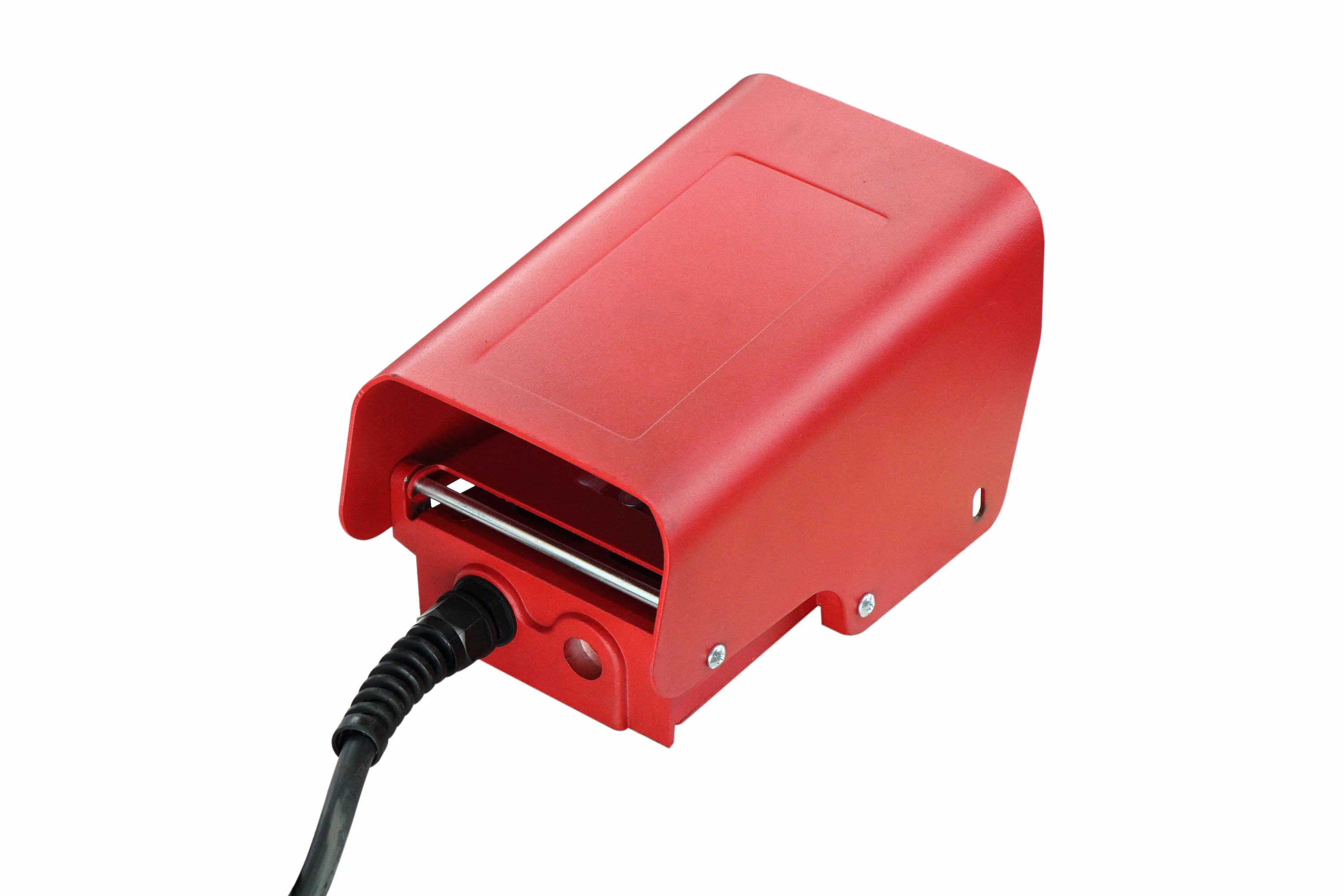

Foot Patel is optional

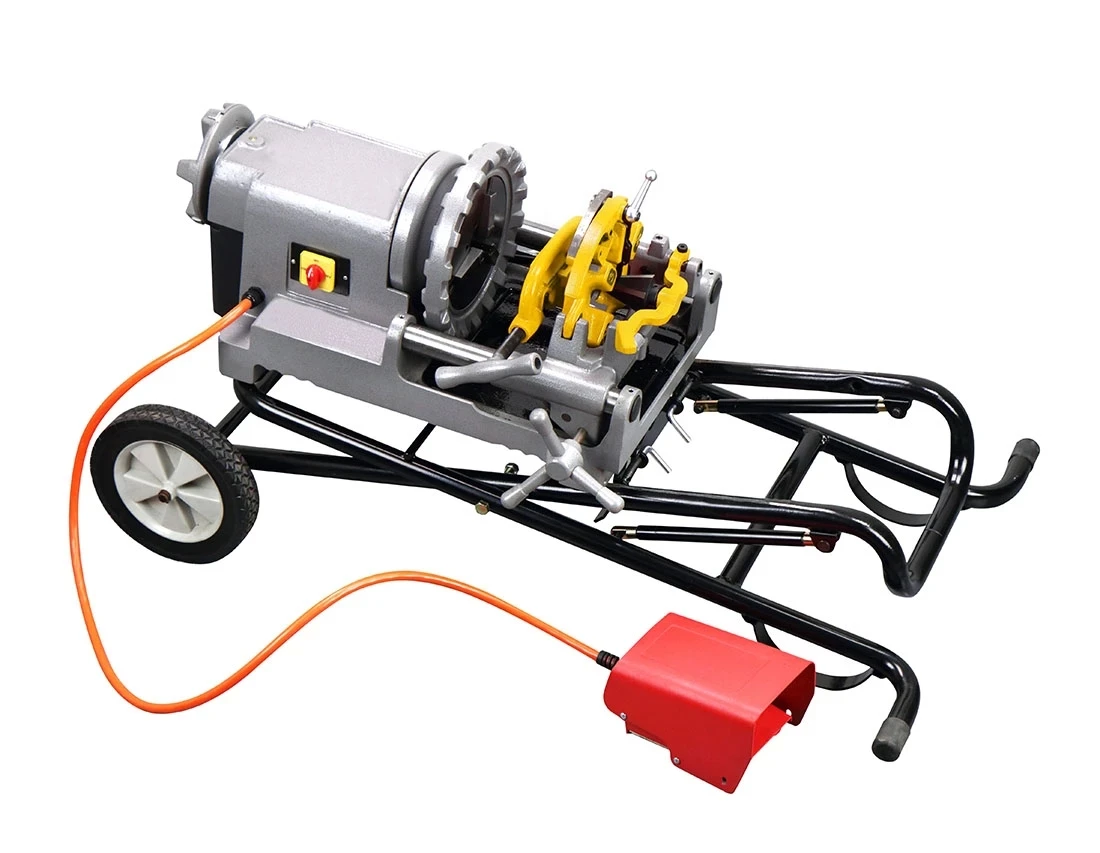

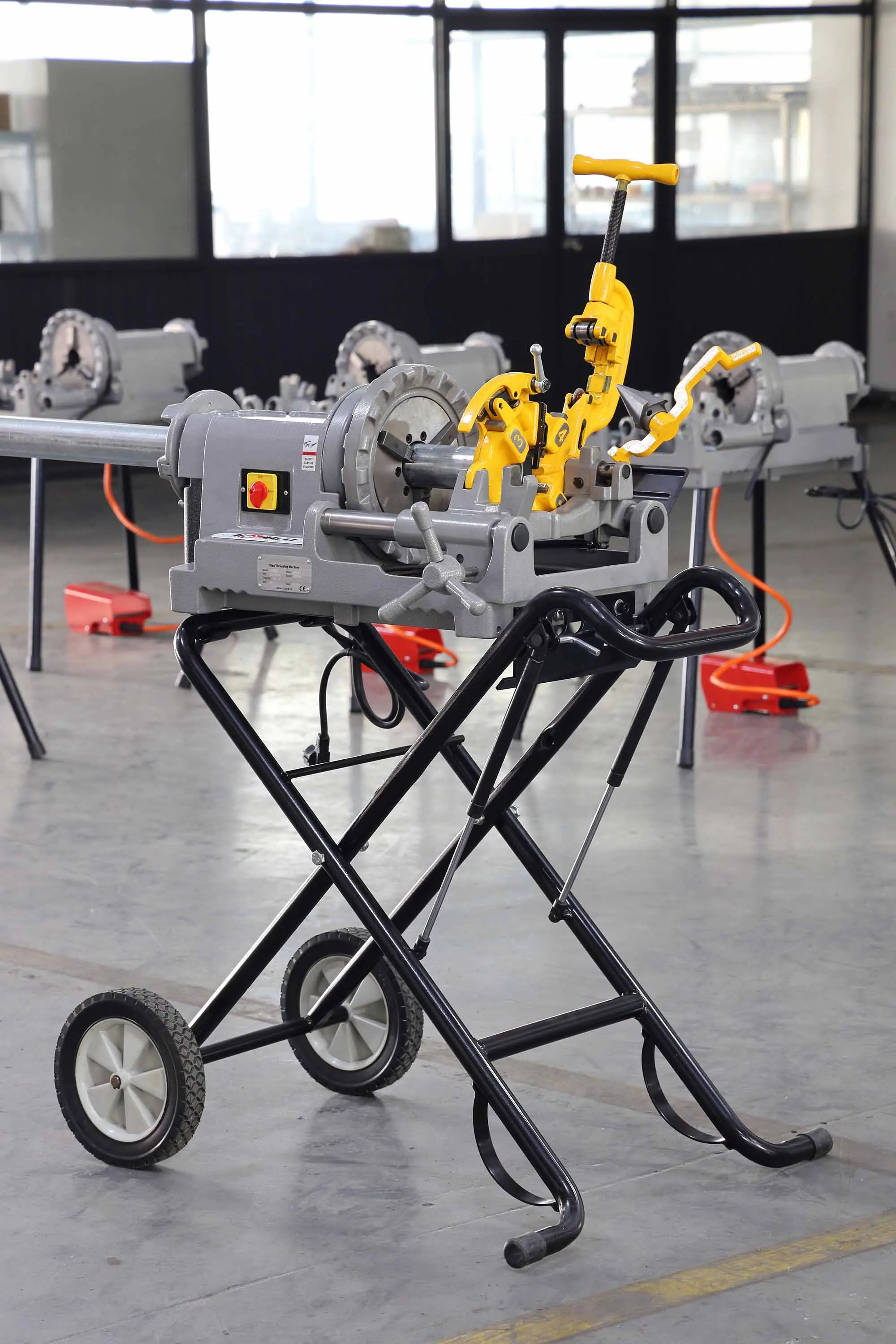

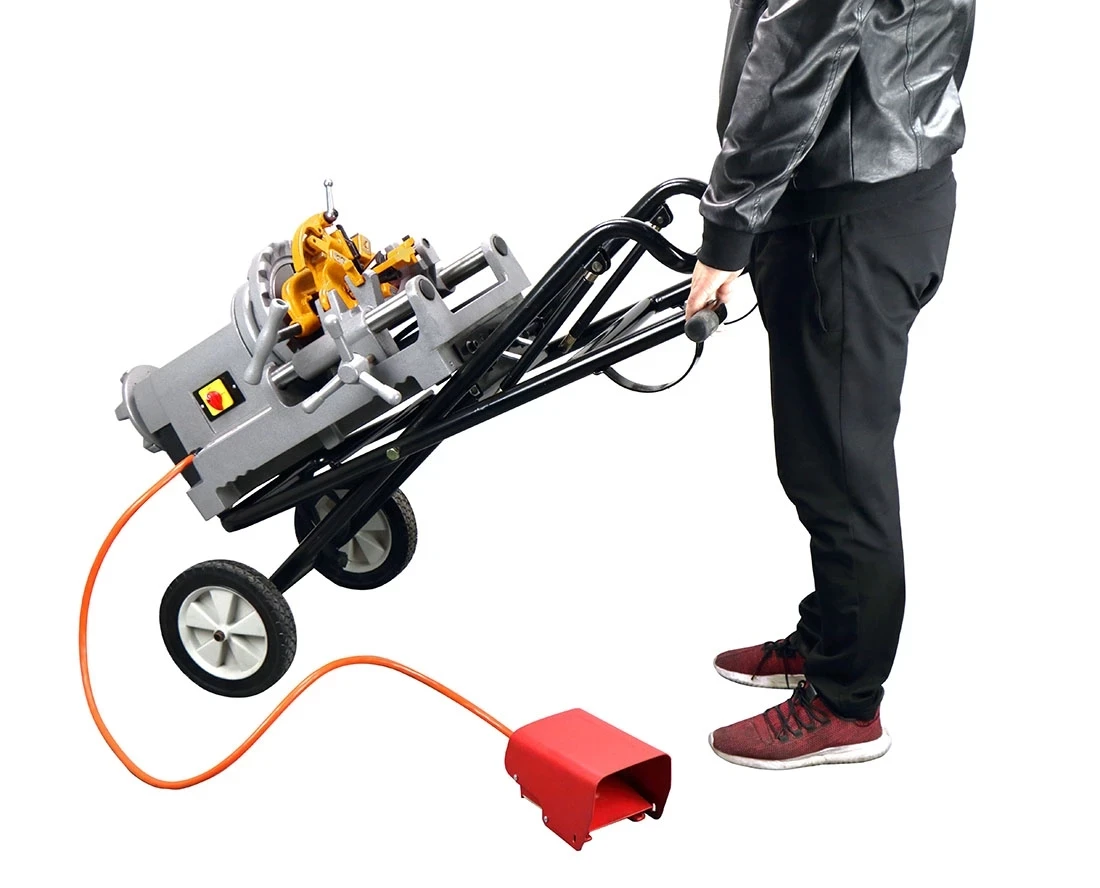

651 Pneumatic Folding Wheel Stand with 2 wheels (optional) :
Dies in Alloy Material
Dies in HSS Material
Dies in Super HSS Material
Dies work with RIDGID ®Dies
Ordering Information
Catalog No.
Model No.
Description
Capacity in.
Capacity mm.
N.W.
302312
SQ50E
Electric pipe threading Machine complete set, 110V, NPT
1/2-2
15-50
75kg
302311
SQ50E
Electric pipe threading Machine complete set, 220V, BSPT
1/2-2
15-50
75kg
Accessories:





-
-
 815A die head (Standard) NPT/BSPT
-
-
6
1/2"-3/4" RIDGID Type HSS dies, Full teeth milling, NPT/BSPT
0.75
1"-2" RIDGID Type HSS dies, Full teeth milling, NPT/BSPT
0.75
4581011
819
Nipple Chuck (Optional)
4.5
11001004
-
651 Pneumatic Folding Wheel Stand
-
-
22.4
11102001
-
Oiler （Optional）
-
-
5
602201
H401
1/8“-6” Tristand chain vise（Optional）
1/8"-6"
4-150
20
Related Products

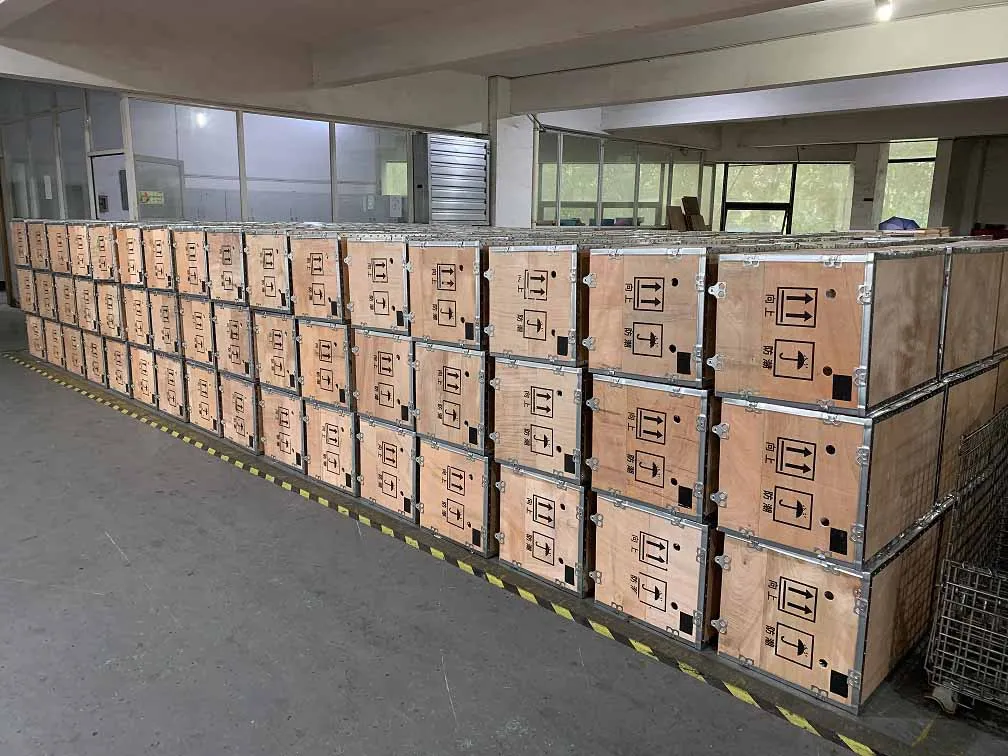

Packing&Shipping
Package
Length
Width
Heigth
Gross Weight
Net Weight
SQ50E
80mm
56mm
47mm
90kgs
75kgs
After Sales Service


Why choose us
1. Professional customer service guidance
Pre-sales customer service can answer your professional machine knowledge
2. Full technical support
Professional maintenance and after-sales personnel provide services
3.One year warranty

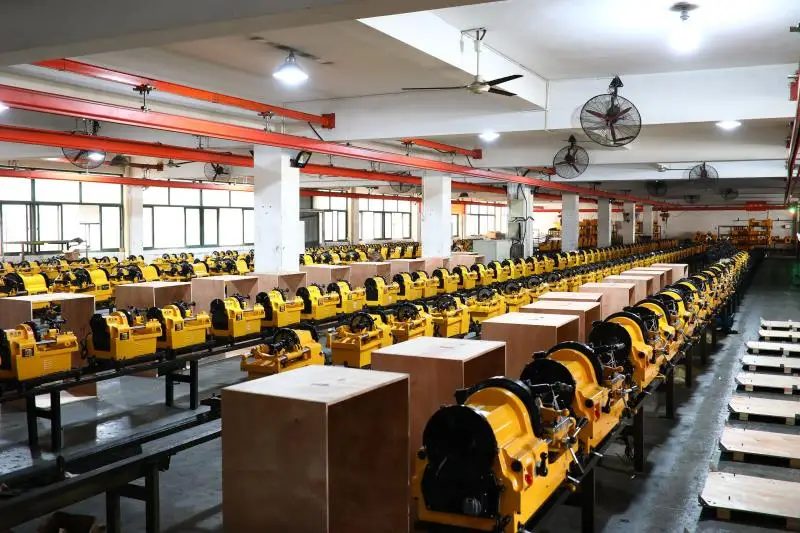

Company Introduction
