Warranty: | 1 Year; | Transmission: | 4*4 Hydraulic; |
Dimension(L*W*H): | 7500*2500*3300mm; | Selling Units: | Single item; |
Certification: | CE; | Engine: | Yuchai 4108; |
Driving Cab: | Closed on one side; | Power(W): | 95kw; |
Condition: | New; | Package Type: | naked or by requestments Factory price about High Quality Self Loading Concrete Mixer Truck; |
Place of Origin: | Shandong China; | Single package size: | 750X250X330 cm; |
Loader weighing mode: | Computer control; | Applicable Industries: | Home Use,Retail,Construction works ,Factory price about High Quality Self Loading Conc; |
Net weight: | 7900kg; | Brand Name: | Haohong; |
Product name: | Factory price about High Quality Self Loading Concrete Mixer Truck; | Single gross weight: | 8,000 KG; |
After-sales Service Provided: | Video technical support,Free spare parts,Online support; | UNIQUE SELLING POINT: | High power engine; |
Angle of drum rotation: | 270°; | Drum capacity: | 4cbm; |
Concrete Max. Output: | 16cbm/hr; | Loader capacity: | 700L; |
Weight: | 7900kg; |

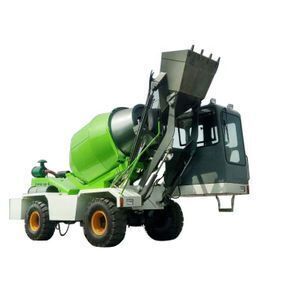

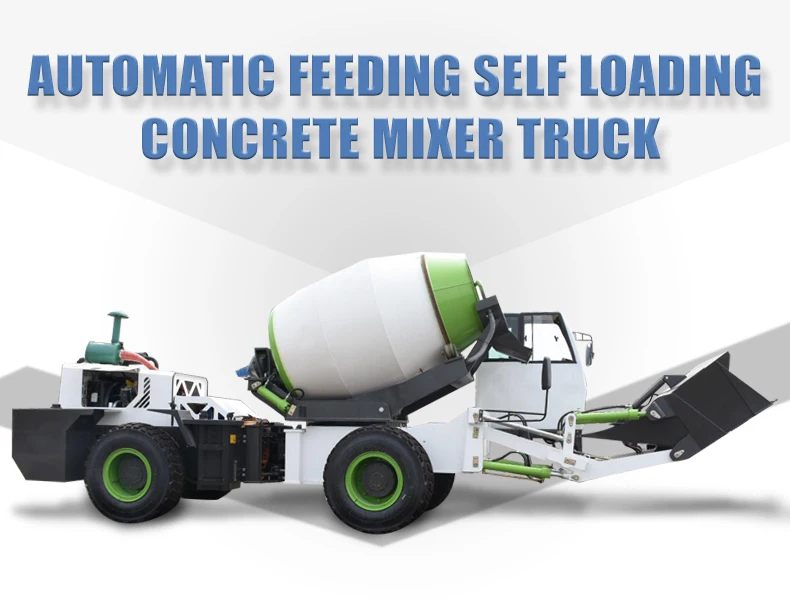

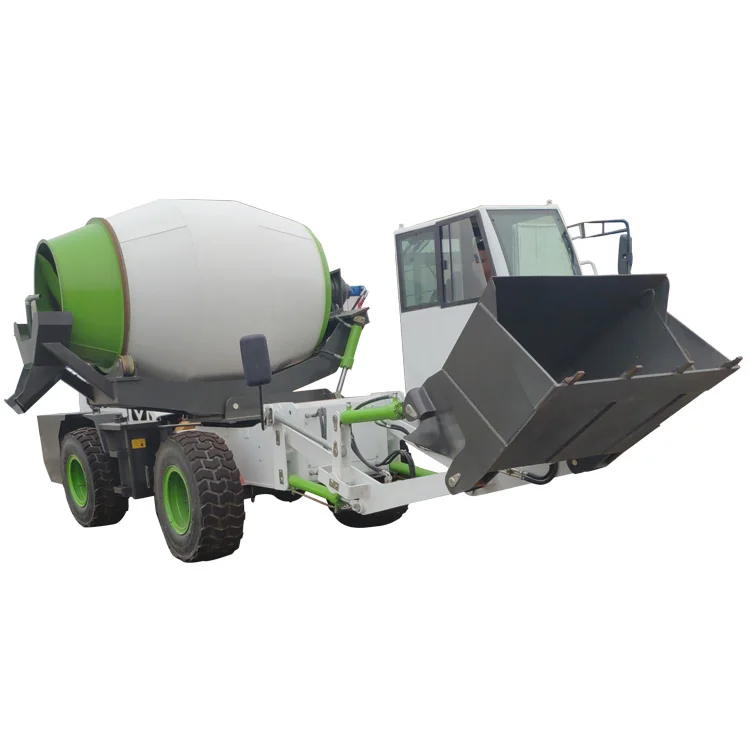

Factory price about High Quality Self Loading Concrete Mixer Truck
Advantages Of Self Loading Concrete Mixer Truck
1. Self loading concrete mixer truck can rotate 270 degrees;
2. Self load, meter, mix and discharge;
3. Compact structure and easy movement;
4. High working efficiency and less energy consumption;
5. Cost and time-saving;
6. One-stop service, full automatic feeding, weighing, stirring and discharging;
7. High stirring quality and short stirring time.
8. The main hydraulic components are imported!
9. At least 5 workloads are saved per day!
10. Save electricity 100 degrees everyday without a blender!
Self loading concrete mixers can automatically produce and transport concrete for its self-loading design, it is really efficient! During project, It can automatically fulfill the work of loading, mixing, transportation and unloading. it loads materials by self, don’t need any other auxiliary equipment.Thus it can replace 4-6 workers and significantly cut the labor cost. The compact design makes it flexible in narrow and limited space.It has characteristics of small volume, four wheels-driving and steering.
KEY SPECIFICATIONS | ||
Technical Specifications | Model | HH-4.0JBC |
Net | 8000kg | |
Transmission | Hydraulic | |
4X4 | ||
Brake | Pneumatic brake | |
Wheelbase | 3000mm | |
Loader capacity | 700L | |
Loader control | Hydraulic | |
Speed | Low 0-9km/h | |
High 0-25km/h | ||
Tire | 16/70-20 | |
Voltage DC | 24V DC | |
Hydraulic tank | 180L | |
Diesel tank | 130L | |
Dimensions(L*W*H) | 7500*2500*3300mm | |
Loader weighing mode | Computer control | |
Loader control | Hydraulic 4 way stick | |
Diesel engine | Type | YUCHAI 4108 Supercharged |
Rated power/rpm | 95KW/2300rpm | |
Cylinder | 4-cylinder | |
Starter | Electric | |
Emission standard | China II | |
Mixing drum | Drum capacity | 4cbm,16cbm/hr |
Angle of drum rotation | 270° | |
Discharge height | 1.8m | |
Hydraulic system | Hydraulic driving pump | 40Mpa,90ml/r |
Hydraulic driving motor | 40Mpa,63ml/r | |
Hydraulic mixing pump | 40Mpa,71ml/r | |
Hydraulic mixing motor | 30Mpa,63ml/r | |
Water tank | Supply | Hydraulic water pump |
Water tank | 2*450L |
