Internal Combustion Grinding Machine Railway Rail Grinder Rails Surface Grinding Track Railway Tool
-
Supplier: Henan Aido Machinery Co., Ltd. -
Region: Henan, China -
Contact: Mr. AIDO GROUP -
Price: $900.00 /set -
Min. Order: 1 set
| Port: | qingdao,tianjin,shanghai; | Type: | Sleepers; |
| Lifting height: | 70mm; | Brand Name: | AIDO; |
| Material: | High strength aluminium alloy; | Engine maximum output power: | 5.0/4000kw/r/min; |
| Dimensions (L x W x H) (mm): | 1150*570*1000mm; | Place of Origin: | Shandong China; |
| engine model: | 1P73F; | product name: | Rail grinding machine; |
| Grinding position adjustment method: | Hand wheel screw adjustment; | Supply Ability: | 200 Set/Sets per Month; |
| Walking mode: | Hand Push type; | Grinding wheel specifications: | 125*55*65mm; |
| Machine weight: | 75KG; | Wheel speed: | 4400rpm; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Packaging Detail: | Safe packing in wooden cases; |

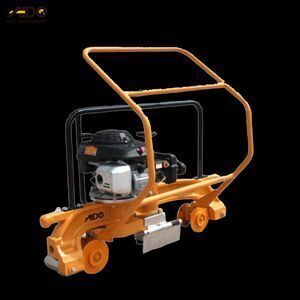

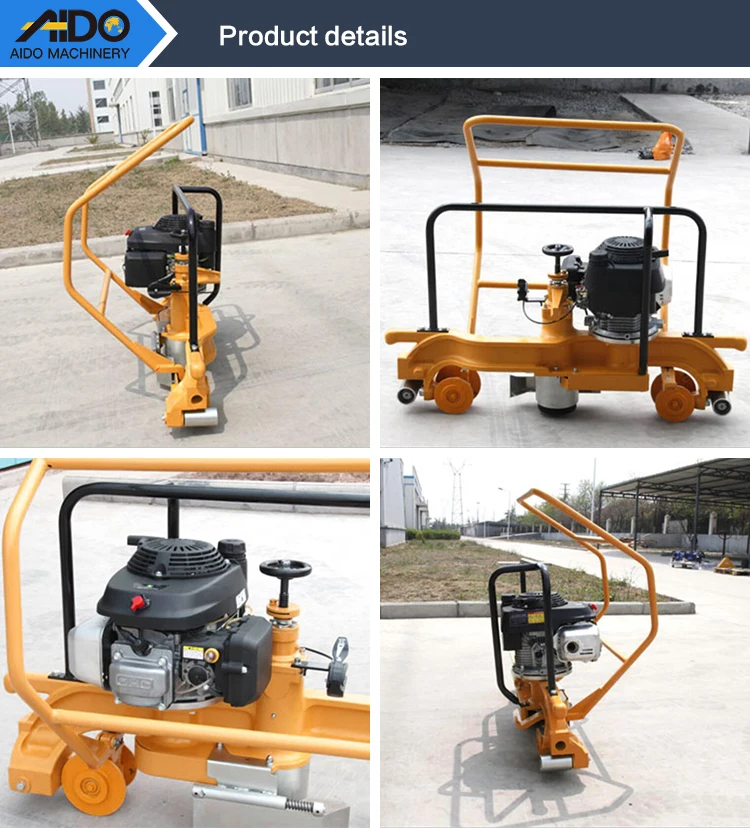

Internal Combustion Grinding Machine Railway Rail Grinder Rails Surface Grinding Track Railway Tool
grinding machine for precise grinding of rail head railway engineering for special equipment for rail head grinding.
| product name | Rail grinding machine |
| engine model | 1P73F |
| Engine type | Air-cooled, 4-stroke, single cylinder |
| Engine displacement | 190cc/ ml |
| Engine maximum output power | 4.5(5.0)/4000 kW/r/min |
| Engine fuel consumption | 480g/kw.h |
| Machine weight (net weight) | 75 kg |
| Grinding wheel specifications | 125×55×65 |
| Wheel speed | 4400rpm |
| Copy track | 1m |
| Lifting height | 70mm |
| Walking mode | Hand Push type |
| Grinding position adjustment method | Hand wheel screw adjustment |
| Noise value | 100 |
| Dimensions | 1150×570×1000mm |
| packing | 1236×660×1050mm |

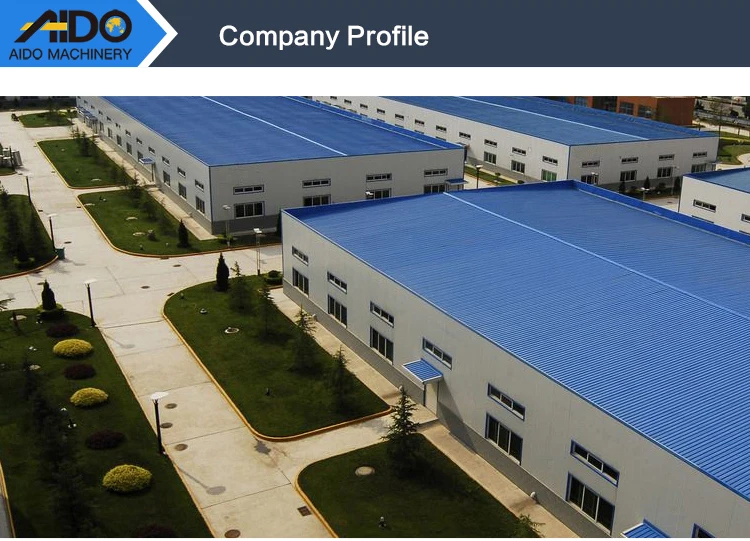

Henan Aido Machinery Co., Ltd. is a professional enterprise engaged in R&D, production and export trade of engineering machinery. The company's products mainly include Tamping machinery, Compactor machinery, Concrete floor machinery, Railway track machinery, Municipal channel machinery, Excavators and Loaders. Heavy construction machinery such as Graders and Road rollers.
1.Installation, operators training.
2. Maintenance: · We will send you the operation manual which can help you operate the machines properly, it can also help you to solve the common problems; · Call us at any time if you have problems about our product; If needed, we will send engineers to your site to solve your problems.
Q:What kind of power system is used in the machine?
Our Enging system mainly use international famous brand engines, including Honda gasoline engine and Yanmar diesel engine.
Q:What kind of hydraulic system is used in the machine?
Hydraulic system
1. American Lawrence hydraulic system
2. US White Hydraulic System
Q:What kind of cooling system is used in the machine?
cooling system
Air-cooled 4-stroke, water-cooled 4-stroke
Q:What are the characteristics of the machine's gearbox?
1.American cycloidal hydraulic motor
2.American Danfoss heavy duty gearbox
3.American light-load variable displacement piston pump, drive machine stepless speed change
4.French Pocalain heavy-duty variable displacement piston pump, drive machine stepless speed change
Q:How about the Delivery time?
Usually shipping within 25 days after received the balance.
Q:What is your Payment terms?
Usually by T/T, others also can be negotiated. 40% as deposit, other 60% as balance paid before loading.
Q:What are your strengths?
Compared with other International first-class brands,we have the same quality, better price, faster delivery, perfect after-sales service.
-
