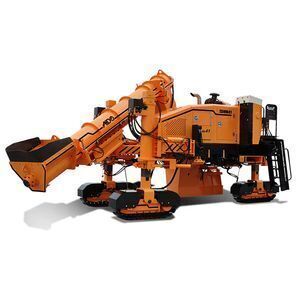

Engineering Equipment Cement Road Curb Paver Curb Slipform Machine

Supplier: Henan Aido Machinery Co., Ltd.
Region: Henan, China
Contact: Mr. AIDO GROUP
Price: $150000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Condition:	New;	Model:	DHM41;
UNIQUE SELLING POINT:	Internationally renowned accessories;	Steering mode:	Collaboration / yaw / front / rear / automatic;
Engine Brand:	Cummins;	Brand:	AIDO;
Warranty:	1 Year;	Max. Paving Thickness:	150cm;
Steering mode driving speed:	0-30m/min;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Working speed:	0-15m/min;	Dimension(LWH):	570024002500mm;
Place of Origin:	Shandong China;	Walking mode:	Tracked;
Port:	QINGDAO,SHANGHAI,TIANJIN;	Supply Ability:	200 Set/Sets per Month;
Brand Name:	AIDO;	Certification:	ce;
Amount of lubricant:	9L;	Color:	Yellow;
After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Applicable Industries:	Construction works ;
Power(W):	104kw/2200rpm;	Packaging Detail:	Secure packaging according to customer requirements;
Drive mode:	Hydraulic drive;	Product name:	Paver Curb Slipform Machine;

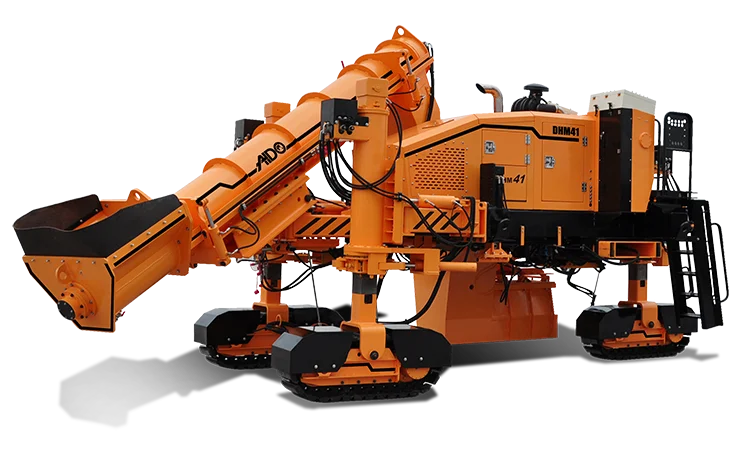

Product Description

The screw extrusion feeding method is used for the construction of the curb concrete. The machine is small and compact, especially suitable for the construction of concrete in the green space of the living area.

Model	DHM41
model	Cummins
type	Diesel engine, water cooled, four cylinder
power	104kw/2200rpm
Oil capacity	9L
Walking mode	Tracked
Drive mode	Hydraulic drive
Steering mode	Collaboration / yaw / front / rear / automatic
Steering mode driving speed	0-30m/min
Working speed	0-15m/min
Mold lateral adjustment	1090mm
Mold height adjustment	400mm
Maximum mold height	1300mm
Maximum mold width	1500mm
Hydraulic vibrating rod interface	6
Basic width	600mm
Maximum width	1600mm
Leveling depth	150mm
Diameter with tool	400mm
Maximum increase	760mm
Hydraulic adjustment height	400mm
Mechanical adjustment height	360mm
Lateral expansion range	1280mm
Fuel tank	195L
Hydraulic tank	230L
Water tank	600L
Hydraulic height adjustment	980mm
Mechanical height adjustment	300mm
Shipping size	5700×2400×2500mm

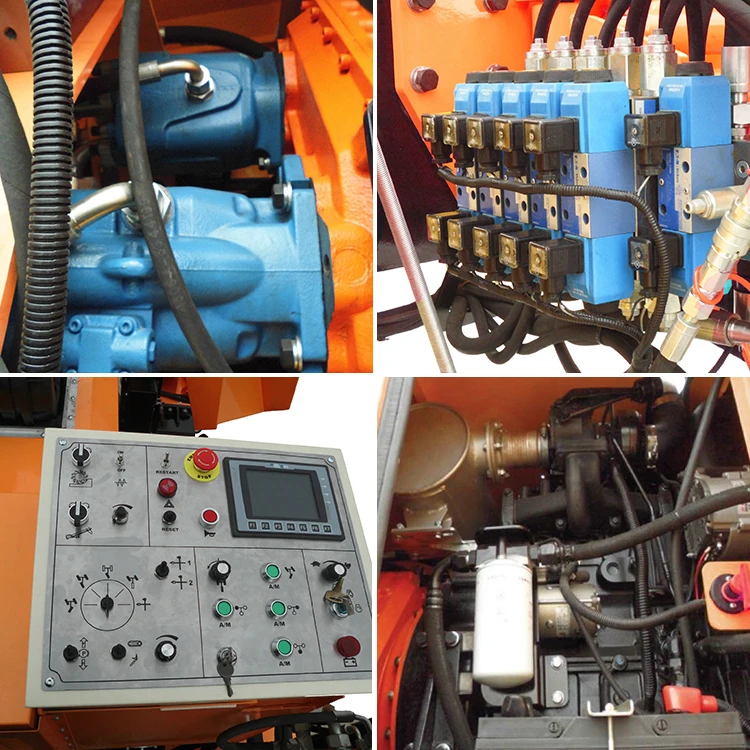

1. The console is equipped with a powerful controller that can be automatically calculated to suit various construction requirements.
2. International famous brand Danfoss intelligent control variable displacement piston pump, driving machine with stepless speed shifting,
3. American HydraForce hydraulic system control valve, intelligent control of each work action
4. Hydraulic vibrating bar, high vibration frequency and high vibration force

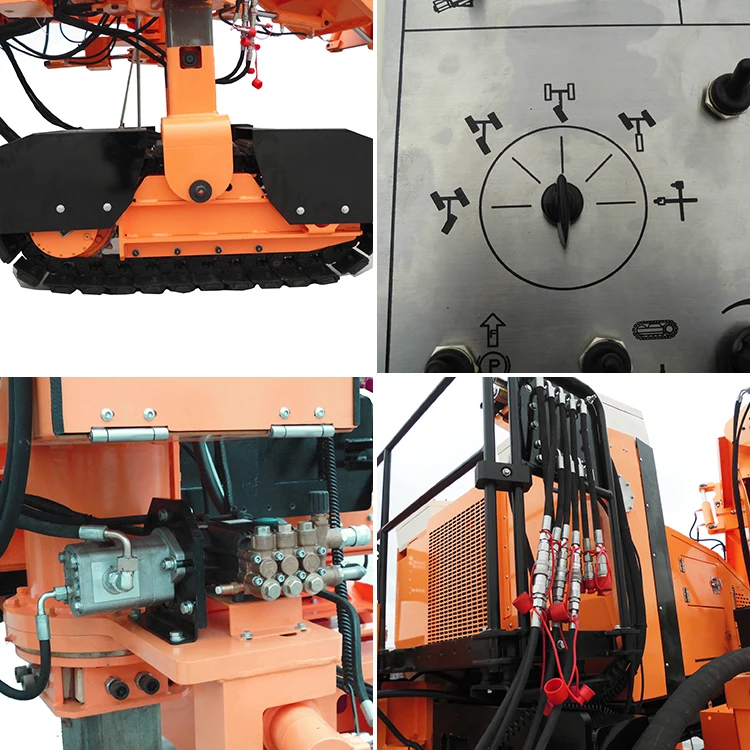

5. Track running mechanism with automatic tensioning cylinder, ready to release, improve track life
6. Various walking modes can be quickly switched to adapt to various working conditions
7. Equipped with various working mechanism pressure monitors to monitor the working status in real time.
8. Mold suspension and disassembly for hydraulic work, fast and labor-saving
9. It is equipped with hydraulic power high pressure cleaning pump, which can clean the machine at any time.
10. The external hydraulic power is made of Italian-made quick-connect fittings, which are smooth and easy to insert and pull.
