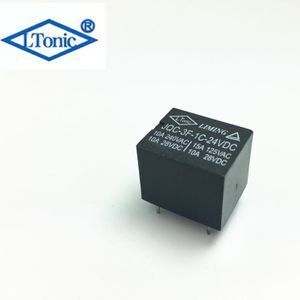

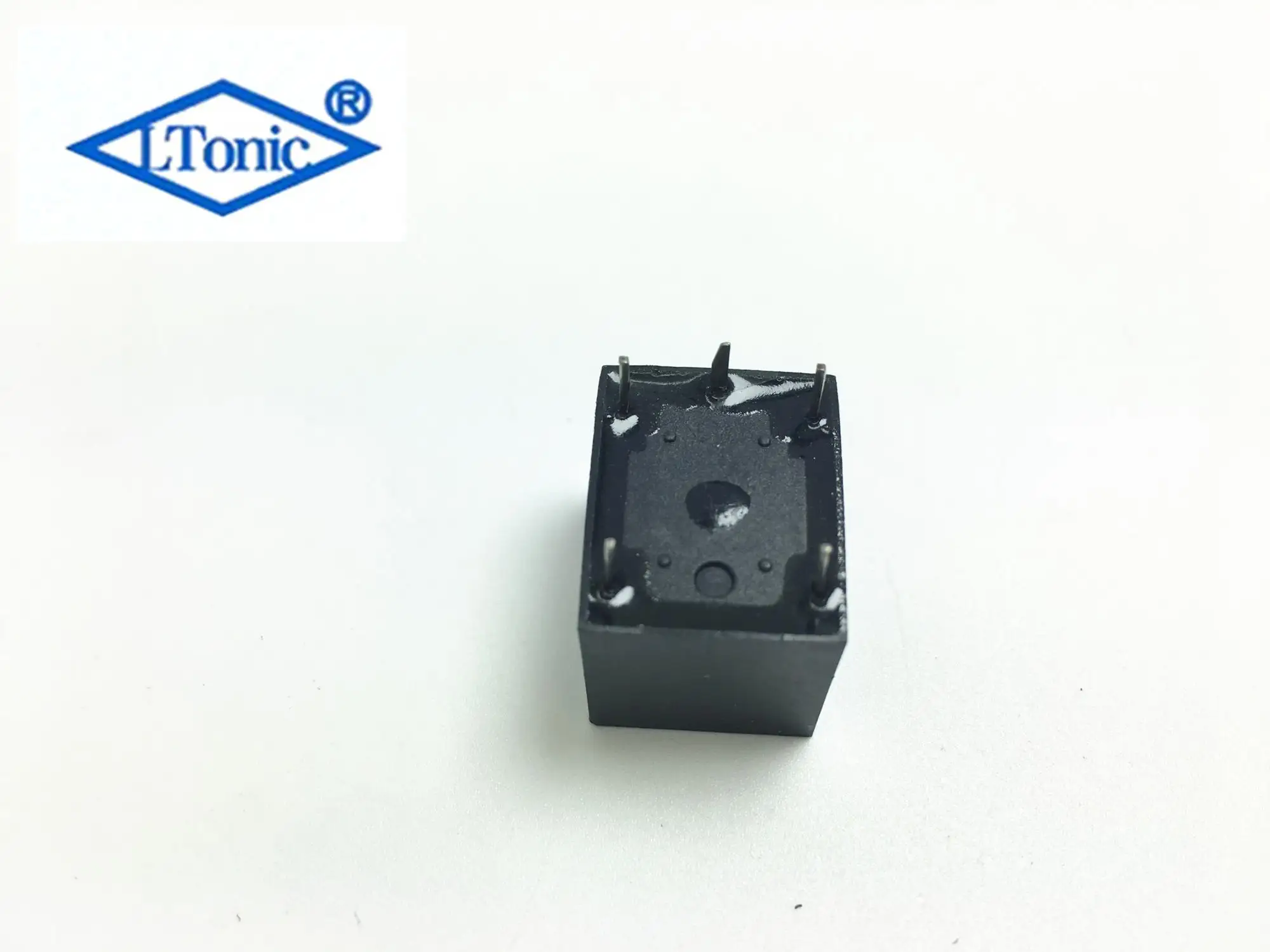

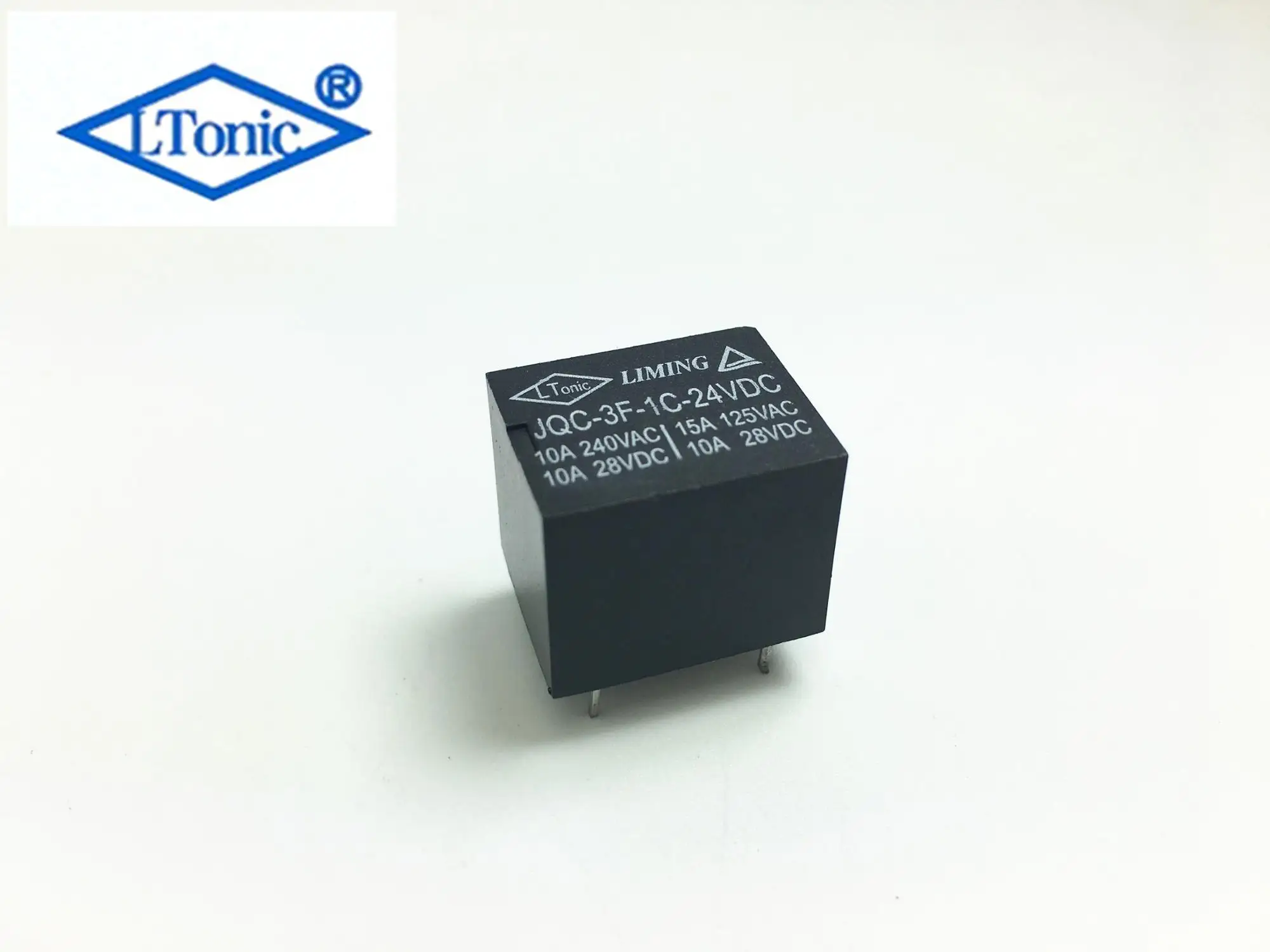

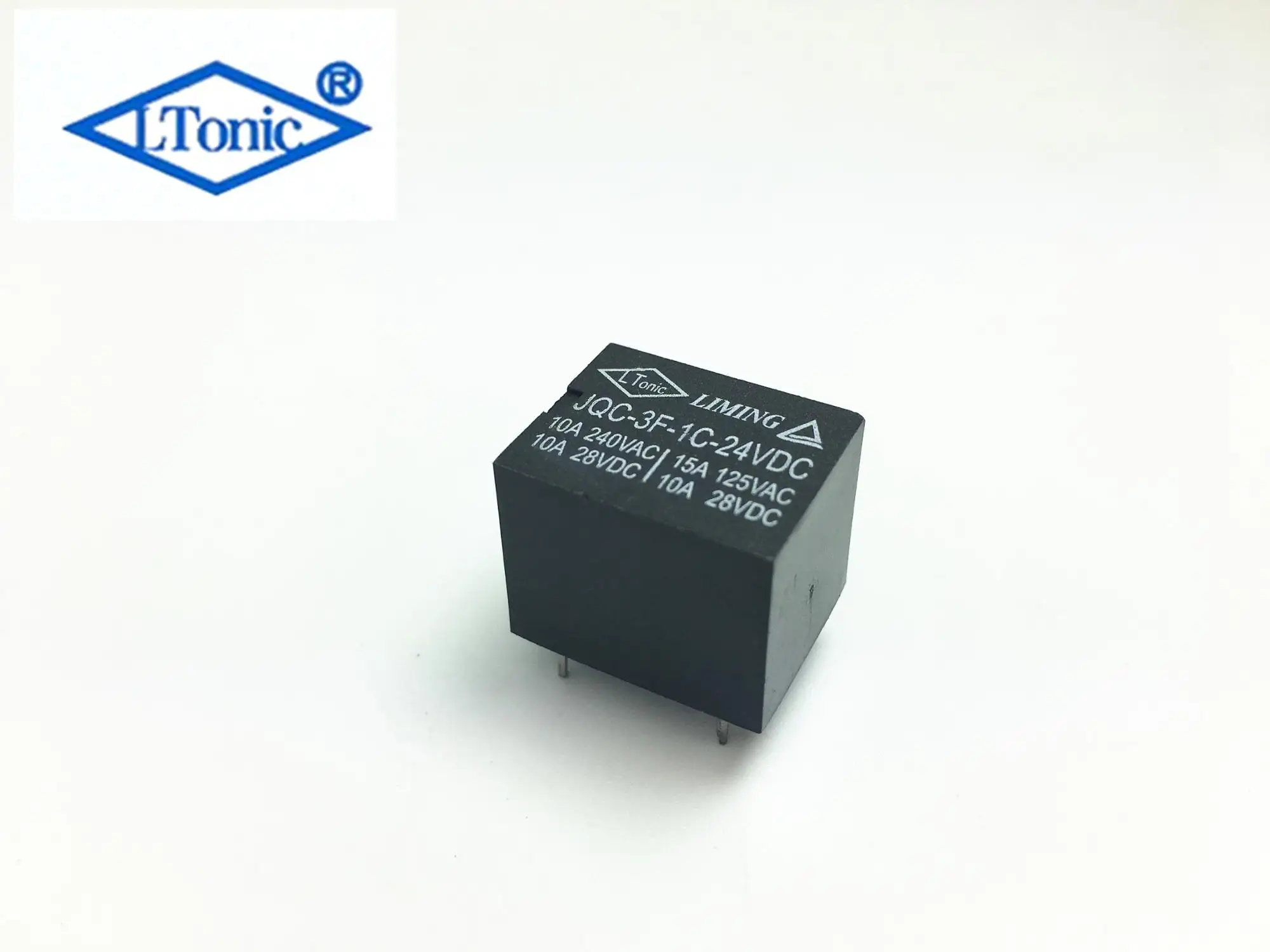

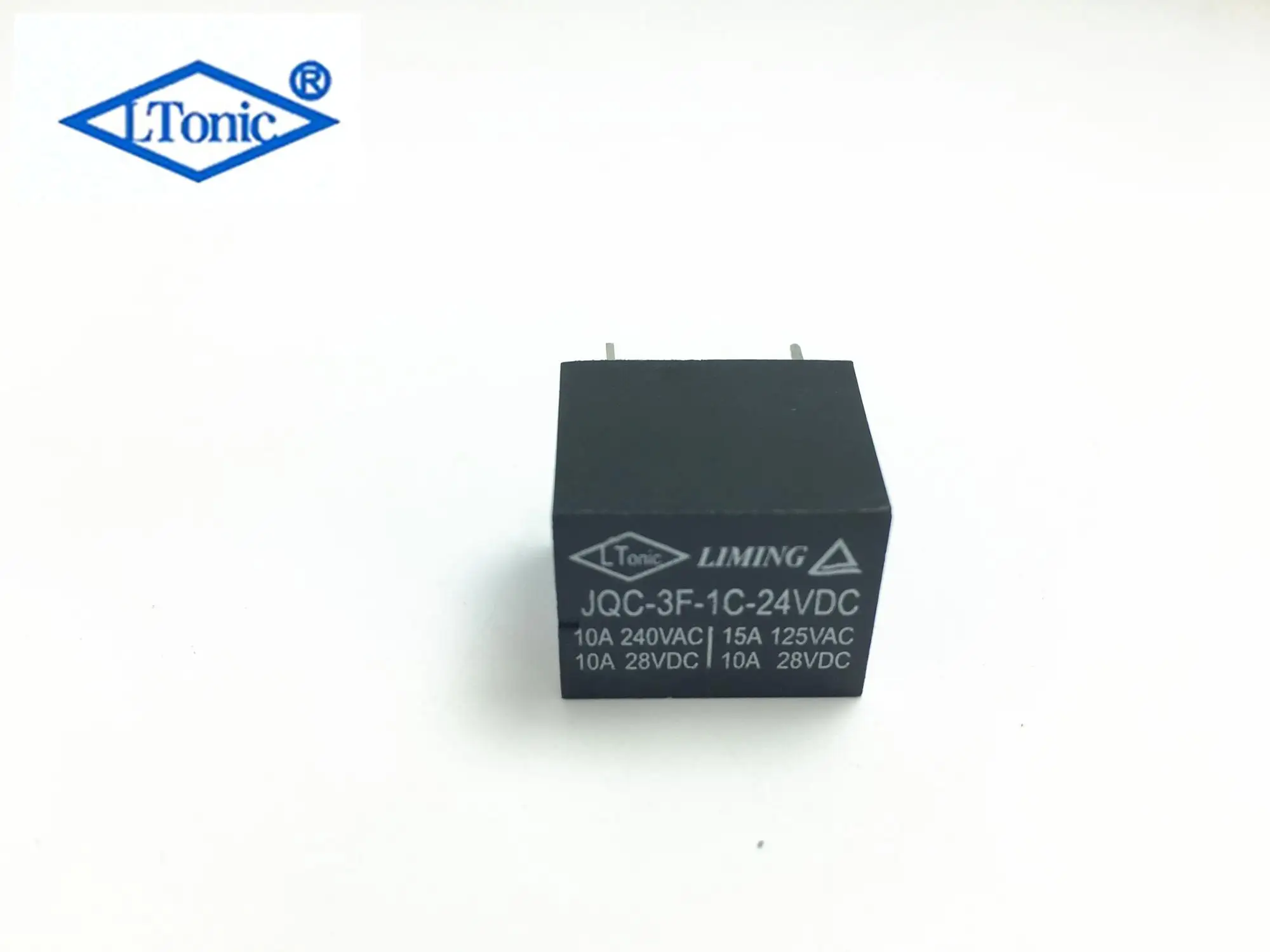

Manufacturer PCB high power automotive relay
-
Supplier: Ningbo Liming Relay Company Limited -
Region: Zhejiang, China -
Contact: Ms Queenie Liu -
Price: $0.113 / >=200 units -
Min. Order: 200 units
Product details
| Coil voltage: | 5V~48V; | Brand Name: | LTonic; |
| Weight: | 10g; | Protect Feature: | Sealed; |
| Contact resistance: | 100mΩ; | Mounting form: | PCB Terminal; |
| Contact transfter current: | 15A; | Place of Origin: | Zhejiang China; |
| Supply Ability: | 100000 Unit/Units per Month; | Size: | 19*15.5*15.5; |
| Usage: | PCB; | Theory: | Electromagnetic Relay; |
| Packaging Detail: | Carton packing; | Delivery Detail: | Shipped in 20 days after payment; |
| Contact rating: | 10A/15A 120VAC; | Certifications: | UL; |
| Payment Terms: | L/C,D/P,T/T,Western Union; | Coil power: | 0.36W; |
| Model Number: | JQC-3F(T73); | Contact form: | 1A,1B,1C; |
| Contact Load: | Low Power; | Port: | NINGBO/ SHANGHAI; |
Product Description
Manufacturer PCB high power automotive relay
Description
| Brand name | LTonic |
| Model number | JQC-3F(T73) |
| Contact transfter current | 15A |
| Contact form | 1A,1B,1C |
| Contact resistance | 100mΩ |
| Coil voltage | 5V~48V |
| Coil power | 0.36W |
| Contact rating | 10A/15A 120VAC 7A/10A 240VAC 10A/15A 28VDC |
| Temperature range | -40~+70℃ |
| Weight | 10g |
| Mounting form | PCB Terminal |
| Certifications | UL |
Main Products
Company Information
Certifications
Equipment
Our products are mainly exported to advanced production equipment and testing equipment,exquisite technology, perfect quality management system worldwide relay industry acclaim, many products through UL, TUV, CE certification, more than 90% are sold to the United States, Europe, Southeast Asia, South America and other countries.
Packaging & Shipping
Our product packaging has a unified standard to ensure that the goods are not damaged.
Packaging :Box &Carton
Delivery time:Shipped in 30 days after payment
