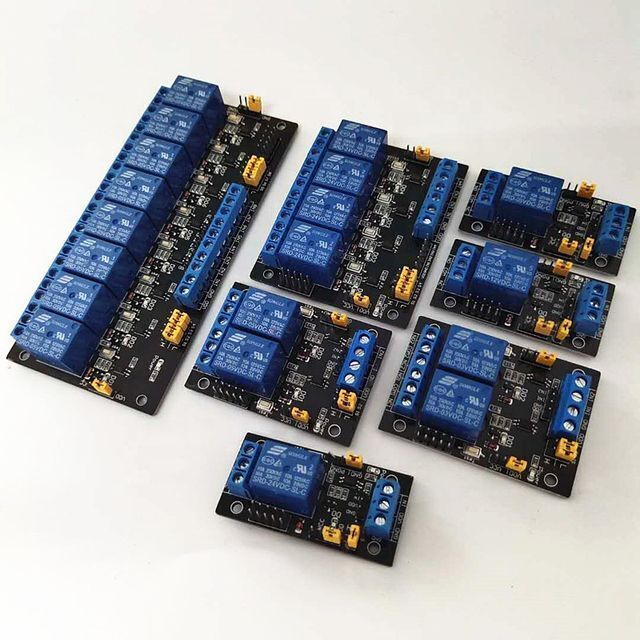

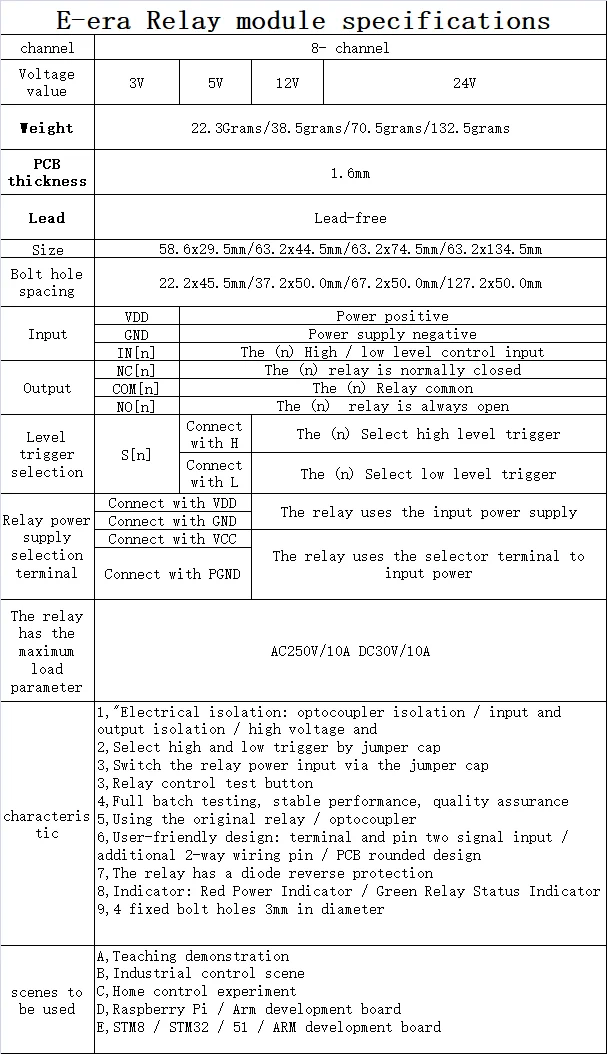

Module introduction:
1. Maximum load AC 250V/10A, DC 30V/10A.
2. Using patch optocoupler isolation, stable performance.
3. The working voltage of the module is 3V, 5V, 12V and 24V.
4. Red is the power indicator light, green is the relay work indicator light.
5. Select the high level or low level trigger through the jumper cap.
6. There are 4 bolt holes with a diameter of 3.5mm, a module length of 133mm, a width of 63mm and a height of 18mm.
7. The interface design is simple and convenient, and the interface can be directly led out through the terminal.

Input
1. VDD: Connect to the positive pole of the power supply (selected according to the relay model, 3V, 5V, 12V, 24V)
2. GND: Connect to the negative pole of the power supply
3. IN1- IN8: 1-8 way relay control signal input port;
Output

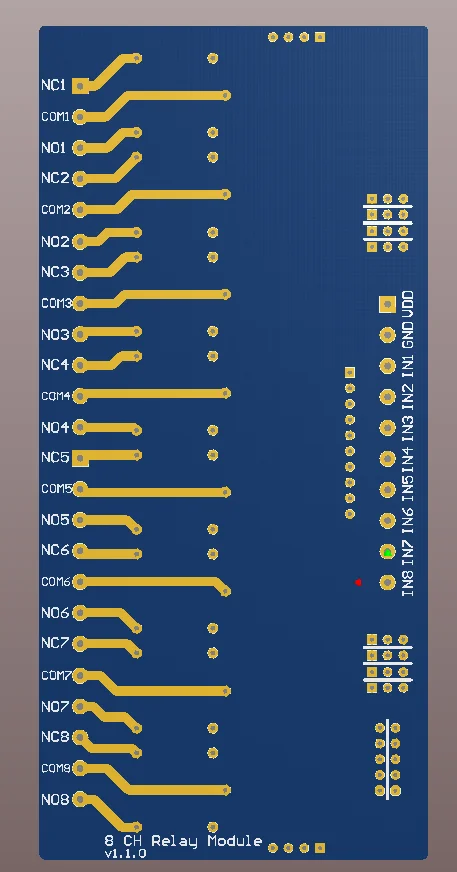

1. COM1-COM8: 1-8 relay common terminal
2. NO1-NO8: 1-8 relays are normally open. The relays are disconnected from the COM of the respective channels before the relay is closed, and shorted after the relay is closed.
3. NC1- NC8: 1-8 relays are normally closed, the relays are short-circuited with the COM of each channel before switching on, and disconnected after switching on.

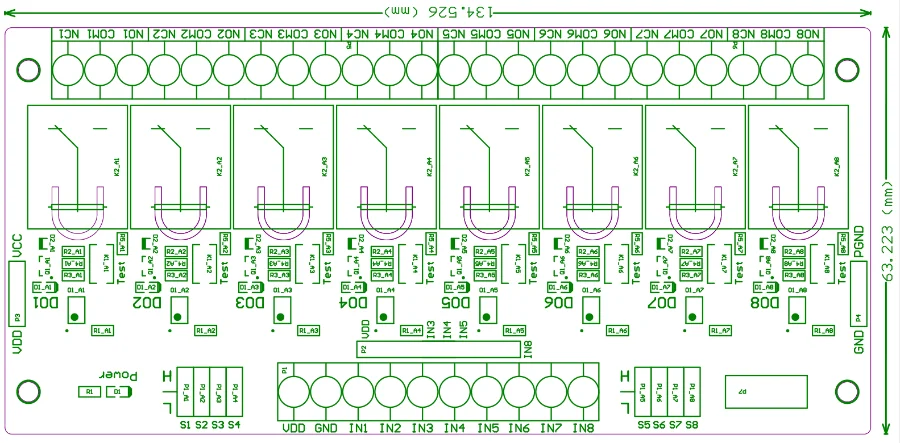

High and low level trigger selection

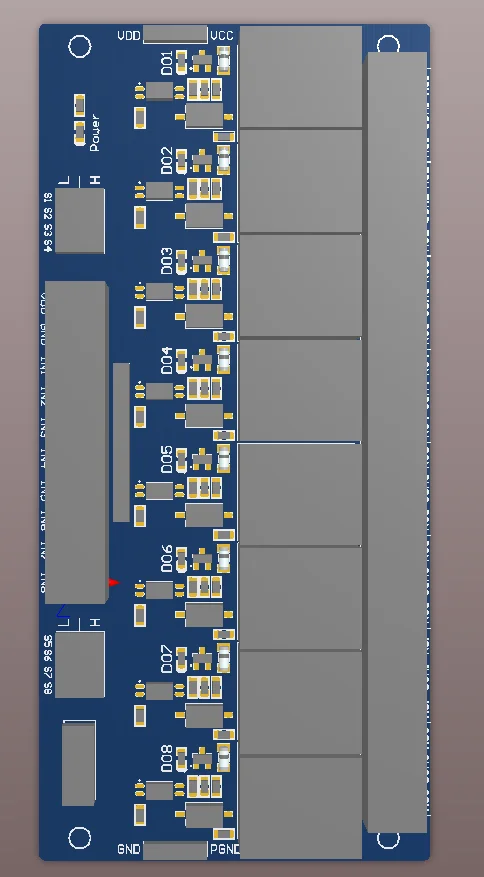

1. S1-S8 are in turn high and low level trigger selection of 1-8 relays
2. When the middle terminal is short-circuited with L by a jumper cap, it is a low-level trigger, and when short-circuited with H, it is a high-level trigger.
