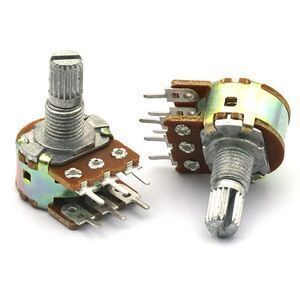

WH148 Double Potentiometer B50K B503 50K handle length 20mm

Product details
Payment Terms:T/T,Western Union,MoneyGram,Alipay Paypal;Packaging Detail:Bag/Box;
Resistance Tolerance:20%;Port:Shenzhen;
Type:Rotary Potentiometer;Product name:wh148 potentiometer b50k;
Place of Origin:Guangdong China;Operating Temperature:C;
Resistance:50K;Supply Ability:10000 Piece/Pieces per Day;
Rated Power:W;Brand Name:ALL BRAND;
Model Number:WH148;Max. Operating Voltage:V;
Technology:Carbon Composition;

WH148 Double Potentiometer B50K B503 50K handle length 20mm







Electrical Characteristics


Total Resistance:


Single Unit: 500Ohm-1M Ohm,
Dual Unit: 2KOhm-500K Ohm
Accuracy: 20%
Impedance characteristic pattern: A, B, C, D
Maximum operating voltage:
Linear B: AC 200V other linear: AC150V Dual Unit: AC 50V, DC 20V
Rated power:
B linear: 0.125W other linear: 0.06W Dual Unit: 0.06W
Murmur:
Less than 100mV
Insulation resistance:
More than 100MOhm at DC 250V
Withstanding Voltage:
1 minute at AC 250 V
Residual resistance:
Term.1 ~ 2: Less than 20Ohm Term.2 ~ 3: Less than 20Ohm
Synchronization error (double): - 40dB ~ 0dB 3dB
Mechanical properties
Azimuth angle:
300,5 (degree)
Rotary torque: 20 ~ 200 gf.cm
Rotation stopper strength: 6.0Kgf.cm Min
Push-pull strength: 8.0 Kgf Min
Durability
Rotational Life: 10000 Cycles



Type: Single Unit Potentiometer

Resistance: B1K / B5K / 10K / 20K / 50K / 100K / B500K / B1M.

Correspondence: B102 / B502 / B103 / B203 / B503 / B104 / B334 / B504

Feet: Straight-leg, Bend Pins, the pass-through.

Shaft length: 10mm, (conventional 15mm, 20mm), 25mm

Shaft: metal shaft, plastic shaft.

Axis are: axle, rachis

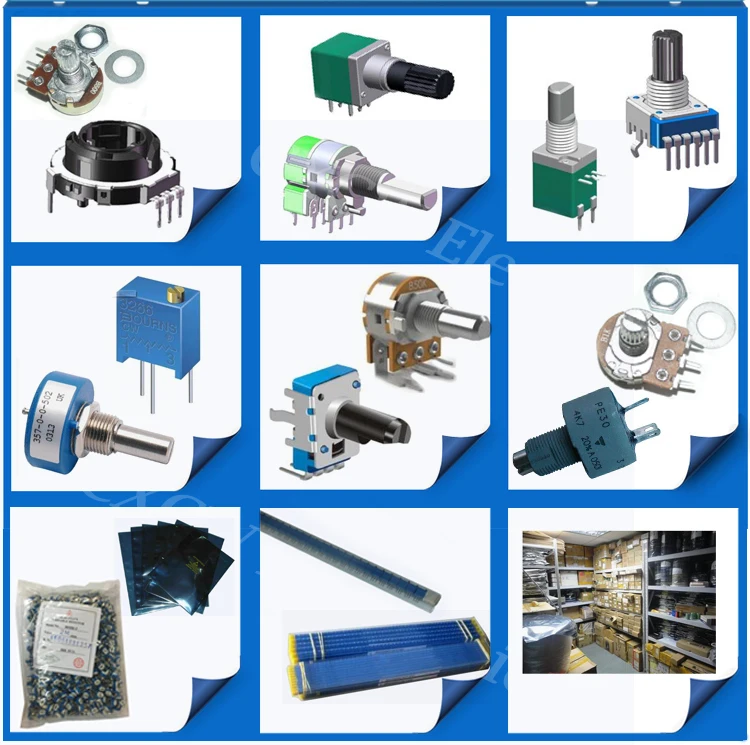

Company Information









Our Services

1. We provide 30-90 days warranty time.
2. We can arrange to ship within 1-3days normally after you confirmed the order.
