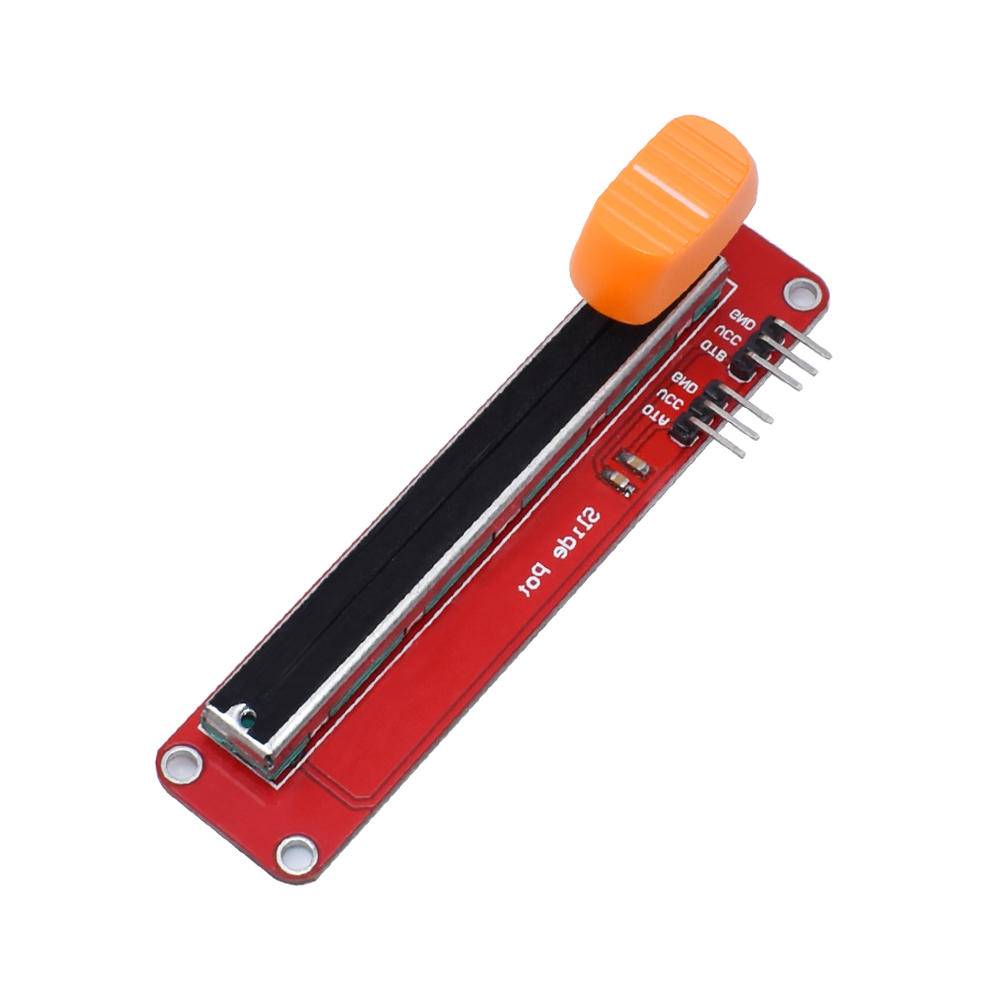

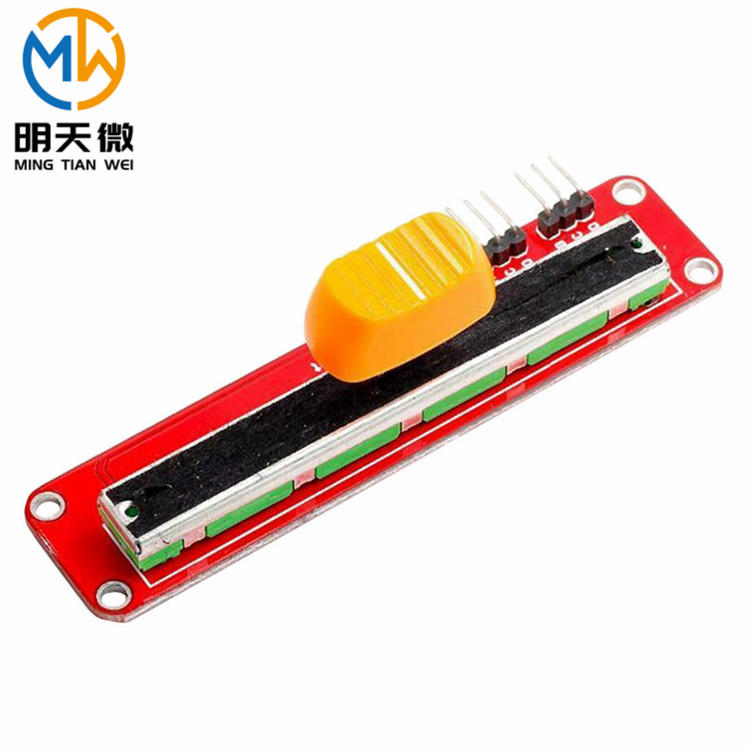

10K 30K 100mm Travel Linear Slide Potentiometer

Supplier: Sichuan Qixing Electronics Co., Ltd.
Region: Sichuan, China
Contact: Ms Weidong Tong
Price: $0.07 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

brand:	Bonans	rated power:	Taper B: 0.05W
Design Manufacturer:	Yes	port:	Shenzhen
Model:	Slide potentiometer 10k	Production experience:	13 years
OEM service:	usable	Operating temperature:	-10 ~ +70
Resistance Tolerance:	± 20%	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal
Payment/Payment:	2022	brand:	Bonens, Slide Potentiometers
Certificate:	ISO RoHs TUV	Revolt:	5KΩ ~ 2MΩ
sample:	usable	technology:	ceramic composition
Supply capacity:	10000 pieces per day	model:	SC10005G
Origin:	Sichuan, China	Type of company:	factory
maximum. Operating Voltage:	200V	Main itinerary:	30mm, 45mm, 60mm, 100mm
Processing:	Yes	Packaging Details:	as you wish
type:	slide potentiometer

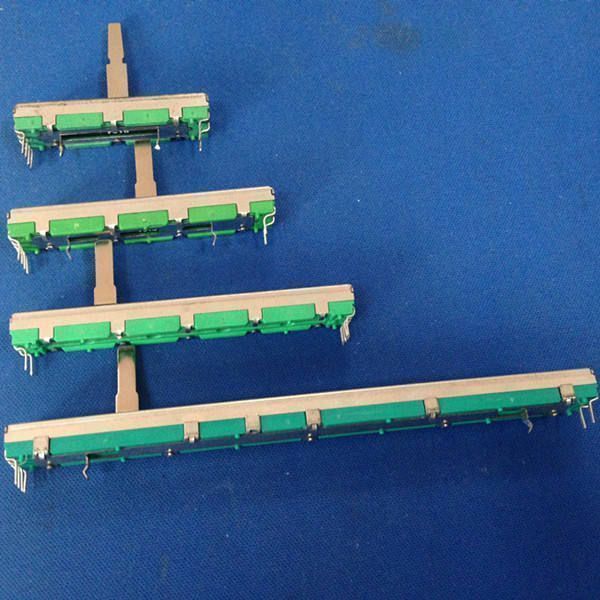

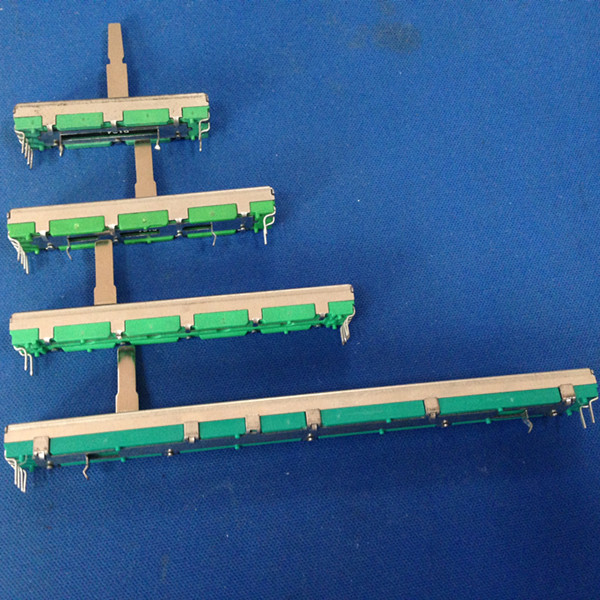

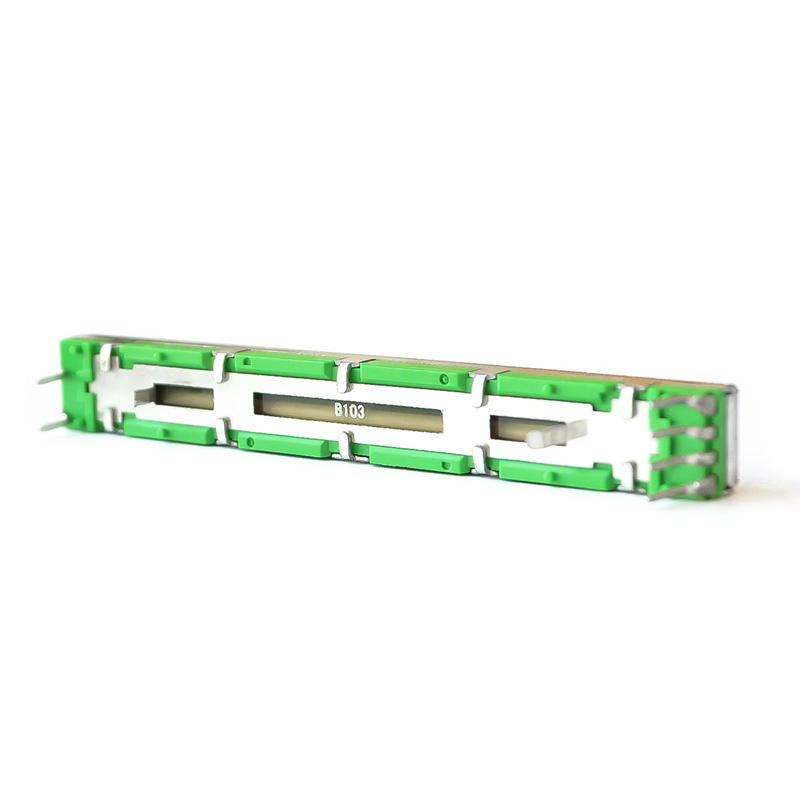

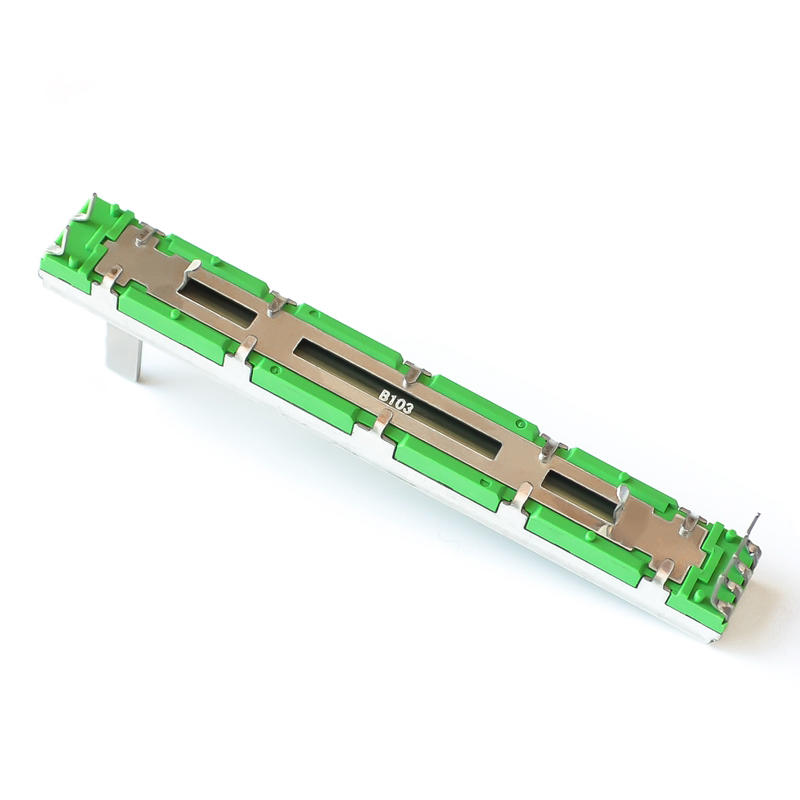

100mm Travel Linear 10K 30K Slide Potentiometer

75mm mixer fader B10K dual channel straight slide potentiometer B103

7.5 cm sliding potentiometer B10k dual axis length 15MM mixer dual channel straight slide volume fader

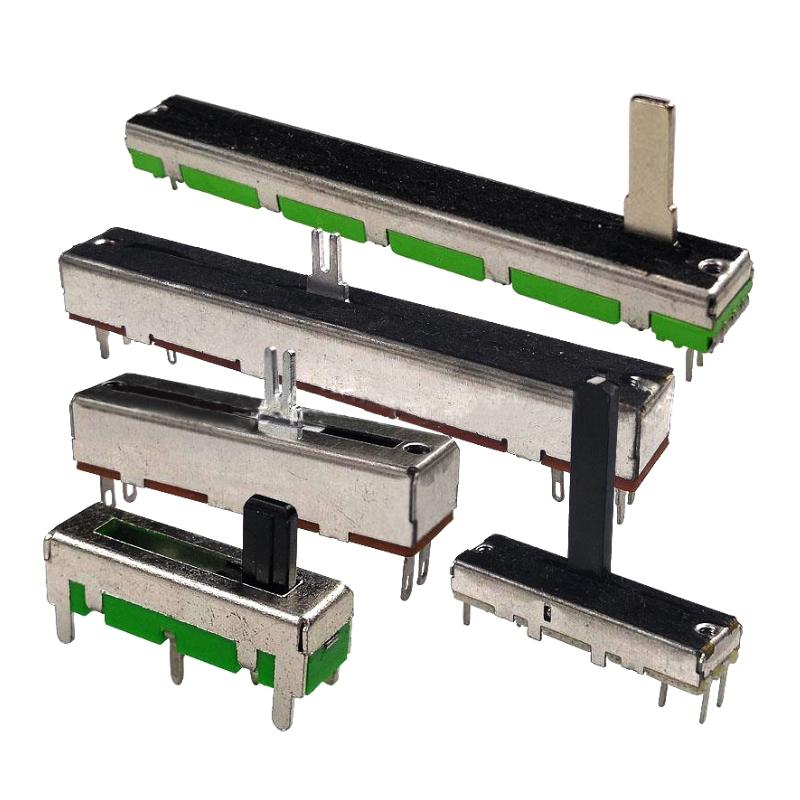

100mm 60mm 30mm 20mm length electric fader 10k 50k 100k sliding potentiometer

Product Description

Specification

electrical characteristics
total resistance	10KΩ±20%
Resistance taper	A, B, C, D, E, MN, RD, W,
maximum. Operating Voltage	Linear taper B: AC 200 V~DC/V
	Other cones: AC 150 V~DC/V
rated power	Single Unit: Linear Taper B: 0.2W, Other Tapers: 0.05W Dual unit: linear taper B: 0.1W, other taper: 0.025W
sliding noise	less than 100 mV
Insulation resistance	Greater than 100 MΩ at DC 250 V
withstand voltage	1 minute at AC 300 V
residual resistance	semester. 1~2 : less than 10Ω
	semester. 2~3 : Less than 10Ω
Gang error (dual machine)	-40dB~0dB±3dB

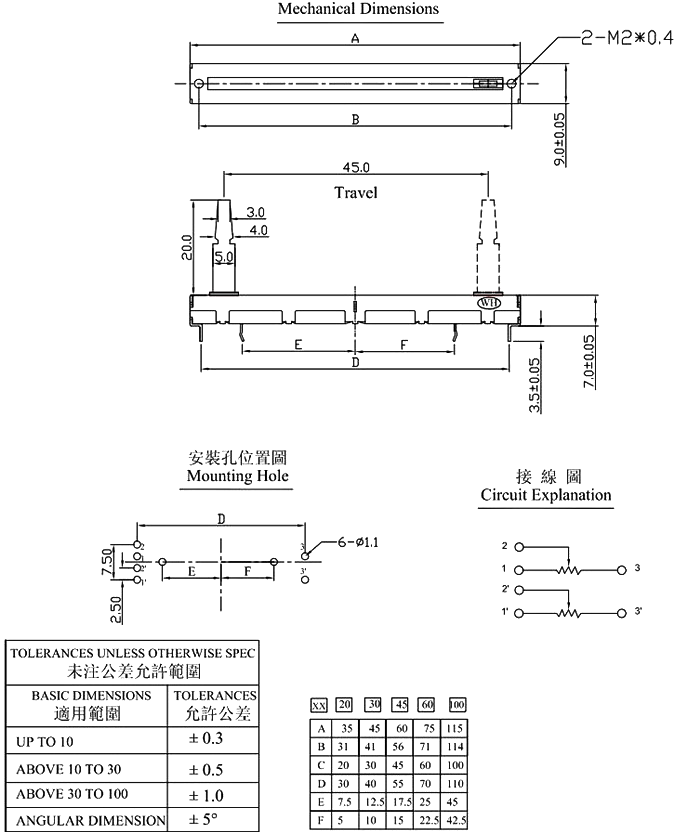

mechanical properties
total sliding stroke		60.0 mm ± 0.5 mm
operating force		10 ~ 100 grams force
Anti-slip strength		Minimum 5.0 Kgf.cm
Push-pull strength		Minimum 3.0 kgf cm in 5 seconds 10 seconds
Number of pawls (clicks)		1C (center positioning), 7C, 11C, 21C, 41C
click slide force		/~/girlfriend
Resistance to soldering heat		Immersion tin: Preheating conditions: The surface temperature of the substrate is stabilized within 100°C within 1 minute. Soldering temperature 260±5℃ for 5 sec.
		Manual soldering: less than 300°C, less than 3 seconds.
sliding life		10,000 other/(minimum number of cycles)

scope

Sliding noise: 100m (V)

Nominal resistance: 1KΩ～2MΩ
Material: Carbon
Resistance adjustment: straight slide
Contact resistance: 1KΩ～2MΩ (Ω)
Type: Dual Unit
Resolution: 100 (%)
Uses: pruning
Performance: special
Insulation resistance: 100 (MΩ)
Compliance: 100%
Resistance tolerance: ±20 (%)

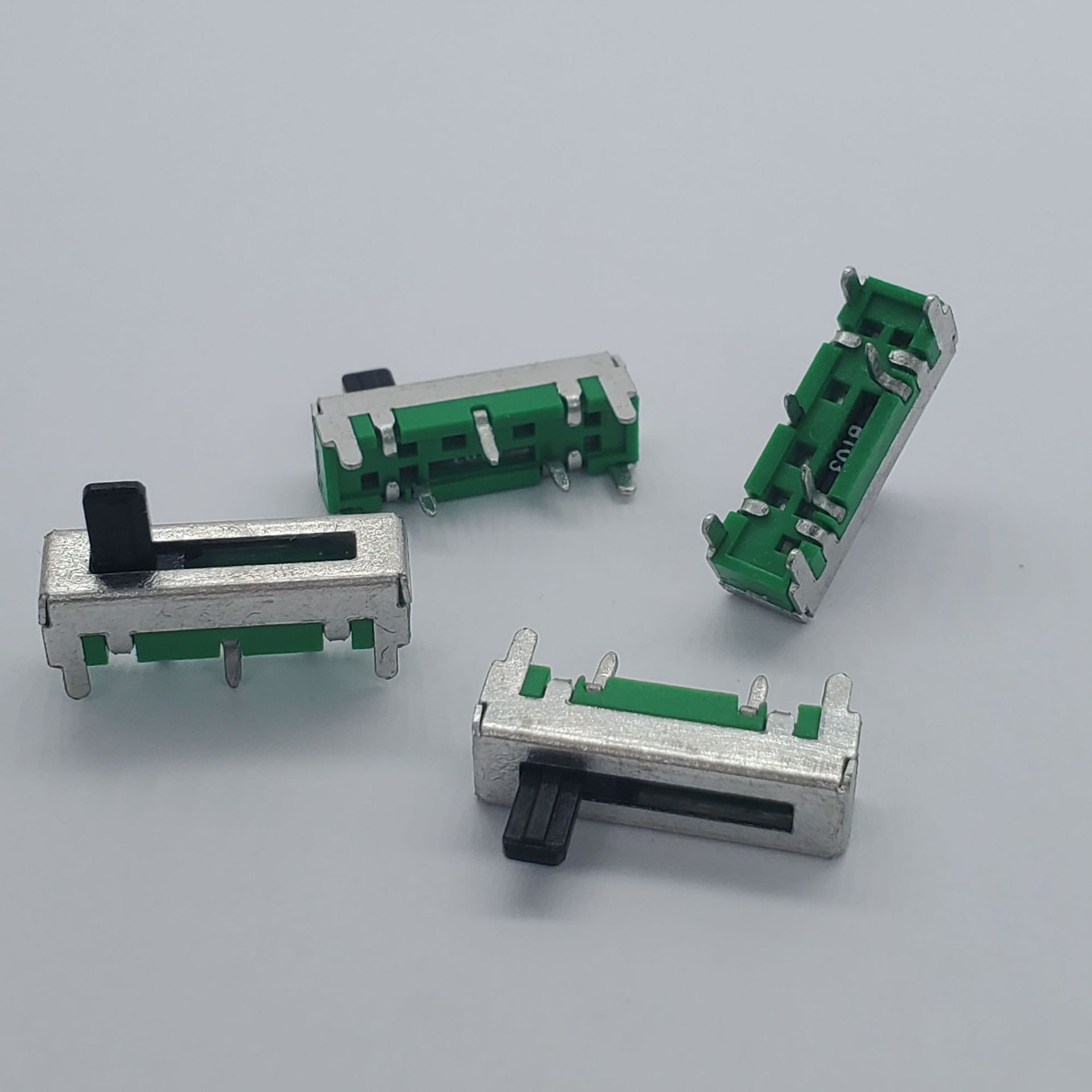

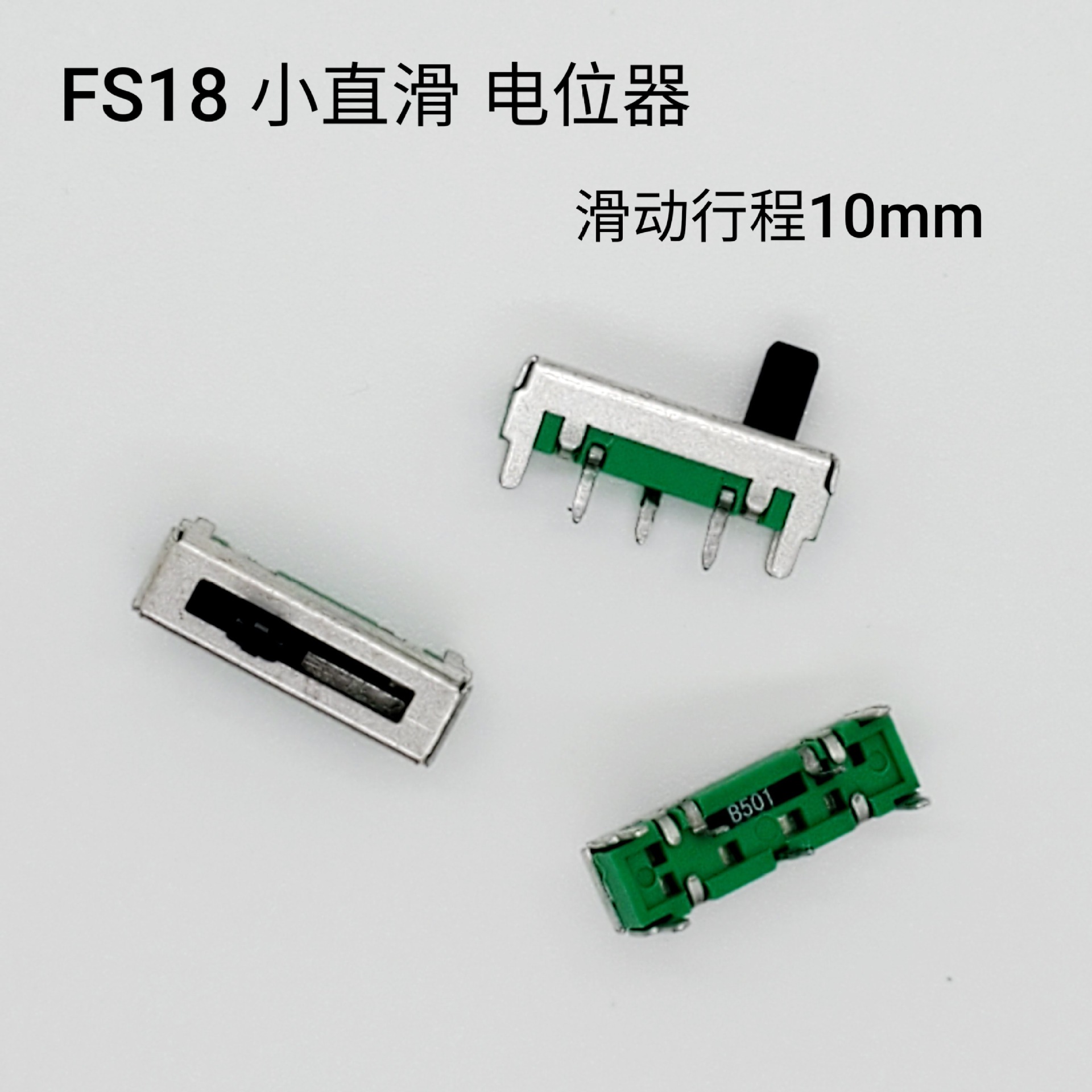

FS18 small straight slide potentiometer 10mm stroke sliding rheostat

electrical properties

Total impedance value: 500Ω~1M Resistance tolerance: ±20% or ±10% Residual impedance: 10Ω Impedance change characteristics: Linear insulation resistance: 100MΩat250V DC Sliding noise: 100mV (at20V DC)

mechanical behavior

Sliding stroke: 10mm±0.5mm Sliding force: 20~200gf Stopping force of push handle: 3kgf.cm.min Tensile and compressive strength of push handle: 3kgf max Push handle shake: 2(2*L)/20mm max L-slider length Lifespan: 10000 times
