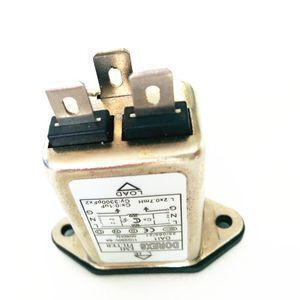

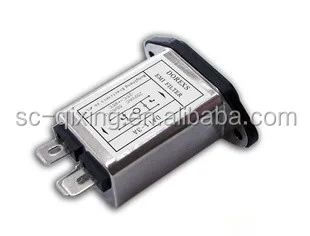

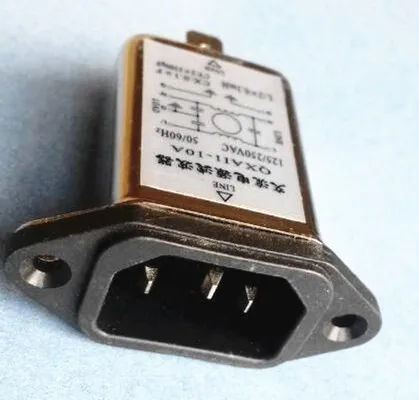

DAAI single phase power line ac noise EMI filter

Product details
Transfer Function:High Pass;Logo:customized;
Type:EMI Filter;Delivery Detail:2 days;
Nominal Center Frequency:50/60HZ;Power:1A-100A;
Producing experience:13 years;Stopband Attenuation:minus 25 C degrees 30minutes, 85 C30-100dB;
Packaging Detail:AS YOU NEED;3dB Bandwidth:25MHz;
ODM:Yes;Company type:factory;
Model:Powe line noise filter;OEM:Yes;
Place of Origin:Sichuan China;Model Number:DAI1;
Brand Name:Bonens;Supply Ability:10000 Piece/Pieces per Day;
Port:guangdong;Type:EMI filter;
Package Type:Throught Hole;Insertion Loss:30-100dB;
Input Impedance:50MOhm@500VDC;Certification:CE ROHS;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;

DAAI single phase power line ac noise EMI filter



Single Phase AC line poer filter





Single Phase AC line power  filter

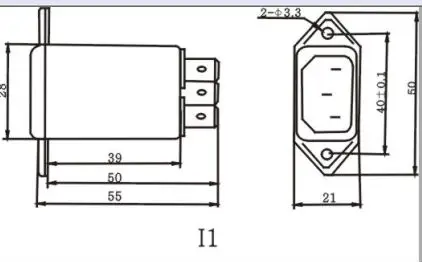

2,Outline drawing





3,Electrical Schematics





4,Rated Current



DAI1-1A

DAI1-3A

DAI1-6A

DAI1-10A



5,Technical parameters:


Rated voltage ................................................................................. 110/250VAC
Operating frequency ....................................................................................... 50/60Hz
Rated Current  ....................................................................................... 1A ~ 20A
Pressure test ................................................ line - Line: 1500VDC line - ground: 1500VAC
Insulation resistance ........................................................................> 50MΩ @ 500VDC
Temperature rise .......................................................................................... <30 ° C
Climatic category  .................................................................................... 25/085/21



6,Feature:



  • Single Phase AC filter
  • General Purpose filter with ICE connector
  • High ration of performance to cost moke
  • Available for mini-electronic equipments and instruments

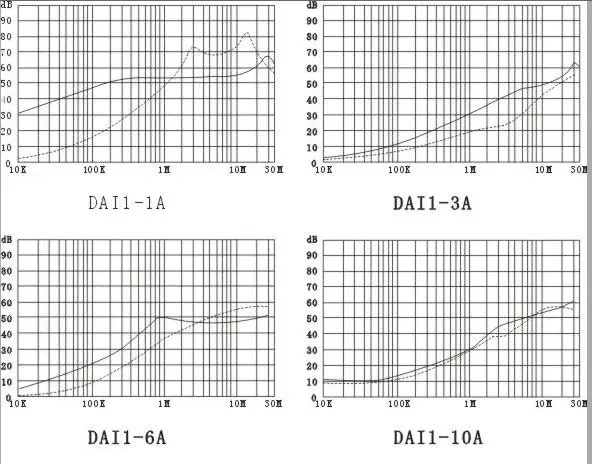

7,Insertion Loss



8. For more info., pls contact us:



Skype ID: Gia.zhou12

QQ ID:  512351005

Tel.:+ 86-18010662198

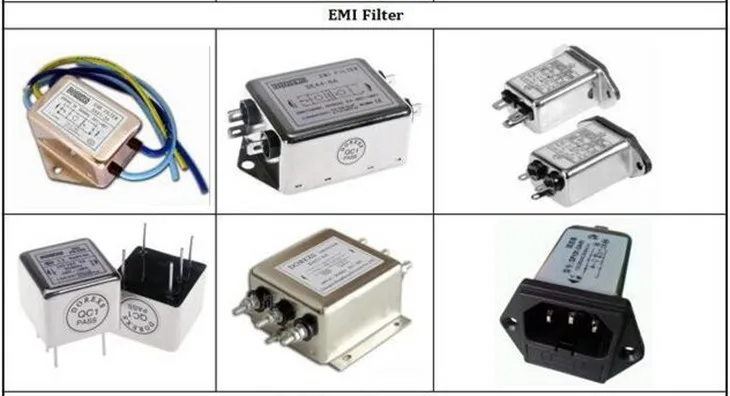

Other products we produce:

Production rated informations:









Production flow chart:
