250VAC 16A feedthrough electromagnetic filter mri faraday cage

  • Supplier: Changzhou Haozhuo Eletronic Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Tom Yan
  • Price: $25.00 / 50 - 299 pieces
    $22.00 / 300 - 499 pieces
    $20.00 / >=500 pieces
  • Min. Order: 50 pieces
Product details
Nominal center frequency:50/60 HzRated current:16A
resistance:1000M ohms@500VDCPackaging Details:100 pieces in a box, gross weight about 10Kg
Shielding works:100dB @ 14K-10GHzConvert function:Lowpass
Rated voltage:250VACinput resistance:50 ohms
line number:13dB Bandwidth:4k
Insertion loss:100 decibelsapplication:radio frequency shielding

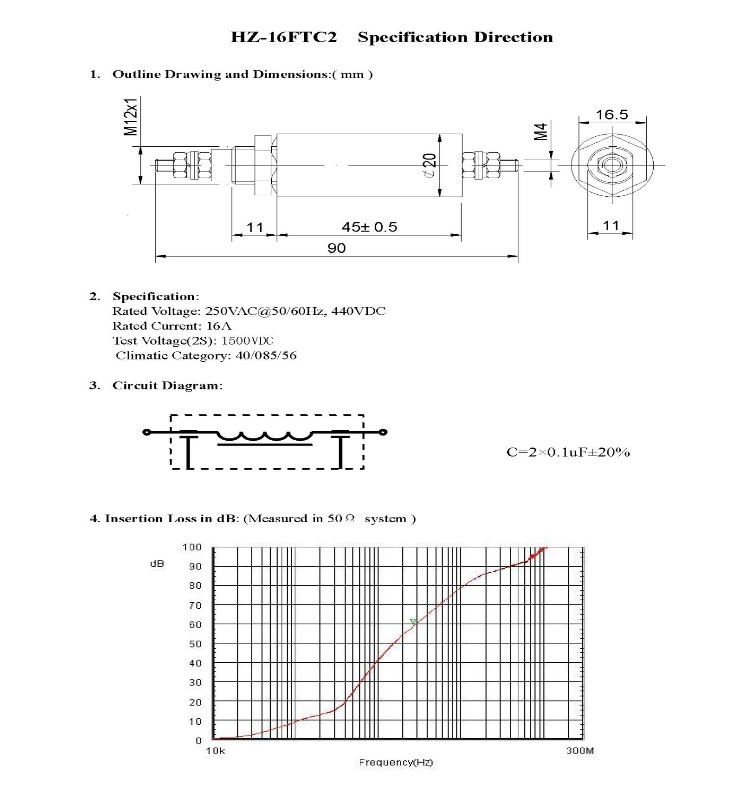

model:HZ-16FTC2type:EMI filter
Supply capacity:1000 pieces per weekStopband attenuation:70-100 decibels
port:Changzhou Shanghai Hangzhou or otherbrand:energy law
Origin:Jiangsu, ChinaTest voltage:1000VDC
payment terms:wire transfer, paypal

Product Description

Ø Description:

n Feedthrough capacitors provide high insertion loss over a wide frequency range

Tens of kHz to GHz region

n Very low internal series inductance

n Very high self-resonant frequency

n self-healing dielectric

n High quality and reliability

n Anti-twist protection

n Through-wall installation

n Customized or double version available upon request

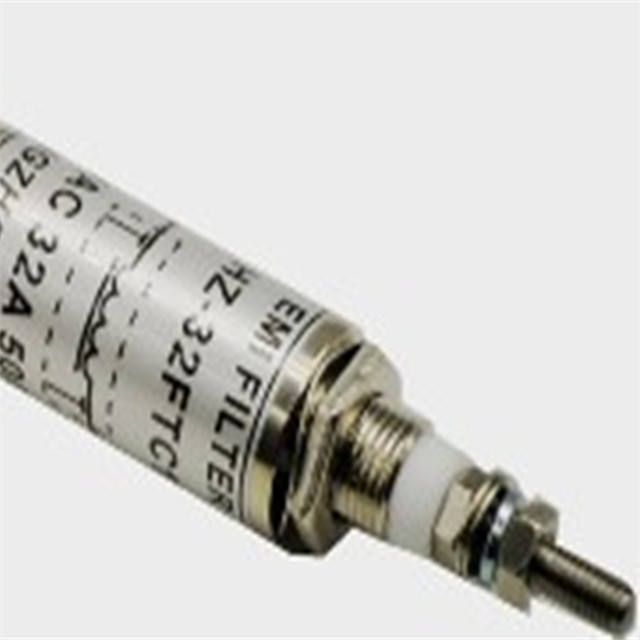

Electric Feedthrough Low Pass Power Line Filter

ØTypical application:

n AC Power line filter for 250VAC power line

n DC power line filter for 48VDC battery power

n Improve system and information security

n power supply

n switching and cellular equipment

n computer servers

n UPS power supply

n medical equipment

n shielded room

filter

Rated current (A)

Rated voltage (V)

Leakage current (mA)

Capacitance (μF)

Test voltage 1min(VDC)

16-M4

16

250

4.14

2*0.022

2250

63-M6

63

250

88.5

2*0.47

2250

100-M8

100

250

564

2*3.0

2120

100-M8

100

250

564

2*3.0

2200

250-M12

250

250

157

2*1.0

2250

30-M5

30

600

-

2*0.018

2500

50-M6

50

200

-

0.22

720

65-M6

65

200

-

2*4.7

1000

62-M6

65

250

-

2*0.25

2250
