EMI/Rfi shielding, radar absorbers, microwave anechoic chambers

Supplier: Seattle Electronics Manufacturing (Shenzhen) Co., Ltd.
Region: Guangdong, China
Contact: Mr Peter Chen
Price: $15.00 / 10 - 99 pieces
$13.00 / 100 - 499 pieces
$11.00 / >=500 pieces
Min. Order: 10 pieces

Click here to contact

Product details

product name:	Absorbing material	color:	blue
Material:	natural foam	model:	SA type
brand:	SEMG Corporation	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
appearance:	Pyramid	application:	EMC Chamber, Anechoic Chamber, EMC Box, RF Cabinet, etc.
port:	Shenzhen	Supply capacity:	100000 pieces per month
size:	500*500mm	thickness:	30-1000mm
Origin:	Guangdong, China	Packaging Details:	standard packaging
type:	EMC filter

Product Description

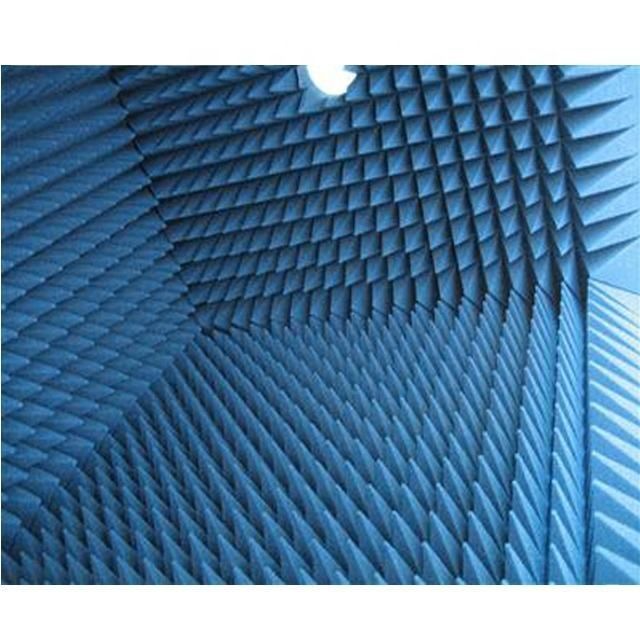

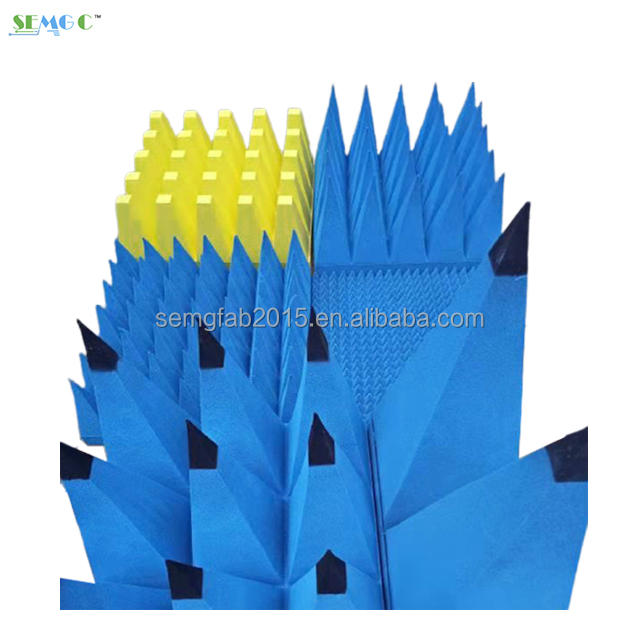

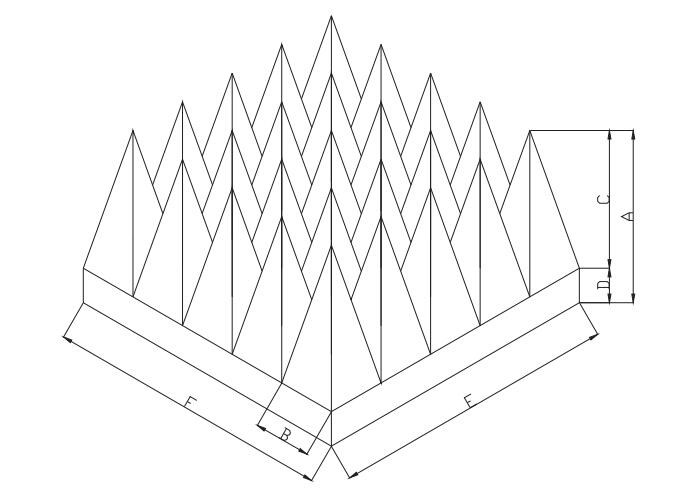

The microwave anechoic chamber material is a pyramid-shaped carbon-loaded elastic polyurethane foam EM absorber. This material can be used to cover anechoic chambers, as well as in the construction of test equipment for antenna measurements. The absorbers are made in the form of panels.

application

Broadband absorber for indoor measurements.
Thickness below 100mm, used for small shielded room
Thickness above 100mm, used in large shielded room or dark room
Other dimensions and customer-specified configurations available upon request

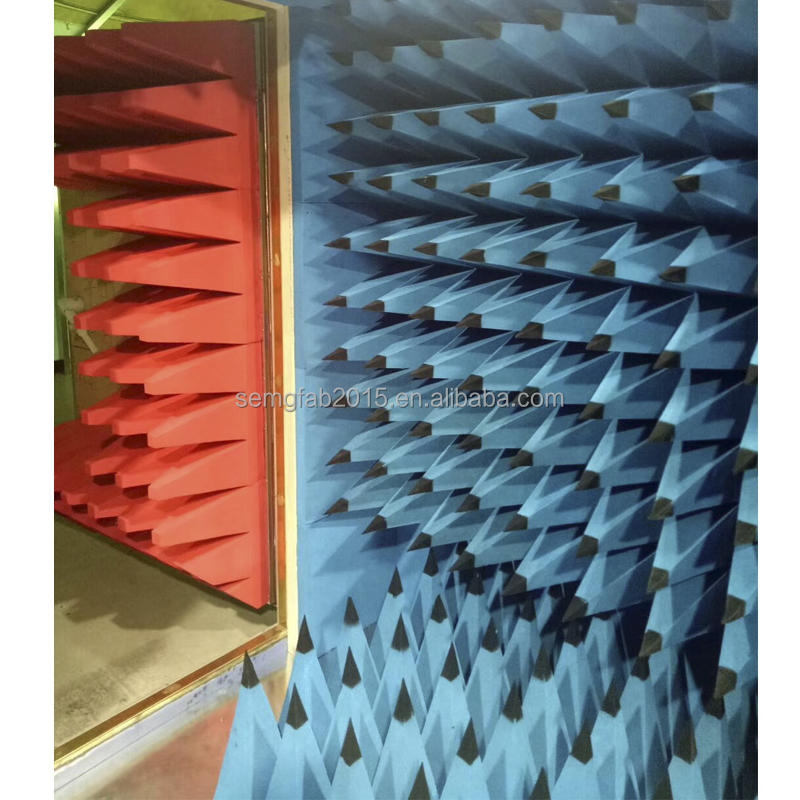

Used in the manufacture of microwave anechoic chambers to perform measurements such as RCS,
Antenna measurement, etc.

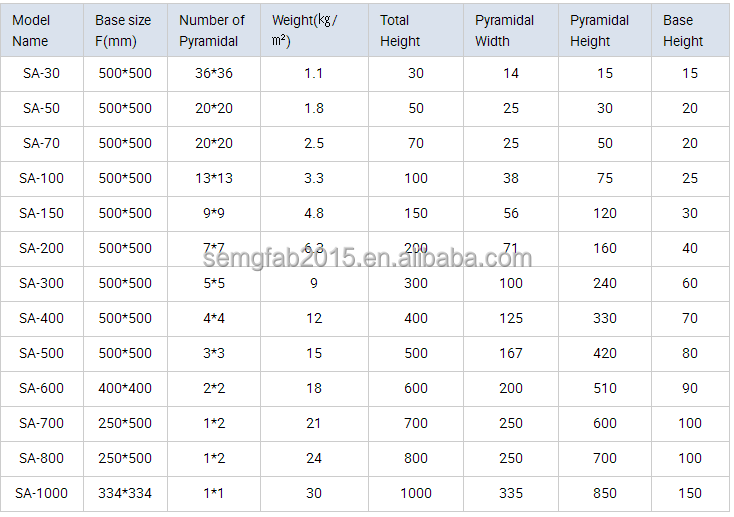

Specification

Features and Benefits	Specification	market

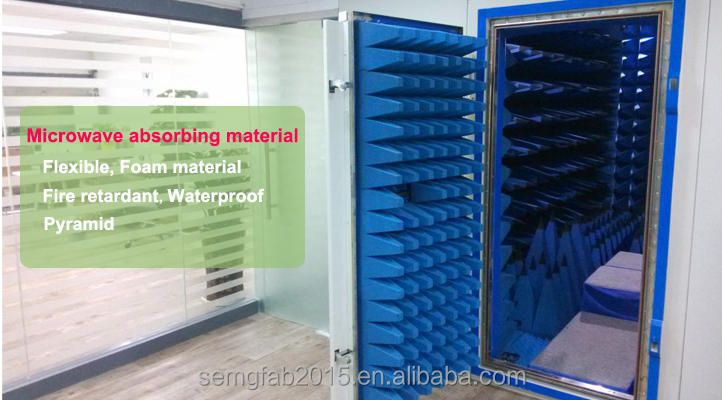

flexible foam material flame retardant Pyramid Electronics There is no requirement for the substrate. blue or as request	Frequency range: ≥ 1 GHz Operating temperature °C : -50-80oC Thickness size range: 20mm-1000mm	business telecommunications Security and Defense Electronic Equipment Testing

thing	value
model	SA type
type	EMC filter
birthplace	China
	Guangdong
brand	SEMG Corporation
Material	natural foam
appearance	Pyramid
product name	Absorbing material
size	500*500mm
color	blue
thickness	30-1000mm
application	EMC Chamber, Anechoic Chamber, EMC Box, RF Cabinet, etc.

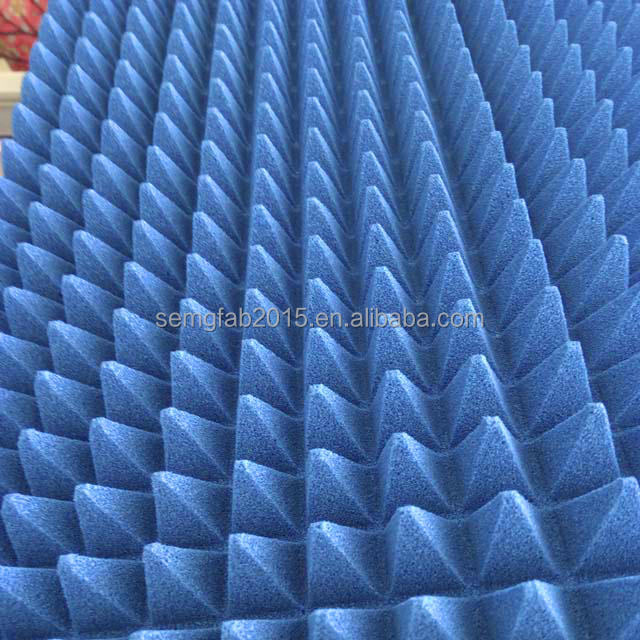

Using polyurethane foam as the base material, the surface is coated with a waterproof coating, and the adsorption element is carbon, free of dust droplets; the surface color of the product is generally light blue, of course, the surface color can also be changed according to customer requirements.

The product complies with NRL8093 (USA) testing standards, and all raw materials comply with RoHS, using flame-retardant materials, non-volatile, no odor, non-toxic, and the materials are stable for long-term use.
