multiturns multi-turn Adjustable ceramic trimmer potentiometer 1K 102 203 20K ohm trimpots 500k 5k trimming potentiometer

Product details
Port:shenzhen;Brand Name:Bonens;
Technology:Cermet;Rotary:single turn; 3 turns; 5 turns; 10 turns; 12 turns; 22 turns; 28 turns;
Operating Temperature:-55degree--+125degree;Resistance:10--5M ohm;
Resistance Tolerance:+-10%;Resistance range:10ohm-5M ohm;
Advantage:can meet Military standard;Type:trimmer, rotary, adjustable, fixed;
Supply Ability:5000 Piece/Pieces per Day;Place of Origin:Sichuan China;
potentiometers we make:potentiometer 3590S 3386 3296 3329 3006 3362 series;Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,PAYPAL;
Packaging Detail:50 pcs/tube 1000pcs/bunch for trimpots. 25pcs/tray/50pcs/box for wirewound pots.;Rated Power:0.5W;
Package:tube; tray; box;carton;Model Number:potentiometer 3590S 3386 3296 3329 3006 3362 series;
Max. Operating Voltage:500V;Item name:multiturns multi-turn Adjustable linear potentiometer;
Customizing ability:High;Factory age:12 years 7 month old;
category:rotary potentiometer, cermet potentiometer, precision potentiometer;adjustable type:top, side, reverse;

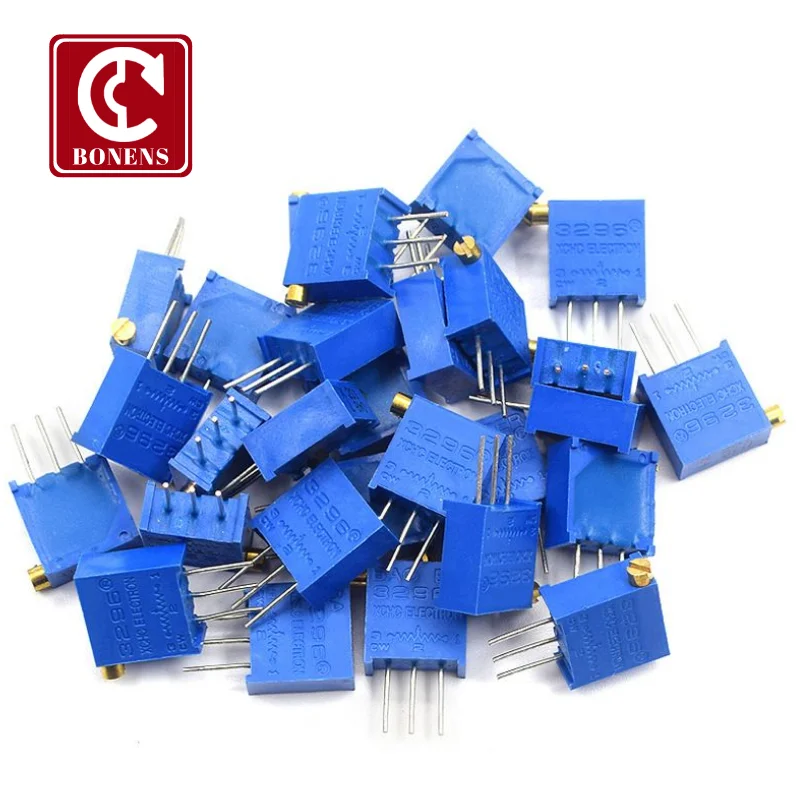

multiturns multi-turn Adjustable ceramic trimmer potentiometer 1K 102 203 20K ohm trimpots 500k 5k trimming linear potentiometer

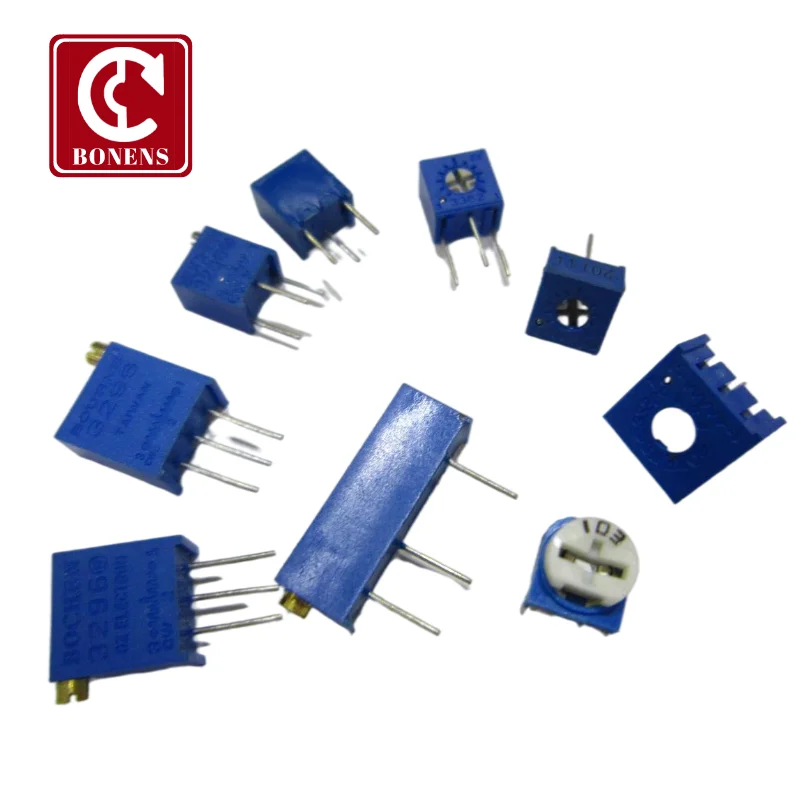

Rotary type trimmer type Single turn multi turn potentiometers manufacturer



 Please send me inquiry for the item you looking for, I am a potentiometer dictionary at your hand!

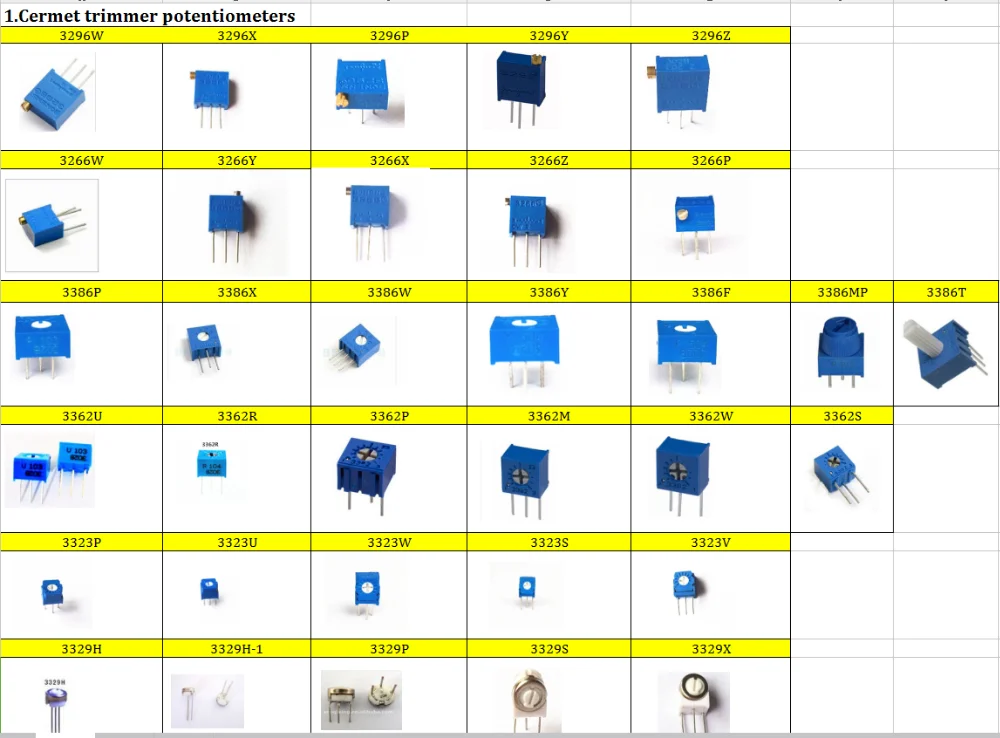

please see if the one you need is in below catagory:

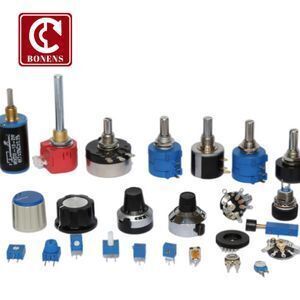

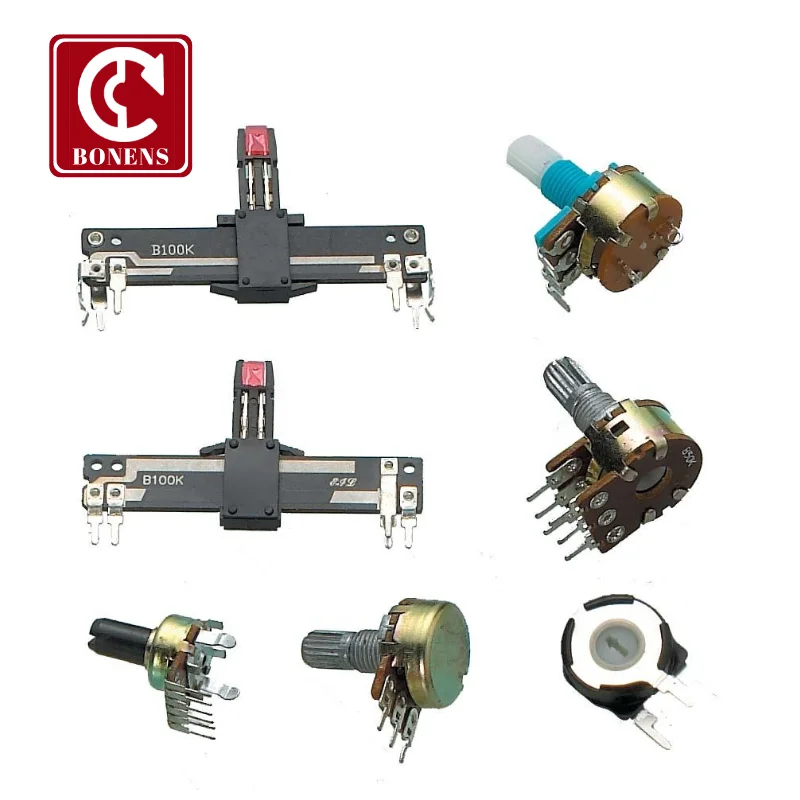

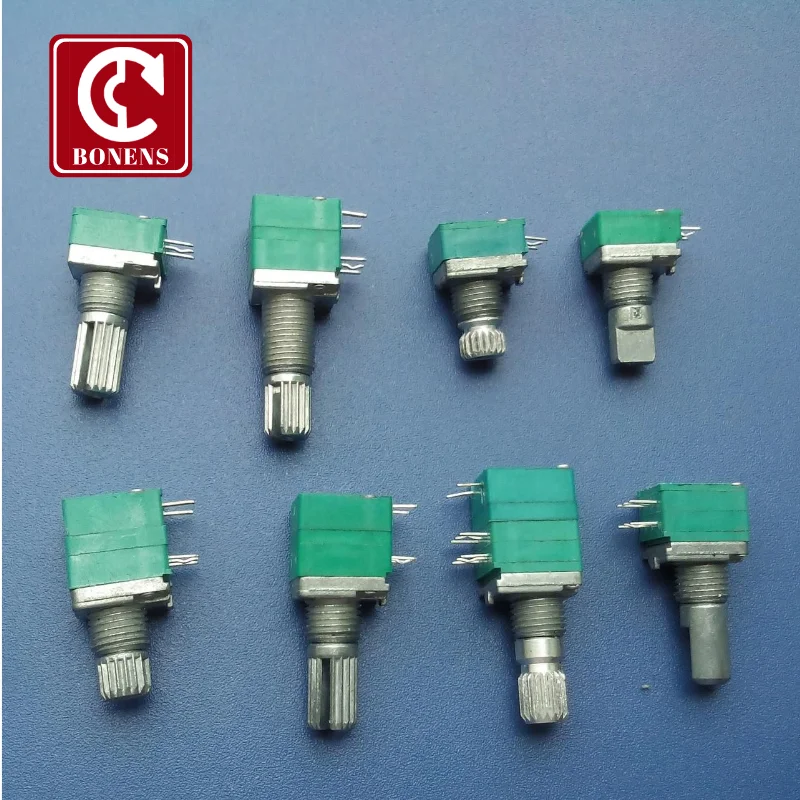

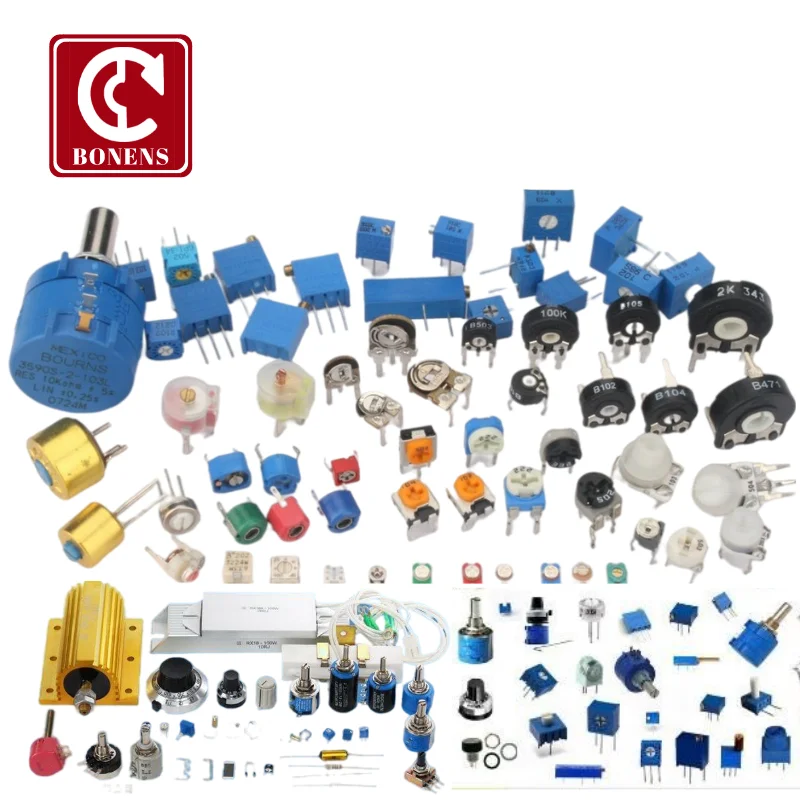

More potentiometers we make:



Please send me inquiry for the item you looking for, I am a potentiometer dictionary at your hand!



now recommend:

500k 3386MF 5k trimmer potentiometer



Potentiometer 3386MF 3386T leads position







 3386 series single turn trimmer potentiometer data sheet:



Electrical Characteristics

Range of nominal resistance

10Ω~5MΩ

Resistance tolerance


±10%

Terminal resistance


≤±1%R or 2Ω

Contact resistance variation (CRV)


≤±1%R or 3Ω

Insulation resistance


≥ 1GΩ (100V AC)

Withstand voltage


500V (DC or AC peak value)

Effective electrical travel


≥250 °





Environment Characteristics

Rated power

0.5W ( 300V max)

Temperature range


-55°C~+125°C

TCR


±250×10-6/°C

Collision (390m/S2, 4000 times)


ΔR≤±1%R

Vibration (10-500HZ, 0.75mm, 6h)


ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS

Temperature variation (-55°C/30min,
 +125°C/30min, 5 cycles)

ΔR≤±2%R,
 ΔUab/Uac≤±2%R

Climate category (IEC68-2-2)


ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ

Electrical endurance (0.5W, 1000h)


ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω

Mechanical endurance (200 cycles)


ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω

Steady damp heat (IEC68-2-3, Ca, 96h)


ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ



Physical Characteristics

Total mechanical travel

300±10 lap

Starting torque


≤20mN.m

Standard package


 50 pcs /tube



Products of special resistance and specifications are provided.



•Products with TCR of 100ppM are provided



•Products with linear accuracy of ±0.25% are provided.

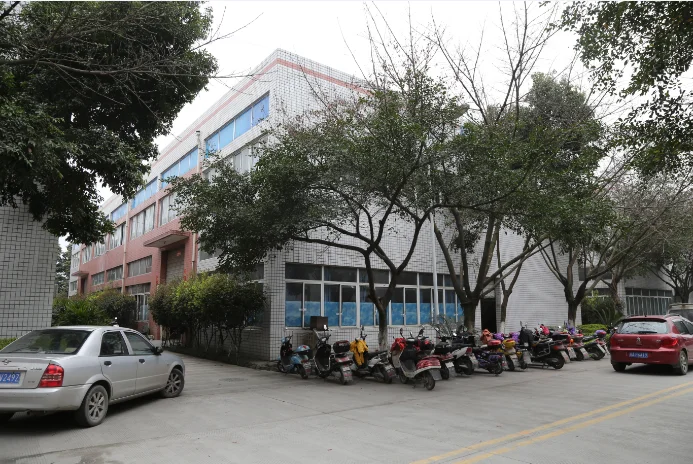

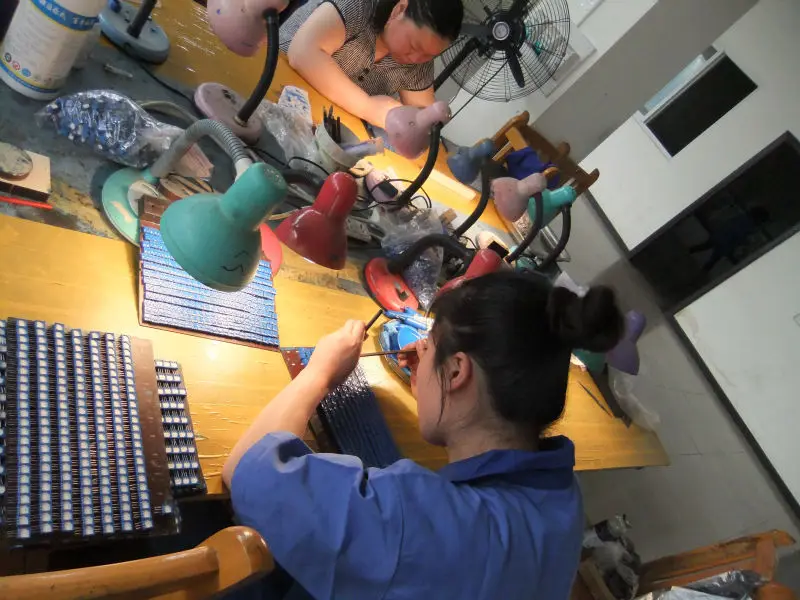

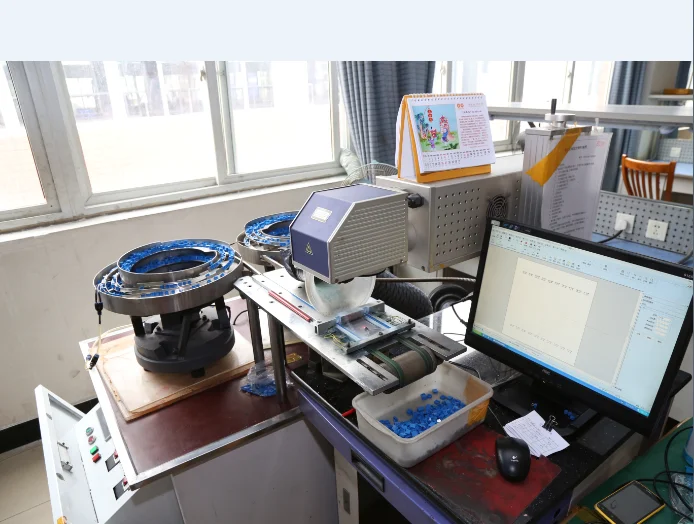

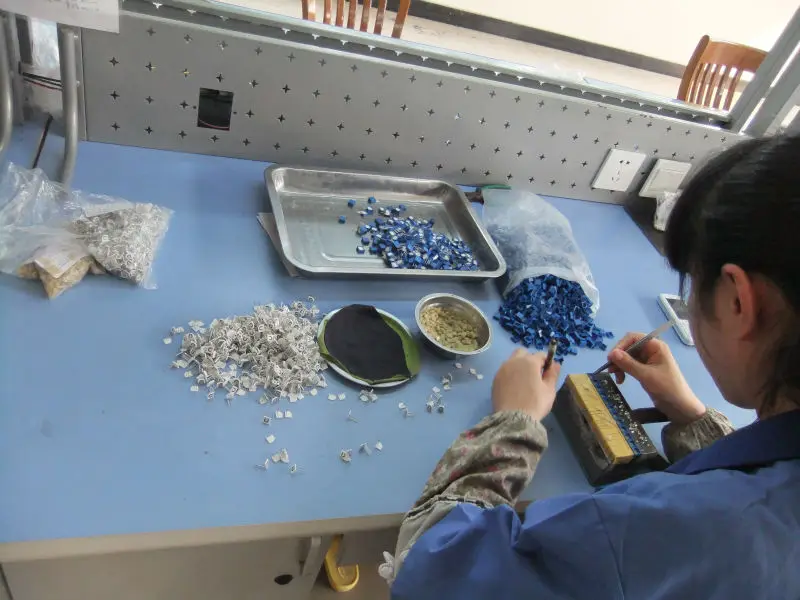

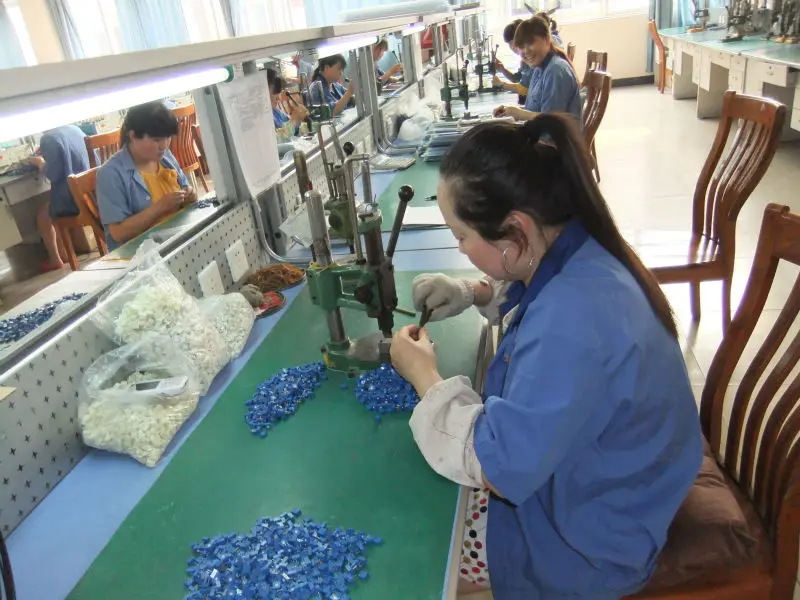

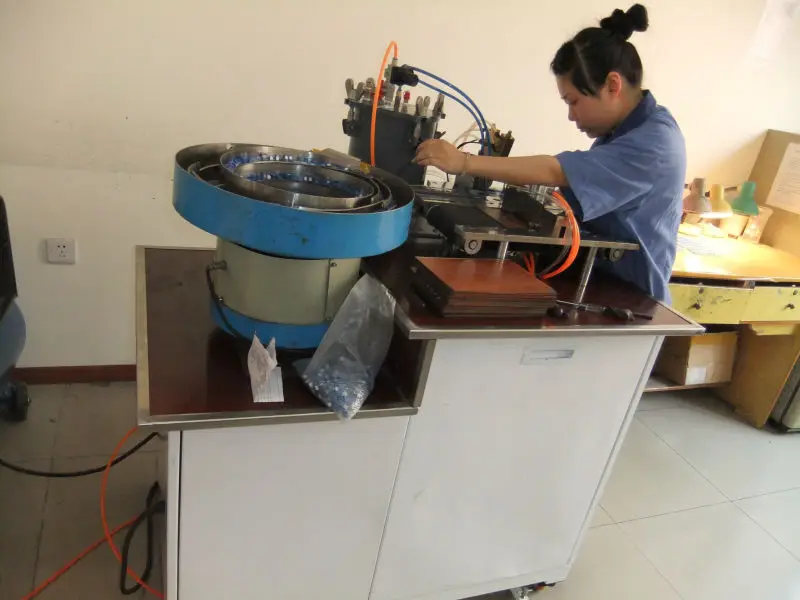

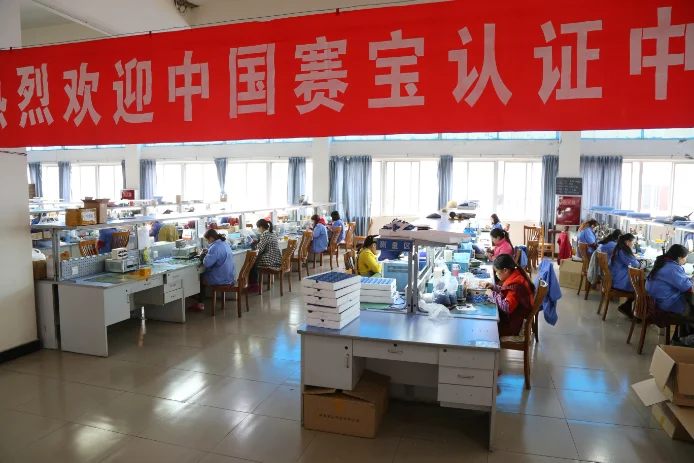

Have a look at our factory:
