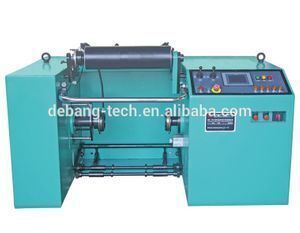

DB136 High Precision Servo High-speed Warping Machine Copy Style

Supplier: Jinhua Debang Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms. Danny WU
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Delivery Detail:	20days;
Type:	warping machine;	Condition:	New;
Port:	China Port;	Certification:	CE ISO;
Place of Origin:	Zhejiang China;	Color:	Green/ Blue;
Dimension(LWH):	1700011102250mm;	Power(W):	11kw;
Payment Terms:	L/C,D/A,D/P,T/T,Negotiated;	Warranty:	One Year;
Weight:	4000kgs;	Supply Ability:	200 Set/Sets per Month;
Packaging Detail:	In wooden cases Seaworthy packing;	Model Number:	DB-136;
Machine Type:	Servo Copy;	Brand Name:	DEBANG;
Application:	Yarn;	Beam Size:	21"x21", 30"x21";
Warp linear speed:	50-1000m/min;	Production Capacity:	High;

DB-136 High Precision Servo Copy and High-speed Warping Machine adopts computer frequency conversation controlled technology, frequency, servo driven unit and PLC to fulfill communication control. It reaches the international leading level and riling domestic vacancy. It is suitable for warping cotton yarn, viscose, blending yarn, polyamide and polyester filament, low elastic polyester fiber, viscose, and short fiber yarn such as cotton yarn.

Main Technology Parameter:

1. Warping speed: 50-1000 m/min

2. Beam size: 21"x21", 30"x21"

3. Auto-identified beam type, clearance / operation, brake moment etc.

4. Leveling Roller motor: 3.7 kw servo motor

5. Pneumatically driven yarn storage, beam loading and unloading, beam clamping and disengaging way

6. Main electro motor power: 7.5 KW frequency motor

7. The first beam data: 2 groups

8. Copy precision (more than 3000 circles): same rolls, the error of same group beams NMT 0.25%.

9. Maximum counting range: 100000 meters ( rolls).

Main Features:

Novel type, simple operation, intelligent identification, auto-reservation of data, velectronic gear, auto-controlled inspecting machine and power cutting protection system. The extension reed and measuring roller is whole moving. The guide reed is moving up and down to extend its life.

Main devices:

1. Warper head – for 21"x21" and 30"x21" beams

2. Tension roller with servo motor

3. Fluff detector

4. Yarn storage device

5. Oiling device

6. Eyelet board

7. Antistatic device

8. Drop pin stop motion

9. Turn table creel
