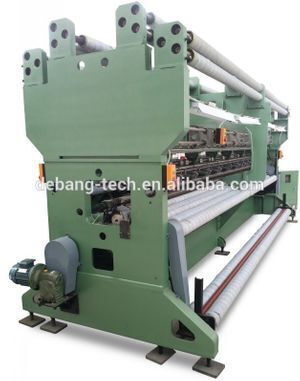

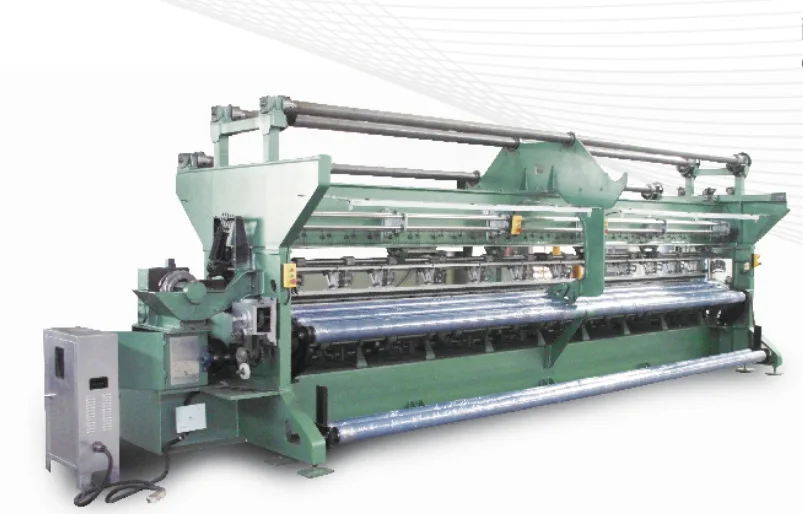

High Speed Single Needle Bar Warp Knitting Machine Net Fabric Machine
-
Supplier: Jinhua Debang Technology Co., Ltd. -
Region: Zhejiang, China -
Contact: Ms. Danny WU -
Price: $30000.00 /set -
Min. Order: 1 set
| Port: | Shanghai/Ningbo; | Certification: | available; |
| Delivery Detail: | 30 days after payment; | Place of Origin: | Zhejiang China; |
| Application: | producing nets; | Weight: | 4500~11000 KG; |
| Production Capacity: | High; | Knitting style: | flat; |
| Condition: | New; | Model Number: | SN01; |
| Warranty: | one year; | Power(W): | 3~7.5KG; |
| Payment Terms: | L/C,D/A,D/P,T/T,Negotiated; | Supply Ability: | 200 Set/Sets per Month; |
| Automatic Grade: | Automatic; | Brand Name: | DEBANG; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Dimension(L*W*H): | 4300*2200*2700; |
| Voltage: | 380V; | Packaging Detail: | In wooden cases or pallet + Stretching Film Packing Seaworthy packing; |
| Features: | Single; |

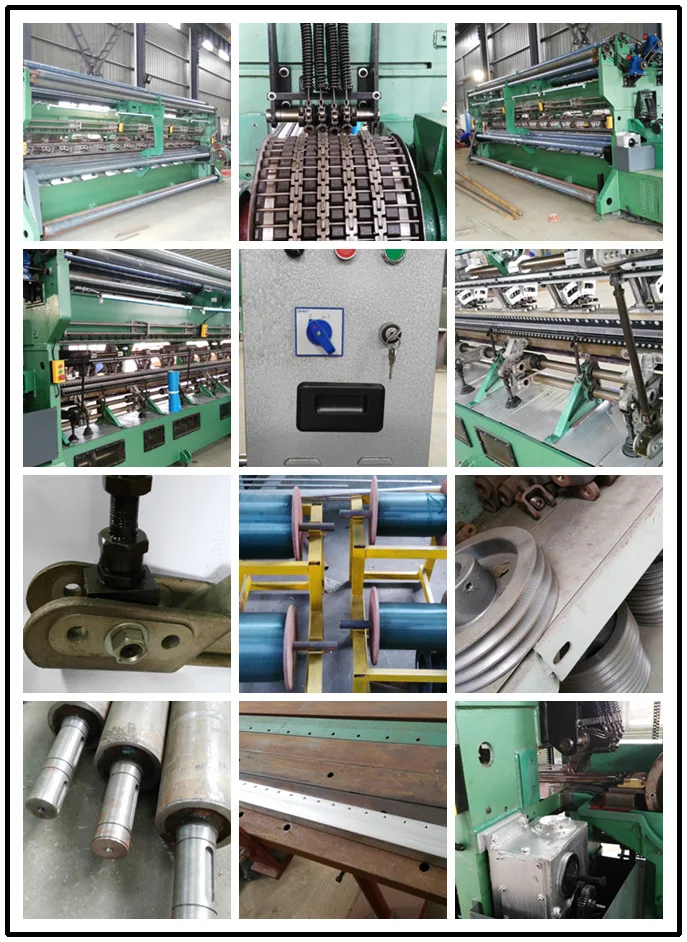

High speed single needle bar raschel machine
Needle type : Latch needle
Gauge : E6,E7,E8,E9,E12,E14,E16,E18
Bar number : 2~6
Nominal width : 135", 150". 180", 220", 260"
Take-up manner : 2 rollers with friction drive, center shaft drive, 2 rollers with friction drive, separately-standing, centershaft drive. separately-standing
| Machine Type | Size(L×W×H) | Weight(Kg) | Power(KW) | Speed(rpm) | |
| Main motor | Inching motor | ||||
| 135 | 4300×2200×2700 | 4500 | 3 | 0.37 | 200-560 |
| 150 | 4900×2200×2700 | 5000 | 3 | 0.37 | 200-560 |
| 180 | 6100×2300×2800 | 7500 | 5.5 | 0.75 | 200-560 |
| 220 | 7300×2300×2800 | 9000 | 5.5 | 1.5 | 200-500 |
| 260 | 8100×2300×2800 | 11000 | 7.5 | 1.5 | 200-480 |
Debang Technology is a leading name in the Textile Industry. We are offering qualified products and professional services to the textile customers all over the world.
Our main products are: warp knitting beams, warping machines, warp knitting machines, processing & finishing machines, and relevant spare parts, etc.
Our suppliers are mainly based in China, all of them rank No.1 in their segments, which enable us to meet your permanent demand: consistent high quality at competitive price.

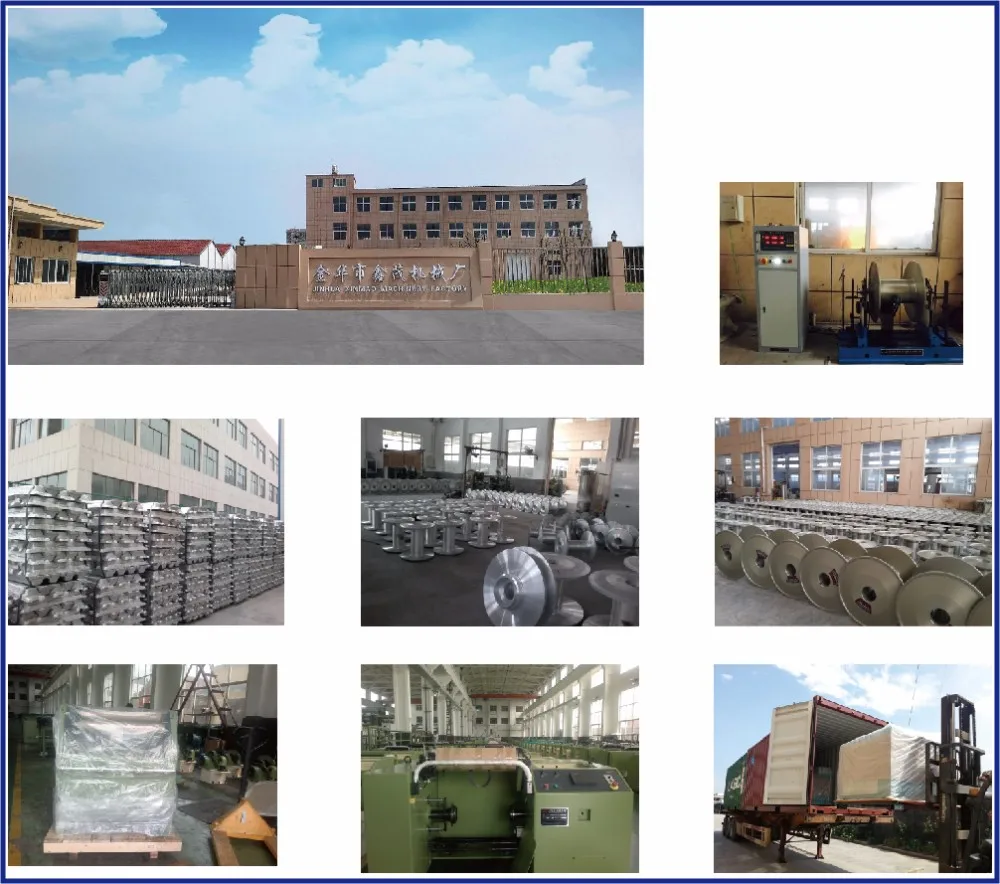

Our beams factory—Jinhua Xinmao Machinery Factory has been in this line since from 1998. With unremitting efforts, the company has grown to the largest manufacturer of warp knitting beams in the world. Daily capacity is 200pcs, 40% beams are exported to more than 10 countries, like India, Turkey, Korea, Russia, Indonesia, etc. with high reputation.
Our beams are made of high-strength aluminum alloy, processed by CNC lathes, automatic welding, surface polishing, dynamic balance checking and hard-anodizing, etc. The beams are characterized by high strength, super precision on dimension, smooth surface, and excellent compatibility with all widely used warp knitting machines, such as Karl Mayer, LIBA, etc.
Qualified products, reasonable price and professional services are the keys to our successes, and encourage our customers to repeat orders with us. We welcome every new customer come to us for eternal cooperation.
-
