Longkou Sunvo knotless net production line high quality bath ball net machine pe

Supplier: Longkou Sunvo Plastics Co., Ltd.
Region: Shandong, China
Contact: Ms Adaline Liu
Price: $19000.00 / 1 - 1 sets
$18500.00 / 2 - 2 sets
$18000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Video outbound inspection:	if	Knot type:	No knots
capacity:	15-30kg/hour	Core components:	PLC, pressure vessel
product:	Shower balls, fruit and vegetable packaging nets, flower nets	strength:	35
Dimensions (lengthwidthheight):	1032M	Name:	Bathing ball net machine
Production capacity:	15-30kg/hour	Warranty:	1 year
Mechanical test report:	if	Marketing type:	2020 new products
Health status:	new	After-sales service provided:	Engineers can repair machinery overseas
Voltage:	380V	Core component warranty:	2 years
brand:	Shangvao	Supply capacity:	1 set per month
port:	Qingdao	Post-warranty service:	Video technical support
Packaging details:	Longkou Shanghe knotless net production line standard container high quality PE bath ball net machine	Showroom location:	Canada, France
weight:	3kg	Place of origin:	Shandong Province, China
Material capabilities:	non-woven fabric	Screw aspect ratio:	25:1
Automatic level:	automatic	application:	plastic mesh
Applicable industries:	manufacturing plants, farms	payment terms:	Letter of credit, wire transfer

product description

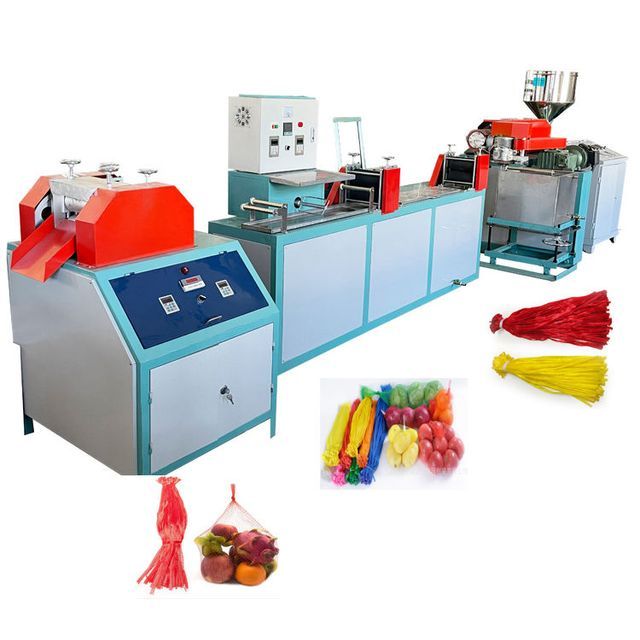

Longkou Shangwo knotless net production line high quality pe bath ball net machine

This machine is suitable for one-time molding and continuous automated production of plastic materials. It can produce high-end household appliance filters, marine aquaculture packaging, wine, fruit, etc. of different materials and sizes.
Vegetables etc.

product specifications

Model	SHWJ-45	SHWJ-60	SHWJ-65	SHWJ-70
Screw diameter	45mm	60mm	65mm	70mm
Productivity	6-8kg/hour	10-12kg/hour	12-14kg/hour	14-15kg/hour
Installed power	25kW	30kW	35kW	40kW
Machine weight	2T	2.5T	3T	3.5T

The main technical parameters:

Material: LDPE/PP

Products: shower balls, fruit and vegetable packaging nets, flower nets

Power: 35KW screw

Diameter: 65mm
Cylinder outer diameter: 105mm

Screw aspect ratio: 25:1

Screw material: 38CrMoALA

Manpower required: 1 person

Layout: 10.0X3.0X2.0m

main feature:

1. This machine is suitable for one-time web forming and continuous automated production of plastic raw materials.

2. Can produce high-end household appliance filters of different materials and sizes.

3. It is an updated product of traditional mesh bags, and the cost is only half of that of traditional mesh bags.

4. The screw and barrel adopt 38CRrMoALA nitriding process and have long service life.

5. The drive motor adopts variable frequency control, with high speed adjustment accuracy, wide adjustment range and low

consumption and reliable operation,

6. Adopt intelligent digital temperature controller, high efficiency and low consumption.

Detailed introduction

main motor power	7.5kW
Main motor control method	Motor speed regulation and frequency conversion speed regulation
Screw material	38CrMoALA
cylinder outer diameter	Φ105mm
Gear shifting method	Special reducer for extruder
J	Cast aluminum heater
heating power	12kW

Extrusion head	High-speed extrusion head, motor frequency conversion speed regulation
Extruder head motor power	4kW
Extruder motor control method	Motor speed regulation and frequency conversion speed regulation
Extruder head heating area	2
heating power	3kW

Sizing method	size type
cooling method	water cooling
Calibration width	According to customer requirements
Water tank material	Stainless steel

temperature control	Electric heating water constant temperature control
heating power	9kW
Water tank material	Stainless steel
size	2000×230×200mm
Tension power	2.2kW
driving type	speed converter
