shade netting machine

Product details
brand:OrientationVideo shipment inspection:if
Instrument number:E2/E3/E4/E6/E9Model:YX291-S2
Voltage:380VOrigin:China
Dimensions (L*W*H):7200X2000X2300Marketing Type:New Products 2020
Health status:newWarranty:1 year
weight:12000Mechanical test report:not available
size:170 inches, 268 inches, 335 inchesNeedle bar:single needle bar
Applicable industries:Building material stores, manufacturing plants, farms, home use, construction projectsCore component warranty:1 year
Automatic level:automaticpayment terms:L/C, D/P, T/T
Showroom location:egypt, indiaAfter-sales service provided:Video technical support, online support
Core components:PLC, bearings, gearboxes, motors, gearsLocal service location:not any
strength:5.5KWFinished goods:shade net
After warranty service:Video technical support, online support, spare parts, on-site maintenance and repair servicesProduction capacity:300-450 rpm
Product overview

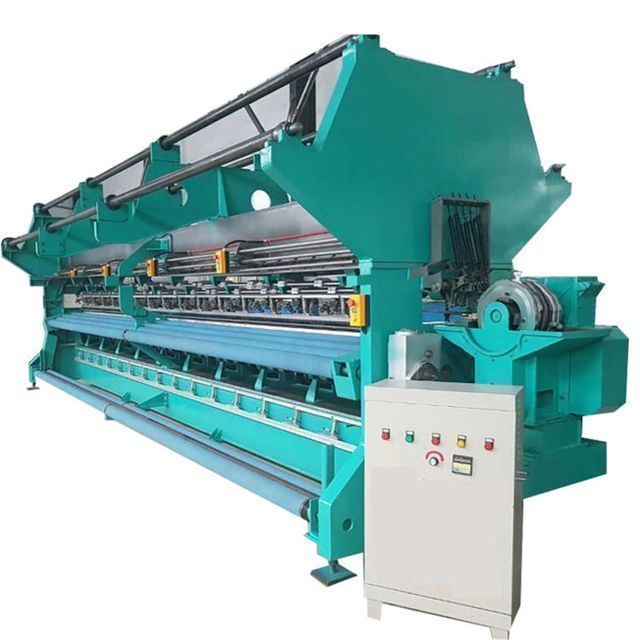

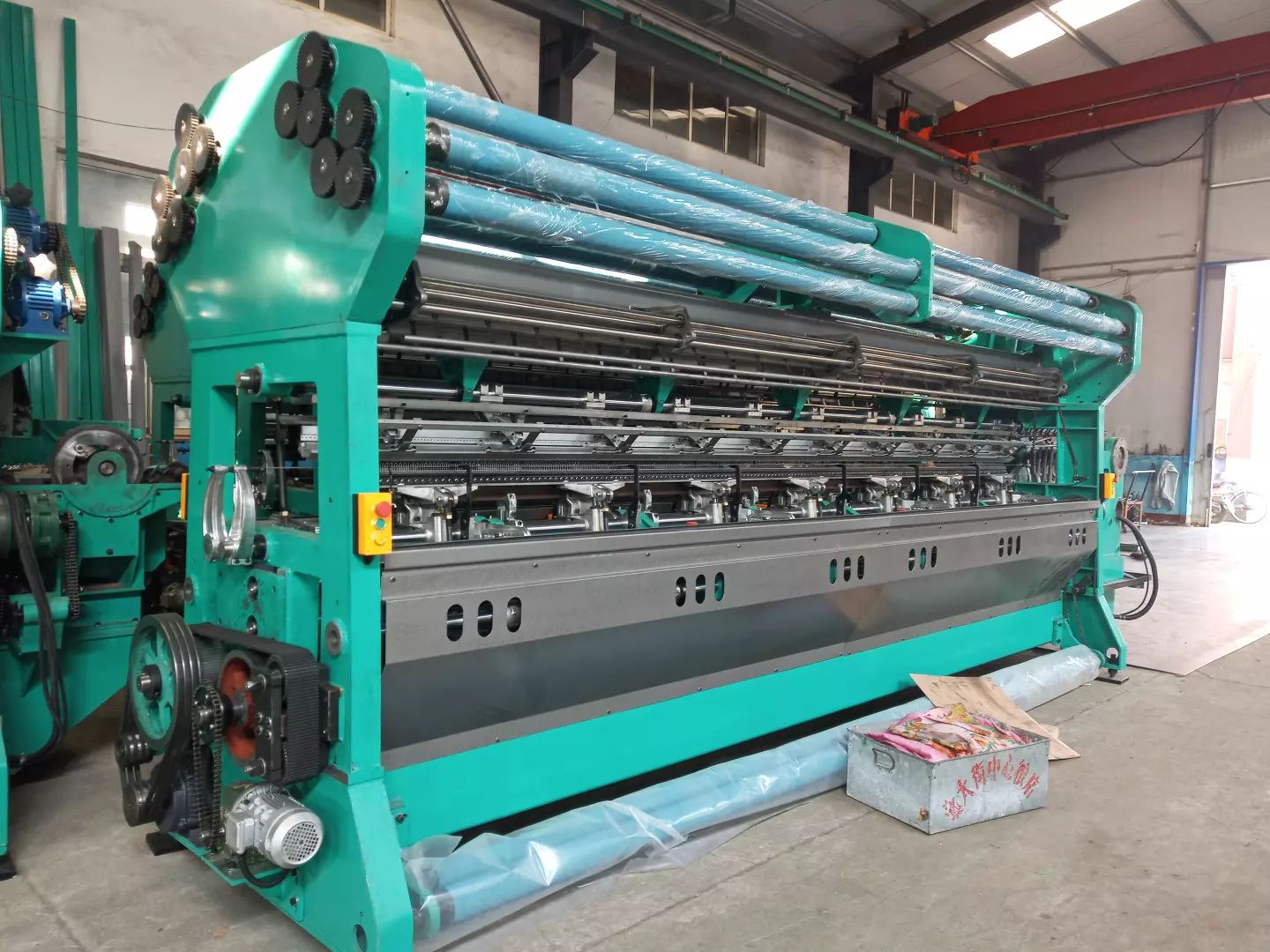

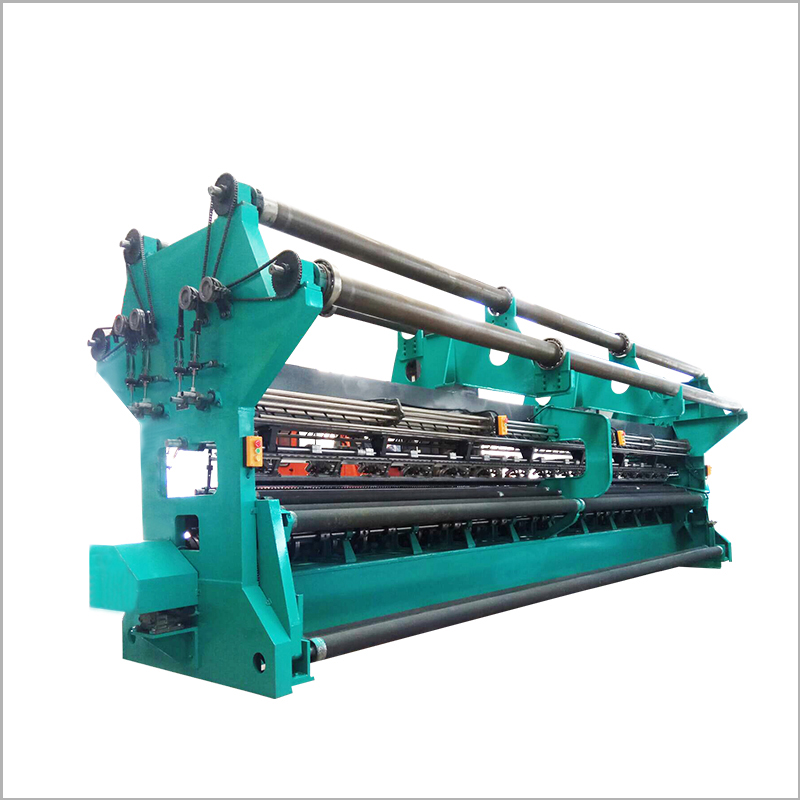

YX291-S1 Shade Net Making Machine
This machine is mainly used for weaving various knotless nets such as sunshade nets, dust-proof nets, bird-proof nets, hail-proof nets, plastic nets, etc.
The material is HDPE, PE or PP yarn

feature:
This machine adopts open cam swing arm linkage mechanism, yarn feeding by creel or warp beam, and warp let-off by rollers. The production is well ventilated and can weave flat yarn and round yarn.
Product Description
type of machine
Shade net warp knitting machine
needle bed
single needle bed
needle type
individual latch needle
Instrument number
E2, E3, E4, E6, E9
Number of bars
4 pieces
yarn feeder
Yarn feeding with warp beam
working width
170inch 268inch 345inch or customized
computerized
mechanical or computerized
speed
350-550 rpm
Product parameters
machine type
Dimensions (mm)
installation size
Motor Power
Weight (kg)
YX291-S1-170
6000×2000×2300
7000×8000; 56M²
5.5KW
9000
YX291-S1-268
8700×2000×2300
9500×8000; 72M²
5.5KW
12000
YX291-S1-345
9200x2000x2300
10000x800; 80M²
7.5KW
15000
