Taidacent outer diameter 22mm silver plated speed 0-200rpm 2A electrical slip ring 8 wire coaxial rfll collector slip ring

Supplier: Shenzhen Taida Century Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Bill Yuan
Price: $6.28 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

CH:	8;	Brand Name:	Taidacent;
Single package size:	3X4X5 cm;	Place of Origin:	Guangdong China;
Single gross weight:	0.5 KG;	Model Number:	Td8a;
Package Preview:	https://sc01.alicdn.com/kf/HTB1lsdSmHorBKNjSZFjq6A_SpXaq.jpg_640x640.jpg;	Package Type:	box;
Selling Units:	Single item;

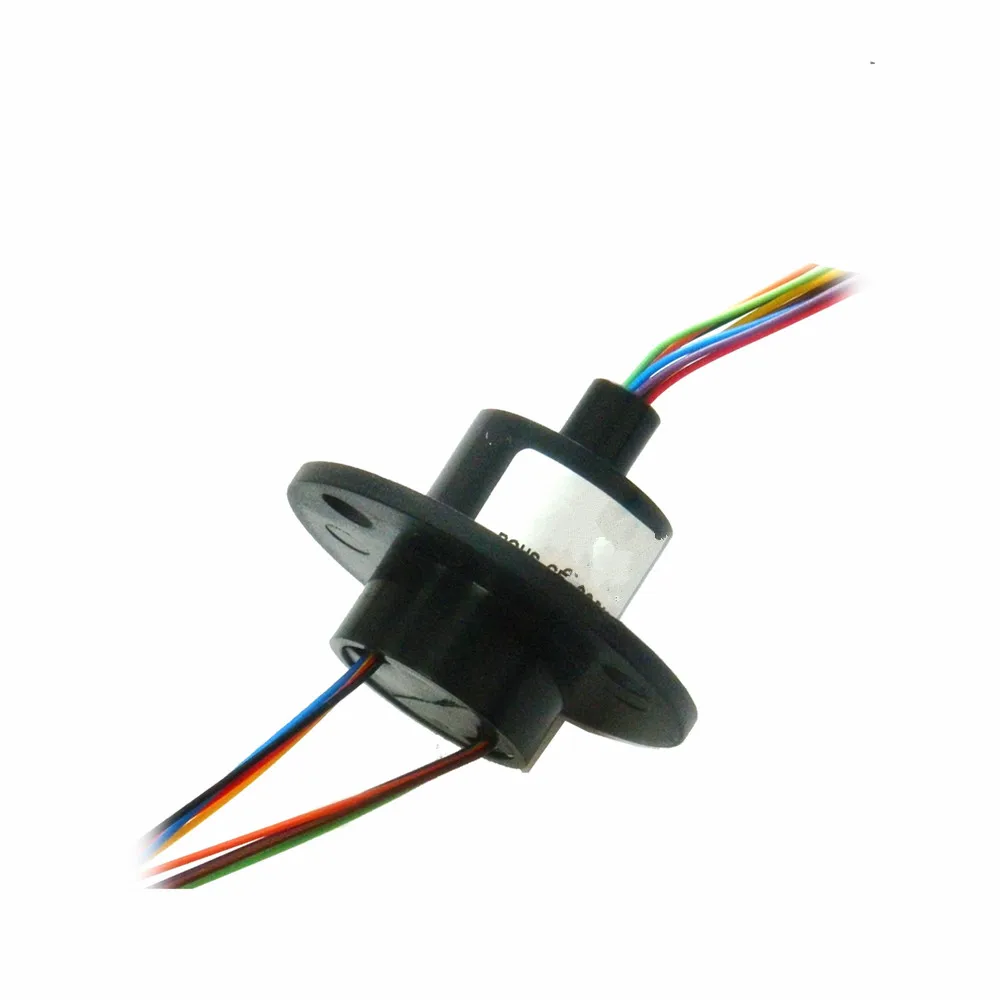

Taidacent outer diameter 22mm silver plated speed 0-200rpm 2A electrical slip ring 8 wire small collector slip ring

Number of paths 8 rated current
2A/road, more current can be customized
Rated voltage 240VAC/DC
Speed 0-200rpm
Outer diameter ø22mm
Contact Material Precious metal
Shell material engineering plastic
Dynamic resistance minimum 1mΩ
Electrical noise <10mΩ, 50mA, 5RPM
Wire Specifications AWG16 Silver Plated Teflon
Pressure resistance 500VDC@50Hz, 10s
Wire length Standard 250 mm
Insulation strength 500mΩ@500VDC, 10s
Protection level IP54
Working temperature -20°C ~+60°C
Working humidity 10%-85% RH
Shockproof level MIL-STD-810E
Certified SGS CE UL

Specification
