color: | Black | product name: | Slip Ring Rotary Connector |
Packaging Details: | Packed as outer box, rubber, outer ordinary box SRH3899 series slip ring rotary joint electrical connector | payment terms: | Western Union, D/P, D/A, T/T, MoneyGram |
place of origin; place of origin: | Zhejiang, China | model: | SRH3899, SRH3899-2P |
type: | Electrical Slip Rings, Through Hole Slip Rings | brand: | Aden |
Certification: | CE.ROHS | Supply capacity: | 100 rotary joint electrical connectors per day |
Aperture(mm): | ID38MM,OD99MM | port: | Ningbo |
current: | 10A, 15A, 20A 50A all available | Packaging Preview: | |
Rated speed: | 500 rpm |

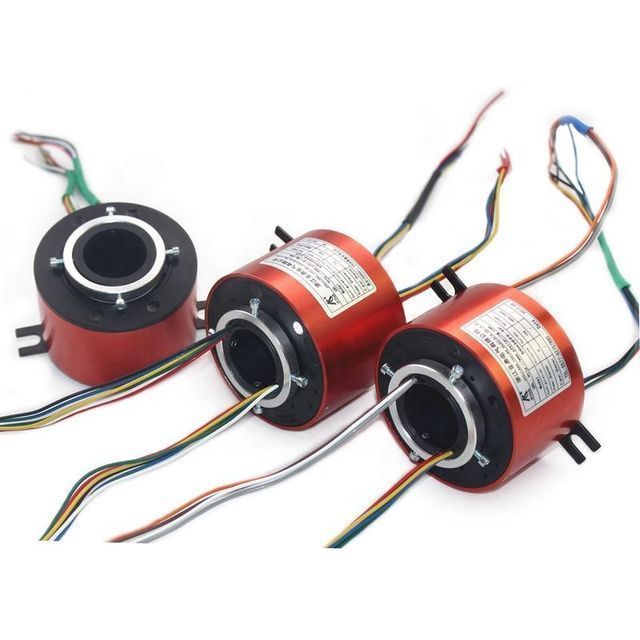

Through-hole slip rings, also known as center-hole hollow slip rings, can be applied to any equipment that needs to transmit power and signals with 360° rotation.
feature
1. Standard, off-the-shelf
2. Support power supply and signal transmission
3. Advanced multi-point contact brush technology to ensure reliable contact and low friction;
4. Gold Plated Ring and Gold Alloy Brush
5. Metal shell, better protection;
6. Integrated structure design, easy to install.
7.Customizations acceptable circuit no. , current and voltage based on standard models;
8. Specially designed for through-hole hydraulic or pneumatic shaft installation.
technical parameter
Electrical data | value | |
strength | Signal | |
standard | 380VAC | 240VAC/VDC |
Insulation resistance | ≥1000MΩ/500VDC | ≥500MΩ/500VDC |
Conductor size | AWG16 Tinned Teflon or PVC Insulated Wire | AWG16 Tinned Teflon Insulated Wire |
Conductor length | Standard 300mm | |
Dielectric strength | 500VAC@50Hz 60s | |
electrical noise | <0.01Ω |
Mechanical data | value |
Speed of work | 0-800rpm (or higher) |
Operating temperature | -20℃-+80℃ or -40℃-+80℃ |
Working humidity | 60%RH or higher |
Contact material | precious metal |
casting material | industrial metal |
Operating torque | 0.1N/m for 6 turns, torque increases every 6 turns |
Protection class | IP51 |
