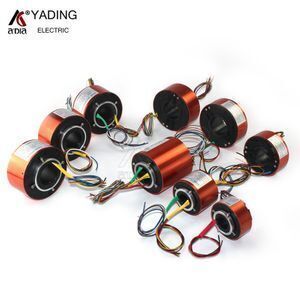

Hollow shaft 360 rotating power Electric through bore slip ring

Product details
Model Number:ADIA through bore slip ring;Product name:Electric through bore slip ring with Hollow shaft 360 rotating;
Voltage:0-240VAC/DC;Current:2A/5A/10A/15A/20A;
Transmission Type:Power, Signal or Data;Brand Name:Adia;
Application:Automation equipment;Port:NINGBO;
Rated Speed:500RPM;Color:Red;
Packaging Detail:1.Carton package ,inner packag: bubble pvc bag, 2.Products can also be packaged according to customers' needs. 3.Electric through bore slip ring with Hollow shaft 360 rotating Hollow shaft 360 rotating Electric through bore slip ring;Place of Origin:Zhejiang China;
Hole Size(mm):12.7mm-100mm;PROTECTION LEVEL:IP 51- IP 65;
Type:through bore slip ring;Supply Ability:5000 Unit/Units per Month through bore slip ring;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Paypal;

SlipRing Description




Through hole slip ring also called hollow slip ring with centre hole,it could be applied to any devices where requires to transmit power and signals when need 360° roating.



Features

1.Standard, off-the-shelf
2.Support power,signals transmitting
3.Advanced multi-point contact brush technology ensures reliable contact with low friction;

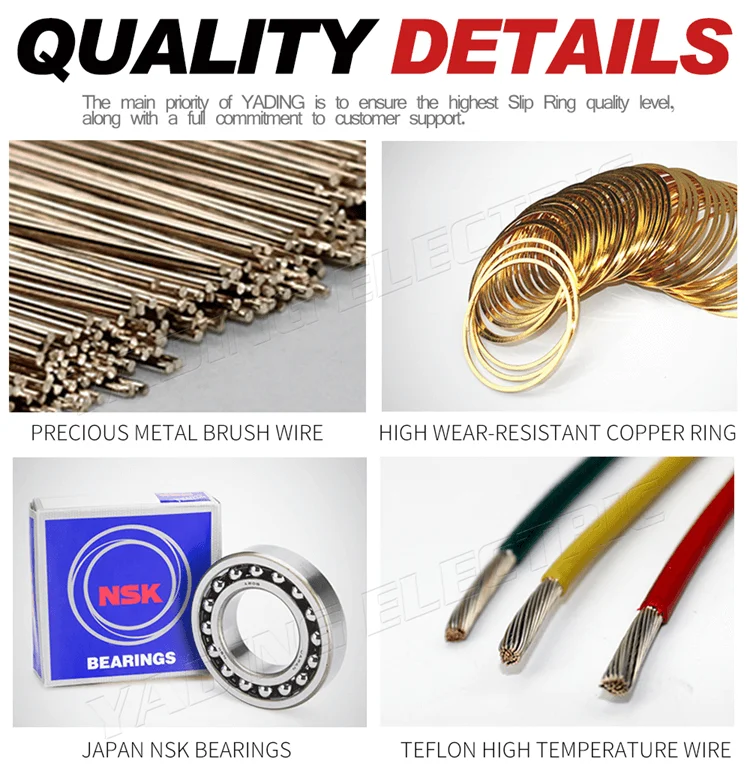

4.Gold plated ring and Gold alloy brush
5.Metal housing for better protection;
6.Integrated structure design, easy installation.
7.Customizations acceptable for circuits no. , current& voltage based on standard models;
8.Designed for through bore hydraulic or pneumatic rotating shaft installation.



 TECHNICAL ARAMETERS

Electrical DataValue
PowerSignal
Nominal Voltage380VAC240VAC/VDC
Insulation Resistance≥1000MΩ/500VDC≥500MΩ/500VDC
Conductor SizeAWG16 Tin-plated Teflon or PVC insulation WiresAWG16 Tin-plated Teflon insulation wires
 Conductor Length Standard 300mm
 Insulation strength 500VAC@50Hz 60s
 Electrical Noise <0.01Ω



 Mechanical data Value
 Working Speed 0-800rpm(or higher)
 Working Temperature -20℃-+80℃ or -40℃-+80℃
 Working Humidity 60%RH or higher
 Contact Material Noble Metal
 Casting Material Industrial Metal
 Operating Torque 0.1N/m for 6 rings, the torque increases with each 6 rings
 Protection Class IP51

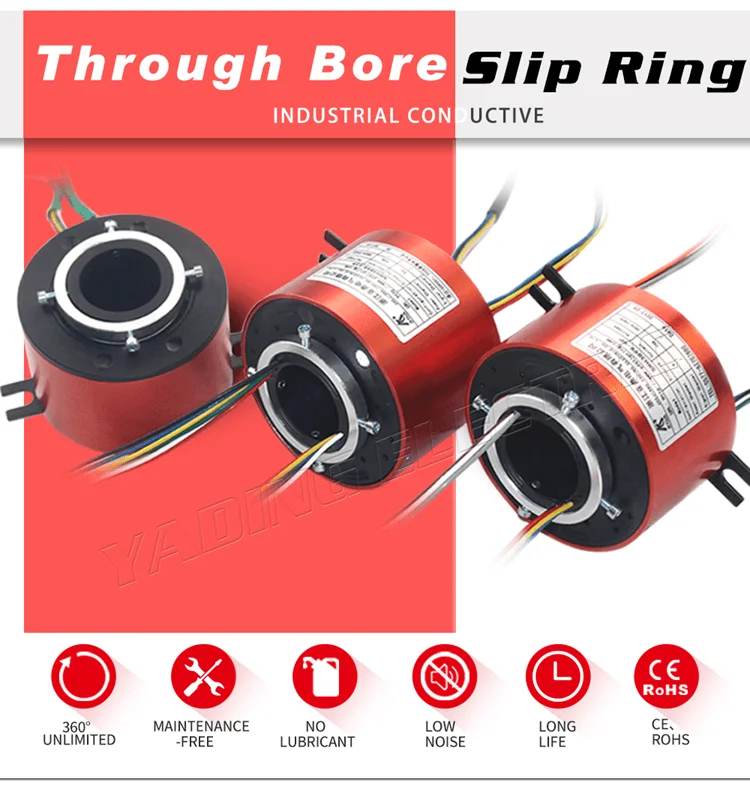

Advantages

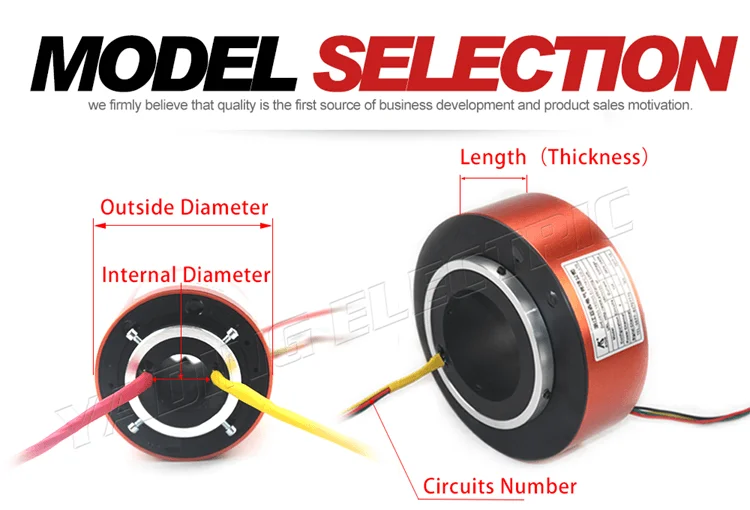

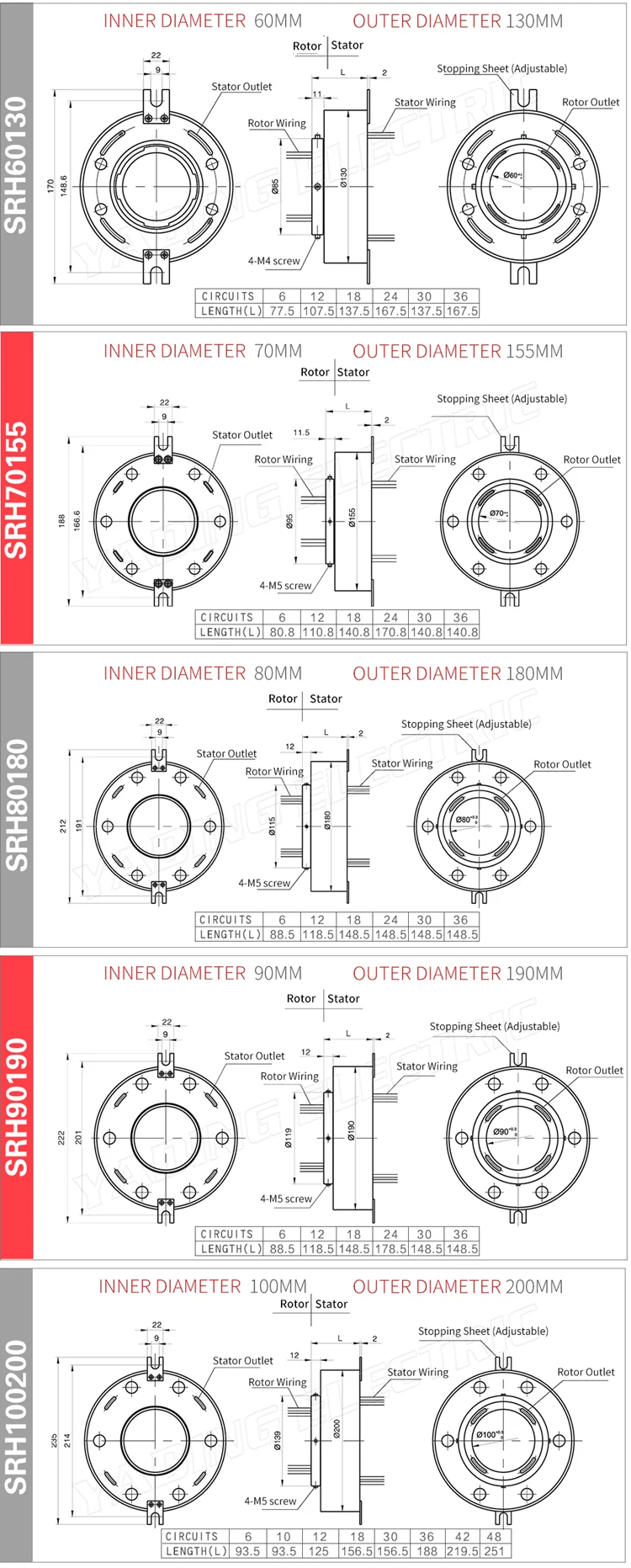

Model Selection

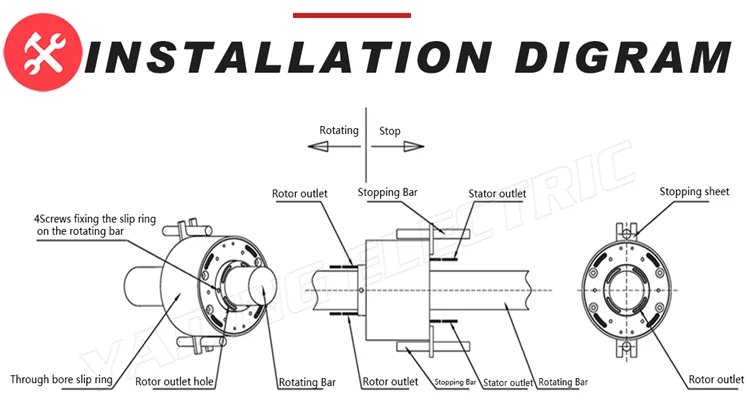

Installation Digram



QC & Certificates



Company Information



Contact US

Please contact Yading with any custom slip ring application. Every effort will be made to meet your specifications.

Because many custom slip rings are designed around standard slip ring you will find our cost and delivery extremely competitive.

FAQ

PAYMENT METHOD

We accept T/T, Paypal, Western union, L/C. Since you made the payment successfully, you can send us the Reference NO or MTCN.



TRANSACTION PROCESS

Quotation→Price confirm→Sign a contract→Mass production→Delivery.

For more details, please contact us,We offer you professional service in fluent English.

Any inquiries will be replied within 24 hours.



OEM Available



WARRANTY One year



QUALITY ASSURANCE

we have 100% test before delivery.

Strong production capacity and strictly quality contol system;



DELIVERY

Standard products:1-3 days

Simple customized products:3-5 days

Complex customized porducts:10-20 days

The specific delivery time depends on the items and the quantity of your order.



MOQ=1pcs

We are pleased to send you samples to test the quality and performance.we are confident that once you get it in your hand,you will be very satisfied.Moreover,with our excellent service and competitive price,we believe that we will be your first choice for slip ring.



SHIPMENT METHOD:by Express,by air,by sea,by train.Normally we checked and compare, then provide customer the most proper shipment method.



PACKAGE Carton Package ,Inner Package: Bubble PVC Bag.

Products can also be packaged according to customers' needs.



LOADING PORT Shanghai or Ningbo Port
