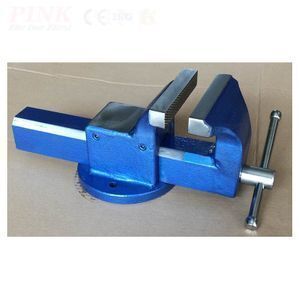

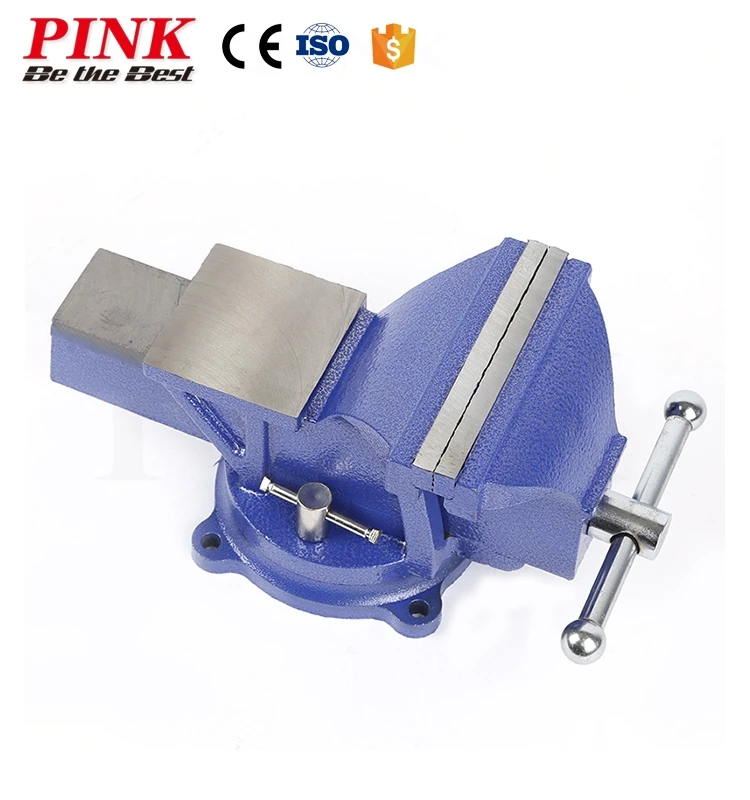

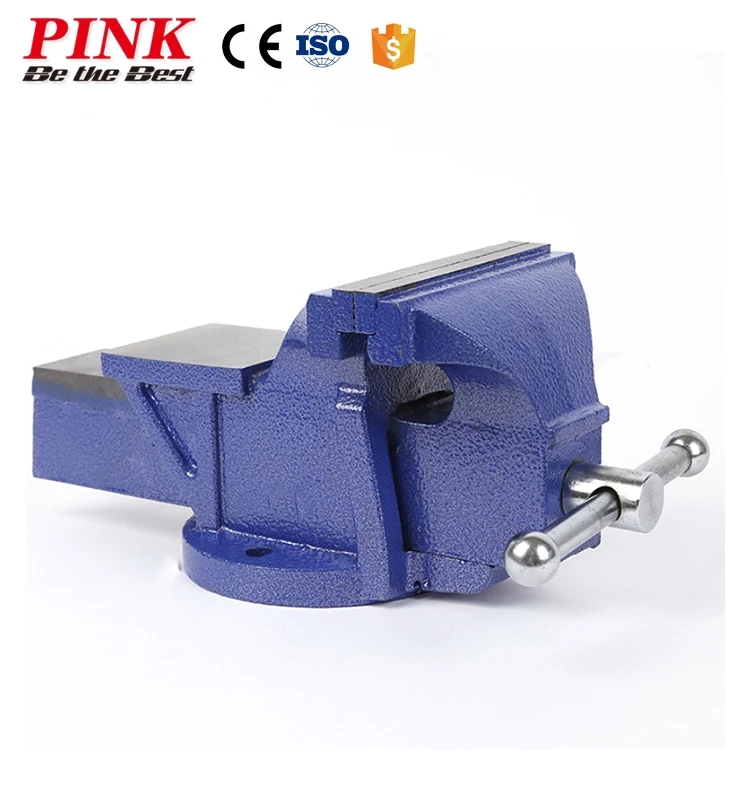

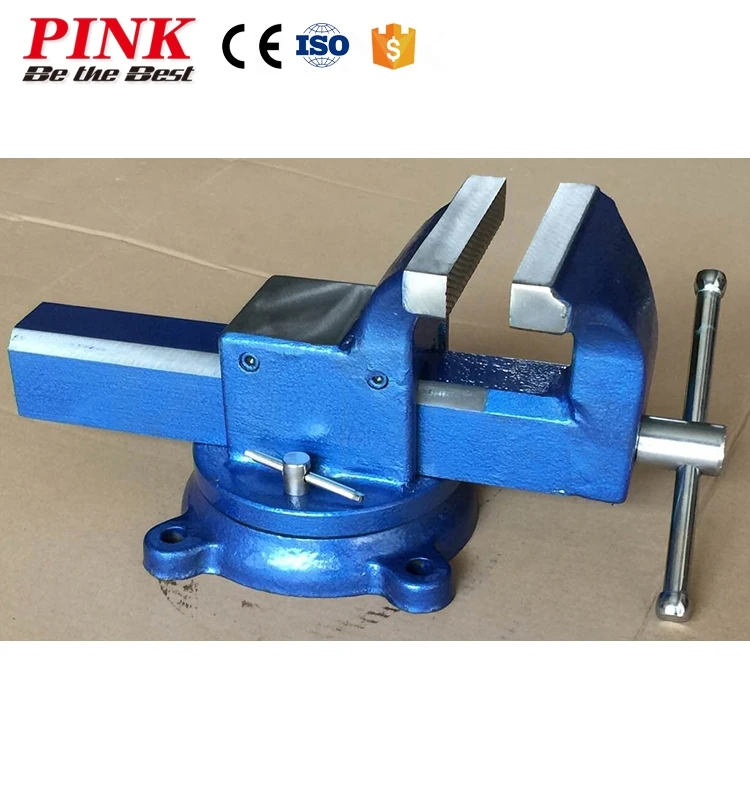

Bench Vise Clamp NEBHV-15

Supplier: Jiaxing Pink Electronic Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jack Zhang
Price: $6.21 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	CE;	Weight:	5.5,7.5,10,17.5,24.5kg;
Port:	Shainghai;	Model:	NEBHV-15;
Jaw Surface Type:	smooth,Serrated & Smooth;	Open length:	75,100,125,150,200mm;
Base Type:	weighted,Stationary,Swivel;	Packaging Detail:	Carton Box packing;
Feature:	Durable;	Application:	Industrial;
Material:	Cast Iron;	Payment Terms:	L/C,D/P,T/T,Western Union;
Jaw Width:	3",4",5",6",8",10";	Product name:	Bench Vise;
Clamp Force:	600,900,1000,1200,1500,2000,2500kg;	Place of Origin:	Zhejiang China;
Application:	Clamping workpiece;	Supply Ability:	15000 Piece/Pieces per Month;

Product Description

Bench Vise Product Features:

1.Jaw Width:3",4",5",6",8",10"

2.Open length:75,100,125,150,200mm

3.Clamp Force:600,900,1000,1200,1500,2000,2500kg

4.Weight:5.5,7.5,10,17.5,24.5kg

5.Apply: Workshop,Clamping workpiece

6.Certificate:CE

Bench Vise Details & Function:

1.Our Bench Vise Jaw Width:3",4",5",6",8",10", Open length:75,100,125,150,200mm, Weight:5.5,7.5,10,17.5,24.5kg; Clamp Force:600,900,1000,1200,1500,2000,2500kg.

2.A vise is a universal fixture used to hold a workpiece. The device is placed on the workbench to clamp the workpiece and is an indispensable tool in the bench shop.
3.The rotary caliper can be rotated to rotate the workpiece to the proper working position.
4.The vise is an indispensable tool for the fitter and the source of the fitter's name, as most of the work of the fitter is done on the vise, such as saws, rakes, hoes, and assembly and disassembly of the parts.
5.Installed on the bench, with the width of the jaws as the calibration specification. Common specifications range from 75mm to 300mm.

6.It is made by cast iron and heat-treated with plain surfaces, it could have long life under heavy working conditions.

Model	Product Name	Jaw Width	N.W (kg)	Open length(mm)	Clamp Force(kg)	Packing Size(cm)	G.W/N.W (kg)	PCS/CTN	Loading 20GP(pcs)
Model	Product Name	Jaw Width	N.W (kg)	Open length(mm)	Clamp Force(kg)	Packing Size(cm)	G.W/N.W (kg)	PCS/CTN	Loading 20GP(pcs)
NEABV-01	Bench Vise	3"(75mm)	5.25	75	400	302531	22/21	4	4472
NEABV-02	Bench Vise	4"(100mm)	5.5	75	600	302531	23/22	4	4472
NEABV-03	Bench Vise	5"(125mm)	7.5	100	900	383418	16/15	2	2234
NEABV-04	Bench Vise	6"(150mm)	11.5	125	1000	413622	24/23	2	1600
NEABV-05	Bench Vise	8"(200mm)	18	150	1200	412122	19/18	1	1372
NEABV-06	Bench Vise	10"(250mm)	27	200	1500	472826	28/27	1	759
NEABV-07	Bench Vise	3"(75mm)	5.5	75	600	30.52531	23/22	4	4396
NEABV-08	Bench Vise	4"(100mm)	7.5	100	900	313118	16/15	2	3006
NEABV-09	Bench Vise	5"(125mm)	10	125	1000	403822.5	21/20	2	1554
NEABV-10	Bench Vise	6"(150mm)	17.5	150	1200	412122	18.5/17.5	1	1372
NEABV-11	Bench Vise	8"(200mm)	24.5	200	1500	502526.5	25.5/24.5	1	800
NEABV-12	Bench Vise	3"(75mm)	6	75	1000	302816	13/12	2	3868
NEABV-13	Bench Vise	4"(100mm)	10.5	100	1200	353620	22/21	2	2062
NEABV-14	Bench Vise	5"(125mm)	16.5	125	1500	412022	17.5/16.5	1	1441
NEABV-15	Bench Vise	6"(150mm)	22.5	150	2000	472226	23.5/22.5	1	967
NEABV-16	Bench Vise	8"(200mm)	41	175-200	2500	502630	42/41	1	666
