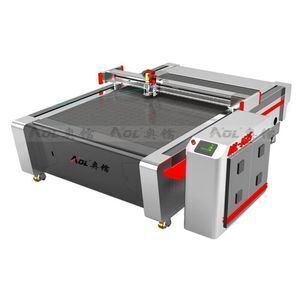

Industrial Rubber Gasket and rubber sheet Cutting Machine

Supplier: Jinan AOL CNC Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Wendy Wang
Price: $13500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	50 Set/Sets per Month;	Standard or Nonstandard:	Standard;
Model Number:	AOL-1625;	translational velocity:	800-1200mm/s;
Capacity:	2GB;	Repeated accuracy:	≤0.1mm;
Cutting speed:	200-1000mm/s;	Multifunctional head:	Swiss imported knife;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	AOL;
Fixed mode:	Vacuum suction table;	Port:	Qingdao,china;
Packaging Detail:	wooden case for Industrial Rubber Gasket and rubber sheet Cutting Machine.;

Product Details

Features of Industrial Rubber Gasket and rubber sheet Cutting Machine

1.Our machine design engineers have specified heavy duty precision fabricated and machined structures combined.

2.With twin hardened and ground linear bearings in all axes, powerful digital drives and precision transmissions.

3.Todeliver high accuracy and repeatability and produce smooth motion with high speed and acceleration for the highest.

Application of Industrial Rubber Gasket and rubber sheet Cutting Machine

Cut fabric, sticker,leather, cardboard, plastic, paper, rubber, EVA foam, and it can cut many types of foam, such as closed cell foam, rubber foam, foamex, foam core, KT board, EPE foam, polyethylene foam, PE foam, PVC foam, etc. It's widely used for packaging protection, advertising display, termal insulation, model & mock up making, puzzle and pattern cutting, etc.

Advantages of sticker cutting machine

1.Fast

Max. cutting speed: 1200mm/s

AOL cutting machine is 3 to 5 times faster than traditional manual cutting.

2. Material Saving

Machines are computerized Accurate and material saving.

3. Compatible

Our cutting machines support any design software which can output files in DXF or PLT format.

Eg: AutoCad, Coreldraw, AI, etc.

4.User friendly

All the sharp turnings can be controlled on the machine.

A free training is supported at our company or on your site. We assure you can operate the machine.

Parameters of sticker cutting machine

Model(Customizable)	AOL-1625
Working area	1600*2500mm
Rated power	11kw
Fixed mode	Vacuum suction table (auto feeding table for optional)

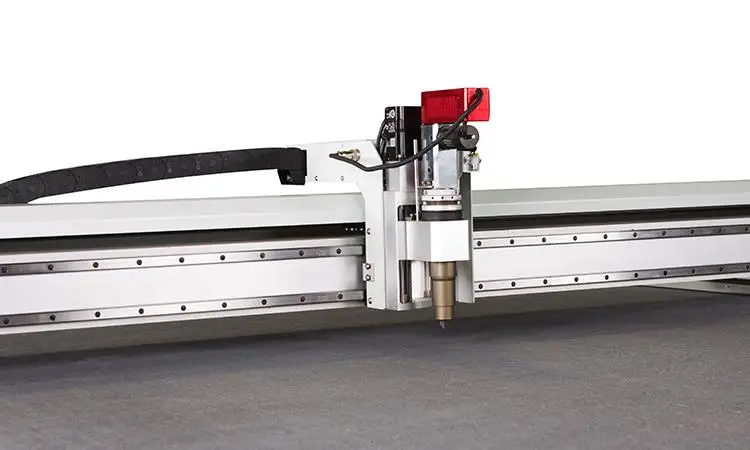

Multifunctional head	Swiss imported knife:oscillating knife,rotary knife,kisscut,punching,V-cut,Miling cutter
Tool configuration	Multiple cutting knives
translational velocity	800-1200mm/s
Cutting speed	200-1000mm/s(according to different cutting materials)
Cutting thickness	≤22mm(according to different cutting materials)
Repeated accuracy	≤0.1mm
Capacity	2GB
Transmission system	imported(Digital servo motor,linear guide,synchronous belt,ball screw)
Instruction system	HP-GL compatible format
Voltage	380V/50HZ/60HZ

Our service

AOL is one of the famous professional sticker cutting machine manufacturers and suppliers in China,sticker cutting machine price is right.

1)One year free warranty(except consumable parts), main parts are free of charge

when problems happened because of quality problem during this period.

2).Life time free maintenance service.

3).Consumable parts(like blade, table cover) alway supply at cost price when needed.

4).A free operation training in our factory, and if don't have enough time, we will send

a detailed training video.

5).24 hours online service, free technical support with different languages.

6).Door to door technical support when needed.

FAQ

Question 1: I want to buy this machine,what suggestion can you give?

Answer: Please tell me:what material do you process? What's the size of your material?

Question 2: What's the delivery cost & time?

Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.

Question 3: Have you exported to our country?

Answer: We have been in this field for 10 years,we have CE,ISO,FDA certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

Question 4: This is the first time I use this kind of machine, is it easy to operate?

Answer:There are english manual or guide video that show how to use machine.

If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

Question 5: If machine have any problem after I receive it, how can I do ?

Answer:Free parts send to you in machine warranty period if machine have any problem. If the parts less than 0.5KG, we pay the postage.
