Fast leather Carbon fiber prepreg cloth textile cutting machine by knife
-
Supplier: Jinan AOL CNC Equipment Co., Ltd. -
Region: Shandong, China -
Contact: Ms Wendy Wang -
Price: $10000.00 /set -
Min. Order: 1 set
| Certification: | CE; | Video outgoing-inspection: | Provided; |
| Condition: | New; | After-sales Service Provided: | Engineers available to service machinery overseas,Free spare parts,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service; |
| Drive system: | Servo; | Supply Ability: | 160 Set/Sets per Month; |
| Working area: | 1600*2500mm; | Port: | Qingdao; |
| Marketing Type: | Ordinary Product; | Safety device: | Infrared sensors; |
| After Warranty Service: | Video technical support,Online support; | Power: | 11KW; |
| Warranty of core components: | 3 years; | Warranty: | 2 years,3 years; |
| Transmission system: | HIWIN linear guide, synchronous belt, ball screw; | Cutting thickness: | ≤22mm(according to different cutting materials); |
| Place of Origin: | Shandong China; | Repeated accuracy: | ≤0.1mm; |
| Automatic Grade: | Automatic; | Applicable Industries: | Garment Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Restaurant,Retail,Printing Shops,Construction works ,Advertising Company; |
| Voltage: | 220V; | Packaging Detail: | Strong wooden case to avoid shipping damage; |
| Package Preview: | ; | Local Service Location: | Canada,Turkey,United Kingdom,United States,Italy,Germany,Saudi Arabia,Russia,Spain,Thailand,Malaysia; |
| Product name: | Fast leather Carbon fiber prepreg cloth textile cutting machine; | Brand Name: | AOL; |
| Machinery Test Report: | Provided; | Production Capacity: | 100%; |
| Showroom Location: | United Kingdom,United States,Italy,France,Germany,Philippines,Pakistan,Russia; | Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; |
| Cutting speed: | 0-1400mm/s(according to different cutting materials); | Payment Terms: | L/C,Western Union,D/P,T/T,Paypal; |

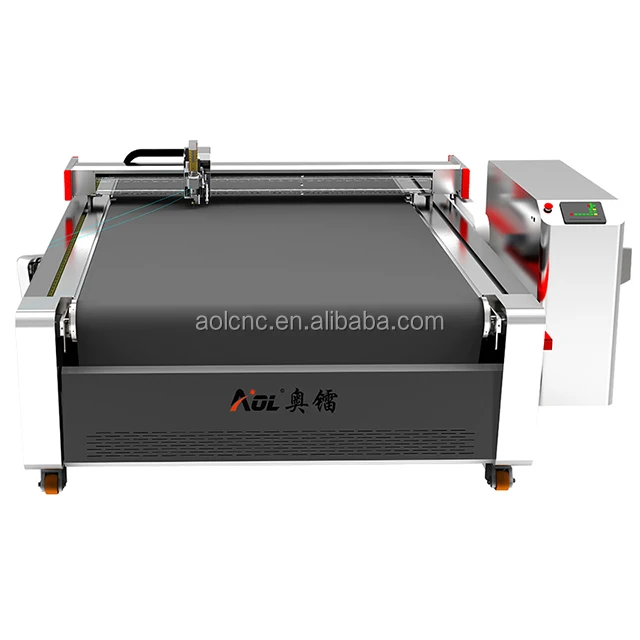

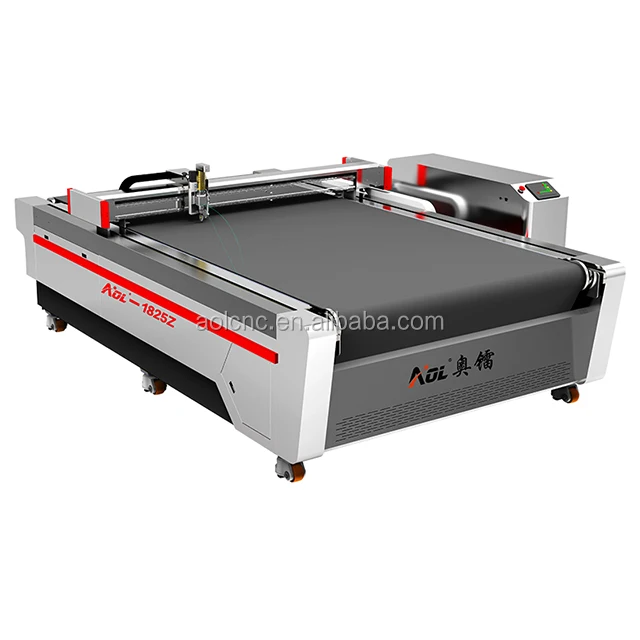

Fast leather Carbon fiber prepreg cloth textile cutting machine by knife
Advantages of Fast leather Carbon fiber prepreg cloth textile cutting machine by knife
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. Imported linear guide and servo motor ensure high precison and fast working speed.
3. The high precision of our AOL-1625 auto feeding cloth textile fabric cutting machine can induce draft separately and easily cuts small pieces.
4. The anti-collision and the built-in auto-sensing devices ensure the security of AOL-1625 auto feeding cloth textile fabric cutting machine.
5. High efficiency can be realized without making a high-cost knife model.
6. The high precision is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
7. Patent product, stable performance, safety and stability, users in wide range.
8. It can equipped with different tools to meet a variety of needs.
9. The CB Series Digital Cutter has an English and Chinese LCD touch screen panel and a massive storage volume system.
Applicable materials of Fast leather Carbon fiber prepreg cloth textile cutting machine by knife

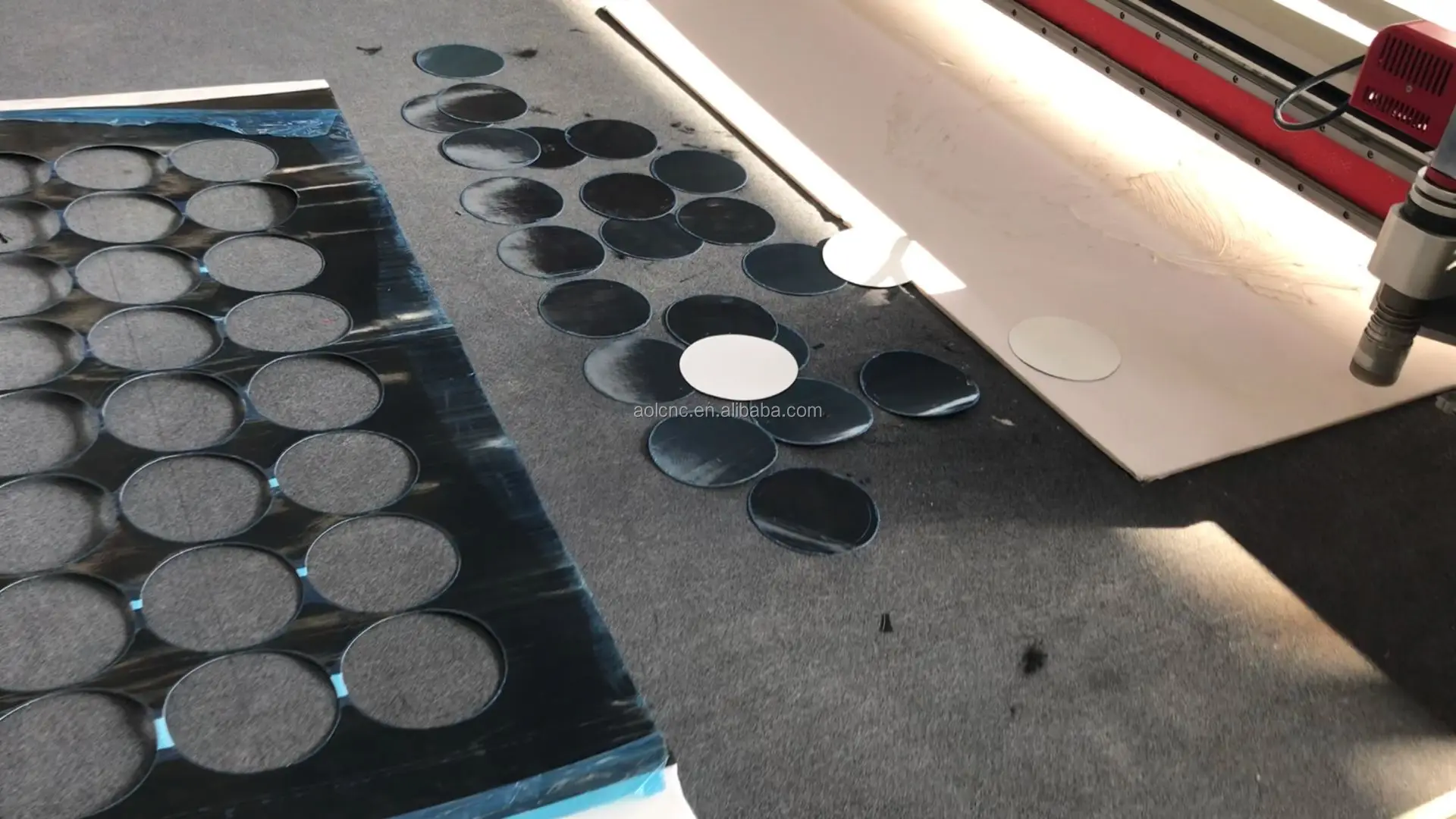

Leather, cardboard, plastic box, glass fiber, carbon fiber, paper honeycomb, corrugated cardboard, sticker, film, foam board, acrylic board, rubber, gasket material, garment cloth, footwear material, bags materials, non-woven fabrics, carpets, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.
Technical parameters of Fast leather Carbon fiber prepreg cloth textile cutting machine by knife
| Model | AOL-1625Z |
| Working area | 1600×2500mm |
| Control system | Trocen |
| Maximum cutting speed | 1400mm/s(according to different cutting materials) |
| Precision | ±0.01mm |
| Cutting thickness | ≤26mm(according to different cutting materials) |
|
Working table |
Flat table/Automatic feeding table |
|
Drive system |
servo motor |
|
Transmission system |
linear square rail and belt |
|
Voltage |
220V±10%, 50Hz/60Hz |
|
Vacuum pump |
9.0KW |
|
Graphic format supported |
DST, PLT, BMP, DXF, DWG, AI, LAS, etc. |
| Safety device | Infrared sensors |
|
Machine Size |
3550×2200×1200mm |

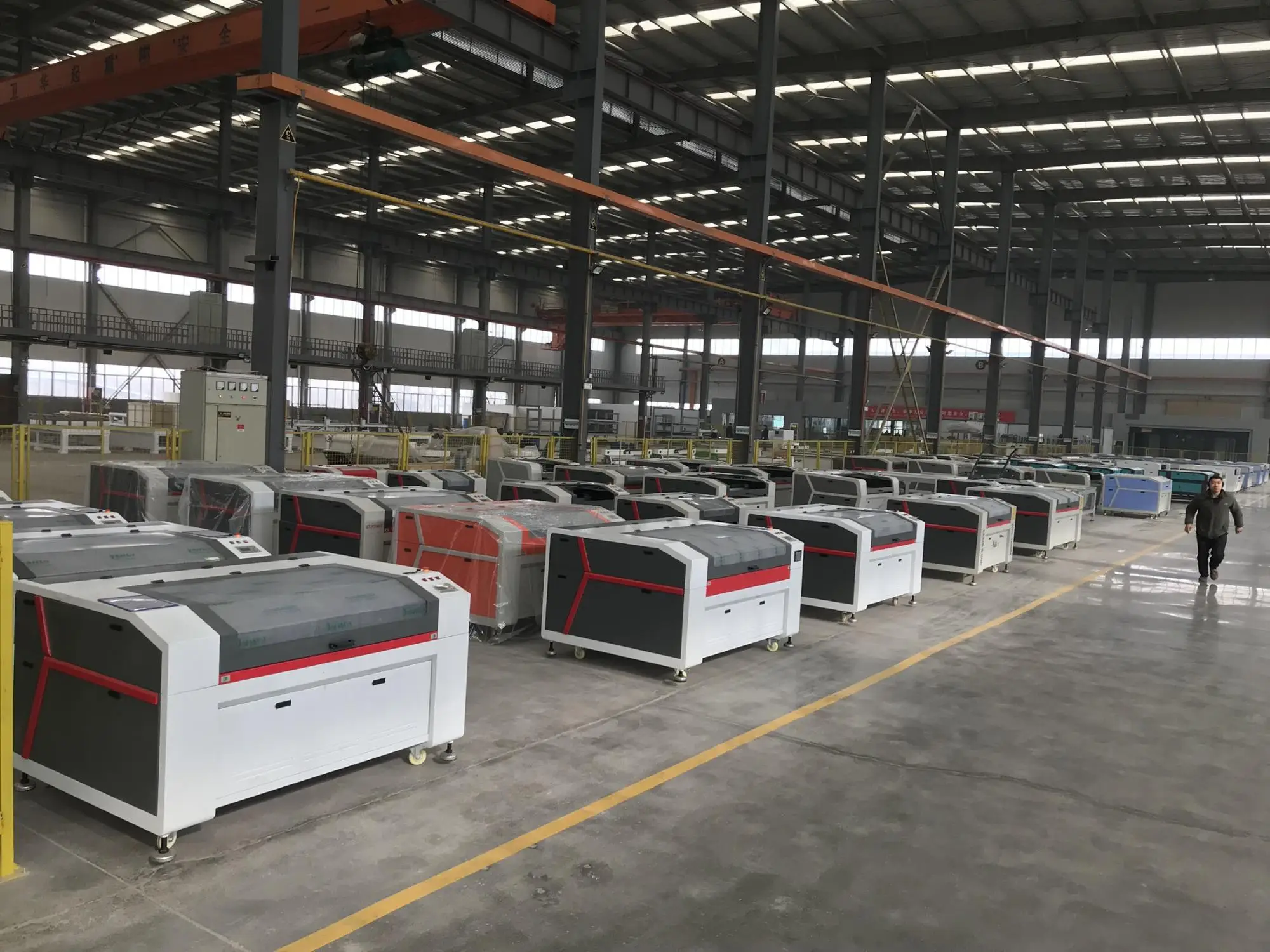

Jinan AOL CNC Equipment Co.,Ltd is a famous CNC equipment factory located in Jinan, Shandong province
, which found in 2005, has more than 10 years machine production experience. AOL mainly produce Laser
Engraving Machine, Laser Cutting Machine, Laser Marking Machine, Knife Cutting Machine, CNC Router, etc.
We as a high-tech enterprise, engaged in research, manufacture and sell the laser machine, CNC router
and relevant advertisement products.
AOL has gained CE certificate, ISO certificate. Company successfully produce AOL series products
of more than 50 sorts, which enjoy good reputation and support. Excellent quality and fast service makes
our products spread all over the world, such as Europe, Middle east, America, and South Asian.
Warmly welcome customers from all over the world!
-
