Cheap price mainboard Intel celeron J1900 quad core CPU with 4G ram 2xLAN fanless 3.5 inch itx embedded motherboard for mini pc

Supplier: Shenzhen Lingjiang Computer Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Jiang Chen
Price: $157.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

SIZE:	156x119 mm;	Package Type:	Carton package;
Form Factor:	Mini-ITX;	Operating System:	win10, win7, win8, linux;
Products Status:	Stock;	Package Preview:	https://sc01.alicdn.com/kf/HLB1Gdf6aK6sK1RjSsrbq6xbDXXak.jpg_640x640.jpg;
Brand Name:	LingJiang;	Processor:	intel celeron J1900 processor;
Single package size:	25X25X9 cm;	Chipset Manufacturer:	Intel;
System Memory:	4GB RAM onboard +1*DDIM MAX 16G RAM DDR3;	Chipset:	intel bay trail;
Maximum Ram Capacity:	16GB;	BIOS:	AMI;
Application:	Laptop;	Socket Type:	Socket 478;
Watchdog Timer:	1~256 levels;	Memory Type:	DDR3;
Graphics Card Type:	Integrated;	Ports:	Ethernet,SATA,USB 2.0,USB 3.0,VGA,WiFi,Bluetooth;
Place of Origin:	Guangdong China;	LAN:	2xlan, RJ-45, Gigabit Ethernet_RTL8111E;
Serial ports:	4xCOM, support 3RS232 + 1RS485;	Selling Units:	Single item;
USB:	3USB2.0 + 1USB3.0;	FSB / HT:	667;
Graphics:	Intel GMA 3650;	CPU Type:	Intel;
Single gross weight:	1 KG;	Hard Drive Interface:	IDE,SATA;

Cheap price mainboard Intel celeron J1900 quad core CPU with 4G ram 2xLAN fanless 3.5 inch itx embedded motherboard for industrial control

Product Description

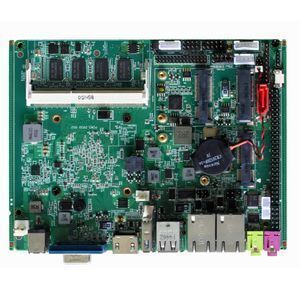

The motherboard features Intel® Bay Trail chipset, integrated quad-core Intel® Celeron® J1900 processor, Intel® Seventh Generation graphics engine and media codec engine to provide enhanced image processing performance and 3D video performance. And with a wealth of I / O functions, widely used in ATM / KIOSK, POS, game and automation field of Tablet PC and digital signage.

Features
Model Name	PCM3-N2930
Mechanical
Dimensions	156×119(mm)
Power supply	9V-25V
Watchdog timber	0-255s
Net weight	0.45kg(Including heatsink)
Thermal methods	Fanless
Working Temp	Working Temperature:-40℃-80℃.Working Humidity:5% - 95%
Storage Temp	Storage Temperature:-40℃-80℃.Storage Humidity:5% - 95%
System
CPU	Intel celeron J1900 quad core processor ,2.0GHz,10W (Default) Intel N2930,1.83G,7.5W
Chipset	Intel Bay trail SOC
Memory	Onboard 4G ram,1×DDR3,Expand 2G/4G
SATA	1×SATA,1×M-SATA/SATA
System	Win7/Win8/Linux/ windows10

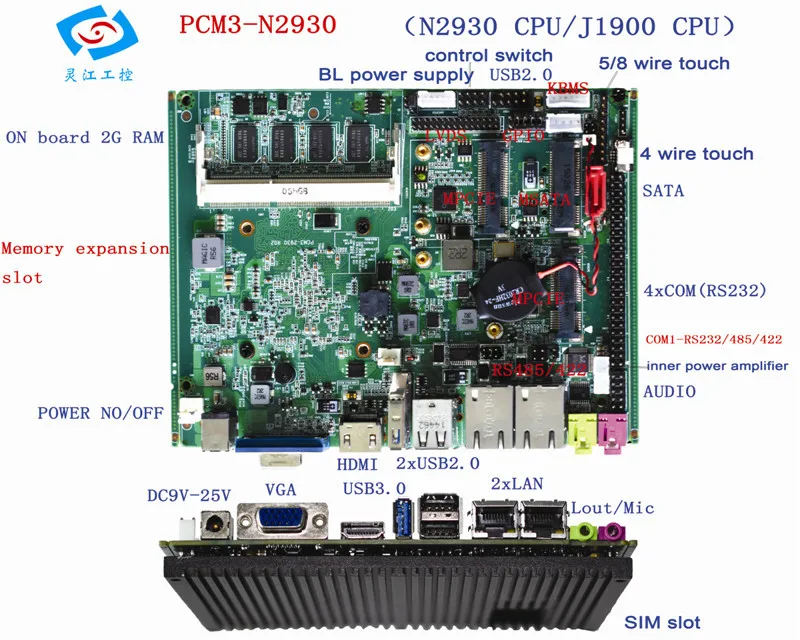

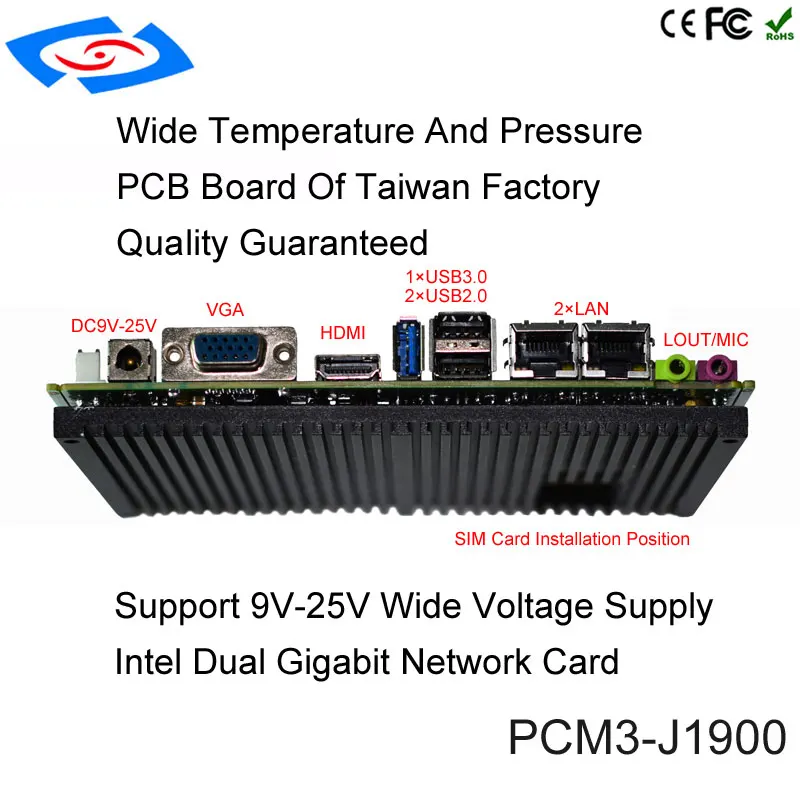

I/O
Lan	Integrate RTL8111G,2×10/100/1000Mbps RJ45
Serial ports	4×COM (1×RS485/422 PIN,3×RS232 PIN)
USB	Onboard 1×USB 3.0/2×USB2.0/Inner 2×USB 2.0(Pin)
GPIO	1×GPIO 8 Bits(4in/4out)
PS/2	1×KB/MS2 Inner connector
Display	Onboard 1×VGA/1×LVDS(18/24 Bits inner)
Audio	Onboard 1×MIC-in,1×Line-out,Integrate sound card ALC662, 2×2W AMP connector (inner)
Touch function	1 (4/5/8 Wire)
Others	Fan connector, 2×min-PCIE(Wifi/3G/4G),1×SIM slot
Warranty
1×GPIO 8 Bits(4in/4out)	12 months
Order information
Model Name	PCM3-N2930
Standard Configuration	J1900 CPU,2.0GHz, SO-DIMM:2G, Onboard 1×VGA,1× LVDS (18 Bits) , 3×USB,2×LAN,2×USB(Inner),1×GPIO(8 Bits),1×SATA, 1×MSATA,2×MPCIE,4×RS 232, 1×PS2/1×SIM slot,AUD Power connector (Pin) , Audio input and output port,Power hole(9V-25V)
Standard Accessories	Heat sink, Serial port extension cable,Sata cable,switch,Power connector
Optional	N2930 CPU, Wifi/3G/4G,SO-DIMM:2G,SSD:16G/32G/64G

Packaging & Shipping

FAQ

Why should you choose Lingjiang Computer:

Shenzhen Lingjiang Computer Ltd. is a professional manufacturer of motherboards,industrial panel PC,industroal PC and son.We have 6 years of experience in this field and have a good reputation in this field. Our products have won high praise from customers worldwide.

Our Services

How to order:

1. Choose the item you need, let us know.

2. We make invoice for you.

3. Make payment then we prepare the products for you.

4. Send the parcel to cleints for check.

Payment terms:

paypal, western union,T/T, etc

Delivery time & shipping way:

Delivery Time: 2-3 days after payment confirmed (Based on small order)

Shipping: EMS, DHL, TNT, HK Post, China Post, etc

Warranty:

l 18 months warranty,

l If the product is defective ,please notice us within 3 days,After received.please don’t open dispute without communication.

l If you are not satisfied our products,please return it within 7 days for a replacement or request refund, please contact with us before return.BTW, when the product return to us, Please charge the shipping fees by yourself.

l All the products are tested 100% original new and tested well before shipment.

l Your satisfaction and positive feedback is very important to us.

l If you have any questions with our products and service,please feel free contact with us.We will do our best to solve any problems and provide our best service.

l If the product is defective ,you can ship it back to us,we will ship a replacement to you when the returned one arrival to us.
