DN15 - DN100 Pressure PN25 Cw617n or HPB59-3 Brass Ball Valve

Product details
Payment Terms:L/C,D/P,T/T,Western Union;Working pressure:25Bar;
Temperature of Media:Normal Temperature;Packaging Detail:Valogin Brass Ball Valve Standard export package;
Standard or Nonstandard:Standard;Supply Ability:5000000 Piece/Pieces per Week;
Size:1/2";Working Pressure:30bar/435psi;
Port:NingBo;Brand Name:V&G;
Connection End:Thread;Female thread connections comply with:ISO 228 ( BS2779);
Working Temperature:-20℃-100℃;Body material:Brass;
Media:Water;Power:Manual;
Product name:Brass Ball Valve;Certificate:EN13828 CE ACS(1101);
Structure:Ball;Place of Origin:Zhejiang China;
Model Number:VG10.99011;Application:General;
Port Size:1/4"-4";
Introduce

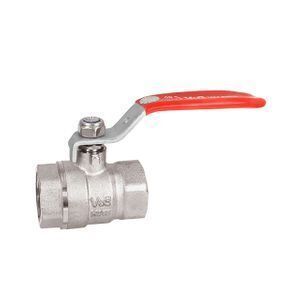

1/4" - 4" Female BSP x Female BSP Valogin Pressure 362.5 psi Nickel Plating Brass Ball Valve

Full flow Female BSP x Female BSP brass ball valves (brass ball & stem) fitted with Iron lever handle are used for a variety of applications including oil & petroleum, and water. They are steam rated with PTFE stem packing. Pressure ratings are 25 bar/362.5 psi). EN13828 CE ACS(1101) approval. Ball & stem nickel-then-chrome plated for smooth operation.

Why Choose Us
WHY CHOOSE US ?
MARKET

Our valve export $80 million. Our sales service networks have been established in more than 60 countries and regions in the global market .
AUTOMATION

70% of the capacity manufactu- red by automation.we achieve the target of 12 million pcs output monthly
CERTIFICATION

Company- CNAS ISO9001 ISO18001
USA- UPC AB1953 NSF SA UL FM
EUROPE- CE ACS DVGW WRAS EN215 INIG
AUSTRALIA- WATERMARK AGA
R&D TEAM

We have a r&d team of over 30 people. If you have a sample, the research and development time is a week.
PROJECTS

We have the stable supply cap- acity, the annual output value exceeds 100 million.
SUPPLY ABILITY

We are suppliers of many large projects, such as the London 2012 Olympics.
Product Description
PRODUCT DESCRIPTION
+
NO.Part NameMaterial

1BodyBrass
2BonnetBrass
3SeatPTFE
4BallBrass
5StemBrass
6GlandPTFE
7Pressing NutBrass
8HandleIron
9NutStainless Steel




Dimensions


+
SpecDAHL

1/4"8844440
3/8"10844644
1/2"13.5844847
3/4"18.5845254
1"231126765
11/4"291357673
SpecDAHL

11/2"371358181
2"471579998
21/2"64236131135
3"75236138150
4"97236158176

Product Attributes


+
Item:   Ball Valve
Size:   1/4" - 4"
Brass material:   59-3
Connection Type:   Female BSP x Female BSP
Handle Material:   IRON / AL
Handle Type:  Lever
Stem Type:   Blowout Proof
Stem Material:   Brass
Seat Material:   PTFE
Body Seal Material:   PTFE
Ball Material:   Chrome Plated Brass
Valve Basic Body Material:   Brass
Surface Treatment:   Nickel Plating
Application:   Can be used for oil & petroleum, and water
Max. Temp:   -20°C to+120°C
Working Pressure:   25bar/362.5psi
Port:   All
Features:    Full Port for Maximum Flow Rate
Standards:   EN13828

Packaging





Company Information
COMPANY PROFILE

Valogin is a corporation focusing on manufacturing high-quality and certified valve products for building-materials supermarkets, wholesalers, brands agents worldwide. We serves for plenty of corporations of Fortune global 500.
VIEW MORE
MANUFACTURING PROCESS



More product



RELATED PRODUCTS



FAQ
FAQ

1. Can I have a sample order for valve?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

2. Do you have any MOQ limit for valve order?

A: Low MOQ, 1pc for sample checking is available.

3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.

4. How to proceed an order for valve?

A:
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



5. Do you offer guarantee for the products?

A: Yes, we offer 10 years warranty to our products.
