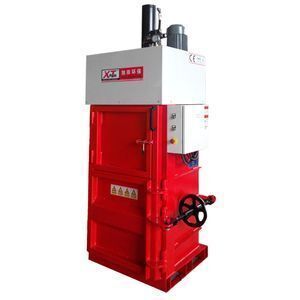

Small Vertical Baler Machine Vertical Hydraulic Baler Machine

Product details
Payment Terms:L/C,T/T,Western Union;Packaging Material:Wood;
Type:Other;Condition:New;
After-sales Service Provided:Engineers available to service machinery overseas;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Driven Type:Hydraulic;Supply Ability:100 Set/Sets per Week;
Brand Name:XTPACK BALER;Port:Shanghai;
Dimension(L*W*H):1180*800*2550mm;Power:3kw;
Voltage:220-440V;Place of Origin:Jiangsu China;
Keyword:Small baler;Weight:1000kgs;
Packaging Detail:by wooden package or by container;Usage:compress waste paper;
Certification:CE ISO;Packaging Type:Film;
Type:Other;Automatic Grade:Semi-Automatic;
Application:other;

Small Vertical Baler Machine Vertical Hydraulic Baler Machine

Product Parameters

ModelSX-50LA6040SX-100LA6040SX-200LA8060
Pressure5Tons10tons20tons
Feed Opening Size(L*H)600*400mm500*300mm700*400mm
Baling Chamber Height1000mm900mm1200mm
Bale Size(L*W*H,H is adjustable)600*400*(200-600)mm600*400*(200-600)mm800*600*(400-800)mm
Bale Weight20-40kg15-50kgs60-120kgs
Power1.5kw2.2kw3kw
Machine Weight450kg800kgs1000kgs
Machine Overall Dimension900*570*2240mm1000*800*2250mm1180*800*2550mm


Product Features

Features of Small Vertical Balers

  • Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
  • Bottom liquid receiver is optional for collecting the liquid from the compressing materials
  • The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
  • Equipped with independent emergency stop for safe operation
  • Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
  • Special ram guides design makes the platen not slope because of uneven materials feedings during compression
  • Equipped with NOK seals that  from Japan means longer lifespan of the seals
  • Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
  • Equipped with integrated valves that  from Taiwan, conveniently for the maintenance
  • Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump
Product Details

Main Products
Company Profile

Production Process

Transport

Contact US



Q:Why use a baler?

A:In order to effiectively handle your recyclable waste or resources,you need a baling machine to compress the waste material into baler.neat and tidy bales not only reduce your storage space,it also reduces your transportation cost because you can certainly load more cardboard bales into a container or truck as compared to the lose ones.



Q:Who use a baler?

A:Shopping malls,retail stores ,grocery stores,marine vessels,need baling machine to help them compact the waste such as cartons,cardboards plastic films,so that they can be stored easily before selling to recycling plant.Corrugating and printing company,need baling to compact the waste paper trims. Recycling plants needs baling machine to compact into small bales for easy transportation and save cost.



Q:Where to buy a suitable baler?

A:XTpack is a baling machine manufacture for more than 15 years with CE and XT pack website,can help you narrow down which hydraulic baling presses are idea to bale the waste material you are handling as well as matching it to your expected output capacity. You can choose our stand ardmodels and we can also provide customized baling machine.



Q:How to choose a suitable baler?

A:a.Type of material you will be baling.For example,if you need a baling press to bale plastic,you should specify the exact type of plastic .-ie PET bottles ?HDPE containers plastic bags ?Plastic film? b.Bale size and output requirement say how many tons per day or per hour?
