Quality and quantity assured pipe cutting scrap baler prices metal shredder machine

Product details
Warranty:1 YEAR;Brand Name:XTpack;
Power (kW):22;Port:SHANGHAI;
Model:XTY-81-135A;After-sales Service Provided:Free spare parts, Online support;
Model Number:XTY-81-135A;Supply Ability:10 Set/Sets per Month;
Packaging Detail:by container;Payment Terms:L/C,T/T;
Condition:New;Material / Metal Processed:Brass / Copper,Aluminum,Carbon Steel,Stainless Steel;
Key Selling Points:Automatic;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Place of Origin:China;Weight (KG):8000;

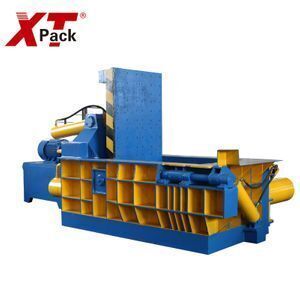

Product name:Horizontal Metal Baler Machine;

Quality and quantity assured pipe cutting scrap baler prices metal shredder machine

Product Parameters

ModelXTY-81-100XTY-81-135AXTY-81-160QXTY-81-200AXTY-81-250D
Nominal push force(KN)1000kn1350kn1600kn2000kn2500kn
Chamber size(L*W*H)1100*600*5500mm1400*600*600mm1450*600*600mm1600*1200*800mm2500*2000*1200mm
Bale Size600*220mm600*240mm600*300mm450*450mm500*500mm
Throughout(depend on the raw material density and skill of operators)1000~1800kgs/h1500~2800kgs/h2000~3000kgs/h2500~4500kgs/h5500~6500kgs/h
Cycle time (unioad)≤85s≤80s≤110s≤160s160s
Power11kw22kw22kw30/37kw60/74kw
Bale out type/operating methodBale out from front,Manual operationBale out from front,Manual operationBale out from front,Manual operationTurn,Manual operationSide push,Manual operation

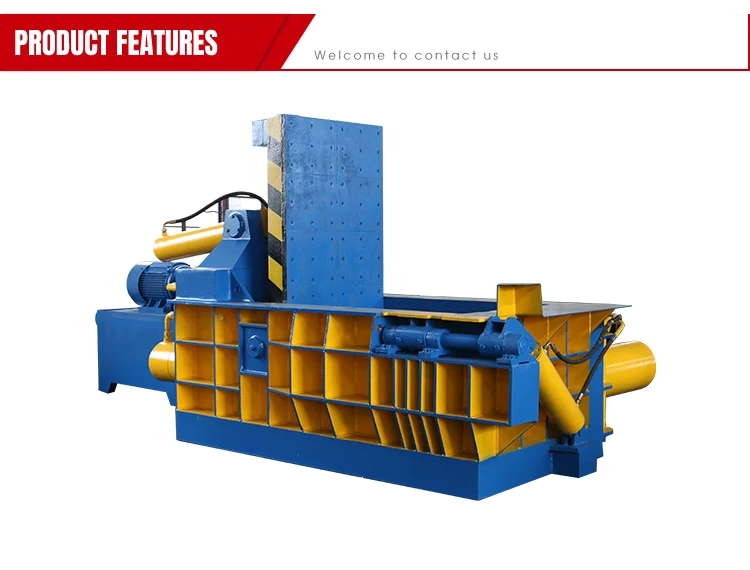

Product Features

Usage
Specialized in the steel works,recycling & processing industry,non ferrous and ferrous metal smelting industries;It can extrude any kind of metal leftover materials,steel shavings,waste copper and waste aluminum into qualified charging such as cuboid,cylinder,octagon baby and other shapes,the purpose is to reduce the costs of transportation and smelting.

Features

All the models driven by hydraulic,option can be manual or PLC automatic control.

No need foundation bolts for installation,power can be generated by diesel when no power at site.

Bale out type:turn over,side push and front push.

Extruding force has 8 classes from 63tons to 400tons and production efficiency is from 0.5tons per hour to 20 tons/hour.

The chamber box size and bale size can be customized as per material size,two sides of feeding chamber fixing blades is an optional.

Main Products
Company Profile

Production Process

Transport

Contact US



Q:Why use a baler?

A:In order to effiectively handle your recyclable waste or resources,you need a baling machine to compress the waste material into baler.neat and tidy bales not only reduce your storage space,it also reduces your transportation cost because you can certainly load more cardboard bales into a container or truck as compared to the lose ones.



Q:Who use a baler?

A:Shopping malls,retail stores ,grocery stores,marine vessels,need baling machine to help them compact the waste such as cartons,cardboards plastic films,so that they can be stored easily before selling to recycling plant.Corrugating and printing company,need baling to compact the waste paper trims. Recycling plants needs baling machine to compact into small bales for easy transportation and save cost.



Q:Where to buy a suitable baler?

A:XTpack is a baling machine manufacture for more than 15 years with CE and XT pack website,can help you narrow down which hydraulic baling presses are idea to bale the waste material you are handling as well as matching it to your expected output capacity. You can choose our stand ardmodels and we can also provide customized baling machine.



Q:How to choose a suitable baler?

A:a.Type of material you will be baling.For example,if you need a baling press to bale plastic,you should specify the exact type of plastic .-ie PET bottles ?HDPE containers plastic bags ?Plastic film? b.Bale size and output requirement say how many tons per day or per hour?
