liquid mixing tank with agitator chemical blending tank agitator tank jacketed mixing vessel

Supplier: Shanghai Zhuheng Industrial Co., Ltd.
Region: Shanghai, China
Contact: Mr Runner Wei
Price: $1980.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight (KG):	370;	Key Selling Points:	Long Service Life;
Product Type:	Cosmetic;	Power (kW):	1.5;
Application scope:	dairy,food,beverage,pharmacy,cosmetic;	Warranty:	1 Year;
Packing:	plywood or customized;	Color:	steel true colors;
Application:	Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;	Condition:	New;
Capacity:	100-20000L;	Product Name:	liquid mixing tank with agitator chemical blending tank agitator tank;
Power(W):	Customized;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Application:	Liquid with Suspended Solids;	Material:	304 or 316L;
Port:	Ningbo or Shanghai Port;	Range of Spindle Speed(r.p.m):	24 - 120;
Place of Origin:	Shanghai China;	Supply Ability:	300 Set/Sets per Month liquid mixing tank with agitator chemical blending tank agitator;
Mixer Type:	Agitator;	Max. Loading Capacity:	1100L;
Applicable Industries:	Food & Beverage Factory,Farms,Restaurant,Food Shop,Food & Beverage Shops;	MOQ:	1 piece;
After-sales Service Provided:	Online support,Video technical support,Free spare parts;	Dimension(LWH):	Customized;
Brand Name:	ZH;	Max. Loading Volume (L):	1100;
Barrel Volume (L):	1000;	Certification:	CE, TUV,FDA;
Packaging Detail:	plywood or customized for liquid mixing tank with agitator chemical blending tank agitator tank jacketed mixing vessel;	Voltage:	220V or 380V or Customized;
Surface treatment:	mirror finish, matt polished, 2B;	Additional Capabilities:	Milling;
Max. working pressure:	3 bar;

liquid mixing tank with agitator chemical blending tank agitator tank jacketed mixing vessel

Structure:

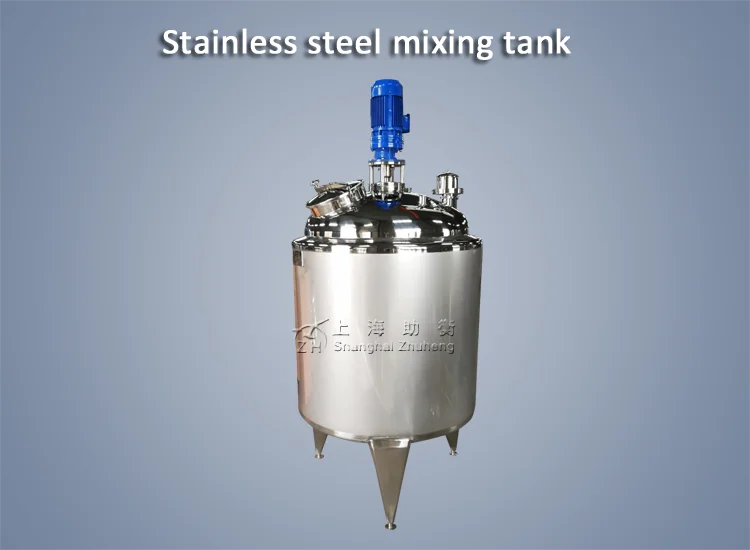

Stainless steel mixing tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards .

1.Capacity :100-20000L

2.Single layer/ double layers/ three layers

3.Motor power:0.75-5.5kw

4.Materials are all sanitary stainless steel .

5.Humanized structure design and easy to operate .

6.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation .

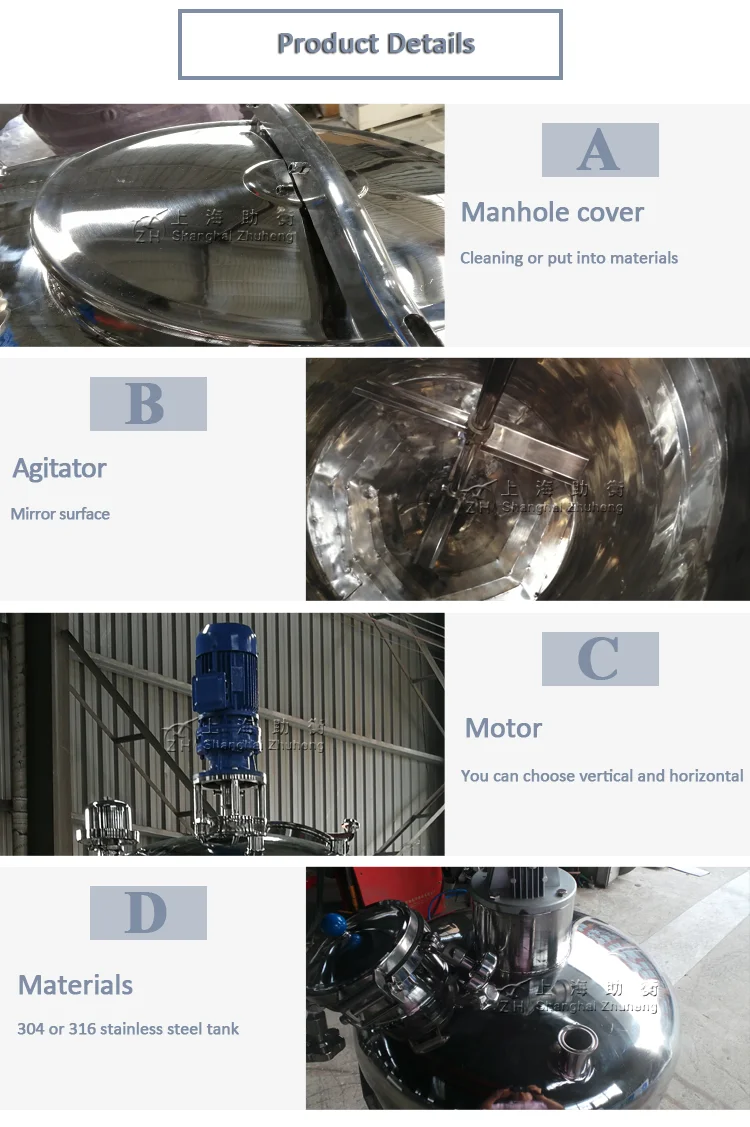

Configuration of tank :

1.Quick open manhole .

2.Various types of CIP cleaners .

3.Fly and insect resistant sanitary breathing cover .

4.Adjustable triangular bracket .

5.Dismountable materials input pipe assembly .

6.Thermometer (According to customer requirements ).

7.Ladder (According to customer requirements).

8.Paddle blender .

9.Liquid level meter and lever controller (According to customer requirements) .

10.Eddy-proof board .

Technical Parameters

Effective volume(L)	Dimension of tank(D*H) (mm)	Total height(mm)	Motor power(kw)	Blending speed(r/min)
500	840*1000	2750	0.75	As customer's requirement
600	920*1000	2850	0.75
700	990*1000	2850	0.75
800	950*1220	3000	0.75
900	1010*1220	3000	0.75
1000	1060*1220	3150	1.1
1500	1160*1500	3350	1.1
2000	1340*1500	3410	1.5
3000	1410*2000	4000	2.2
4000	1620*2000	4250	2.2
5000	1810*2000	4300	3
6000	1980*2000	4550	3
7000	1930*2440	5000	3
8000	2060*2440	5000	4
9000	2180*2440	5050	4
10000	2300*2440	5050	4
12000	2270*3000	5600	5.5
15000	2530*3000	5700	5.5
20000	2640*3660	6400	5.5
