Seamark SMT/SMD chip counting machine,reel and tape smt component counter for max 4 reels by one time

Supplier: Shenzhen Zhuomao Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Noda Zhuomao
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Reel quantity per time:	Max 4 times;	Model Number:	X-1000;
Warranty:	12 months;	Port:	Shenzhen;
Counting Accuracy:	99.8%;	Supply Ability:	30 Set/Sets per Month X-Ray inspection;
Packaging Detail:	One wooden box with foam wrapping the machine;	Applicable reel size:	180mm-380mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	Seamark;
Place of Origin:	China;	Counting Speed:	12-20S/Reel;
Product Name:	X-ray smt chip counter;	Type:	Automatic;
Max tube voltage:	90KV;	X-ray leakage amount:	≤1 μ SV/h;

Seamark SMT/SMD chip counting machine,reel and tape smt component counter for max 4 reels by one time

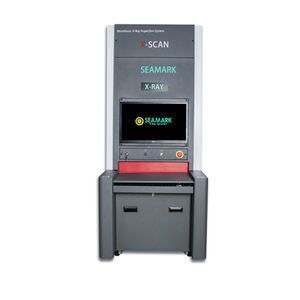

SMD components counting machine X-1000 introduction:

Specification:

Detectable component	Resistance, capacitance, inductance, crystal, LED, diode, triode, multi-pin IC, etc.
X ray Maximum tube voltage	90KV Max
X ray Maximum tube current	0.5mA Max
Inspection Area	150-380MM Diameter
Components Size	Min 01005
The maximum Number of Components	50K
Stick & Tray Counting Time	High Precision <15 seconds / disk
Counting Accuracy	99%
Dimension	1000(W)1200(D)2550(H)
Other Function	Automatic feeding and discharging, automatic test mode- Smart mode
Software	Support for arbitrary format SPC statistics, images and results can be saved automatically
Radiation leakage	< 1 uSv/Hour

X-ray leakage amount: ≤1 u Sv/hr

Please noted that the Radiation Detection Report is according to which 21 CFR Subchapter J is applicable.

The international acceptable standard is <1 uSv/hr. The X-1000 SMD components counting machine actual radiation reading is 0.3 uSv/hr which is same as the environment normal rate. So it is qualified.

Equipment introduction

SEAMARK ZM X-ray counting machine, perfect eliminates the problem of traditional rotary chip counting machine:

1. Long time for manual counting; 2. High labor cost for input.

The Seamark ZM X-ray Component counting machine can measure hundreds to 100,000 disk chips about 15 seconds, and the disk diameter ranges from 180 mm to 380 mm. The conveyor belt movement provides a 100% automatic detection environment.

WHY CHOOSE US:

Our advantage:

1. 13 years experience of LED BGA SMD rework station and X-ray inspection machine.

2. All X-RAY models with CE and FDA approved.

3. High reputation around the world.

4. Professional service and technology support.

5. Competitive price with good quality.

Welcome to contact us to discuss with us the X-ray machine you want, we’ll be glad to accept customized order.

Related machine:

Our Service:

1. Training: Free training for all types of Microfocus X-ray inspection machine & BGA rework station.

2. Warranty: We offer free warranty within the first year, after the first year, the spare parts and service fees will be on buyers account.

3. Services hours: Before-sales and after-sales services is 24hours/7days. Your inquiry will be replied within 8 hours.

4. Customized service: Can provide customized services according to customers’ requirement.

5. Give great discount to AGENCY to ensure agents profit.

Company introduction:

Shenzhen Zhuomao(Seamark ZM) Technology CO., Ltd, a 13-yearprofessional manufacturer and exporter of LED BGA rework station, X-ray SMD component couting machine, X-ray inspection machine. We are a high-tech enterprise including R&D, production, Sales and After sales service.

Currently, our machine have been sold around Europe, Asia, Australia, Oceania and Southeast Asia, Middle East and other countries and regions. We are the vendor of FOXCONN, HUAWEI, FLEX, NVIDIA, LENOVO, PANASONIC, HISENSE, SANMINA-SCI, GIGABYTE, SAMSUNG, and so on.

High quality assurance is our task and also what we are doing now.

Factory photo:

FAQ:

1. About the Package, is it safe during the shipping ?

The X-ray machine are packed in solid wooden box with foam, sticks and band to fix inside. It is safe enough when shipping.

2. About the Transportation, which way and how many days will the machine arrives?

Because the X-ray machine is a big equipment. Normally by sea or by air to your nearest seaport or airport, 5~10~20~30~40 days to arrive. (different country different time)

3. About the Warranty, how long and how to do the after-sales service ?

1 year warranty free for spare parts, and whole life technical support.

We have professional technical team, for any question, assistant videos are also provided.

4. About the Operation, if I have no experience, can I also operate it well ?

Our X-ray inspection machine is designed to use easily, normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will be much faster to learn. We will provide the English user manual for free , and the operation video is available.

5. About the Training, will you provide the free training ?

Yes, we will arrange the free training and installation service for you.

6. About the Payment, which way is better ?

We accept the payment terms: T/T, Bank transfer, Western Union, Money gram, PayPal, L/C etc. Others payment ways is negotiable.
