Factory X-ray Common Automatic component counter parts counting machine

Supplier: Shenzhen Zhuomao Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Noda Zhuomao
Price: $49000.00 /set
Min. Order: 1 set

Click here to contact

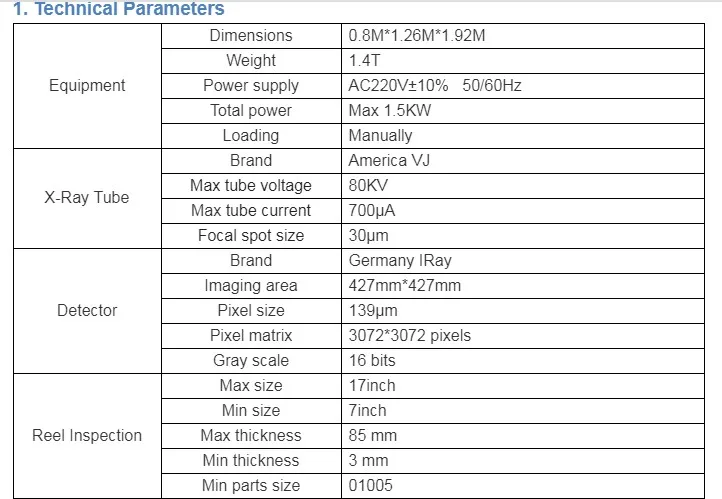

Product details

Tube type:	Close X-Ray Tube 80Kv;	Maximum tube voltage:	80kv;
Total power:	Max 1.5KW;	Warranty:	One Year;
Focal size:	30um;	Product name:	Seamark ZM-X1000;
Maximum tube current:	700uA;	Dimension(LWH):	0.8M1.26M1.92M;
Power(W):	1.5KW;	Supply Ability:	300 Set/Sets per Month x-ray counter machine;
Condition:	New;	Weight:	1400kg;
Place of Origin:	Guangdong China;	Max reel size:	17inch;
Packaging Detail:	wooden box packing;	After-sales Service Provided:	Engineers available to service machinery overseas;
Application:	SMD chip counting;	Port:	SHENZHEN;
Weight:	1400kg;	Min parts size:	01005;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAYPAL;	Brand Name:	Seamark ZM;
Certification:	CE ISO9001;	Voltage:	AC 110-220V (+10%);

Product Description

Seamark Factory X-ray Common Automatic component counter parts counting machine

2. Specification

Detectable component	Resistance, capacitance, inductance, crystal, LED, diode, triode, multi-pin IC, etc.
X ray Maximum tube voltage	90KV Max
X ray Maximum tube current	0.5mA Max
Inspection Area	150-380MM Diameter
Components Size	Min 01005
The maximum Number of Components	50K
Stick & Tray Counting Time	High Precision <15 seconds / disk
Other Function	Automatic feeding and discharging, automatic test mode- Smart mode
Software	Support for arbitrary format SPC statistics, images and results can be saved automatically
Radiation leakage	< 1 uSv/Hour

X-ray leakage amount: ≤1 u Sv/hr

Please noted that the Radiation Detection Report is according to which 21 CFR Subchapter J is applicable.

The international acceptable standard is <1 uSv/hr. The X-1000 SMD components counting machine actual radiation reading is 0.3 uSv/hr which is same as the environment normal rate. So it is qualified.

Equipment introduction

SEAMARK ZM X-ray counting machine, perfect eliminates the problem of traditional rotary chip counting machine:

1. Long time for manual counting; 2. High labor cost for input.

The Seamark ZM X-ray Component counting machine can measure hundreds to 100,000 disk chips about 15 seconds, and the disk diameter ranges from 180 mm to 380 mm. The conveyor belt movement provides a 100% automatic detection environment.

SMD counting machine working principle:

Workshop for the X-ray machine:

X-ray Machine FREE Training in Portugal/Canada:

WHY CHOOSE US:

Our advantage:

1. 13 years experience of LED BGA SMD rework station and X-ray inspection machine.

2. All X-RAY models with CE and FDA approved.

3. High reputation around the world.

4. Professional service and technology support.

5. Competitive price with good quality.

Welcome to contact us to discuss with us the X-ray machine you want, we’ll be glad to accept customized order.

Related machine:

X-6600 PCBA inspection machine

Our Service:

1. Training: Free training for all types of Microfocus X-ray inspection machine & BGA rework station.

2. Warranty: We offer free warranty within the first year, after the first year, the spare parts and service fees will be on buyers account.

3. Services hours: Before-sales and after-sales services is 24hours/7days. Your inquiry will be replied within 8 hours.

4. Customized service: Can provide customized services according to customers’ requirement.

5. Give great discount to AGENCY to ensure agents profit.

Company introduction:

Shenzhen Zhuomao(Seamark ZM) Technology CO., Ltd, a 13-yearprofessional manufacturer and exporter of LED BGA rework station, X-ray SMD component couting machine, X-ray inspection machine. We are a high-tech enterprise including R&D, production, Sales and After sales service.

Currently, our machine have been sold around Europe, Asia, Australia, Oceania and Southeast Asia, Middle East and other countries and regions. We are the vendor of FOXCONN, HUAWEI, FLEX, NVIDIA, LENOVO, PANASONIC, HISENSE, SANMINA-SCI, GIGABYTE, SAMSUNG, and so on.

High quality assurance is our task and also what we are doing now.

Certificate of Zhuomao factory

FAQ:

1. About the Package, is it safe during the shipping ?

The X-ray machine are packed in solid wooden box with foam, sticks and band to fix inside. It is safe enough when shipping.

2. About the Transportation, which way and how many days will the machine arrives?

Because the X-ray machine is a big equipment. Normally by sea or by air to your nearest seaport or airport, 5~10~20~30~40 days to arrive. (different country different time)

3. About the Warranty, how long and how to do the after-sales service ?

1 year warranty free for spare parts, and whole life technical support.

We have professional technical team, for any question, assistant videos are also provided.

4. About the Operation, if I have no experience, can I also operate it well ?

Our X-ray inspection machine is designed to use easily, normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will be much faster to learn. We will provide the English user manual for free , and the operation video is available.

5. About the Training, will you provide the free training ?

Yes, we will arrange the free training and installation service for you.

6. About the Payment, which way is better ?

We accept the payment terms: T/T, Bank transfer, Western Union, Money gram, PayPal, L/C etc. Others payment ways is negotiable.

For more details of the 2018 newest SMD components counting machine SMD chip counter, please feel free to inquire us. We’re 24-hour online for you.
