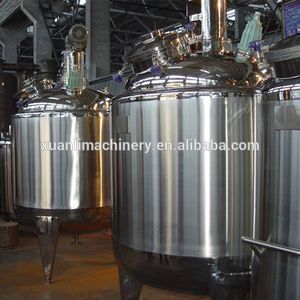

10000 litre continous stirred stainless steel reactor

Supplier: Ruian Xuanli Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lynn Lin
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automatic Grade:	Automatic;	Type:	Reaction Kettle;
Place of Origin:	Zhejiang China;	Delivery Detail:	30 days after the drawings confirmed and advanced payment get;
material:	S.S.316L or SUS304;	grade:	first grade;
Port:	Ningbo Port;	name:	10000 litre continous stirred stainless steel reactor;
After-sales Service Provided:	Engineers available to service machinery overseas;	Condition:	New;
Supply Ability:	30 Set/Sets per Month 10000 litre continous stirred stainless steel reactor;	Payment Terms:	T/T,Western Union;
heat preservation:	jacketed;	Packaging Detail:	10000 litre continous stirred stainless steel reactor is suitable for standard sea shipment package;
structure:	vertical;	Warranty:	13 months after the B/L date;
Dimension(LWH):	customized;

10000 litre continous stirred stainless steel reactor

Product Description

Summary:

This equipment is used in the production process of hydrolysis, neutralization, crystallization, distillation, evaporation and other processes in medicine, chemical, food and light industries. It is acid resistance, high temperature resistance, wear resistance, and corrosion resistance. It can also be produced as per users’ requirements.

Features:

Material: SUS304 or S.S.316L

Mixing type: anchor type, frame type or paddle type

Mixing structure: cycloid pin wheel reducer or stepless reducer

Sealing equipment: Mechanical sealing

Heating or Cooling: jacket, half pipe or coil pipe

Heating way: steam heating, electrical heating or heat conduct oil.

Volume: can be made as per customer requirements

Measure: can be made as per customer requirements

Technical Parameter:

	FYG100	FYG200	FYG500	FYG1000	FYG1500
Volume L	100	200	500	1000	1500
Diameter mm	500	600	800	1000	1200
Tank Pressure MPa	0.25-0.5
Jacket Pressure MPa	0.30
Motor Power kw	1.1	1.5	2.2	4.0	4.0
Agitation Speed r/min	85
Tank Type	First Grade Pressure Tank

	FYG2000	FYG2500	FYG3000	FYG4000	FYG5000
Volume L	2000	2500	3000	4000	5000
Diameter mm	1200	1400	1400	1500	1600
Tank Pressure MPa	0.25-0.5
Jacket Pressure MPa	0.30
Motor Power kw	4.0	5.5	5.5	5.5	7.5
Agitation Speed r/min	85
Tank Type	First Grade Pressure Tank
