stainless steel reactor Chemical industrial bio reaction mixer mixing fermentation Vessel chemical reactor

Supplier: Ruian Xuanli Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Ms Lynn Lin
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	stainless steel reactor Chemical industrial bio reaction mixer mixing fermentation Vessel chemical rea will load on ningbo Port;	Certification:	CE;
heat preservation:	jacketed;	Warranty of core components:	1 Year;
Capacity:	50-500000L;	material:	S.S.316L or SUS304;
Automatic Grade:	Automatic;	Dimension(LWH):	customized;
After Warranty Service:	Video technical support,Online support,Spare parts;	Package Preview:	;
Condition:	New;	Core Components:	Engine,Bearing,Gearbox,Gear;
Local Service Location:	Turkey;	Warranty:	13 months after the B/L date;
Brand Name:	XL;	Showroom Location:	None;
Payment Terms:	T/T,Western Union;	Marketing Type:	New Product 2020;
Video outgoing-inspection:	Provided;	structure:	vertical;
Type:	Reaction Kettle;	Packaging Detail:	stainless steel reactor Chemical industrial bio reaction mixer mixing fermentation Vessel chemical reactor will be packed by standard sea shipment package;
Weight:	100-1000kg;	name:	reactor Chemical industrial;
grade:	first grade;	Supply Ability:	30 Sets per Month;
Place of Origin:	Zhejiang, China;	After-sales Service Provided:	Engineers available to service machinery overseas;
Key Selling Points:	Long Service Life;	Applicable Industries:	Chemical & Pharmaceutical Company;
Voltage:	220v/380v/Customerized;	Machinery Test Report:	Provided;
Power:	0.55-11kw;

stainless steel reactor Chemical industrial bio reaction mixer mixing fermentation Vessel chemical reactor

Product Description

Industry stainless steel reactor Chemical industrial bio reaction mixer mixing fermentation Vessel chemical reactor

Summary:

This equipment is mainly used in storing material used in food, medicine, chemical industries and it is indispensable storage equipment for them. You can have it made by SUS304, S,S,316L, stainless steel or Q235B carbon steel. It is reasonably designedm produced by advanced technology and confirm to GMP requirement.

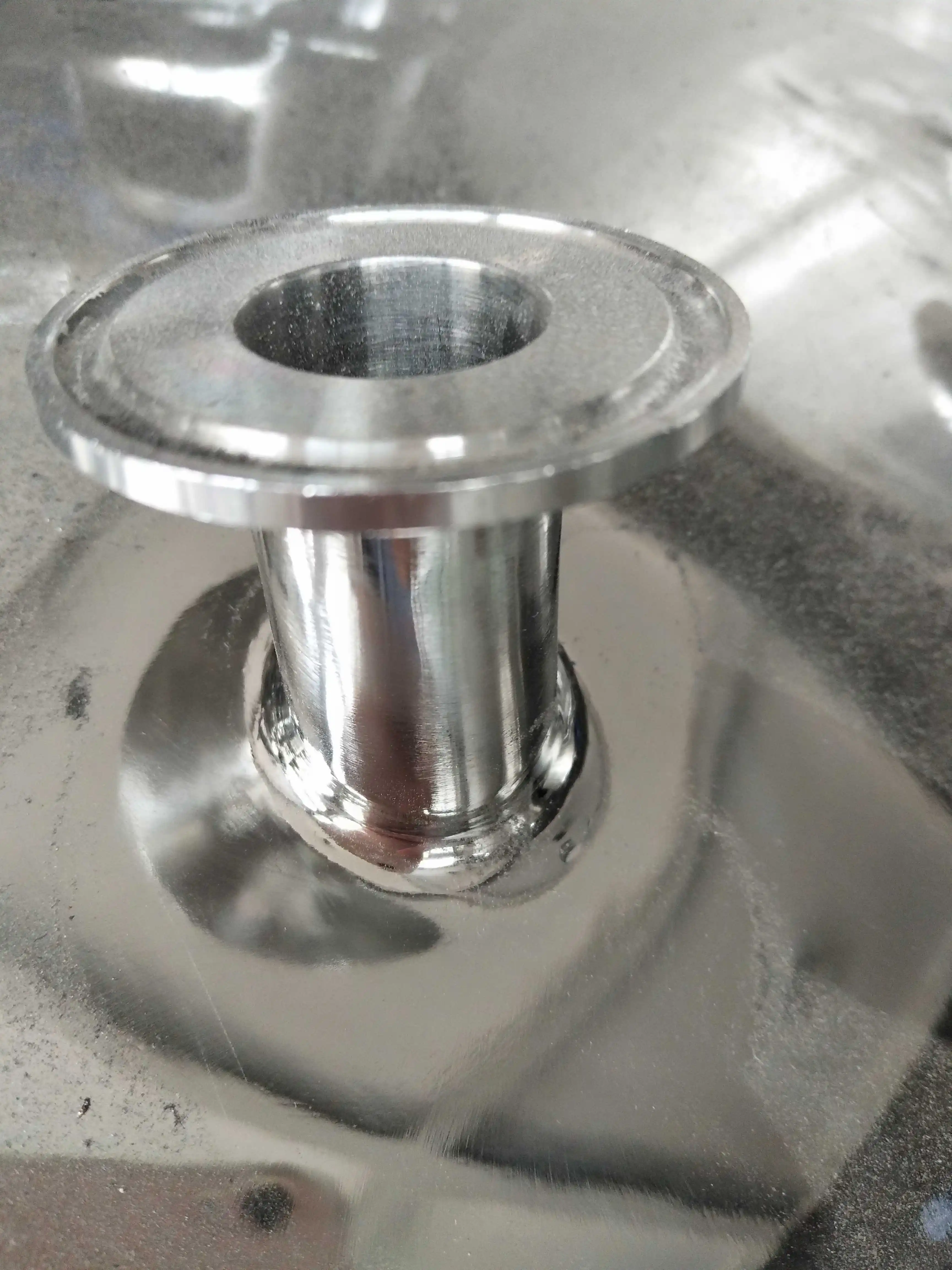

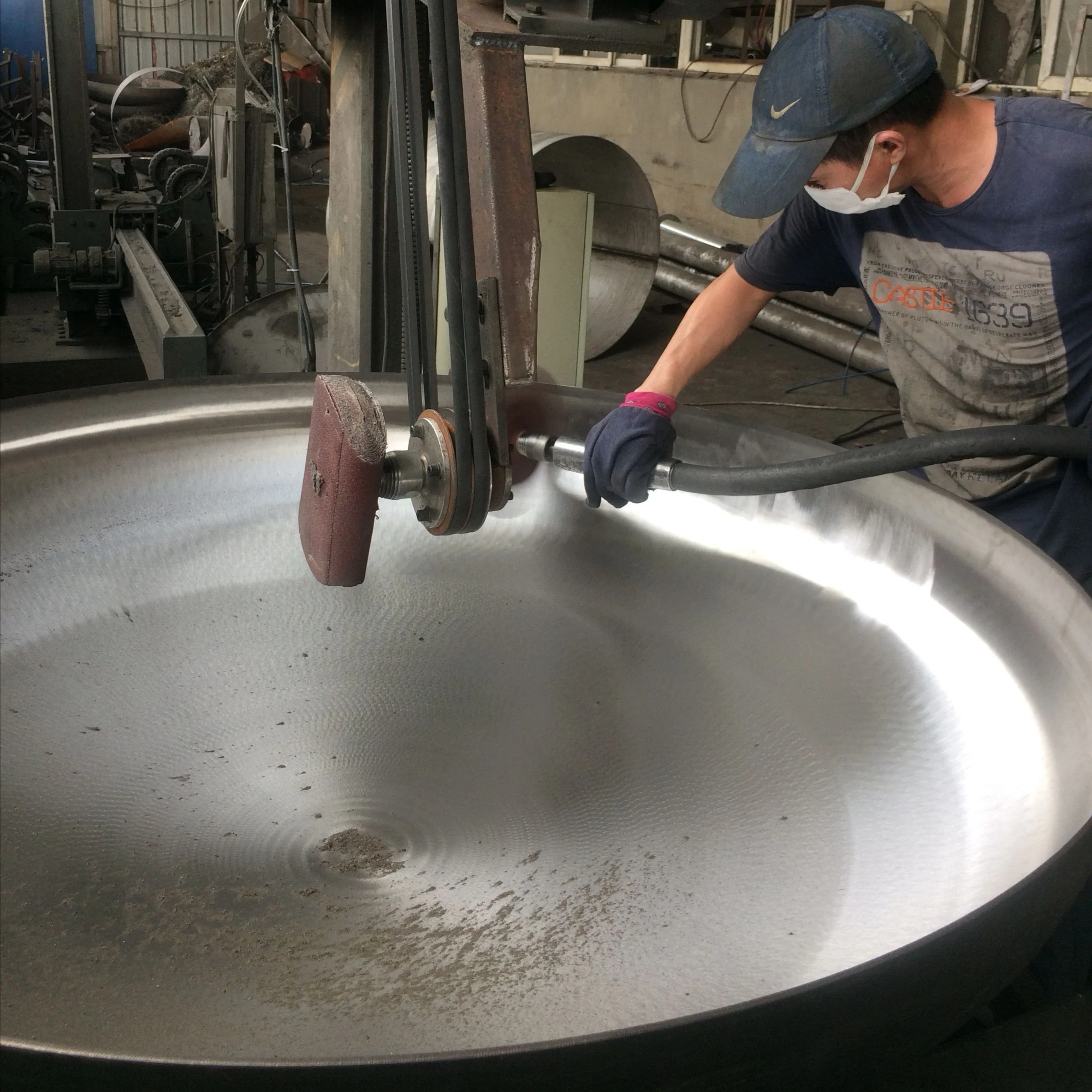

The inner surface of the tank can be mirror polished and the roughness can meet as high as RA <=0.8um. The outer surface is polished as follows: the cover and the bottom will be mirror polished and the remaining part will be mat polished. All the polish meet international standard.

Features:
Material: SUS304 or S.S.316L

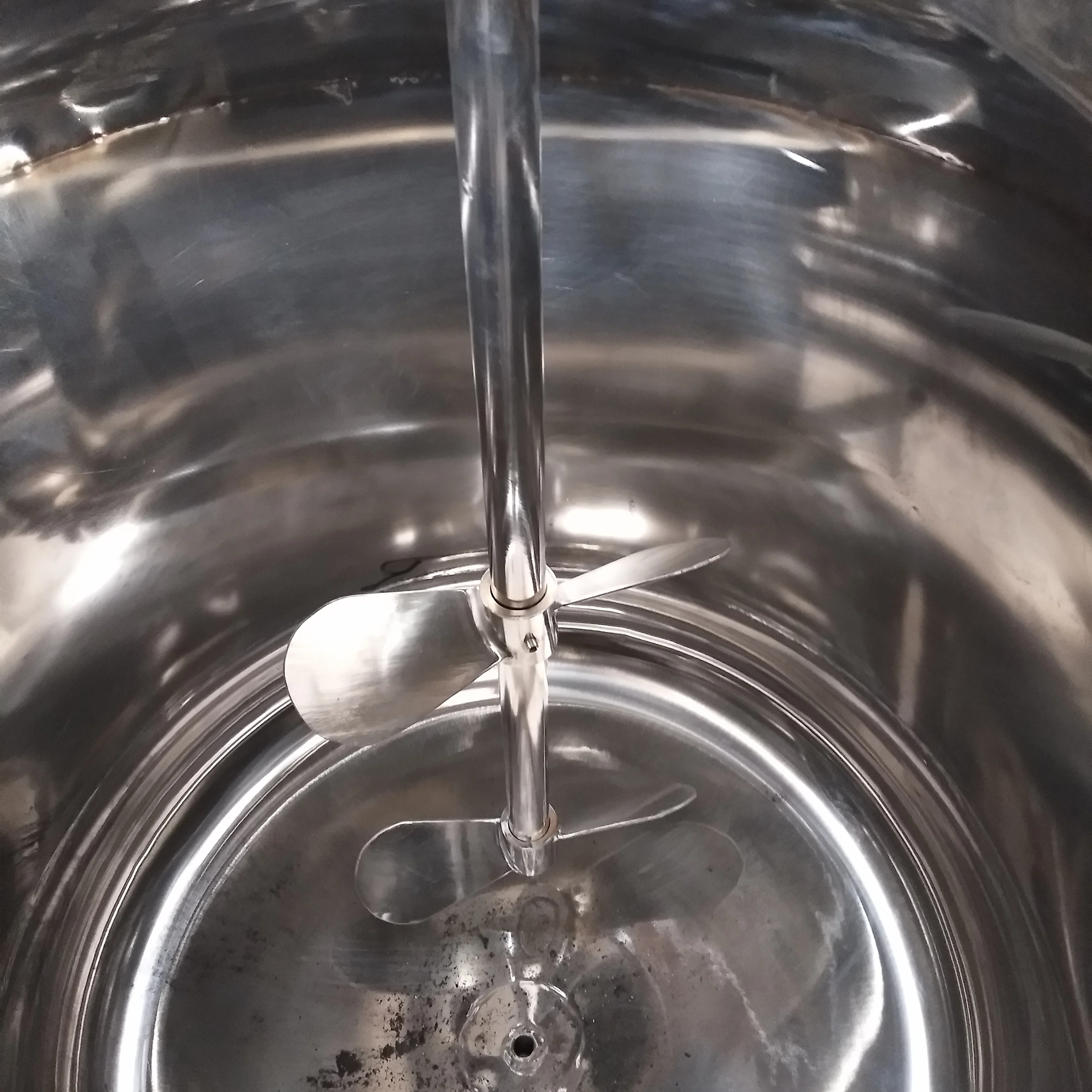

Agitator type: Anchor, frame, or paddle type. ( can be customerized).
Mixing structure: cycloid pin wheel reducer or stepless reducer
Sealing device: mechnical sealing or dual-face water cooled sealing
Heating way: steaming heating, heat conduct oil heating
Volume: can be made as per customer requirements, volume can be made from 50L to max.500000L.
Measure: can be made as per customer requirements.

Specification

	FYG-100	FYG-200	FYG-500	FYG-1000	FYG-1500
Volume (L)	100	200	500	1000	1500
Diameter (mm)	500	600	800	1000	1200
Tank Pressure(Mpa)	0.25-0.5 (or customerized)
Jacket Pressure(Mpa)	0.30 ( or customerized)
Motor Power (kw)	1.1	1.5	2.2	4.0	4.0
Agitating Speed(r.p.m)	85 rpm or customerized, agitating speed can also be adjustable
Tank Type	First Grade Pressure Tank

	FYG-2000	FYG-2500	FYG-3000	FYG-4000	FYG-5000
Volume (L)	2000	2500	3000	4000	5000
Diameter (mm)	1200	1400	1400	1500	1600
Tank Pressure(Mpa)	0.25-0.5 (or customerized)
Jacket Pressure(Mpa)	0.30 ( or customerized)
Motor Power (kw)	4.0	5.5	5.5	5.5	7.5
Agitating Speed(r.p.m)	85 rpm or customerized, agitating speed can also be adjustable
Tank Type	First Grade Pressure Tank

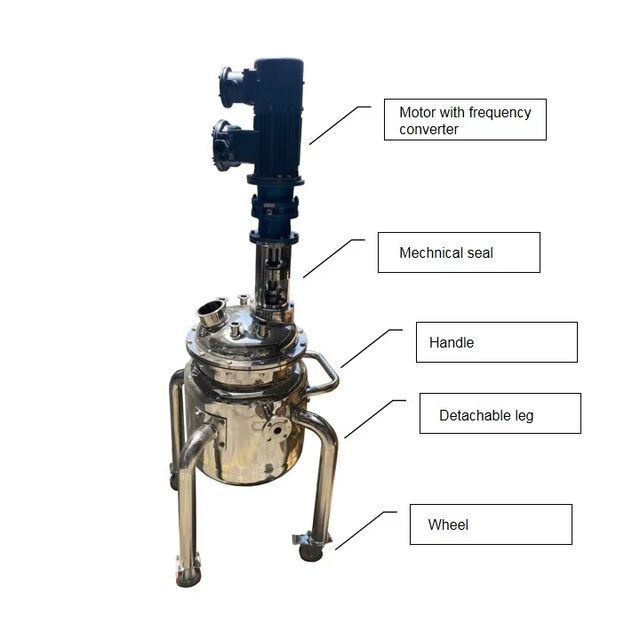

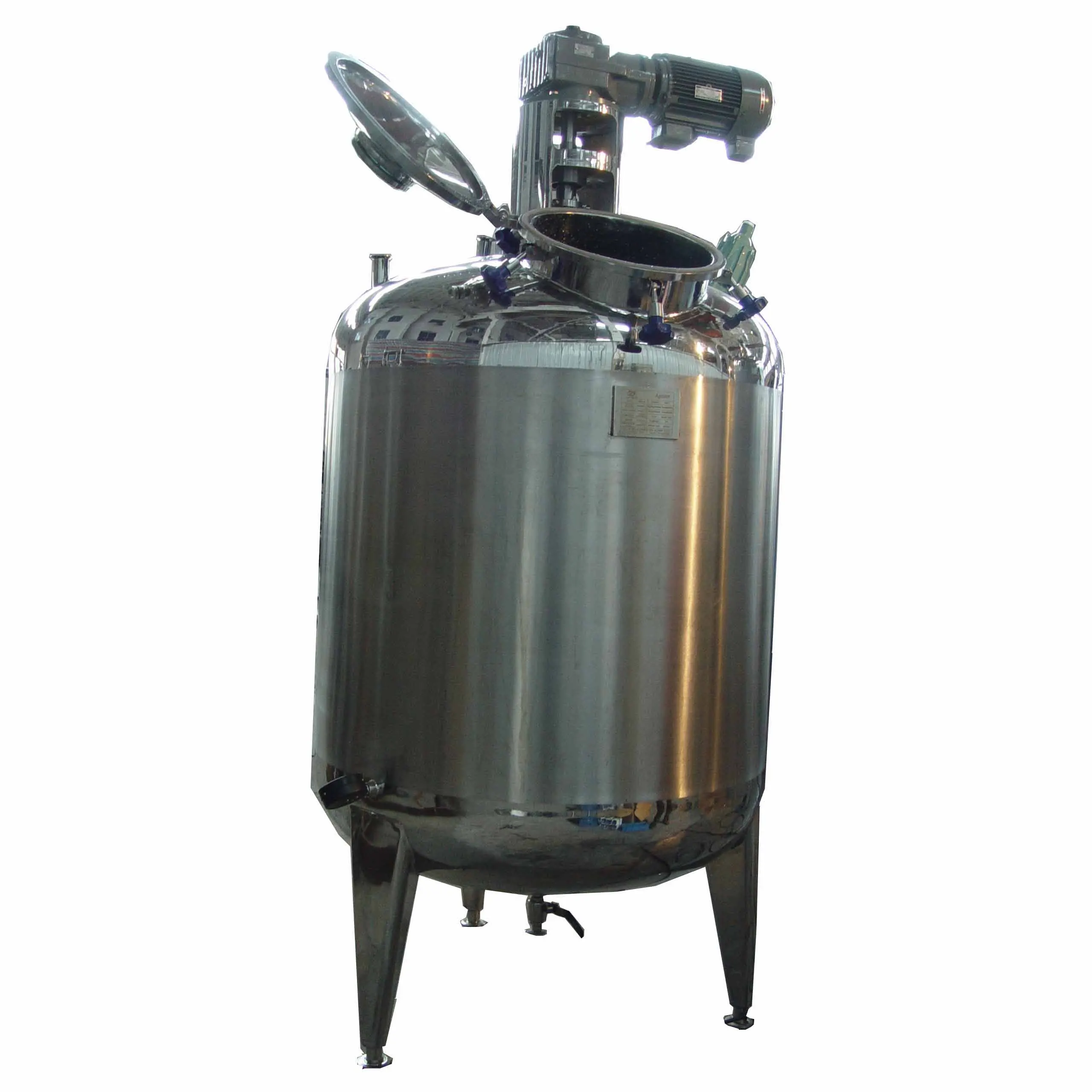

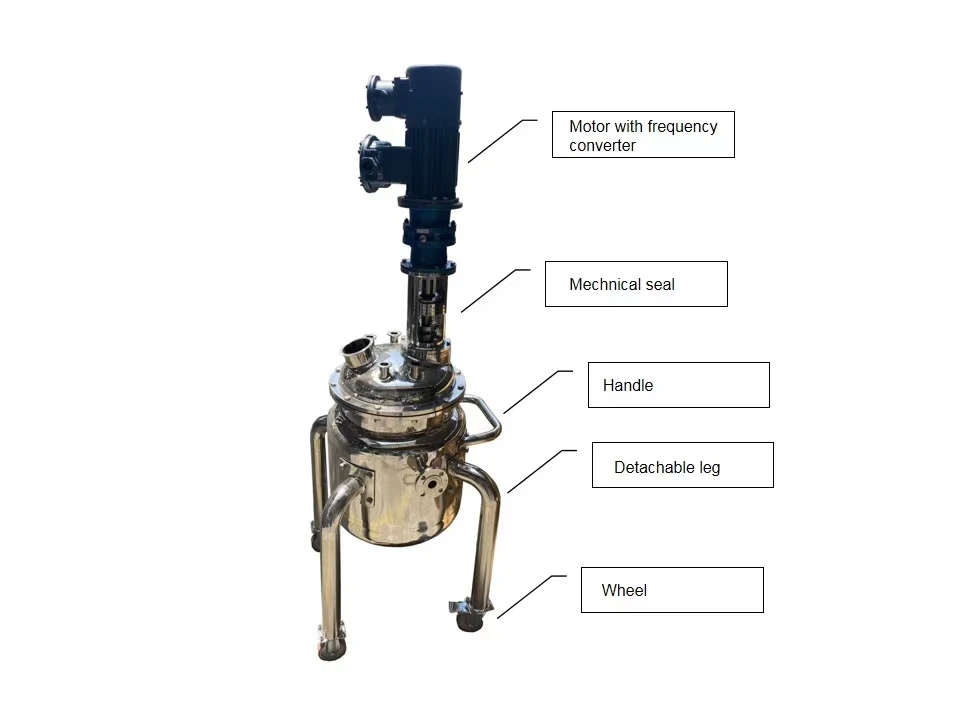

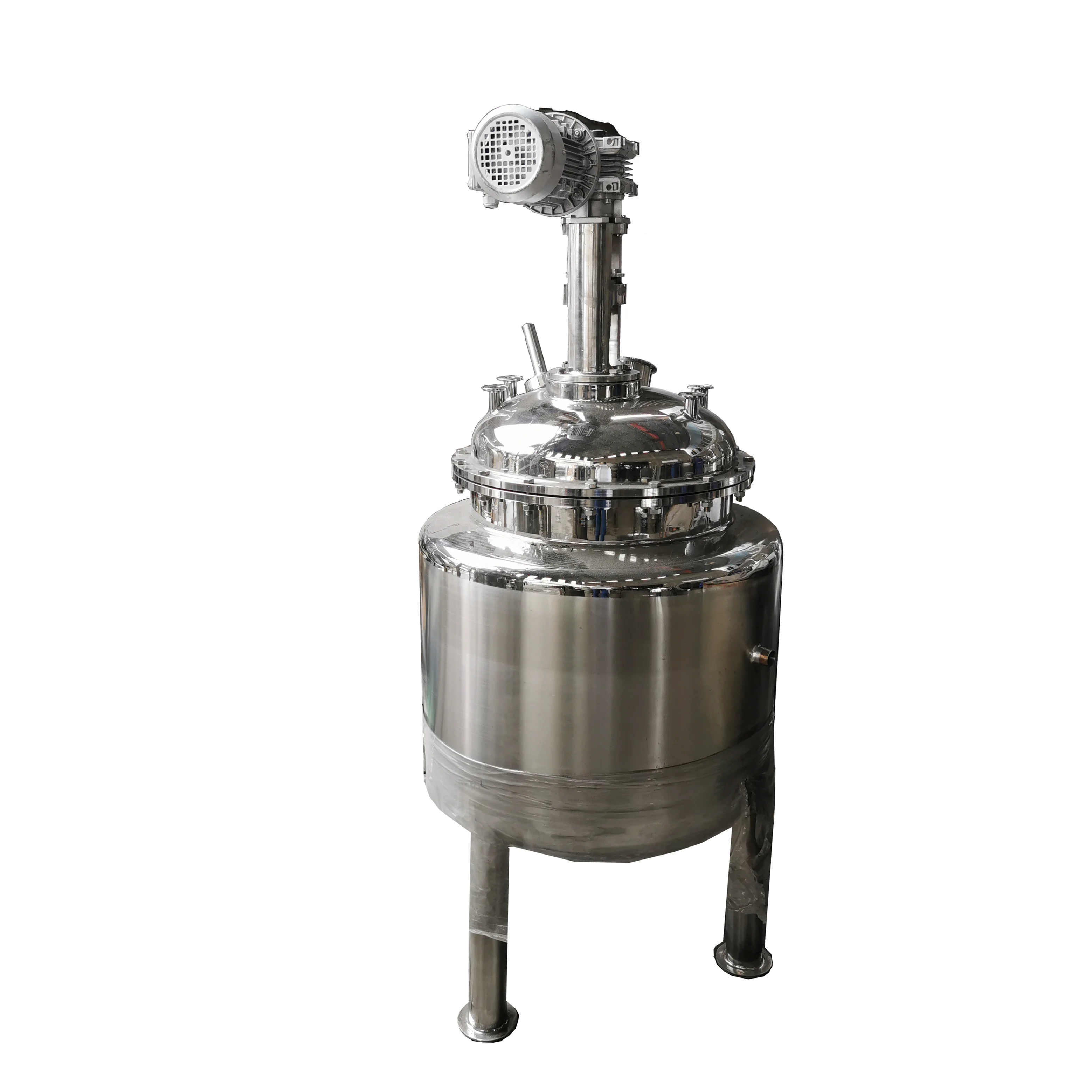

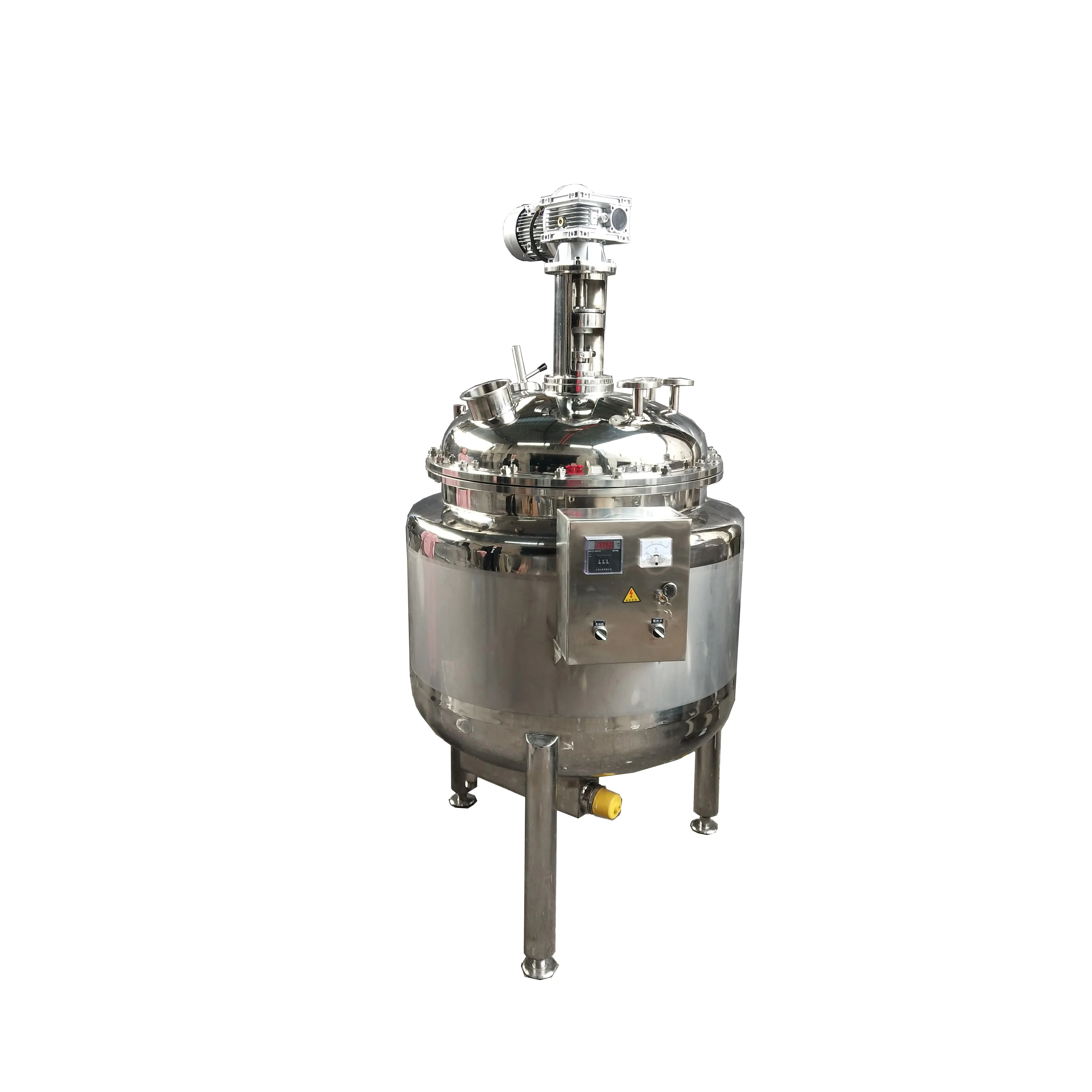

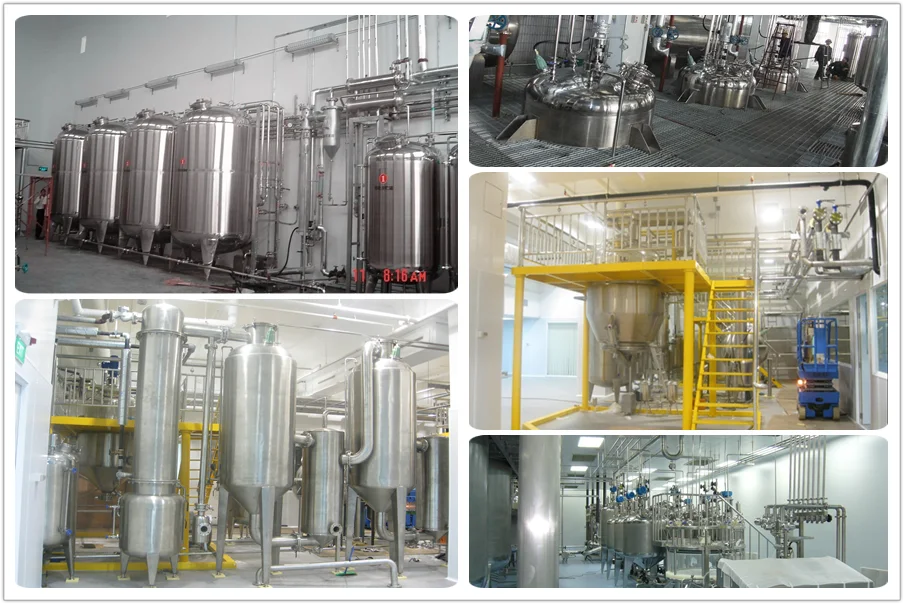

Machine Photos

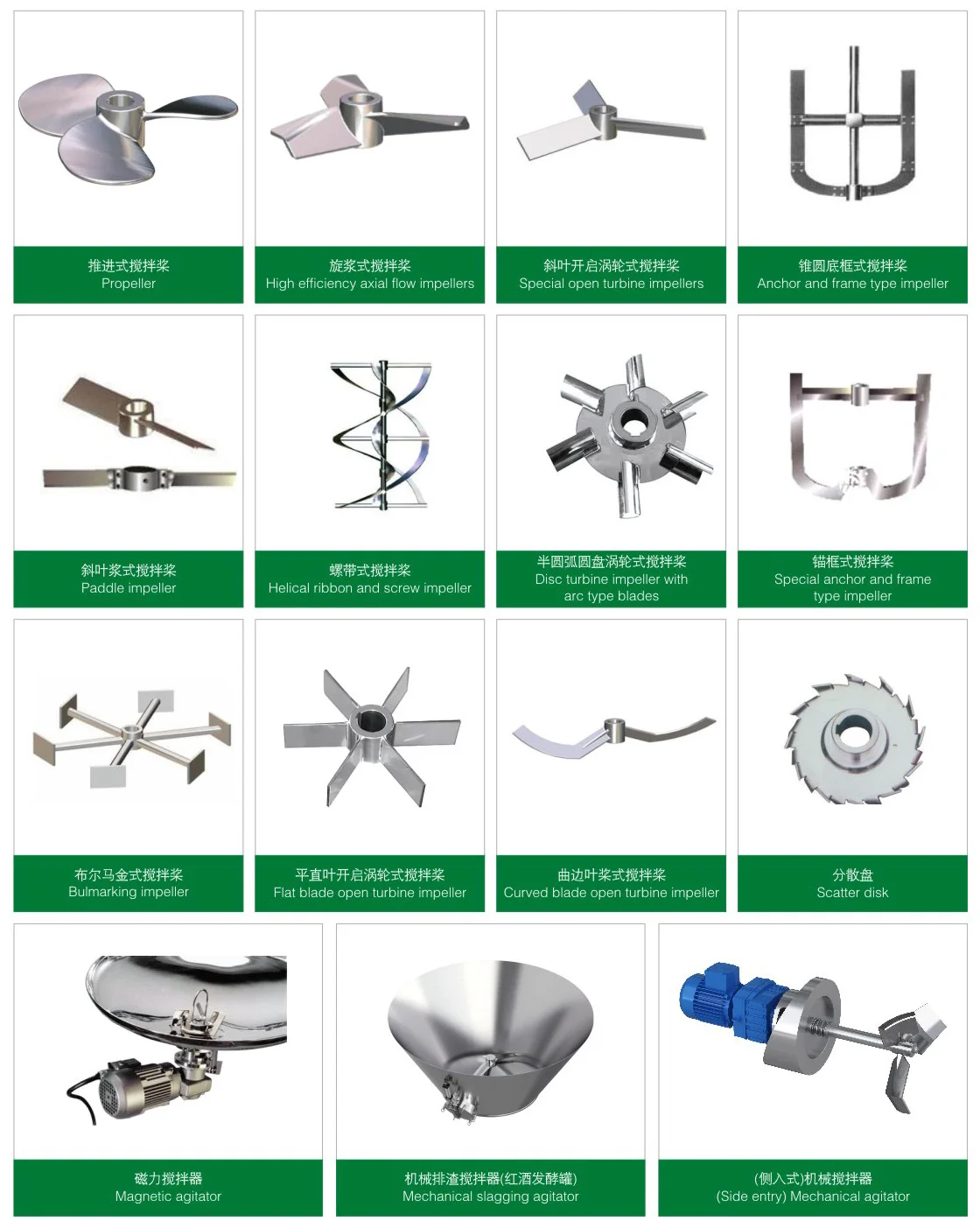

Aviable Agitators

Volume of the tanks can be very flexiable. We can make it from 50L to 500000L The Tank can also be customerized, you can have it single layer or jacket, with electric heater or with out, with support feet or without. Anti-explosion type or not. You can let me know your needs, i will let our technician make drawing accordingly.
