Road Machinery Shantui bulldozer SD13 130hp Crawler Bulldozer with price

Supplier: WEIFANG MAP IMPORT AND EXPORT CO., LTD.
Region: Shandong, China
Contact: Ms Cindy Xin
Price: $58000.00 / >=2 units
Min. Order: 2 units

Click here to contact

Product details

Rated power:	95.5/1900kW/rpm;	Warranty:	1 Year;
Width of track shoe:	460mm;	Moving Type:	Crawler Bulldozer;
Ripping depth of ripper:	467mm;	Hydraulic Valve Brand:	HYDAC;
Color:	yellow,orange etc.;	Dimension(Long * Breadth * High):	449231852950mm;
Payment Terms:	L/C,D/A,D/P,T/T;	Port:	Qingdao port;
Engine Brand:	SHANGCHAI;	Track gauge:	1880mm;
Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Retail,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Supply Ability:	100 Unit/Units per Week;
Packaging Detail:	naked, ro-on/ro-off ship ; Bulk cargo transport; Frame transport etc.;	Power(W):	95kw;
Place of Origin:	Shandong China;	After-sales Service Provided:	Video technical support,Online support;
Product name:	bulldozer;	Hydraulic Pump Brand:	KYB;
Hydraulic Cylinder Brand:	Liyuan;	Condition:	New;
Engine:	Shangchai SC8D143G2B1;	Brand Name:	MAP;
Model:	SD13;	Machine Weight:	13700KG;
UNIQUE SELLING POINT:	High operating efficiency;	Ripper type:	Three-shank ripper;
Lifting height of ripper:	559mm;

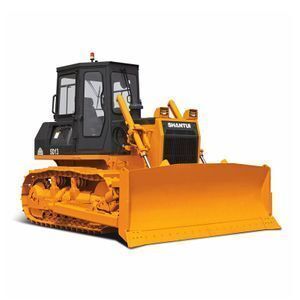

High efficiency New Shantui SD13 Crawler bulldozer

The SD13 bulldozer equipped with a hexahedron damping cab, which features a beautiful design, wide visibility, and comfortable operation, as well as a highly efficient charged engine, which has excellent power, reliability and a long service life. It is also equipped with an improved hydraulic drive system with hydraulic control technology, front-extending anti-rolling frame and an advanced structure, providing reliable quality and convenient and flexible operation. The SD13 uses Shantui's patented central lubrication technology, central pressure measurement and automatic track tensioning, as well as a GPS satellite positioning system.

With options such as straight tilt, angle, U type and semi-U type blades, single/triple shank rippers and a mechanical winch, the SD13 has various capabilities allowing it to adapt to and work in a wide range of earth moving projects.

bulldozer advantage

1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.

Specification

ITEM	UNIT	SD13
L×W×H (Ripper not included)	mm	4492×3185×2950
Operating weight (Ripper not included)	t	13.7
Engine	-	Shangchai SC8D143G2B1 Cummins 6CTA8.3-C145
Rated power	kW/rpm	95.5/1900 108/1900
Gradeability	°	30
Blade type	-	Straight tilt blade Angle blade
Blade width	mm	Straight tilt blade 3185×1090 Angle blade 3475×915
Dozing capacity	m3	Straight tilt blade 3.7 Angle blade 3.4
Ma× drop below ground of blade	mm	590
Lift height of blade	mm	930
Ripper type	-	Three-shank ripper
Ripping depth of ripper	mm	467
Lifting height of ripper	mm	559
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	38
Width of track shoe	mm	460
Track gauge	mm	1880
Ground length and ground pressure	mm/MPa	2365-0.063
Pitch	mm	190
Forward speed	km/h	0–3.2
		0–5.9
		0–9.8
Reverse speed	km/h	0–3.9
Reverse speed	km/h	0–7.1

FAQ

1.Why chose you?

a.We are manufacturer, our products have excellent quality and competitive price.

b.We have good after-sales services,you can find us at per 24 hours.

c.Strictly testing and checking before shipping.

2.How to deal the order?

a.Payment terms: T/T 30% as deposit, and 70% before delivery.

b.We'll show you the photos of the products and packages before you pay the balance.

3.Are you interested in dealership with local company?

Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.

4.What is your warranty policy?

We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.

5.How do you make our business long-term and good relationship?

a.We keep good quality and competitive price to ensure our customers benefit.

b.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

6.one-stop small Construction and agricultural machinery products factory.
