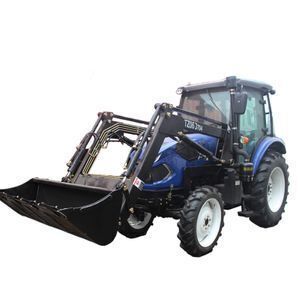

70hp x4 wheel drive agriculture farm tractor with front loader

Product details
Color:Red,blue,green;PTO speed:540/720;
Payment Terms:L/C,T/T,Western Union;Drive Type:Gear Drive;
Engine:quanchai;By wheel:4WD;
After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;Supply Ability:500 Unit/Units per Year;
Port:qingdao;Packaging Detail:Naked;
Clutch:Dual-stage;Certificate:CE;
Brand Name:MAP;Place of Origin:China;
Usage:Farm Tractor;Options:front end loader and backhoe;
Implements:Plough Harrow Cultivator;Type:Wheel Tractor;
Tire:12.4-24/16.9-34;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Food Shop,Construction works ,Energy & Mining,Food & Beverage Shops;
Model:MAP704;Warranty:1 year;
Engine type:Water-cooling;After-sales Service Provided:Engineers available to service machinery overseas;
Condition:New;

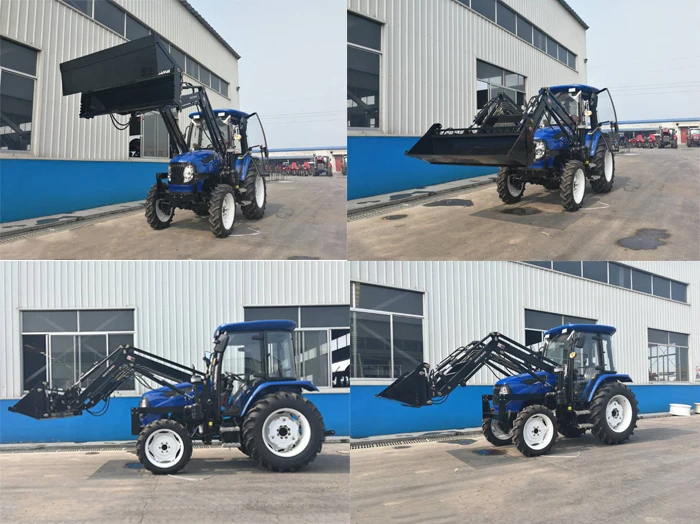

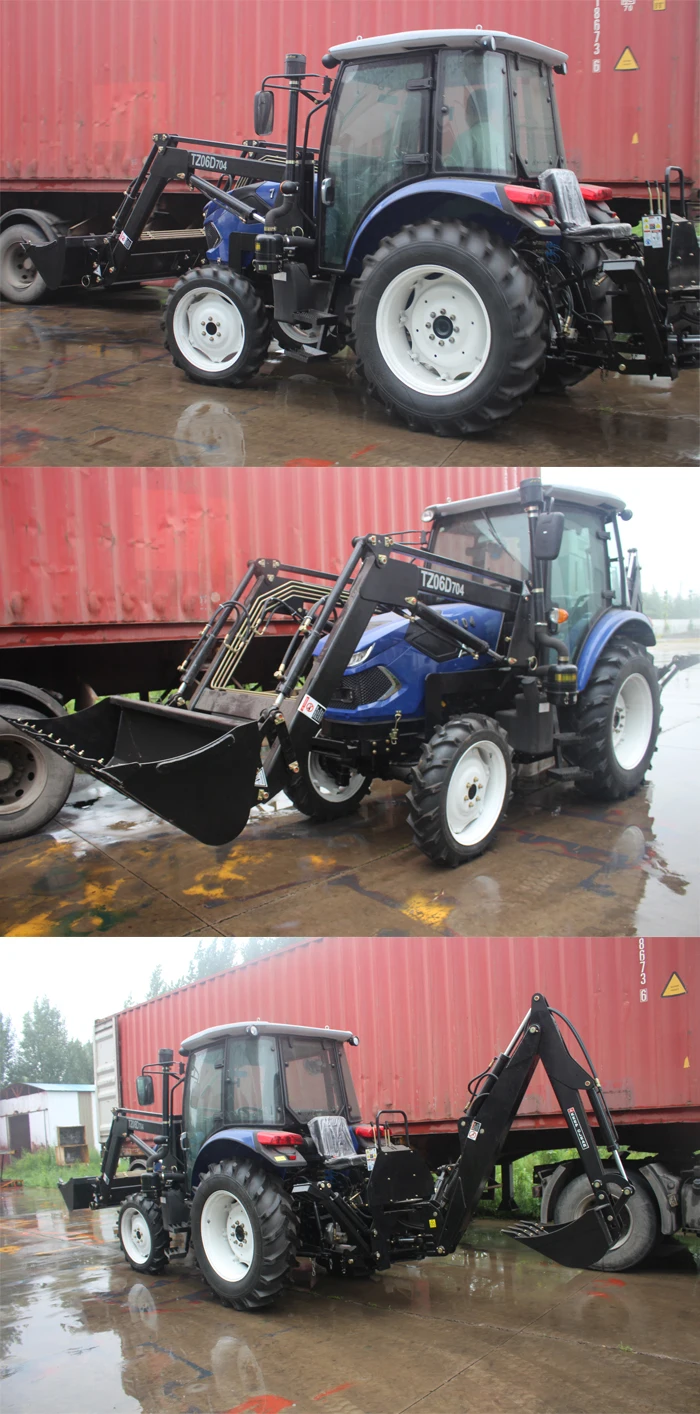

70HP Tractor With Front Loader

Product Description

Product Description







70HP Tractor Specification
Model MAP704
Type  4×4 Wheeled Type
Dimensions
of Tractor
(mm)
Length3700
Width1710
Height2360
Front Wheel1300
Rear Wheel1200,1300(usual),1400
 Wheel Base2200
Min. Ground Base390(the bottom of steering horizontal pulling rod)
Min. Usage Mass (kg)2300
 EngineModelquanchai4108
TypeVertical, water cooled and 4-stroke
Rated Power(kw) 51.4
Rated Rev.(r/min)2400
FuelDiesel Oil
Tire Front Wheel8.3-24
Rear Wheel14.9-30
 Clutchdry-friction, single disc and two stage
 Steering Hydraulic type
Transmission Boxtwo shafts, 4×(3+3) composed
 Suspension TypePost Positioned Tri-point Suspension Catalogue Ⅰ
PTOType and Rev.Post-position, half-independent,540/760 or 540/1000(optional)
Spline SizeI38 Rectangle Spline with 8 teeth



                                                            Tractor Front Loader Specification

Model

YS-03D

YS-04D

YS-06D

YS-08D

YS-10

YS-12

YS-16

Horsepower range

20-30

30-55

45-60

55-75

70-100

90-140

140-210

Max lift height(mm)

2250

2400

2700

2800

3020

3100

3260

Dump height(mm)

1840

2100

2370

2480

2720

2900

3000

Dump distance(mm)

500

600

640

690

740

900

900

Bucket width(mm)

1250

1400

1500

1600

1700

2000

2200

Bucket capacity(cbm)

0.18

0.21

0.35

0.40

0.44

0.7

1.1

Rated load capacity(kgs)

300

400

600

800

1000

1200

1600
