API 8C type TA Elevator for drill collar tubing casing elevator center latch

Supplier: Nantong Strong Petroleum Technology Co., Ltd.
Region: Jiangsu, China
Contact: Nantong Strong Petro
Price: $319.00 /set
Min. Order: 1 set

Click here to contact

Product details

Apply to rod size:	1 1/2" To1-4 3/4'';	Material:	28CrNiMo;
Application:	well Drilling;	Name:	TA Elevator;
Model Number:	TA;	Supply Ability:	60 Set/Sets per Month;
Color:	Red;	Rated load:	35,65,100,150;
Payment Terms:	T/T,Western Union;	Packaging Detail:	1)Package:plywood case,2 pcs/Set 2)N.W:156KG 3)G.W:171 KG 4)Package:870600370;
Port:	Shanghai Port;	Standard:	API 8C;
Max Load:	35-200 Ton;	Size Range:	1.05-11 1/4;
Product name:	TA Elevator;	Applicable Industries:	Energy & Mining;
Type:	Drill pipe;

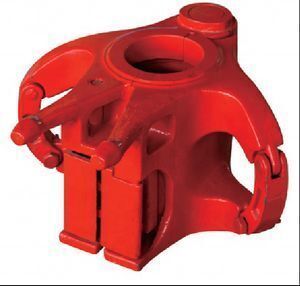

TA Elevator

Model TA center latch elevators with square shoulder are suitable for handling drill collar, casing and tubing. The products are designed and manufactured according to the requirement in API Spec 8C Specification for Drilling and Production Hoisting Equipment.

Model	Size(in)				Rate Cap. (Short Tons)
	DC	Tubing		(Casing)
	DC	NU	EU	(Casing)
TA-35	2 7/8-3 1/8	1.05-2 7/8	1.05-2 7/8	/	35
TA-65	2 7/8-3 1/8	1.66-2 7/8	1.66-2 7/8	/	65
TA-100	3 7/8-5 1/4	2 3/8-5	2 3/8-5	/	100
TA-150	4 1/8-11 1/4	/	/	4 1/2-10 3/4	150
