API 8A/8C DDZ Oil Well Drill Pipe Elevator

Supplier: Dongying Innova Petroleum Technology & Development Co., Ltd.
Region: Shandong, China
Contact: Mr Yang Li
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service location:	not any	Standard 5:	Dongying City, Shandong Province, China
Warranty:	1.5 years	port:	Tianjin Shanghai port or as your request
Video shipment inspection:	if	payment terms:	L/C, Western Union, T/T, MoneyGram
level 4:	API 8A/8C	level 2:	oilfield
Standard 2:	red, or as required	Core components:	Programmable Controllers
Standard 1:	alloy steel	Standard 6:	Anti-corrosion coating
Packaging Details:	Fumigation wooden box	Mechanical test report:	if
type:	DDZ drill pipe elevator	Marketing Type:	normal product
Core component warranty:	1 year	Standard 3:	Innova Petroleum Corporation
Third grade:	2 3/8" - 6 5/8"	Level 1:	API 8A/8C DDZ Oil Well Drill Pipe Elevator
Standard 4:	150-500 tons	Showroom location:	not any
Supply capacity:	1500 sets per month	Applicable industries:	Energy and Mining

Product Details

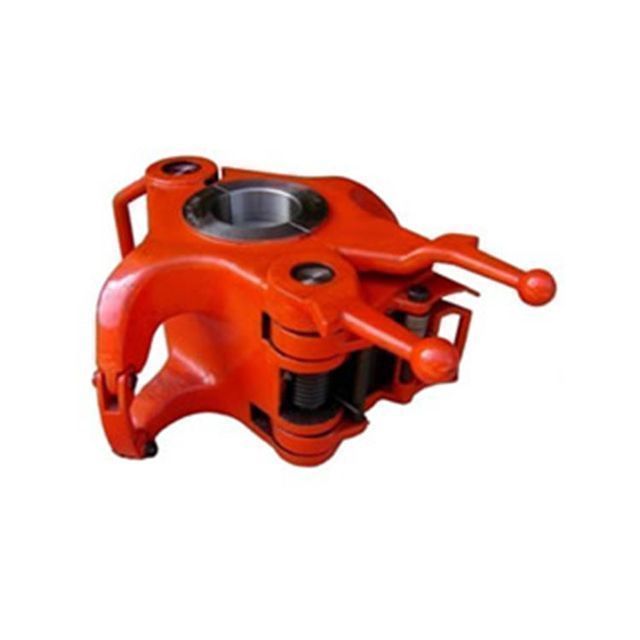

cAPI 8A/8C DDZ Oil Well Drill Pipe Elevator

DDZ, DDZ TD Elevator
DDZ center latch elevator is suitable for hoisting 18 taper square shoulder drill pipes, drilling tools, etc. The elevators are designed and manufactured according to API Spec 8C-Drilling and Production Lifting Equipment Specifications. DDZ TD means top drive elevator

Model	Drill pipe size and style	diameter elevator hole	elevator sign	maximum. load ton (KN)
DDZ67	23/8 EU	67	23/8 EU	DDZ 150 (1350) 250 (2250) 350 (3150) 500(4500) DDZ TD 350 (3150) 500(4500)
DDZ83	27/8 EU	83	27/8 EU
DDZ101	31/2 EU	101	31/2 EU
DDZ109	4IU	109	4IU
DDZ121	4 EU	121	4 EU
	41/2IU		41/2IU
	41/2IEU		41/2IEU
DDZ133	41/2 EU	133	41/2 EU
DDZ133	5IEU	133	5IEU
DDZ148	51/2IEU	148	51/2IEU
DDZ 159	5 7/8IEU	159	5 7/8IEU
DDZ179	6 5/8IEU	179	6 5/8IEU

Product Description

CDQ 5/8- 3/4" Sucker Rod Elevator API 8C

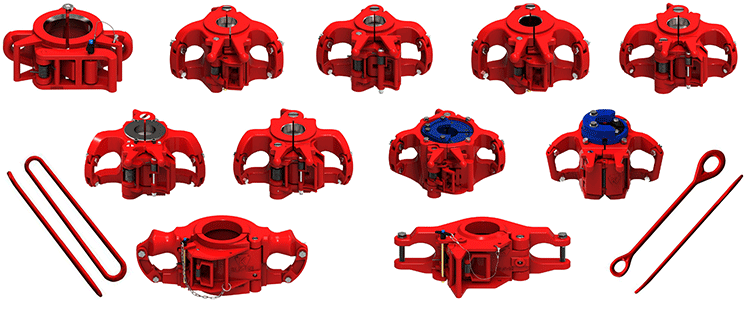

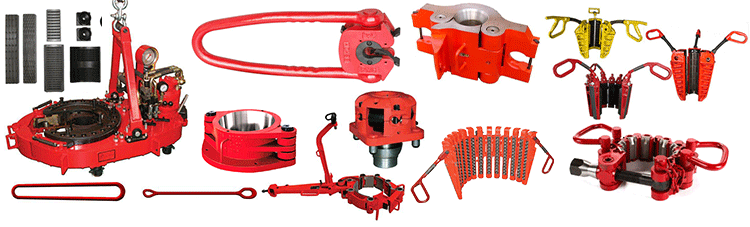

Handling tools play an important role in modern drilling operations. They are used to hang, move and rotate tubulars in and around the center of the drill floor. The types of tools include slips, elevators, hand pliers, power tongs, safety gears, elevators, rings, screwdrivers, wrenches, etc. The handling tools in our factory are all manufactured according to API 7K, API 8A and API 8C standards, with strict quality control and inspection.

Packaging and Shipping

parcel delivery

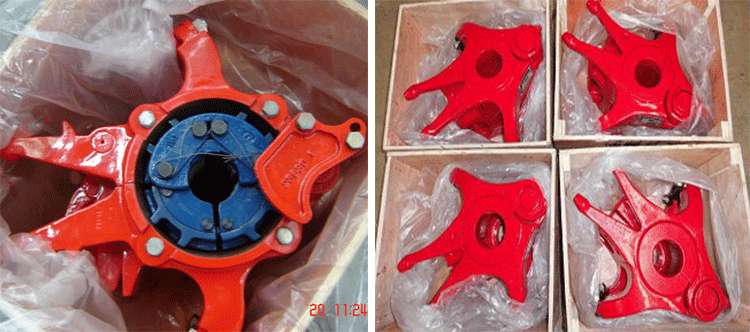

Our elevators are packed in wooden cases. The professional box loading machine keeps the quality and appearance of the product from being damaged.

Our company is located in Dongying, the mouth of the Yellow River, Shengli Oilfield Base. It only takes three hours to Qingdao Port. The superior geographical location realizes convenient transportation and logistics services.

Certificate

about us

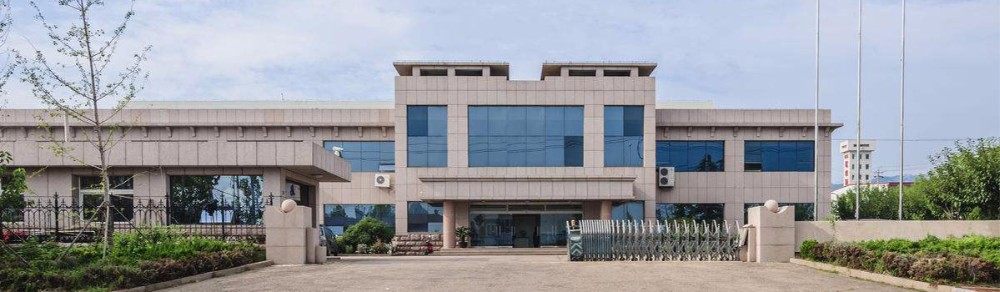

Innova Petro is a professional petroleum equipment manufacturer located in Dongying City, the largest petroleum equipment manufacturing center. Our product range includes OCTG, drilling equipment, well control equipment, downhole tools, etc. for all types of oil and gas drilling and completion activities. With a strict quality management system, holding ISO9001 and API certificates, the products are exported to the United States, the Middle East, Russia, Europe, etc., and have established good relationships with many customers in the world. We are working hard and committed to becoming one of the most professional oilfield equipment suppliers in China. We sincerely welcome you to visit us and have further cooperation.
