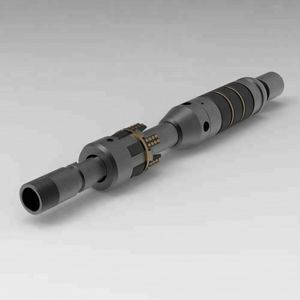

Mechanical Retrieval Packer Innova oil tools Y221 retrieval Packer

Supplier: Dongying Innova Petroleum Technology & Development Co., Ltd.
Region: Shandong, China
Contact: Mr Yang Li
Price: $900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Certification:	API;
Port:	Tianjin Port or Shanghai Port;	Working Pressure:	20Mpa-75Mpa;
Temperature:	90℃-150℃;	Model Number:	Mechanical Retrieval Packer;
Packaging Detail:	Wrapped by wearproof plastic bag, delivered by wooden case or aluminium alloy case;	Supply Ability:	1000 Set/Sets per Week;
Application:	water injection, water exploration, acidification, fracturing;	Name:	Innova Inflatable Packer;
Type:	Downhole Tool;	Setting:	Rotate;
Materials:	Alloy Steel;

Product Description

1. Application
Innova Y221 Packer a mechanical slip packer, which is used in many different constructions, such as oil extraction by layer, water injection, water exploration, plugging, squeezing, acidification, fracturing and so on.

2. Structure and Principle
It consists of hydraulic anchor, rubber barrel, cone, slip, spiral up，friction block, central pipe, lower joint and so on.
Mechanical slip packer is supported by unidirectional slip. It’s set by pulling, turning and lowering. It’s released by pulling the column.

3. Characteristics
1) The rubber barrel is above the slip in order to avoid covering by sand.
2) Simple structure and easy to operate.

Casing （in）	OD.（in）	ID.（in）	Length（in）	Temp.(℉)	Pressure (MPa)	Thread（in）
4-1/2	3.7	1.77	36.3	250-300	5000-10000	2-3/8 NU
5	4.09	1.97	37.17	250-300	5000-10000	2-3/8 NU
5-1/2	4.49	2.32	38.31	250-300	5000-10000	2-7/8 NU
5-3/4	4.72	2.36	38.82	250-300	5000-10000	2-7/8 EU
6	5.31	2.44	39.02	250-300	5000-10000	2-7/8 EU
6-5/8	5.51	2.44	39.25	250-300	5000-10000	2-7/8 EU
6-5/8	5.67	2.44	40.12	250-300	5000-10000	2-7/8 EU
7	5.83	2.44	41.46	250-300	5000-10000	2-7/8 EU
7	5.98	2.99	42.48	250-300	5000-10000	3-1/2 EU
7-5/8	6.5	2.99	43.94	250-300	5000-10000	3-1/2 EU
8-5/8	7.28	2.99	44.76	250-300	5000-10000	4 EU
9-5/8	8.27	3.23	47.8	250-300	5000-10000	4 EU
9-5/8	8.46	3.46	52.24	250-300	5000-10000	4-1/2 EU
