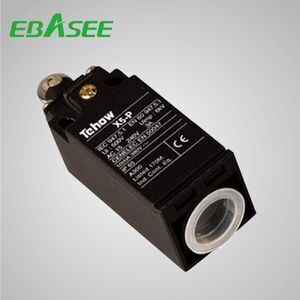

High quality waterproof limit switch

Supplier: Shanghai Tehow Electric Co., Ltd.
Region: Shanghai, China
Contact: Ms Kiwi Ding
Price: $1.63 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Max. Voltage:	500V;	Port:	Shanghai or Ningbo;
Brand Name:	TEHOW;	Payment Terms:	L/C,T/T,Western Union;
Protection Level:	IP64;	Place of Origin:	China;
Model Number:	X5-T;	Max. Current:	15A;
Supply Ability:	10000 Piece/Pieces per Month;	Operating Temperature:	-20℃~+60℃;

Product Description

Rated working current	15A 500V,250VAC; 50/60Hz
Contact type	Contact resistance (initial value )		Under 15 mΩ (no include copper resistance )
	Contact material		Silver cadmium oxide contact(if no need cadmium,[according to with ROSH certificate ] can customize
Electrical	Insulation resistance (initial value)		100 mΩ min. (use the DC500V insulation resistance test)
	Dielectric strength		Between Non-continuous terminals (initial value): 1500V 50/60HZ for 1 min Between non-voltage metal parts and each terminal: 2000V 50/60HZ for 1min Between the ground and each terminal: 2000V 50HZ for 1 min
Mechanical	Shock resistance	In the free position	Less than 98m/s2(10G)
		In the full operating position	Less than 294m./s2(30G)
	Vibration resistance		1.5mm double amplitude 10-55HZ
Expected Life	Mechanical		10,000,000 operations min. (on/off frequency 120 operations/min)
	Electrical		300,000 operations min. (rated load ), electromagnetism contactor FC-100(AC200V) load ; 5,000,000 operations min.
Using condition	Ambient temperature /Ambient humidity		-20~+60 95%RH max. (at +5~20)
	The max on/off frequency		120 operations/min

Company Information

1. About us

Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades.

EBASEE factory locates in Shanghai,China, covering an area of 5000m².There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.

QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
