MachineryOffers

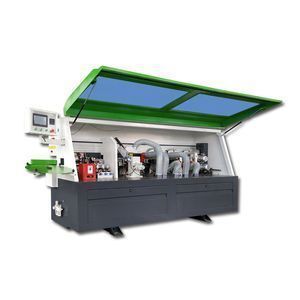

pvc mdf full automatic edge bander machine

Product details
Edge thickness:0.4-3mm;Power(W):11kw;
Voltage:380V/415V/440V;Certification:CE ISO9001;
Warranty:2 Years;Function:gluing,end trimming,rough cutting,fine trimming, scraping, buffing;
Control type:full automatic;Delivery Detail:0 days after payment;
Condition:New;Dimension(L*W*H):4100*1000*1700mm;
After-sales Service Provided:Online support;Edge height:15-65mm;
Selling Units:Single item;Single gross weight:1,400 KG;
Feed speed:12-20m/min;Place of Origin:Shandong China (Mainland);
Single package size:410X90X160 cm;Workpiece width:≥60mm;
Workpiece length:≥100mm;Weight:1500kg;
Workpiece thickness:10-60mm;Brand Name:WFSEN;
Working Air Pressure:0.6-0.7Mpa;Product name:full automatic edge bander;

pvc mdf full automatic edge bander machine

Product Description







Gluing→ End cut→ Rough trim→ Fine trim→ Scraping→ Buffing







edge bander.jpgWFSEN full automatic edge bander banding machine

edge banding machine.jpg



woodworking machinery



———  Technical Parameter



 Model MF360B, full automatic
 Functions Gluing, End cut, Rough trim, Fine trim, Scrape, Buffing
 Workpiece thickness 10-60mm Feed speed 13-23m/min
 Workpiece width ≥60mm Total power 9kw
 Workpiece length ≥100mm Air press 0.6Mpa
 Edge height 15-65mm Weight 1400kg
 Edge thickness 0.4-3mm Overall size 4100 x 1000 x 1600mm

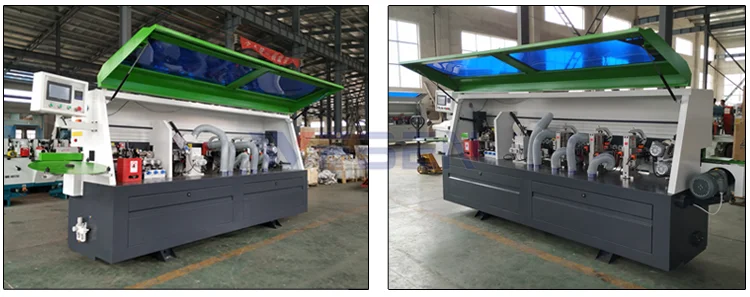

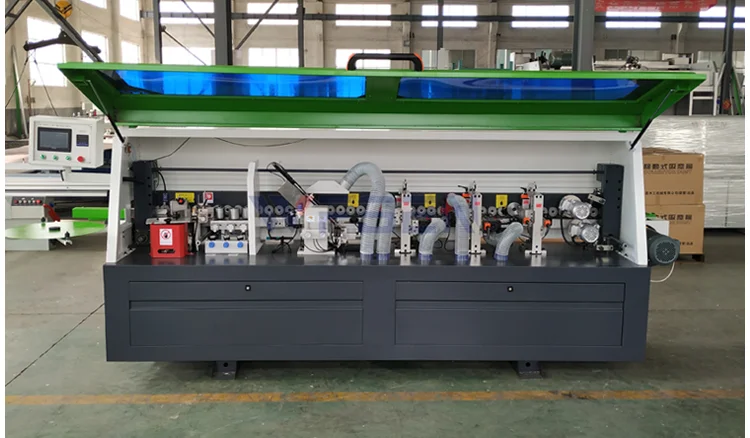

———  Machine show

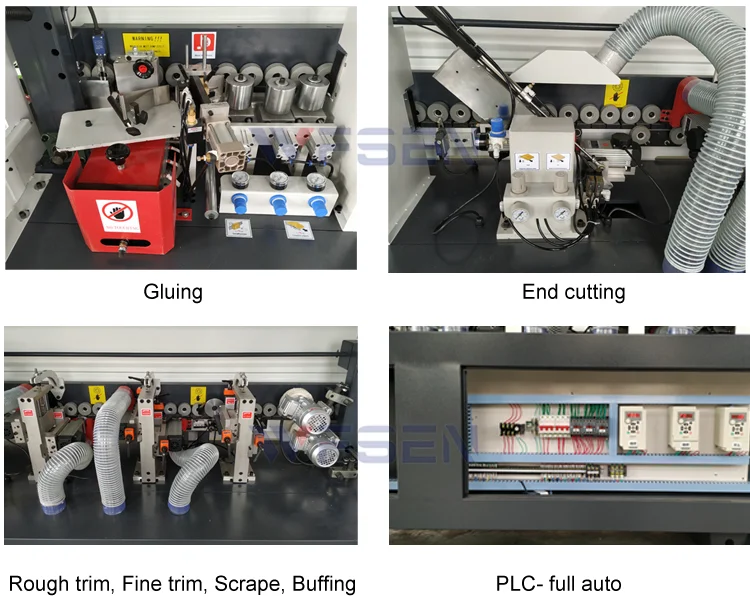

———  Functions show








———  Other Parts



WFSEN full automatic edge bander banding machine



———  Workshop show



Pvc mdf kdt glue furniture trimmer wood door cheaper price straight line full automatic edge bander banding machine for sale



Packaging & Shipping



Pvc mdf kdt glue furniture trimmer wood door cheaper price straight line full automatic edge bander banding machine for sale





Company Information



Qingdao WFSEN Mechanical And Electrical Co., Ltd.

Pvc mdf kdt glue furniture trimmer wood door cheaper price straight line full automatic edge bander banding machine for sale
1. Professional manufacture: 8 years, now have ISO 9001, CE and others.

2. Advanced technology: Italy and other advanced technology.


3. Commitment quality: All of parts are the best, to ensure quality is very well.



4. Best price: Quality is the more important than price, the same quality, the lowest price.



5. Sincerity cooperation: Best quality, best price, best service for you.



Contact Us
wfsen woodworking machinePlease leave your inquiry details in this below, then click   Send   now, you will get the best quotation.
 1MF330C Gluing, Fine trimming, Buffing.
 2MF330B Gluing, Fine trimming, Scraping, Buffing.
 3MF330A Gluing, Rough trimming, Fine trimming, Scraping, Buffing.
 4MF360D Gluing, End cutting, Fine trimming, Buffing.
 5

MF360C

 Gluing, End cutting, Fine trimming, Scraping, Buffing.
 6MF360B Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.
 7MF360A Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Slotting, Buffing.
 8MF630C Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing.
 9MF630B Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
 10MF630A Premilling, Gluing, End cutting, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
