KR Roofing Machine KR 24 Standing Seam Roof Forming Machine Metal Roofing KR Cold Roll forming machinery

Supplier: Yingkou Sanxing Roll Forming Machine Co., Ltd.
Region: Liaoning, China
Contact: Ms Rebecca Wang
Price: $18000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	2.5 ~ 3 Tons;	Brand Name:	Sanxing K Q Span;
Power Plant:	gasoline Diesel engine 22HP;	Applicable Industries:	other;
After-sales Service Provided:	Overseas service center available;	Type:	SX-KR-24;
Effective width:	406mm;	Packaging Detail:	Naked;
Brand Name:	Sanxing SX-KR Series;	Port:	Dalian;
Feeding width:	610mm to confirm;	Main Moter Power:	5.5kw;
Place of Origin:	Liaoning China;	Supply Ability:	20 Set/Sets per Month;
Warranty:	More than 5 Years;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Working speed:	10-13 m/min;	Steel Coil thickness:	0.3-1.5mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

SANXING GROUP steel expert Since 1992

Machine Manufacturer & Steel Building Constructor

Company Information:

Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing.

The Arch sheet roofing is known as Truss less Roofing or Self Supported Roofing system. Known by customer focused on innovative products, backed by years of Industry knowledge.

Welcome to visit us any future time.

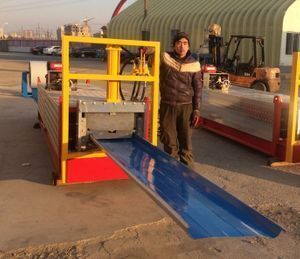

Sanxing SX-KR-24 Standing Seam Roof Forming Machine

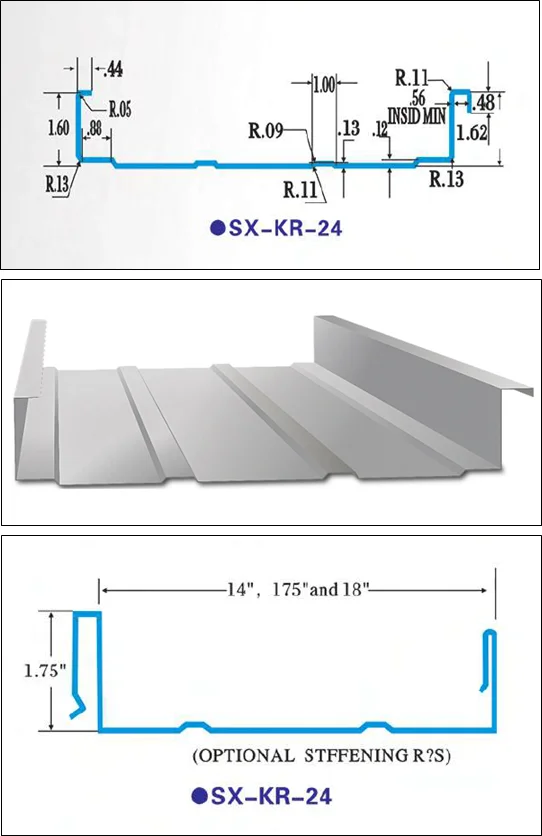

Panel profile:

We also can produce the KR Machine according to the costumer Dimensions Request

Technology:

SX-KR Frame and Roof Metal Forming Machine

The SX-KR frame and roof metal forming machine is a type of equipment to make metal buildings. These buildings are special type for Latin American climate and location. These kinds of constructions are focused on flexibility, cost options and the most important consideration, the time required to build them up. Here is when the frame and roof metal forming machine plays a roll to complete fast and precisely all kind of metal buildings.

Seaming Machine Process:

Durabilityand Resistance to Corrosion:

Galvanized and pre-coated steel coil give corrosion resistance and superior heat reflectivity. Galvanized Steel reflects a high percentage of heat and can withstand in any weather conditions without surface discoloration.

It is of High tensile Steel and comes in spectrum of colors, to enhance the appearance, life and value of the building; specially designed sewing machines eliminate use of fasteners and thus ensure 100% leak proof roofing.

Product Uses

It is suitable Roof Panel and Wall Panel

MAIN TECHNICAL SPECIFICATION

Length: 4.5M

Width: 0.95M

Height: 1.4M

Weight: about 2.5-3Tons

Feeding width: 610mm ( to confirm )

Effective width: 406mm

Thickness: 0.3-0.8mm

Power plant: gasoline diesel engine: 22HP

Battery: 12 Volt DC*2

Drive System: All hydraulic pump with engine

Working speed: 10-13 m/min

Material of rollers: Good 45# steel, rigid chrome coated

Material of roller shafts: 45# steel, quenched HRC 58-62

Material of cutting blade: Cr12 steel

Forming station: 9+2 rollers coated with hard chromium.

Controlling: Handle controller

Transmission: Chain Gear

Cutting: Hydraulic system

Material: PPGI, Galvanized

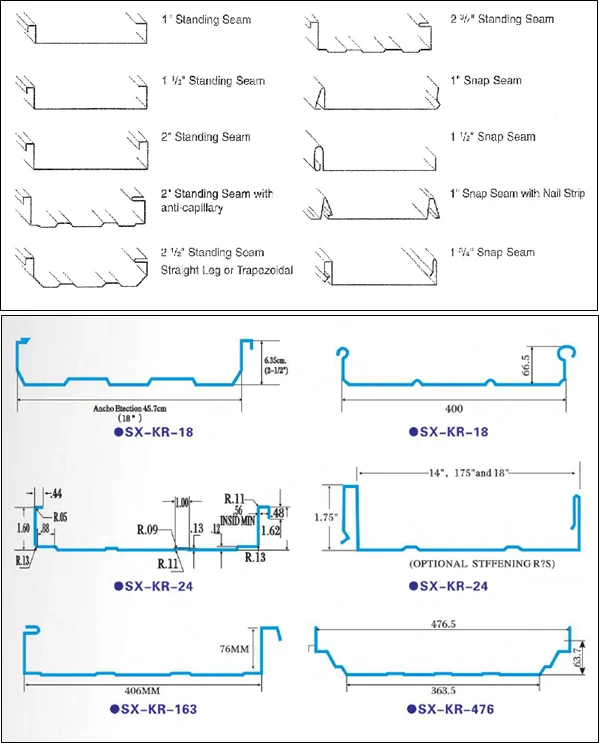

Different Types of SX-KR Profiles:

Accessories

All Accessories are included

WE HAVE GOOD NEWS:

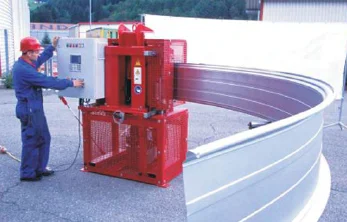

We also produce the SX-KR BENDING MACHINE.

It will be very Useful for project.

Making a Different Style and beautiful Roof.

The price is: FOB 18 thousands USD

Certifications

Sanxing has the Certificate of ISO 9001, GMC, CE, BV SGS, and owns many patentes of inventions

After-Sales Service

1- The seller will offer the service of designing and calculation, far-distance guidance for free within 3 years.

2- The reply from the seller will be within 72 hours after receiving the buyer’s technical requirements.

3- The seller will help the buyer to prepare all the necessary data/information to build the project in within 3 years.

GUARANTEE

1. The guarantee period for rollers, shafts, cutting blade and bending paddles is 10 years from date of the machine arrives in the destination, Not included Damage man-made.

2. If any parts of the machine are damaged by man-made, the seller only charge for the basic cost.

Packaging & Shipping

Naked ,By vessel 40 Feet High Container.

Some of Our Customers:

Buyer Feedback

FAQ

Q: Are You the factory or trade company?

A:We are the factory,found in 1992, we work on alibaba export for 8 years.

Q: Can you make the machine according to my demand?

A: Yes. we have professional team and development personnel can plan to the suitable designs you need.

Q:What's the MOQ?

A:One set, more should be discount.

Q:What's the type of payment?

A:T/T is first

Q:Why we choose you of all the same industry?

A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.

A little More About Us:

Yingkou Sanxing Group is located in Yingkou city, Liaoning province, China since 1992. We are a manufacturer which design and manufacture various kinds of cold roll forming machine, we are also a supplier for lots of Chinese trading company and manufacturer.

Our main products include:

Ultimate construction machine SX-UBM,

Automatic construction machine ACM,

Screw joint panel roll forming machine,

Spiral seaming steel silo machine,

KR standing seam roll forming machine,

Flat steel sheet roll forming machine,

Deck floor roll forming machine,

Sandwich panel roll forming machine,

C/Z shape steel purlin roll forming machine,

Light steel frame roll forming machine,

Rolling door roll forming machine, etc.
