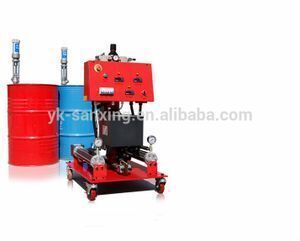

SanXing High Pressure polyurethane insulation spray machine

Product details
Compressed air requirements:0.5-0.8Mpa 0.9m3/min;Material viscosity:200-1000 centipoises (CPS)at operating temperatures;
Brand Name:SANXING;Applicable Industries:Machinery Repair Shops;
After-sales Service Provided:Online support,Video technical support,Engineers available to service machinery overseas;Material ratio:1:1 (fixed);
Electrical requirements:220V 50HZ 14A*3;Size:800mm*700mm*1500mm;
Single package size:80X70X100 cm;Output:2-7.8 kg/min;
Packaging Detail:nude packing for polyurethane insulation spray machine;Warranty:3 years;
Place of Origin:China;Purging:automatic pneumatic, solvent-free;
Single gross weight:1.0 KG;Condition:New;
Selling Units:Single item;Operating temperatures:0℃-80℃;

 polyurethane insulation spray machine



High Pressure Polyurethane Insulation Painting Machine

  As a kind of high pressure polyurethane equipment, the polyurethane insulation painting machine is ideal spray painting equipment used for architectural coating.With an air-pressurized spray gun, the painting machine can be applied to spray polyurethane coating onto the surface, outer wall and roof of warehouse.

Thanks to innovative technology, the high-pressure spray gun can keep low volume feed rates while achieving high-pressure spray power. So the spraying coverage of products sprayed will be  improved, and it is not likely to overspray. As to electrostatic spray painting of car body panels, bike frames, electric tools, guardrails, etc, the spray gun is also applicable.

With the aforementioned advantages, you will surely be satisfied with our company’s products.

CSPU High-Pressure Polyurethane Spray and Perfusion Machine

Standard Configuration

Mainframe

1 set

Spray Gun

1 set

Heating and Preserved Pipe

15m

Connecting Pipe for Spray Gun

1.5m

Max. Pipe Length

90m(optional)

Transfer Pump

2 sets

Technical Parameter

Material Ratio

1:1(mixed)

Power Source

380V 50/60Hz 3 Phases electric

(or according to your requirement)

Air Source

0.5-0.8 Mpa (70-120psi)≥0.9m³ /min

Purging

Automatic pneumatic, solvent-free

Output

4-8kg/min

Heating Device Power for Material

3,000W×2(or optional: 4,500W×2

Heating Power for Pipe Heating

3,500W

Single Component Output Pressure

5-10Mpa (700-1,500psi)

Heat Temperature

80℃

Shipping Parameter

Weight

125kg

Volume

800×700×1,100(mm)

    As widely used painting equipment, the polyurethane insulation painting machine can sprary architectural coatings onto wall and metal evenly, forming a dense coating on them, Polyurethane is the main spraying material for our polyurethane insulation painting machine, and it is sprayed onto the surface of outer wall or roof after atomized in high pressure. The painting machine can output 4 to 8kg polyurethane coating in a minute, which is not likely to be done with a traditional air spraying machine, so it can reduce the times of spraying. With high output pressure, this product can produce 5-10 MPa (700-150psi) single component output pressure.Due to the excellent surface quality, the coating is flat and smooth without any brush mark.The power source adopted is the 380V, 50/60Hz standard electrical configuration, and it is also free to be adjusted according to your requirements.

With such advantages, we believe that our products will be your first choice.

As an experienced polyurethane insulation painting machine manufacturer in China, our company provides a wide range, of products, including steel frame and roof forming machine, guard rail forming machine, spiral steel silo forming machine, and much more.





Technical Specifications of High Pressure Polyurethane Insulation Painting Machine
Material ratio: 1:1 (fixed)
Material viscosity: 200-1000 centipoises (CPS)
at operating temperatures
Output: 2-7.8 kg/min
Operating temperatures: 0℃-80℃
Purging: automatic pneumatic, solvent-free
Electrical requirements: 220V 50HZ 14A×3+16A
Compressed air requirements: 0.5-0.8Mpa 0.9m3/min
Overall dimensions: 800mm×700mm×1500mm





Company Information

Yingkou Sanxing Roll Forming Machine Co.Ltd is the earliest manufacture of trailer arch roof machine in China since 1992. The only one who have got engineering qualification. Not only we are professional in machinery but also experienced in project designing. Welcome to visit us any future time.



Our Services



1) 24 hours technical support by e-mail.

2) Use-friendly English manual and videos.
