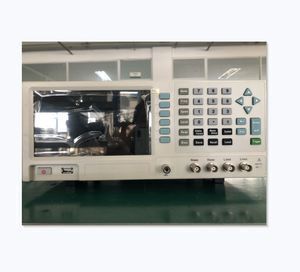

ET1092B high -precision benchhtop digital LCR meter

Supplier: Hangzhou Zhongchuang Electron Co., Ltd.
Region: Zhejiang, China
Contact: Ms zhongchuang hangzhou
Price: $750.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Accuracy Class:	0.05%;	Current Range:	100μArms~20mArms;
Payment Terms:	T/T,Western Union,MoneyGram,Bank Transfer;	Measuring Frequency:	10Hz~500kHz;
Place of Origin:	Zhejiang China (Mainland);	Display:	6 1/2;
Storage:	USB;	Port:	Ningbo or Shanghai;
Packaging Detail:	All products are properly and carefully packaged to protect them from humidity, salt fog, and collisions during transportation.;	Parameter:	Cp,Cs, Lp,Ls, Rs, Z,Y,G-B;
Model Number:	ET1092B;	Supply Voltage:	220V;
Operating Temperature:	0°C-40°C;	Voltage Range:	0~2Vrms;
Dimensions:	330mm285mm136mm (LWH);	Brand Name:	EASTTESTER;
Supply Ability:	3000 Piece/Pieces per Month;	Weight:	3.6KG;
Display Type:	Digital Only;

Product Description

ET 1902 series is widely used in the area of products development,component inspection and so on

Basic information

0.05% basic accuracy or 0.1% basic precision
A maximum of 200 time/s measuring speed
Frequency measurement range of 10 Hz- 1 MHz
Amplitude of excitation signal 10 mV- 2 V adjustable
Internal programmable DC bias voltage -2V~+2V
External additional DC bias voltage supported -60V ~+60V
Automatic level adjustment of voltage or current
V,I testing signal monitoring function
10-point list scanning testing function
10-grade sorting and counting function
6 digit reading resolution
7" LED screen, Chinese and English display
USB, Ethernet, RS232, GPIB, Handler interfaces
Correcting function

More Options For ET1092 Series
ET1092A	USD 610-1000
ET1092B	USD 750-1250
ET1092C	USD 1000-1680
ET1092D	USD 1230-2050
ET1092E	USD 1680-2800

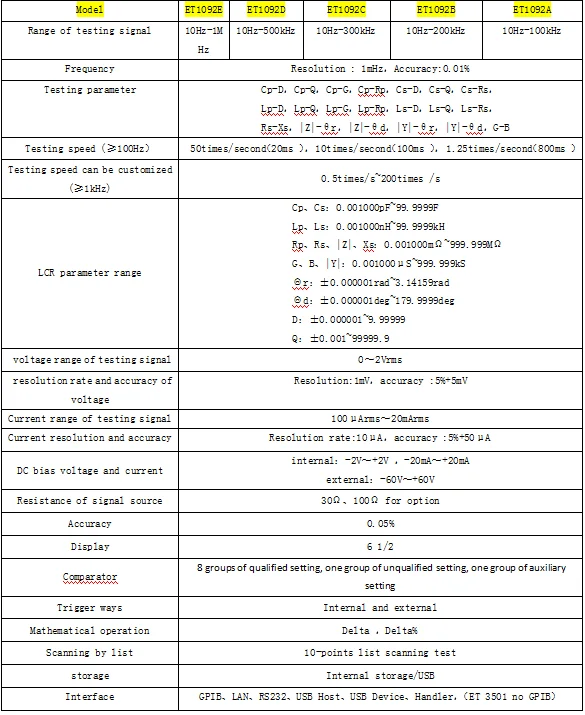

Technic Indicator :

General technical specifications

Power voltage: 220V.AC ±10%, 50Hz;
Power consumption: <20W
Display: 7" TFT LCD, with a resolution of 800*480

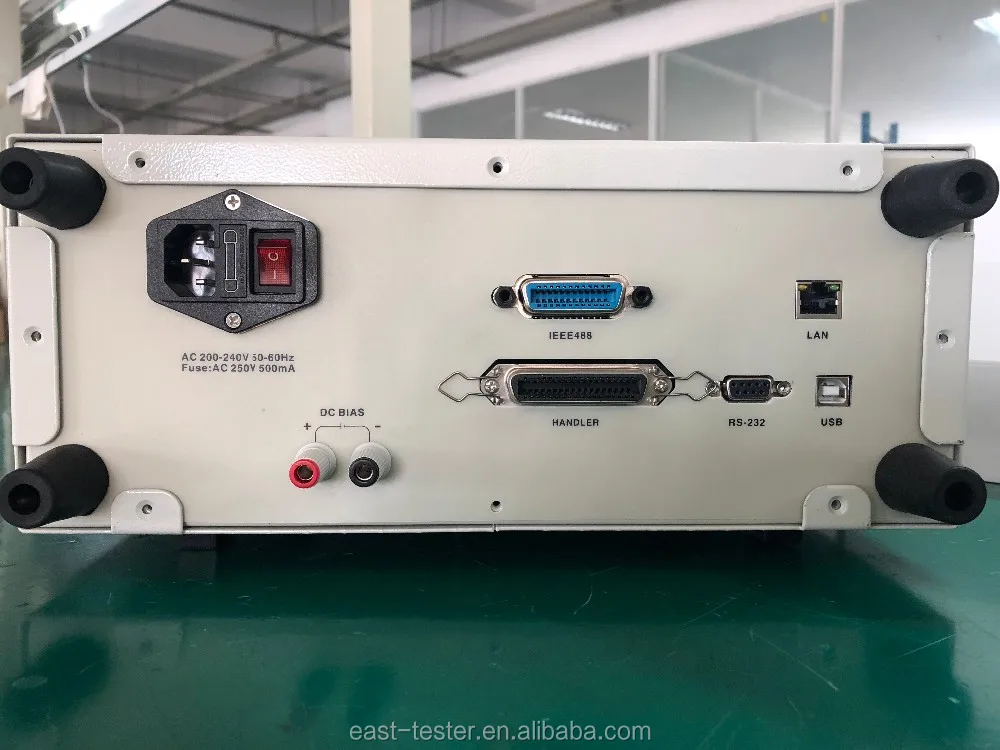

Interfaces: Ethernet, RS232, GPIB, USB and Handler interfaces
Service environment: 0°C-40°C
Sizes: 330mm*285mm*136mm (L*W*H)

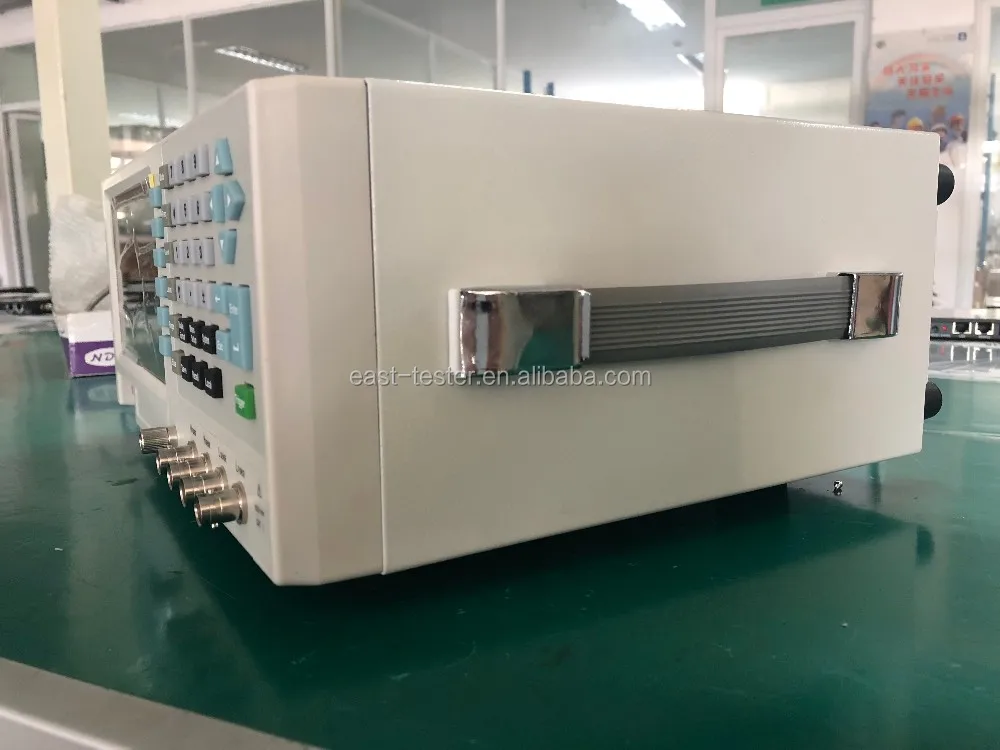

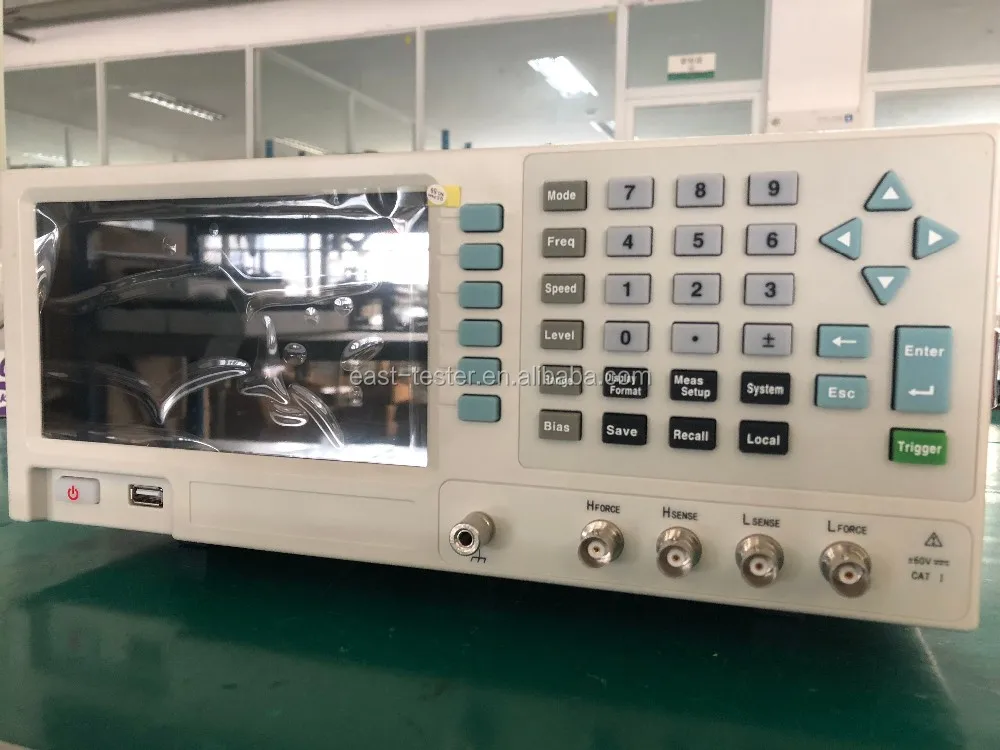

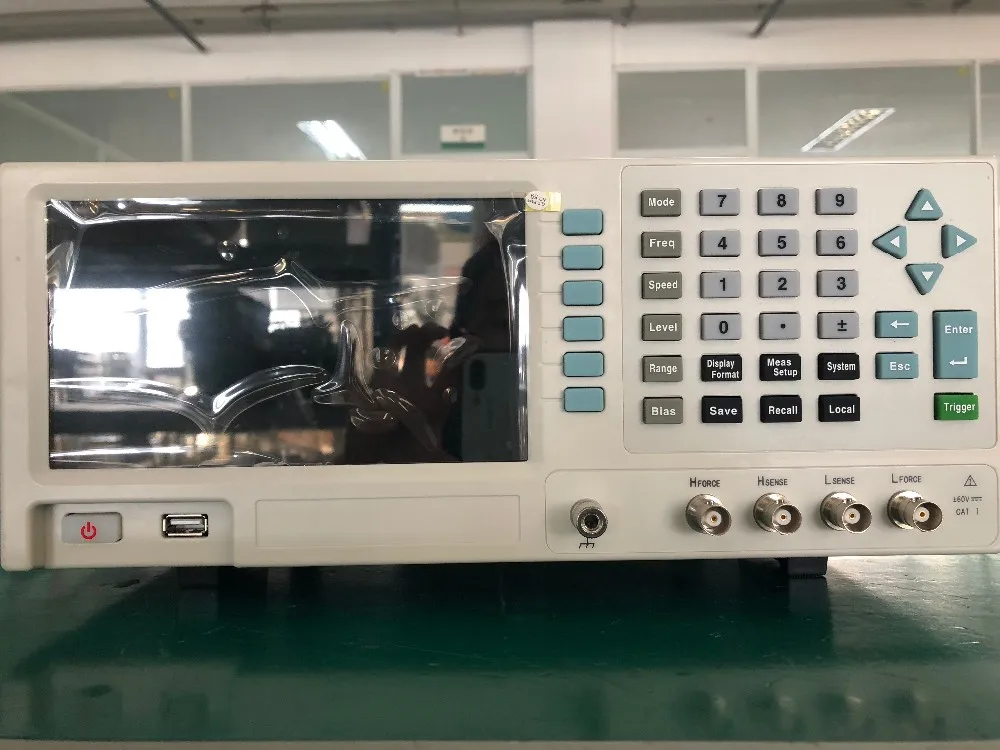

Products Show

Our company

ODM and OEM factory with R&D department since 2003

Trademark: EASTTESTER

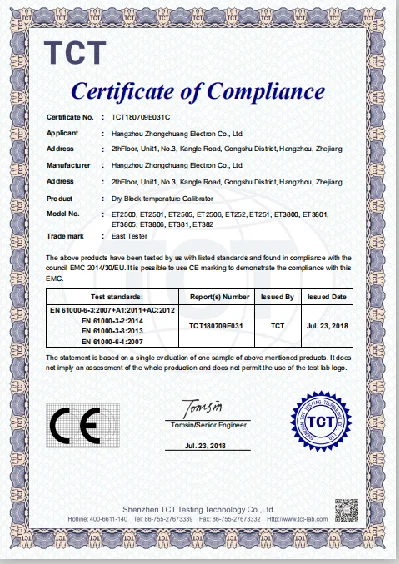

Certificate: ISO9001, CE, ROHS

The main products we are supplying are digital multimeter, process calibrator, function generator, LCR meter, programmable power supply, dry block temperature calibrator, combined multichannel calibrator and so on.

Exhibition

Now our products have been exported to many countries and regions all over the world, like America, India, Korea, Germany, Mexico.

Factory

Production process

PCB (Printed circuit board) --soldering --Assembling -- Visual inspeciton --Testing --Packing --Shipping

We have devoted ourselves to the whole production including R&D, production, sales and after service with a professional and experienced R&D team and QC team.

Packing & Delivery

Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shanghai airport to customers' destination city air port.
3. For large order, we can do FOB shanghai or ningbo price, CIF price as u asked.
