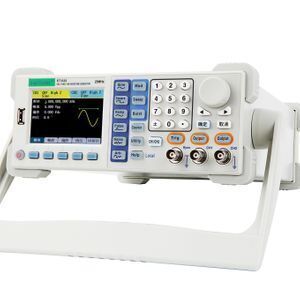

ET33 Series Two-channel Function/ Arbitrary Waveform Generator

Supplier: Hangzhou Zhongchuang Electron Co., Ltd.
Region: Zhejiang, China
Contact: Ms zhongchuang hangzhou
Price: $230.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	East tester;	Port:	FOB Shanghai;
Place of Origin:	China;	Payment Terms:	T/T;
Packaging Detail:	paper pack-up;	Model Number:	ET3325;

Products Overview

ET33 series two-channel function / arbitrary waveform generator adopts direct digital synthesis (DDS) technology to design, enabling to generate output signal which is accurate, stable and of low distortion

l 3.5-inch 480×320TFT LCD with clear graphic interface

l Chinese / English menu available

l Press key for help and information

l File management supporting USB flash disk and local storage

Key features

l For two-channel output, the highest output frequency is: ET3310 Model is 10MHz,ET3325 Model is 25MHz,ET3340 Model is 40MHz,ET3360 Model is 60MHz and ET3370 Model is 70MHz

l The two channels are independent from each other and have the function of phase synchronization

l Sampling rate of 160MSa/S, vertical resolution of 12 bit and storage depth of 16k

l Five basic waveforms and 32 arbitrary waveforms in-built

l Waveform storage: Supports 10 user-defined set of waveform editing

l Pulse wave output set in edge time

l Internal/external AM,FM,FSK,PM,ASK,PSK modulation function

l Output of linear/logarithmic frequency sweep and burst waveform

l Frequency meter of high precision of 200MHz

l With RS232 interface, USB Device, USB Host interface supporting USB flash disk storage

l Multi-functional arbitrary waveform editing software equipped

Product Technical Indicators


model	ET3310	ET3325	ET3340	ET3360	ET3370
Waveform types	Sine, square, triangle, pulse, noise and arbitrary waves (including DC)
Sine	1µHz~10MHz	1µHz~25MHz	1µHz~40MHz	1µHz~60MHz	1µHz~70MHz
Square	1µHz ~ 5MHz	1µHz ~ 5MHz	1µHz~10MHz	1µHz~10MHz	1µHz~10MHz
Triangle	1µHz~500kHz	1µHz~500kHz	1µHz~1MHz	1µHz~2MHz	1µHz~2MHz
Pulse	100µHz~5MHz	100µHz~ 5MHz	100µHz~10MHz	100µHz~10MHz	100µHz~10MHz
Arbitrary wave	1µHz ~ 5 MHz	1µHz ~ 5MHz	1µHz~10MHz	1µHz~10MHz	1µHz~10MHz
Noise (-3dB)	7MHz Bandwidth
Frequency Resolution	1µHz
Frequency Accuracy	±5ppm
Sine Wave Characteristics
CH1 harmonic distortion	0~1MHz: <-45dBc; 1MHz~10MHz:<-40dBc;10MHz~20MHz:<-30dBc; 20MHz~40MHz:<-25dBc;40MHz~70MHz:<-20dBc
CH2 harmonic distortion >1Vpp	0~1MHz: <-45dBc;1MHz~40MHz: <-40dBc;40MHz~70MHz:<-35dBc
Total harmonic distortion	<0.2% (20Hz-20kHz,1Vpp)
Square Wave Signal Characteristics
Rise/fall Time	<20ns
Overshoot	<5%
Duty cycle	≤100kHz: 1%~99%;≤5MHz: 20%~80%;≤10MHz: 40%~60%(0.1%)
Dissymmetry (50% duty cycle)	1% Period + 5ns
Jitter	6ns+0.1% Period
Ramp Wave Characteristics
Linearity degree	≤0.1% Peak output
Symmetry	0.0~100.0%(resolution 0.1%)
Pulse Wave Characteristics
Pulse width	Min20ns; 1ns resolution
Edge ransition time	Min 20ns;
Resolution	1 ns or 4 bits
Overshoot	<5%
Jitter	6ns+0.1% Period
