Signal generator with white noise waveform output

Supplier: Sinocera Piezotronics Inc.
Region: Jiangsu, China
Contact: Ms SINOCERA PIEZOTRONICS INC
Price: $770.00 / 1 - 4 sets
$731.00 / 5 - 9 sets
$693.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Output signal waveform 4:	White Noise	Output signal waveform 2:	square
Output signal waveform 1:	sine	Origin:	Jiangsu, China
port:	Shanghai	brand:	own brand

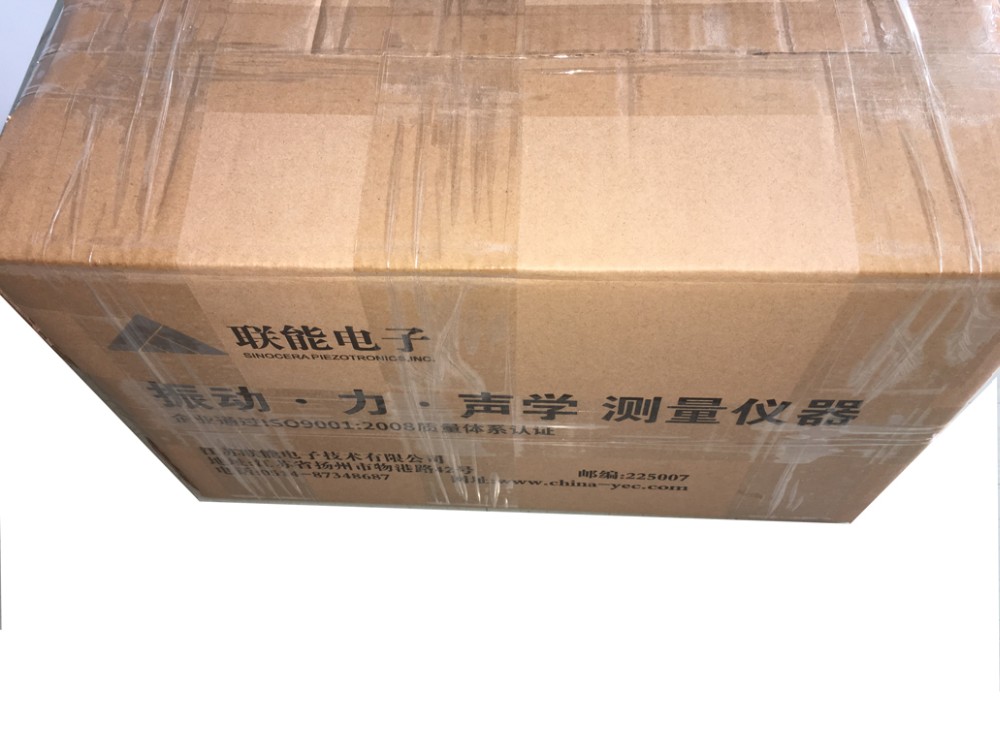

Output signal waveform 3:	triangle	Packaging Details:	Carton size: 454227cm.
Frequency range 1:	2-2kHz	payment terms:	T/T, Western Union, Alibaba Trade Assurance
Frequency range 2:	20-20kHz	Supply capacity:	500 sets per month
model:	leaf 1311	Delivery Details:	7 days after payment received

overview

Signal generator.

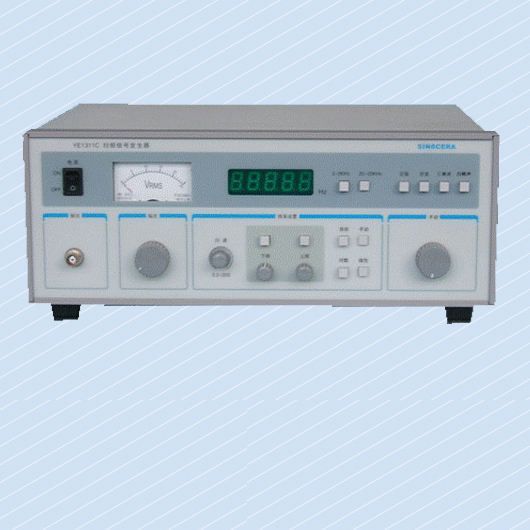

YE1311 signal generator is a new type of frequency sweep signal generator, which can generate precise sine wave, square wave, triangle wave and white noise. As a general signal source, it is widely used in vibration modal testing, mechanical impedance measurement, microphone, loudspeaker and earphone quality analysis, phase response measurement, etc. in vibroacoustics and electronic engineering.

Product Description

feature:

1. Generate sine wave, square wave, triangle wave and white noise;
2. Manual and automatic frequency scanning;
3. Linear and logarithmic selection
4. LED digital display output waveform
5. The meter displays the output amplitude

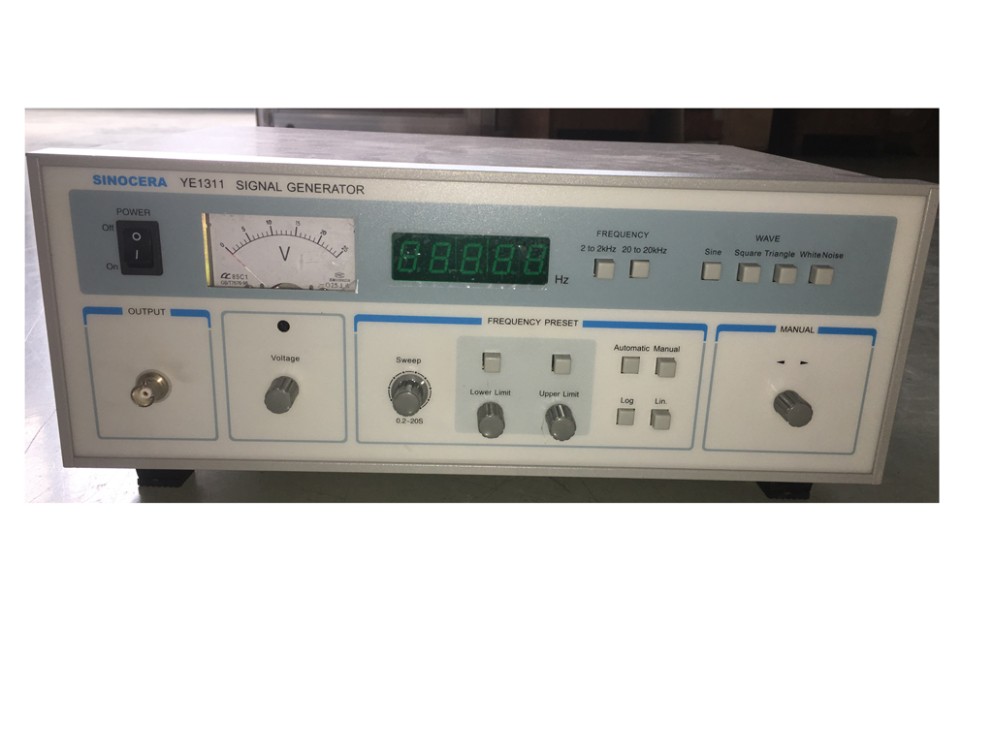

front

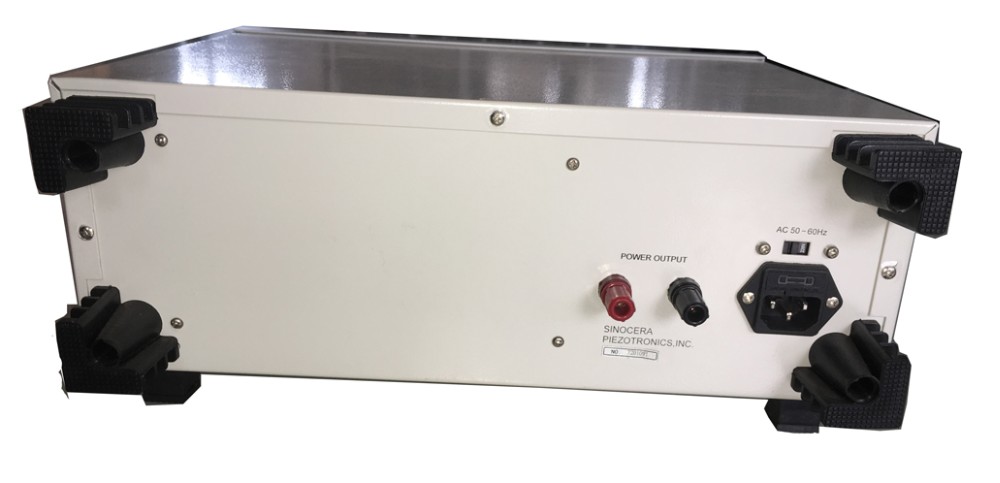

step back

Specification:

White noise is noise in which the power spectral density is uniformly distributed over the entire area.

It can be selected according to the needs of customers.

output	output waveform	sine; square; triangle; white noise
	Frequency Range	2Hz to 2kHz; 20Hz to 20kHz switchable
	signal output	1Vrms
	power output	30W (4Ω load)
	Frequency response	≤±1dB (4Ω load, full power)
frequency display	frequency display	0 to 99999Hz
	solve	2～2kHz: ±0.1Hz; 20～20kHz: ±1Hz
	mistake	0.01%±1Hz
	refresh rate	2 to 2kHz: 1 time/second; 20～20kHz: 10 times/second
voltage indication	Voltage	25Vrms±8% (≤20V, 10Hz to 20kHz)
	Detection method	True RMS
sweep the floor	Sweeping period	0.1S to 20S adjustable
	sweeping mode	linear, logarithmic
Distortion (20Hz to 20kHz)	signal output	≤±0.6%
	power output	≤±1% (4Ω load)
Usage	temperature	Working temperature: 0°C to +40°C; Storage: -55°C to +85°C
	humidity	95%RH max.
power supply	AC220V50Hz/110V60Hz
external characteristics	aspect	360 mm (width) ╳ 207 mm (height) ╳ 120 mm (depth)
	weight	about 4 kg
output type	strength	JS3-2 terminal
	Signal	BNC socket
Accessories	output line	Signal output line: one;
		Power output line: one
	AC power cord	one
