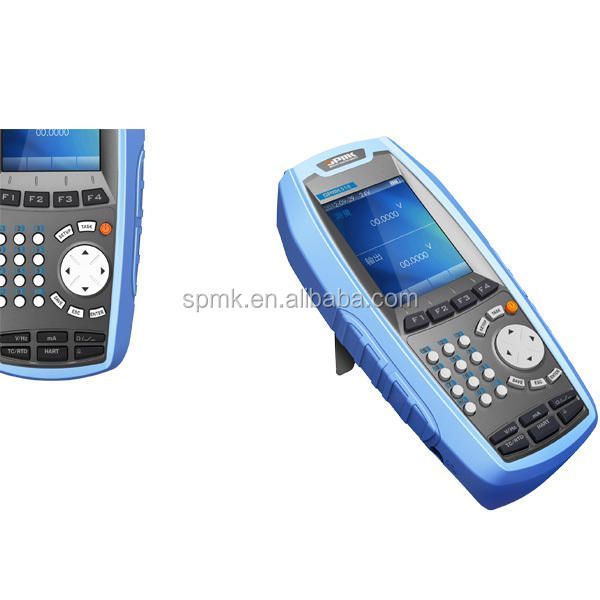

SPMK518 Process Calibrator | SPMK518 | SPMK517 | SPMK516 | ||
Intelligent process Calibrator | Multifunctional Process Calibrator | Multifunctional Calibrator | |||
Measurement | Millivolt voltage | ● | ● | ● | |
Voltage | ● | ● | ● | ||
Current | ● | ● | ● | ||
frequency | ● | ● | ● | ||
pulse | ● | ● | ● | ||
Resist | ● | ● | ● | ||
Open | ● | ● | ● | ||
11 RTD | ● | ● | ● | ||
13 thermocouples | ● | ● | ● | ||
simulation | Millivolt voltage | ● | ● | ● | |
Voltage | ● | ● | ● | ||
Current | ● | ● | ● | ||
frequency | ● | ● | ● | ||
pulse | ● | ● | ● | ||
Resist | ● | ● | ● | ||
Simulate 11 RTDs | ● | ● | ● | ||
Simulation 13 popular | ● | ● | ● | ||
other Function | Hart's communication | ● | no Available | ● | |
External pressure module | Need to order Separately | Need to order Separately | no Available | ||
Hot Books | ● | ● | ● | ||
Step Programming Output | ● | ● | ● | ||
24V cycle power supply | ● | ● | ● | ||
Simulated transmitter | ● | ● | ● | ||
RS232 communication | ● | ● | ● | ||
Storage | ● | ● | ● |
Electrical specifications - Measurement (ambient temperature (20±5) ℃, 1 year accuracy) | ||||||
Signal | scope | accuracy | solve | |||
Current | (-30-30)MA | ±(0.01%RD+0.005%FS) | 0.1μa | |||
Voltage | (-30-30)v | ±(0.01%RD+0.005%FS) | 0.1mv | |||
MV | (-75-75) MV | ±(0.01%RD+0.005%FS) | 0.1μV | |||
R-3W | (0-400) ω (0-4000) ω | ±(0.02%RD+0.005%FS) | 1MΩ 10MΩ | |||
R-4W | (0-400) ω (0-4000) ω | ±(0.01%RD+0.005%FS) | 1MΩ 10MΩ | |||
frequency | (1-50000) Hz | ±(0.005%RD+0.002%FS) | 1Hz | |||
pulse | 0-99999 | ±1pcs | 1 | |||
Limit switch | If the switch has a detect voltage, the range is (3-24)V | |||||
Thermocouple | kejtnrsbcdglu | |||||
RTD | PT1000 (385), PT500 (385), PT100 (385), PT100 (3916), PT100 (3926), PT10 (385) CU10 (427), CU50 (428), CU100 (428), NI120 (672), NI100 (618) |
Electrical specifications - Source (ambient temperature (20±5) ℃, 1 year accuracy)
| ||||||
Signal | scope | accuracy solve | solve | |||
Current | (0-22) MA | ±(0.02%RD+0.005%FS) | 0.1μa | |||
Voltage | (0-12)v | ±(0.02%RD+0.005%FS) | 0.1μV | |||
MV | (-10-100) MV | ±(0.02%RD+0.005%FS) | 0.1μV | |||
Resist | (0-400) ω | ±(0.02%RD+0.005%FS) | 1MΩ | |||
(400-4000) ω | ±(0.03%RD+0.01%FS) | 10MΩ | ||||
frequency | (0-50000) Hz | ±(0.005%RD+0.002%FS) | 0.1Hz | |||
pulse | 0-99999 | ±1pcs | 1 | |||
DC24V | 24.0±0.5V | N/A. | N/A. | |||
simulation Thermocouple | kejtnrsbcdglu | |||||
Analog RTD | PT1000 (385), PT500 (385), PT100 (385), PT100 (3916), PT100 (3926), PT10 (385) CU10 (427), CU50 (428), CU100 (428), NI120 (672), NI100 (618) |
*Measure voltage, current, resistance, frequency, pulse, switch (on and off), also The temperature can be measured using RTD/thermocouple, which is mutual put one's oar in; | ||||||||
*Simulate 13 thermocouples and 11 RTD measurements and outputs, Compensation with cold connection; | ||||||||
* The DC24V power supply is separated from the measurement and output; | ||||||||
*Built in Hart Communication; | ||||||||

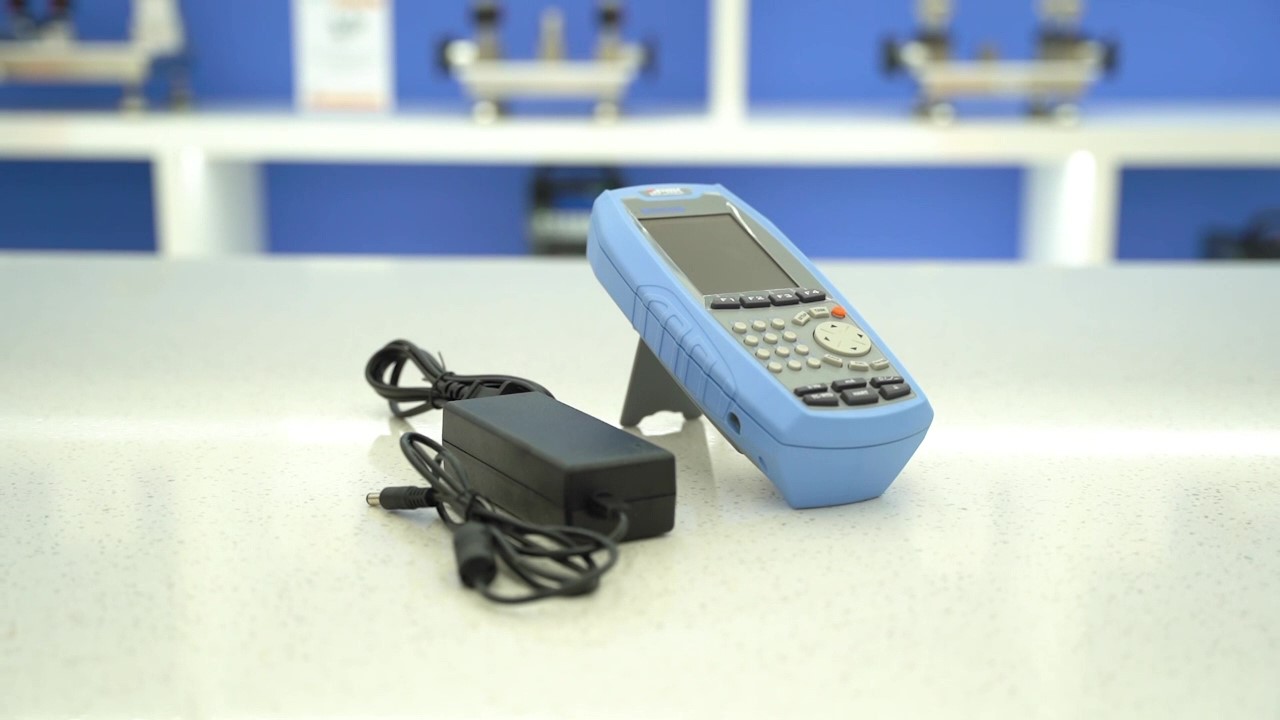

*AC/DC power supply: It is recommended to use a battery power supply to improve performance. |
