master gauge for pressure calibration pressure manometer

Product details
Type:high precision digital pressure gauge;dimension:120x45mm;
Function:pressure comparator;Brand Name:SPMK;
Serial port:RS232 Modbus;Packaging Detail:alloy case or paper carton;
digits:6 digits;Supply Ability:2000 Piece/Pieces per Month;
Model Number:SPMK700;Pressure range:up to 36250 psi, 2500 bar.;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Port:Beijing,Tianjin,,,etc;
Accuracy:+_0.05%, +-0.025%, +-0.2%.;Place of Origin:China;
Connection:M20x1.5 male;certificate:ISO/CE/explosion proof available;
weight:1 kg;

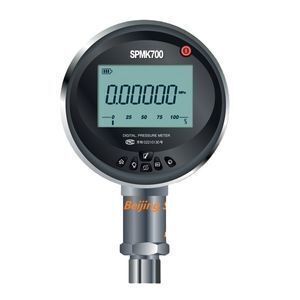

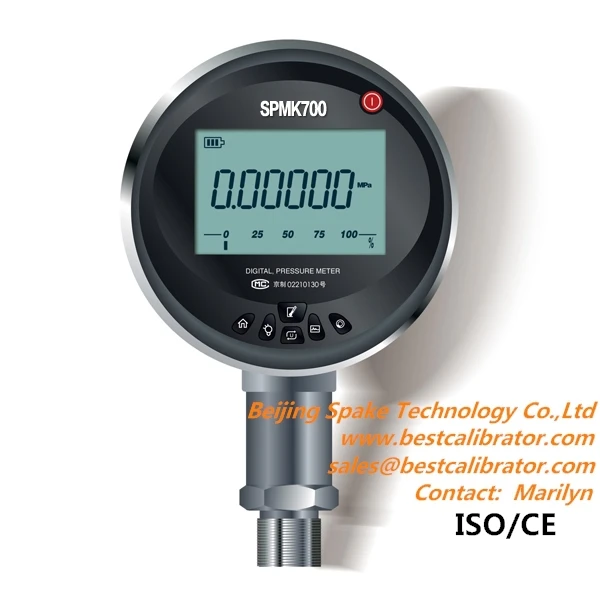

SPMK700--hot sell digital standard pressure GAUGE



With advanced microprocessor technology and high-tech silicon pressure sensors, SPMK700 digital pressure gauge provides an accurate, reliable and economic solution for wide range of pressure applications. Each silicon pressure sensor in gauges has been specially tested and screened before assembly.



Features:

MIN/MAX data recall

Pressure ranges to 36,250 psi (2500 bar)

Accuracy: ±0.05%FS, ± 0.1%FS , ±0.2%FS optional

Large, easy to read display with backlit, 5-digit resolution

Rechargeable li-ion or adapter

Optional 10 pressure units: Pa,Kpa,Mpa,mmHg,KFG/cm2 ,cmH2O,mmH2O,PSI,mbar,bar

National explosion-proof certification approved. (Certificate#.: Exia II CT4Ga)



Technical Specifications:



Pressure Range

0-36250 psi  0-2500 bar

Accuracy

0.2%F.S, 0.1% F.S, 0.05%F.S, 0.025%F.S

10 Optional Units

Pa,Kpa,Mpa,mmHg,KFG/cm2 ,cmH2O,mmH2O,PSI,mbar,bar

Connection

M20x1.5 male or 1/4″NPT(or customized)

Communication

RS232 Modbus

Power Supply

li-ion battery or adapter

Environmental Temperature

0~122°F  (0~ 50°C)

Environmental Relative humidity

≤95%R.H

Atmospheric Pressure

0.86~1.01 bar (86~101kpa)

Overall Dimensions

120x45 mm

Net Weight

0.7kg

CE/ISO Approved, Explosion-proof Certificate

Company website: www.bestcalibrator.com











About our company: Beijing SPAKE Technology Co.,Ltd.

We are a perfessional manufacturer of pressure/temperature calibration instrument with 18 years experience in China and registered capital of 33.8 million yuan.Our main products are pressure calibrator,precision pressure gauge,pressure testing pump,multifunction process calibrator.temperature calibrator dry block. We got more than 10 utility model patents in 2009, and all products supporting test system software have got the software copyright certificate. In 2006, Our company passed the ISO9001: 2000 quality inspection.in 2010, most products have obtained CE certificate and Explosion-Proof Certificate.









After-sales Service:

We promise to deliver the following after-sales service:

1. Warranty: The warranty period is 12 months starting from the shipping date;

2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;

3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;

4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
