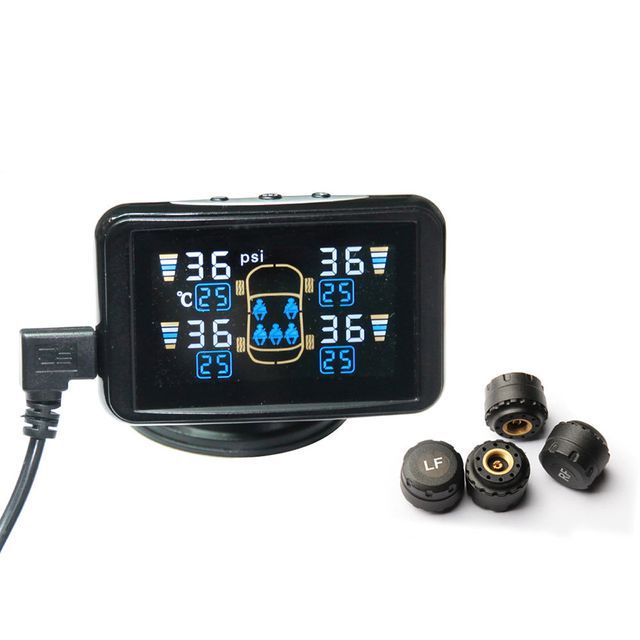

Universal Wireless External LCD TPMS Tire Pressure Monitoring System

Supplier: GOBIZ ELECTRONICS LIMITED
Region: Hong Kong S.A.R., China
Contact: Ms Bella He
Price: $40.00 / >=100 sets
Min. Order: 100 sets

Click here to contact

Product details

model:	TM527C/SO	payment terms:	L/C, D/A, D/P, T/T, Western Union, Paypal
port:	Shenzhen or Hong Kong	brand:	Gobiz
Sensor pressure range:	0-87 psi	Origin:	Guangdong, China
Wireless LCD tire pressure monitoring system:	Suitable for 4 wheel light vehicles	Sensor size:	Diameter: 21mm, Height: 17.5mm
Sensor Weight:	9 grams	Sensor battery life:	2 years
Packaging Details:	Customers can customize the packaging	Delivery Details:	15-30 days
Supply capacity:	15000 sets per month	frequency:	433.92 MHz

Universal Wireless LCD Tire Pressure Monitoring System External TPMS

1. What are the advantages of TPMS?

reduce driving risk

Improve fuel economy

Extend tire life

2. Features:

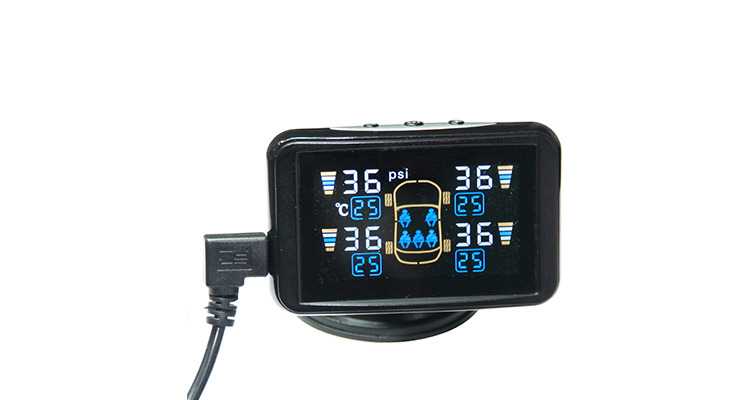

Display Features

Reliable and easy to install.

Built-in rechargeable lithium battery.
Automatic backlight.
Automatically wakes up when the vehicle starts moving.
Configurable high/low voltage warnings.
Configurable high temperature warning.
Visual and audible alarms.
Optional pressure units: PSI or BAR.
Selectable temperature units: C or F.
Monitor up to 5 tires.
Simultaneously display the pressure or temperature of 4 tires.
Sensor Features

Reliable cap sensor with easy installation.
water proof.
Replaceable sensor battery.
The sensor transmits pressure and temperature data every 5 minutes.
Rapid leak alert.
Individually coded sensors.
Anti-theft design.

3. Specifications:

monitorSpecification:

Operating Voltage:	12 to 24V
frequency	433.92 MHz
Operating temperature	-40 to +85°C
size	76×50×22mm (L×W×H)
weight	58 grams

ExternalSensor Specifications:

Pressure range:	0 to 6 bar, 0 to 87 psi
Pressure Sensitivity:	± 0.1 bar or 1.5 psi
Temperature Sensitivity:	±3℃
Transmission frequency:	433.92 MHz
Battery Life:	2 years (sensor battery replaceable)
Operating temperature:	-40 to +80°C
weight:	9 grams
size:	Diameter: 21mm, Height: 17.5mm
